Saboteur: Disassembly

6270: Data block at 6270


6270	DEFB $3E,$00,$00,$00,$00,$00,$00,$00
6278	DEFB $00,$00,$00,$00,$00,$00,$00,$00
6280	DEFB $00,$00,$00,$00,$00,$00,$00,$00
6288	DEFB $00

6289: Show title picture (two ninjas)

Used by the routine at BC0D.
6289	LD HL,$62DB	Encoded picture data address
628C	LD DE,$6590	Tile screens address, used as a buffer
628F	LD A,(HL)	Load next byte of picture data
6290	CP $02	check for control byte $02 - end of sequence
6292	JR Z,$62A9	=> Copy the buffer to screen
6294	INC HL	move to next source byte
6295	CP $00	check for repeater marker
6297	JR Z,$62A1	=> repeat byte N times
6299	CP $FF	check for block marker
629B	JR Z,$62A1	=> repeat byte N times
629D	LD (DE),A	Store regular byte into tile screen
629E	INC DE	next buffer address
629F	JR $628F	Loop back to process next byte
62A1	LD B,(HL)	get repeat count
62A2	LD (DE),A	store repeated byte in buffer
62A3	INC DE	next buffer address
62A4	DJNZ $62A2	repeat B times
62A6	INC HL	move to next source byte
62A7	JR $628F	continue processing
Buffer is ready, copy to screen
62A9	LD HL,$4000	Start of screen
62AC	LD DE,$6590	Tile screens address
62AF	LD C,$0C	Number of columns = 12
62B1	PUSH HL	save screen address
62B2	LD B,$18	Number of rows = 24
62B4	PUSH HL	save screen address
62B5	PUSH BC	save counters
62B6	LD B,$08	8 lines
62B8	LD A,(DE)	get picture byte
62B9	OR (HL)	bitwise OR with screen pixels
62BA	LD (HL),A	put to the screen
62BB	INC DE	next address in the buffer
62BC	INC H	next line
62BD	DJNZ $62B8	Repeat 8 times
62BF	POP BC	restore counters
62C0	POP HL	save screen address
62C1	RR H
62C3	RR H
62C5	RR H
62C7	PUSH DE	save address in picture buffer
62C8	LD DE,$0020	32
62CB	ADD HL,DE	move HL to next tile row
62CC	POP DE	restore address in picture buffer
62CD	RL H
62CF	RL H
62D1	RL H
62D3	DJNZ $62B4	continue loop for rows
62D5	POP HL	restore screen address
62D6	INC HL	next column
62D7	DEC C	decrement column counter
62D8	JR NZ,$62B1	continue loop for columns
62DA	RET

62DB: Title picture (two ninjas), RLE encoded


62DB	DEFB $00,$07,$FF,$01,$00,$01,$FF,$01
62E3	DEFB $03,$00,$14,$01,$01,$01,$01,$01
62EB	DEFB $01,$01,$03,$03,$03,$03,$03,$03
62F3	DEFB $03,$03,$07,$07,$0F,$0F,$1F,$1F
62FB	DEFB $0F,$0F,$0F,$07,$07,$07,$07,$03
6303	DEFB $03,$03,$01,$01,$01,$00,$05,$01
630B	DEFB $01,$01,$01,$03,$03,$03,$07,$07
6313	DEFB $07,$07,$03,$01,$00,$01,$01,$03
631B	DEFB $07,$03,$01,$01,$01,$03,$03,$07
6323	DEFB $07,$0F,$0F,$0F,$0F,$0F,$0F,$1F
632B	DEFB $6F,$EF,$F7,$F7,$FF,$01,$F7,$E7
6333	DEFB $07,$07,$07,$03,$03,$03,$03,$03
633B	DEFB $03,$03,$03,$03,$01,$01,$01,$01
6343	DEFB $01,$01,$01,$01,$01,$03,$07,$07
634B	DEFB $07,$03,$03,$03,$01,$01,$01,$01
6353	DEFB $01,$00,$01,$01,$01,$01,$03,$07
635B	DEFB $03,$01,$01,$01,$01,$01,$01,$01
6363	DEFB $00,$07,$01,$01,$01,$01,$01,$01
636B	DEFB $01,$00,$01,$01,$01,$01,$03,$03
6373	DEFB $03,$03,$03,$01,$00,$13,$80,$7E
637B	DEFB $FF,$01,$F8,$07,$00,$0D,$01,$07
6383	DEFB $0F,$3F,$7F,$FF,$97,$7F,$3F,$1F
638B	DEFB $00,$10,$07,$F8,$0A,$FD,$1D,$17
6393	DEFB $10,$0F,$00,$05,$01,$0F,$3F,$FF
639B	DEFB $03,$FE,$FC,$F8,$FB,$F7,$EF,$EF
63A3	DEFB $DF,$DF,$DF,$BF,$7F,$7E,$7E,$BF
63AB	DEFB $BF,$DF,$EF,$FF,$07,$F8,$FF,$3C
63B3	DEFB $FD,$FC,$FC,$F8,$F8,$F8,$F0,$F8
63BB	DEFB $F8,$F8,$FC,$FC,$FC,$FE,$FE,$FE
63C3	DEFB $FF,$0B,$FE,$FE,$FE,$FC,$FC,$FC
63CB	DEFB $FC,$F9,$F8,$F8,$F8,$F0,$F0,$F0
63D3	DEFB $E0,$E0,$E0,$C0,$C0,$C0,$C0,$C0
63DB	DEFB $80,$80,$80,$80,$80,$C0,$E0,$E0
63E3	DEFB $E0,$F0,$F8,$F8,$F8,$FC,$FC,$FC
63EB	DEFB $FE,$FE,$FE,$FC,$F8,$C0,$00,$10
63F3	DEFB $E0,$78,$8D,$23,$4F,$4F,$FF,$01
63FB	DEFB $0F,$9F,$7F,$7F,$7F,$FF,$02,$FC
6403	DEFB $F8,$E0,$C0,$00,$04,$FC,$FF,$07
640B	DEFB $00,$01,$FF,$01,$3F,$C0,$FE,$FE
6413	DEFB $FF,$04,$FB,$FB,$F7,$CF,$3F,$FF
641B	DEFB $15,$FE,$FE,$FE,$FC,$FC,$FD,$FB
6423	DEFB $FB,$F7,$F7,$EF,$EF,$F7,$F7,$F4
642B	DEFB $F8,$F8,$FC,$FE,$FE,$FE,$FF,$14
6433	DEFB $7F,$0F,$01,$00,$05,$01,$01,$01
643B	DEFB $03,$07,$07,$07,$07,$07,$0F,$0F
6443	DEFB $0F,$0F,$0F,$1F,$1F,$1F,$1F,$1F
644B	DEFB $3F,$7F,$7F,$7F,$FF,$06,$FE,$00
6453	DEFB $31,$F8,$FC,$FE,$FE,$FE,$FC,$FC
645B	DEFB $FC,$FE,$FF,$03,$7F,$3F,$1F,$1F
6463	DEFB $1F,$3F,$3F,$3F,$7F,$7F,$FF,$05
646B	DEFB $7F,$7F,$7F,$7F,$7F,$FF,$06,$FE
6473	DEFB $F8,$F0,$F0,$E0,$C0,$80,$80,$C0
647B	DEFB $C0,$E0,$E0,$E0,$E0,$C0,$C0,$C0
6483	DEFB $C0,$C0,$80,$80,$80,$80,$00,$09
648B	DEFB $80,$C0,$E0,$E0,$F0,$E0,$C0,$00
6493	DEFB $02,$01,$01,$01,$01,$01,$01,$00
649B	DEFB $01,$C0,$E0,$F0,$FC,$FE,$FF,$33
64A3	DEFB $00,$3C,$80,$80,$C0,$C0,$C0,$E0
64AB	DEFB $E0,$E0,$F0,$F0,$F8,$F8,$F8,$F0
64B3	DEFB $F0,$E0,$C0,$C0,$C0,$C0,$C0,$80
64BB	DEFB $80,$80,$80,$00,$19,$01,$03,$03
64C3	DEFB $07,$07,$07,$07,$0F,$3F,$3F,$07
64CB	DEFB $07,$07,$07,$07,$07,$07,$7F,$FF
64D3	DEFB $0C,$7F,$BF,$DF,$EF,$F7,$F7,$FB
64DB	DEFB $FB,$FB,$FB,$FB,$FB,$FB,$FB,$FD
64E3	DEFB $FD,$FD,$FD,$FD,$FB,$FB,$F7,$F7
64EB	DEFB $EF,$EF,$DF,$DF,$BF,$BF,$BF,$BF
64F3	DEFB $BF,$BF,$BF,$7F,$7F,$7F,$7F,$78
64FB	DEFB $00,$03,$80,$C0,$F0,$F8,$F8,$FC
6503	DEFB $FE,$FC,$F8,$C0,$00,$6B,$0F,$3F
650B	DEFB $FF,$05,$FE,$F0,$FF,$38,$F8,$F0
6513	DEFB $E0,$C0,$00,$7B,$C0,$F0,$F8,$FC
651B	DEFB $FC,$FC,$FC,$04,$04,$FC,$FC,$FC
6523	DEFB $FC,$FC,$F8,$F8,$FF,$30,$00,$02
652B	DEFB $01,$01,$01,$01,$01,$03,$03,$03
6533	DEFB $03,$03,$01,$00,$83,$80,$F0,$FE
653B	DEFB $FF,$02,$F8,$07,$FF,$07,$7F,$1F
6543	DEFB $07,$01,$00,$07,$E0,$FC,$FF,$22
654B	DEFB $00,$86,$38,$FF,$0E,$1F,$03,$00
6553	DEFB $07,$E0,$FF,$15,$FE,$FC,$F8,$F0
655B	DEFB $E0,$F0,$F8,$F8,$F8,$F8,$F8,$00
6563	DEFB $88,$80,$C0,$C0,$C0,$80,$80,$00
656B	DEFB $03,$80,$F0,$FE,$FF,$04,$1F,$0F
6573	DEFB $00,$06,$C0,$FE,$FF,$09,$FE,$FC
657B	DEFB $FC,$FC,$F8,$F0,$E0,$C0,$80,$00
6583	DEFB $9D,$38,$FC,$FC,$F8,$F0,$F0,$F0
658B	DEFB $E0,$00,$9A,$02
658F	DEFB $00

6590: Tile screen 0 30x17 tiles, 510 bytes - background

Used by the routine at F9E4.
Code to show anti-piracy message just once at the very beginning
6590	LD HL,$5800	Start of screen attribute area
6593	LD DE,$5801	Start of screen attribute area + 1
6596	LD BC,$0020	32
6599	LD (HL),$46	set the attribute
659B	LDIR	copy to the rest of the row
659D	LD BC,$02C0	704 = 22 attribute rows
65A0	LD (HL),$0F	set the attribute
65A2	LDIR
65A4	LD BC,$001F
65A7	LD (HL),$06
65A9	LDIR
65AB	LD HL,$58E0
65AE	LD DE,$0000
65B1	LD C,$07
65B3	LD A,$06
65B5	LD B,$20
65B7	LD (HL),A
65B8	INC HL
65B9	DJNZ $65B7
65BB	ADD HL,DE
65BC	DEC C
65BD	JR NZ,$65B5
65BF	LD HL,$65E7	Start of anti-piracy message
65C2	LD DE,$4000	Screen address
65C5	LD C,$00
65C7	CALL $AED1	Print string
65CA	LD DE,$4800	Screen address
65CD	LD C,$00
65CF	CALL $AED1	Print string
65D2	LD DE,$5000	Screen address
65D5	LD C,$00
65D7	CALL $AED1	Print string
Wait for any key and RET
65DA	XOR A
65DB	LD ($5C08),A	clear LASTK
65DE	RST $38
65DF	LD A,($5C08)	check LASTK
65E2	CP $00	any key?
65E4	JR Z,$65DA	no => wait
65E6	RET

65E7: Start of anti-piracy message


65E7	DEFM " ",$60
65F2	DEFM "100 REWARD If your copy of this game doesnot have a"
6633	DEFM " blue cassette bodywith DURELL embossed on it, anddoes not have"
6674	DEFM " DURELL on the leadin strip then it is a forgery. Please send a"
66B5	DEFM "ny forgeries to DURELL SOFTWARE Ltd. Castle "
66F6	DEFM "Lodge Castle Green TAUNTO"
6737	DEFM "N TA1 4AB Somerse"
6778	DEFM "t "

678E: Tile screen 1 30x17 tiles, 510 bytes - update flags


678E	DEFM " ENGLAND with your name and address,and the "
67CF	DEFM "name and address of theperson who supplied you withthe forge"
6810	DEFM "ry. You will be sent a genuinereplacemen"
6851	DEFM "t copy and a reward of"
6867	DEFM $60
6868	DEFM "100 if your information leads to a successful prosecution. "
68A9	DEFM " PRESS ANY KEY TO CONTINUE "
68E7	DEFB $00,$00,$01,$01,$01,$01,$01,$01
68EF	DEFB $00,$C0,$E0,$F0,$FC,$FE,$FF
68F6	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
6914	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6932	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6950	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$80,$80,$C0,$C0,$C0,$E0,$E0,$E0,$F0,$F0
696E	DEFB $F8,$F8,$F8,$F0,$F0,$E0,$C0,$C0,$C0,$C0,$C0,$80,$80,$80,$80,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00

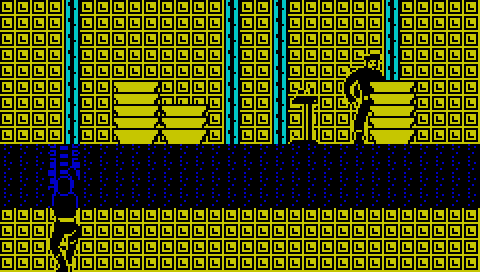

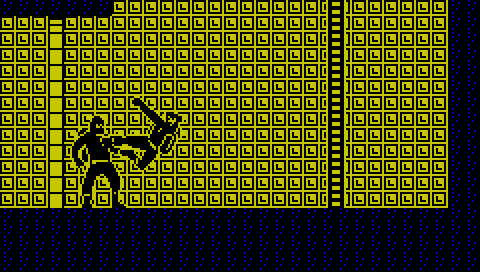

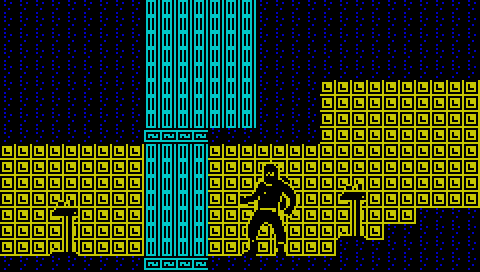

698C: Tile screen 2 30x17 tiles, 510 bytes - Ninja screen


698C	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$01,$03,$03,$07,$07,$07,$07,$0F,$3F,$3F,$07,$07,$07,$07,$07,$07,$07,$7F,$FF,$FF
69AA	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$7F,$BF,$DF,$EF,$F7,$F7,$FB,$FB,$FB,$FB,$FB,$FB,$FB,$FB,$FD,$FD,$FD,$FD,$FD,$FB
69C8	DEFB $FB,$F7,$F7,$EF,$EF,$DF,$DF,$BF,$BF,$BF,$BF,$BF,$BF,$BF,$7F,$7F,$7F,$7F,$78,$00,$00,$00,$80,$C0,$F0,$F8,$F8,$FC,$FE,$FC
69E6	DEFB $F8,$C0,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6A04	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6A22	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6A40	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$0F,$3F,$FF,$FF,$FF,$FF,$FF,$FE,$F0,$FF,$FF
6A5E	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
6A7C	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$F8,$F0,$E0,$C0,$00,$00
6A9A	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6AB8	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6AD6	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6AF4	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6B12	DEFB $00,$C0,$F0,$F8,$FC,$FC,$FC,$FC,$04,$04,$FC,$FC,$FC,$FC,$FC,$F8,$F8,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
6B30	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
6B4E	DEFB $FF,$FF,$FF,$FF,$FF,$00,$00,$01,$01,$01,$01,$01,$03,$03,$03,$03,$03,$01,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6B6C	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00

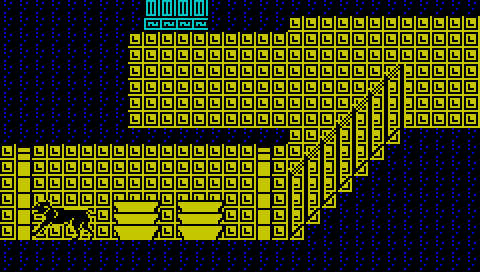

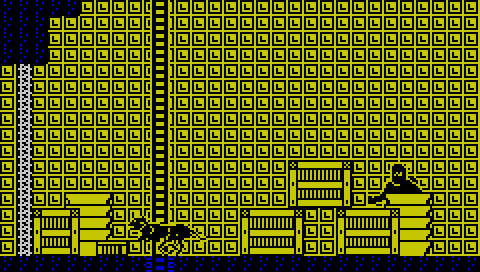

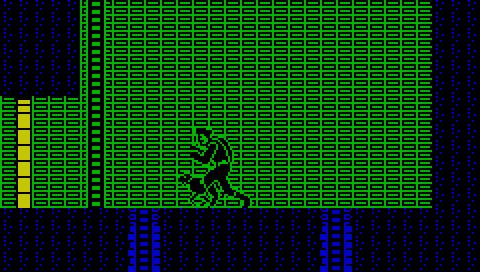

6B8A: Tile screen 3 30x17 tiles, 510 bytes - Dog screen


6B8A	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6BA8	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6BC6	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$80
6BE4	DEFB $F0,$FE,$FF,$FF,$F8,$07,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$7F,$1F,$07,$01,$00,$00,$00,$00,$00,$00,$00,$E0,$FC,$FF,$FF,$FF,$FF
6C02	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
6C20	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6C3E	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6C5C	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6C7A	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6C98	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$38,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$1F
6CB6	DEFB $03,$00,$00,$00,$00,$00,$00,$00,$E0,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
6CD4	DEFB $FE,$FC,$F8,$F0,$E0,$F0,$F8,$F8,$F8,$F8,$F8,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6CF2	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6D10	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6D2E	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6D4C	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$80,$C0,$C0
6D6A	DEFB $C0,$80,$80,$00,$00,$00,$80,$F0,$FE,$FF,$FF,$FF,$FF,$1F,$0F,$00,$00,$00,$00,$00,$00,$C0,$FE,$FF,$FF,$FF,$FF,$FF,$FF,$FF

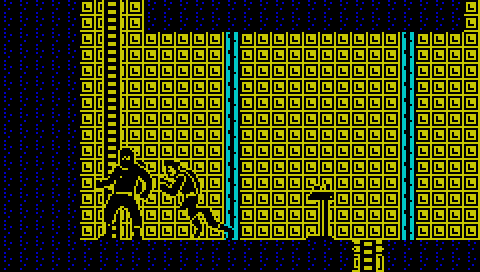

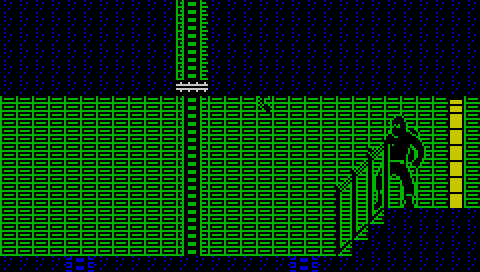

6D88: Tile screen 4 30x17 tiles, 510 bytes - Guard screen


6D88	DEFB $FF,$FF,$FE,$FC,$FC,$FC,$F8,$F0,$E0,$C0,$80,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6DA6	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6DC4	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6DE2	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6E00	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6E1E	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$38,$FC,$FC,$F8,$F0,$F0,$F0,$E0,$00,$00,$00,$00
6E3C	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6E5A	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6E78	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6E96	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6EB4	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
6ED2	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
6EF0	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
6F0E	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
6F2C	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
6F4A	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
6F68	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF

6F86: Tile screen 5 30x17 tiles, 510 bytes - front


6F86	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
6FA4	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
6FC2	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
6FE0	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
6FFE	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
701C	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
703A	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
7058	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
7076	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
7094	DEFB $FF,$FF,$FF,$14,$15,$16,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
70B2	DEFB $FF,$FF,$FF,$17,$18,$19,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
70D0	DEFB $FF,$FF,$FF,$1A,$1B,$1C,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
70EE	DEFB $FF,$FF,$14,$15,$00,$01,$01,$01,$02,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$00,$01,$01,$02,$FF,$FF,$FF,$FF
710C	DEFB $FF,$FF,$17,$18,$03,$04,$04,$04,$05,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$03,$04,$04,$05,$FF,$FF,$FF,$FF
712A	DEFB $FF,$FF,$1A,$1B,$06,$07,$07,$07,$08,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$06,$07,$07,$08,$FF,$FF,$FF,$FF
7148	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
7166	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF

7184: Data block at 7184

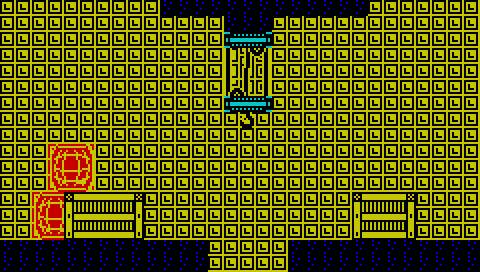

7184	DEFW $84A8	Current Room address
7186	DEFW $A0B5	Ninja sprite address

7188: Blocks for rooms


7188	DEFB $FF,$2F,$30,$31,$32,$FF	Front block 6x2 - pile of garbage
718E	DEFB $33,$34,$35,$36,$37,$38	Front block 6x2 - pile of garbage
7194	DEFB $0E,$0F,$10,$11	Back block 4x3 - pier fencing
7198	DEFB $12,$0D,$0D,$0D
719C	DEFB $12,$0D,$0D,$0D
71A0	DEFB $00,$01,$02	Front block 3x3 - box
71A3	DEFB $03,$04,$05
71A6	DEFB $06,$07,$08
71A9	DEFB $0D,$0D,$0D,$0E	Front block 4x4 - computer part
71AD	DEFB $0F,$10,$10,$11
71B1	DEFB $0D,$13,$0D,$0D
71B5	DEFB $12,$12,$12,$12
71B9	DEFB $07,$0A	Back block 2x1 - ladder black on blue
71BB	DEFB $1F,$20	Front block 2x4 - console
71BD	DEFB $21,$22
71BF	DEFB $23,$24
71C1	DEFB $25,$26

71C3: Current Guard data


71C3	DEFW $0101	Current Guard position in tilemap
71C5	DEFB $11	Current Guard X position
71C6	DEFB $08	Current Guard Y position

71C7: Data block at 71C7


71C7	DEFB $0E,$00,$0E,$00

71CB: Current Dog data, 9 bytes


71CB	DEFW $018E	Dog position in tilemap
71CD	DEFB $00	Dog direction
71CE	DEFB $08	Dog X position
71CF	DEFB $00	Dog ??
71D0	DEFB $07	Dog's left limit
71D1	DEFB $17	Dog's right limit
71D2	DEFB $00	Dog ??
71D3	DEFB $06	Dog Y position

71D4: Data block at 71D4


71D4	DEFB $F3	??
71D5	DEFB $01	??

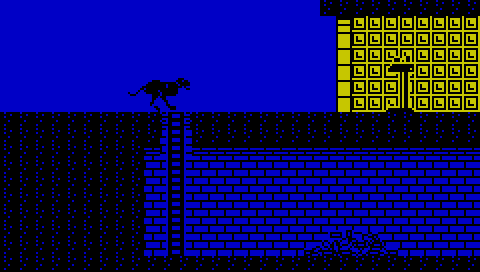

71D6	DEFB $7A,$00,$00,$02,$00,$01,$16,$00,$FD	Room 79C6 dog data
71DF	DEFB $9E,$00,$01,$08,$00,$01,$16,$01
71E7	DEFB $FE,$B8,$67,$B0,$6F,$0A,$D9,$67
71EF	DEFB $D1,$6F,$0D

71F2: Sprite Dog 1


71F2	DEFB $FF,$00,$FF,$01
71F6	DEFB $02,$03,$04,$05
71FA	DEFB $06,$07,$08,$09

71FE: Sprite Dog 2


71FE	DEFB $FF,$FF,$0A,$0B
7202	DEFB $0C,$0D,$0E,$0F
7206	DEFB $10,$11,$12,$13

720A: Sprite Dog 3


720A	DEFB $FF,$14,$15,$16
720E	DEFB $17,$18,$19,$1A
7212	DEFB $1B,$1C,$1D,$1E

7216: Sprite Dog 4


7216	DEFB $FF,$1F,$20,$FF
721A	DEFB $21,$22,$23,$24
721E	DEFB $25,$26,$27,$FF

7222: Data block at 7222


7222	DEFB $00	Input method: 1 = Joystick, 0 = Keyboard or Protek
7223	DEFB $EF,$01,$04	Ports and bits for the current input method
7226	DEFB $EF,$08,$03
7229	DEFB $EF,$10,$02
722C	DEFB $F7,$10,$01
722F	DEFB $EF,$04,$00
7232	DEFB $00	Input bits: 000FUDLR
7233	DEFW $5A41	Screen attributes address stored during tile map drawing
7235	DEFW $7184	Tile screen 5 address stored during tile map drawing
7237	DEFW $6F86	Tile screen 4 address stored during tile map drawing
7239	DEFB $00	Byte mirror flag

723A: Mirror table


723A	DEFB $01,$81,$41,$C1,$21,$A1,$61,$E1,$11,$91,$51,$D1,$31,$B1,$71,$F1	Mirror table 1st part
724A	DEFB $09,$89,$49,$C9,$29,$A9,$69,$E9,$19,$99,$59,$D9,$39,$B9,$79,$F9
725A	DEFB $05,$85,$45,$C5,$25,$A5,$65,$E5,$15,$95,$55,$D5,$35,$B5,$75,$F5
726A	DEFB $0D,$8D,$4D,$CD,$2D,$AD,$6D,$ED,$1D,$9D,$5D,$DD,$3D,$BD,$7D,$FD
727A	DEFB $03,$83,$43,$C3,$23,$A3,$63,$E3,$13,$93,$53,$D3,$33,$B3,$73,$F3
728A	DEFB $0B,$8B,$4B,$CB,$2B,$AB,$6B,$EB,$1B,$9B,$5B,$DB,$3B,$BB,$7B,$FB
729A	DEFB $07,$87,$47,$C7,$27,$A7,$67,$E7,$17,$97,$57,$D7,$37,$B7,$77,$F7
72AA	DEFB $0F,$8F,$4F,$CF,$2F,$AF,$6F,$EF,$1F,$9F,$5F,$DF,$3F,$BF,$7F,$FF
72BA	DEFB $00,$80,$40,$C0,$20,$A0,$60,$E0,$10,$90,$50,$D0,$30,$B0,$70,$F0	Mirror table 2nd part
72CA	DEFB $08,$88,$48,$C8,$28,$A8,$68,$E8,$18,$98,$58,$D8,$38,$B8,$78,$F8
72DA	DEFB $04,$84,$44,$C4,$24,$A4,$64,$E4,$14,$94,$54,$D4,$34,$B4,$74,$F4
72EA	DEFB $0C,$8C,$4C,$CC,$2C,$AC,$6C,$EC,$1C,$9C,$5C,$DC,$3C,$BC,$7C,$FC
72FA	DEFB $02,$82,$42,$C2,$22,$A2,$62,$E2,$12,$92,$52,$D2,$32,$B2,$72,$F2
730A	DEFB $0A,$8A,$4A,$CA,$2A,$AA,$6A,$EA,$1A,$9A,$5A,$DA,$3A,$BA,$7A,$FA
731A	DEFB $06,$86,$46,$C6,$26,$A6,$66,$E6,$16,$96,$56,$D6,$36,$B6,$76,$F6
732A	DEFB $0E,$8E,$4E,$CE,$2E,$AE,$6E,$EE,$1E,$9E,$5E,$DE,$3E,$BE,$7E,$FE

733A: Data block at 733A


733A	DEFB $00	Ninja walking phase

733B: Table of four addresses of Ninja/Guard walking sprites


733B	DEFW $D3DE	Sprite Ninja/Guard walking 1
733D	DEFW $D408	Sprite Ninja/Guard walking 2
733F	DEFW $D432	Sprite Ninja/Guard walking 3
7341	DEFW $D45C	Sprite Ninja/Guard walking 4

7343: Data block at 7343


7343	DEFB $07	Counter used in movement handlers
7344	DEFB $00	Dog's flag: 1 = ignore left/right limit
7345	DEFB $14	Dog ??
7346	DEFB $0A	Guard walking phase $00..$03 or other state: $09 = Guard dead; ...
7347	DEFB $01	Guard direction
7348	DEFB $05,$08

734A: Proceed to the next room token (redirect to B702)

Used by the routines at 734D, 7359, 7361, 7381, 73A4, 73C5, 73F3, 7406, 742B, 7452 and B38F.
734A	JP $B702

734D: Room token #0E: Put one tile at the given address; params: 3 bytes (tile, address)


734D	POP HL	Restore token sequence address
734E	INC HL	Skip token byte
734F	LD C,(HL)	get tile byte
7350	INC HL
7351	LD A,(HL)	get address low byte
7352	INC HL
7353	PUSH HL
7354	LD H,(HL)	get address high byte
7355	LD L,A
7356	LD (HL),C	put tile into tilemap
7357	JR $734A	=> B702 Proceed to the next room token

7359: Room token #0D: Set border color; params: 1 byte


7359	POP HL	Restore token sequence address
735A	INC HL	Skip token byte
735B	LD A,(HL)	get byte
735C	PUSH HL
735D	OUT ($FE),A
735F	JR $734A	=> B702 Proceed to the next room token

7361: Room token #?? - Draw frame with one tile; params: 1 byte - UNUSED


7361	POP HL	Restore token sequence address
7362	INC HL	Skip token byte
7363	LD A,(HL)	get tile byte
7364	PUSH HL
7365	LD HL,$6590	Tile screen 0 start address
7368	LD B,$1E	30
736A	LD (HL),A
736B	INC HL
736C	DJNZ $736A
736E	LD B,$0F
7370	LD DE,$001D
7373	LD (HL),A
7374	ADD HL,DE
7375	LD (HL),A
7376	INC HL
7377	DJNZ $7373
7379	LD B,$1E
737B	LD (HL),A
737C	INC HL
737D	DJNZ $737B
737F	JR $734A	=> B702 Proceed to the next room token

7381: Room token #01: Fill to down; params: 4 bytes (count, filler, address)


7381	LD DE,$001E	30
This entry point is used by the routines at 7395, 739A and 739F.
7384	POP HL	Restore token sequence address
7385	INC HL	Skip token byte
7386	LD B,(HL)	get count byte
7387	INC HL
7388	LD C,(HL)	get tile byte
7389	INC HL
738A	LD A,(HL)	get address low byte
738B	INC HL
738C	PUSH HL
738D	LD H,(HL)	get address high byte
738E	LD L,A
738F	LD (HL),C
7390	ADD HL,DE
7391	DJNZ $738F
7393	JR $734A	=> B702 Proceed to the next room token

7395: Room token #0A: Fill to down-right; params: 4 bytes (count, filler, address)


7395	LD DE,$001F	30 + 1
7398	JR $7384

739A: Room token #0B: Fill to down-left; params: 4 bytes (count, filler, address)


739A	LD DE,$001D	30 - 1
739D	JR $7384

739F: Room token #02: Fill to right; params: 4 bytes (count, filler, address)


739F	LD DE,$0001
73A2	JR $7384

73A4: Room token #06: Fill triangle from wide top


73A4	LD A,$23	A = "INC HL" command
This entry point is used by the routine at 73EF.
73A6	LD ($73BB),A	set the command
73A9	POP HL	Restore token sequence address
73AA	INC HL	Skip token byte
73AB	LD D,(HL)	get filler tile
73AC	INC HL
73AD	LD B,(HL)	get count
73AE	INC HL
73AF	LD A,(HL)	get address low byte
73B0	INC HL
73B1	PUSH HL
73B2	LD H,(HL)	get address high byte
73B3	LD L,A
73B4	LD A,D
73B5	LD DE,$001E	30
73B8	PUSH HL
73B9	LD C,B
73BA	LD (HL),A
73BB	INC HL	!!MUT-CMD!! "INC HL" or "DEC HL"
73BC	DEC C
73BD	JR NZ,$73BA
73BF	POP HL
73C0	ADD HL,DE	next row
73C1	DJNZ $73B8
73C3	JR $734A	=> B702 Proceed to the next room token

73C5: Room token #07: Fill triangle from wide bottom; params: 4 bytes (filler, count, address)


73C5	LD A,$23	A = "INC HL" command
This entry point is used by the routine at 73EB.
73C7	LD ($73DE),A	set the command
73CA	POP HL	Restore token sequence address
73CB	INC HL	Skip token byte
73CC	LD D,(HL)	get filler tile
73CD	INC HL
73CE	LD B,(HL)	get count
73CF	INC HL
73D0	LD A,(HL)	get address low byte
73D1	INC HL
73D2	PUSH HL
73D3	LD H,(HL)	get address high byte
73D4	LD L,A
73D5	LD A,D
73D6	LD DE,$001E	30
73D9	LD C,$01
73DB	PUSH HL
73DC	PUSH BC
73DD	LD (HL),A
73DE	INC HL	!!MUT-CMD!! "INC HL" or "DEC HL"
73DF	DEC C
73E0	JR NZ,$73DD
73E2	POP BC
73E3	INC C
73E4	POP HL
73E5	ADD HL,DE	next row
73E6	DJNZ $73DB
73E8	JP $734A	=> B702 Proceed to the next room token

73EB: Room token #08: Fill triangle from wide bottom; params: 4 bytes (filler, count, address)


73EB	LD A,$2B	A = "DEC HL" command
73ED	JR $73C7

73EF: Room token #09: Fill triangle from wide top


73EF	LD A,$2B	A = "DEC HL" command
73F1	JR $73A6

73F3: Room token #04: Fill whole Tile screen 0 with one tile; params: 1 byte (filler)


73F3	POP HL	Restore token sequence address
73F4	INC HL	Skip token byte
73F5	LD A,(HL)	get tile byte
73F6	PUSH HL
73F7	LD HL,$6590	Tile screen 0 start address
73FA	LD DE,$6591	Tile screen 0 start address + 1
73FD	LD (HL),A
73FE	LD BC,$01FD	510 - 1
7401	LDIR
7403	JP $734A	=> B702 Proceed to the next room token

7406: Room token #05: Copy block of tiles; params: 6 bytes (width, height, srcaddr, address)


7406	POP HL	Restore token sequence address
7407	INC HL	Skip token byte
7408	LD B,(HL)	get width byte
7409	INC HL
740A	LD C,(HL)	get height byte
740B	INC HL
740C	LD E,(HL)	get source address low byte
740D	INC HL
740E	LD D,(HL)	get source address high byte
740F	INC HL
7410	LD A,(HL)	get address low byte
7411	INC HL
7412	PUSH HL
7413	LD H,(HL)	get address high byte
7414	LD L,A
7415	PUSH BC
7416	PUSH HL
7417	LD A,(DE)
7418	LD (HL),A
7419	INC HL
741A	INC DE
741B	DJNZ $7417	continue loop by columns
741D	POP HL
741E	PUSH DE
741F	LD DE,$001E	30
7422	ADD HL,DE
7423	POP DE
7424	POP BC
7425	DEC C
7426	JR NZ,$7415	continue loop by rows
7428	JP $734A	=> B702 Proceed to the next room token

742B: Room token #0C: Copy block of tiles N times; params: 6 bytes (srcaddr, width, count, address)


742B	POP HL	Restore token sequence address
742C	INC HL	Skip token byte
742D	LD E,(HL)	get source address low byte
742E	INC HL
742F	LD D,(HL)	get source address high byte
7430	INC HL
7431	LD C,(HL)	get width byte
7432	INC HL
7433	LD B,(HL)	get height byte
7434	INC HL
7435	LD A,(HL)	get address low byte
7436	INC HL
7437	PUSH HL
7438	LD H,(HL)	get address high byte
7439	LD L,A
743A	PUSH HL
743B	PUSH BC
743C	PUSH DE
743D	LD A,(DE)
743E	LD (HL),A
743F	INC HL
7440	INC DE
7441	DEC C
7442	JR NZ,$743D	continue loop by columns
7444	POP DE
7445	POP BC
7446	POP HL
7447	PUSH DE
7448	LD DE,$001E	30
744B	ADD HL,DE
744C	POP DE
744D	DJNZ $743A	continue loop by rows
744F	JP $734A	=> B702 Proceed to the next room token

7452: Room token #03: Fill rectangle; params: 5 bytes (filler, width, height, address)


7452	POP HL	Restore token sequence address
7453	INC HL	Skip token byte
7454	LD D,(HL)
7455	INC HL
7456	LD C,(HL)
7457	INC HL
7458	LD B,(HL)
7459	INC HL
745A	LD A,(HL)
745B	INC HL
745C	PUSH HL
745D	LD H,(HL)
745E	LD L,A
745F	LD A,D
7460	LD DE,$001E	30
7463	PUSH HL
7464	PUSH BC
7465	LD (HL),A
7466	INC HL
7467	DEC C
7468	JR NZ,$7465
746A	POP BC
746B	POP HL
746C	ADD HL,DE
746D	DJNZ $7463
746F	JP $734A	=> B702 Proceed to the next room token

7472: Routine at 7472

Used by the routine at B5C7.
7472	DI
7473	LD ($74F1),SP
7477	LD SP,$753B
747A	LD DE,$0005
747D	LD A,$FF
747F	LD C,$10
7481	POP HL
7482	ADD HL,DE
7483	LD B,$0F
7485	LD (HL),A
7486	INC HL
7487	DJNZ $7485
7489	DEC C
748A	JR NZ,$7481
748C	LD SP,($74F1)
7490	LD A,$13
7492	LD ($749C),A	set Energy = MAX
7495	LD A,$01
7497	LD ($749D),A
749A	EI
749B	RET

749C: Data block at 749C


749C	DEFB $13	Energy $04..$13
749D	DEFB $01	Energy lower, running bit

749E: Decreasing Energy

Used by the routine at 9DD9.
749E	DI
749F	LD ($74F1),SP
74A3	LD SP,$753B
74A6	LD A,($749C)	get Energy
74A9	LD E,A
74AA	LD D,$00
74AC	LD B,$10
74AE	LD A,($749D)
74B1	LD C,A
74B2	POP HL
74B3	ADD HL,DE
74B4	LD A,C
74B5	XOR (HL)
74B6	LD (HL),A
74B7	DJNZ $74B2
74B9	LD A,($749D)
74BC	RLC A
74BE	LD ($749D),A
74C1	JR NC,$74C7
74C3	LD HL,$749C	Energy address
74C6	DEC (HL)	Decrease Energy
74C7	LD SP,($74F1)
74CB	EI
74CC	RET

74CD: Draw NEAR/HELD item

Used by the routine at B889.
74CD	LD A,$00	!!MUT-ARG!! item number
74CF	LD H,$00
74D1	LD L,A
74D2	ADD HL,HL
74D3	LD DE,$B5B0	!!MUT-ARG!! address for Table of items
74D6	ADD HL,DE
74D7	LD E,(HL)
74D8	INC HL
74D9	LD D,(HL)
74DA	DI
74DB	LD ($74F1),SP
74DF	LD SP,$751B
74E2	LD C,$18
74E4	POP HL
74E5	LD B,$04
74E7	LD A,(DE)
74E8	LD (HL),A
74E9	INC DE
74EA	INC HL
74EB	DJNZ $74E7
74ED	DEC C
74EE	JR NZ,$74E4
74F0	LD SP,$6255
74F3	LD HL,$5A61
74F6	LD C,$03
74F8	LD B,$04
74FA	LD A,(DE)
74FB	LD (HL),A
74FC	INC HL
74FD	INC DE
74FE	DJNZ $74FA
7500	PUSH DE
7501	LD DE,$001C	28
7504	ADD HL,DE
7505	POP DE
7506	DEC C
7507	JR NZ,$74F8
7509	EI
750A	RET

750B: Data block at 750B


750B	DEFB $00,$00,$6C,$00,$D8,$00,$44,$01
7513	DEFB $B0,$01,$1C,$02,$88,$02,$F4,$02

751B: Data block at 751B


751B	DEFW $5061,$5161,$5261,$5361
7523	DEFW $5461,$5561,$5661,$5761
752B	DEFW $5081,$5181,$5281,$5381
7533	DEFW $5481,$5581,$5681,$5781
753B	DEFW $50A1,$51A1,$52A1,$53A1
7543	DEFW $54A1,$55A1,$56A1,$57A1
754B	DEFW $50C1,$51C1,$52C1,$53C1
7553	DEFW $54C1,$55C1,$56C1,$57C1

755B: Data block at 755B


755B	DEFB $00	Ninja falling count, to decrease Energy on hit

755C: Data block at 755C


755C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7564	DEFB $00,$00,$00,$00,$00,$00,$00,$00
756C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7574	DEFB $00,$00,$00,$00,$00,$00,$00,$00
757C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7584	DEFB $00,$00,$00,$00,$00,$00,$00,$00
758C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7594	DEFB $00,$00,$00,$00,$00,$00,$00,$00
759C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
75A4	DEFB $00,$00,$00,$00,$00,$00,$00,$00
75AC	DEFB $00,$00,$00,$00,$00,$00,$00,$00
75B4	DEFB $00,$00,$00,$00,$00,$00,$00,$00
75BC	DEFB $00,$00,$00,$00,$00,$00,$00,$00
75C4	DEFB $00,$00,$00,$00,$00,$00,$00,$00
75CC	DEFB $00,$00,$00,$00,$00,$00,$00,$00
75D4	DEFB $00,$00,$00,$00,$00,$00,$00,$00
75DC	DEFB $00,$00,$00,$00,$00,$00,$00,$00
75E4	DEFB $00,$00,$00,$00,$00,$00,$00,$00
75EC	DEFB $00,$00,$00,$00,$00,$00,$00,$00
75F4	DEFB $00,$00,$00,$00,$00,$00,$00,$00
75FC	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7604	DEFB $00,$00,$00,$00,$00,$00,$00,$00
760C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7614	DEFB $00,$00,$00,$00,$00,$00,$00,$00
761C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7624	DEFB $00,$00,$00,$00,$00,$00,$00,$00
762C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7634	DEFB $00,$00,$00,$00,$00,$00,$00,$00
763C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7644	DEFB $00,$00,$00,$00,$00,$00,$00,$00
764C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7654	DEFB $00,$00,$00,$00,$00,$00,$00,$00
765C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7664	DEFB $00,$00,$00,$00,$00,$00,$00,$00
766C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7674	DEFB $00,$00,$00,$00,$00,$00,$00,$00
767C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7684	DEFB $00,$00,$00,$00,$00,$00,$00,$00
768C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7694	DEFB $00,$00,$00,$00,$00,$00,$00,$00
769C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
76A4	DEFB $00,$00,$00,$00,$00,$00,$00,$00
76AC	DEFB $00,$00,$00,$00,$00,$00,$00,$00
76B4	DEFB $00,$00,$00,$00,$00,$00,$00,$00
76BC	DEFB $00,$00,$00,$00,$00,$00,$00,$00
76C4	DEFB $00,$00,$00,$00,$00,$00,$00,$00
76CC	DEFB $00,$00,$00,$00,$00,$00,$00,$00
76D4	DEFB $00,$00,$00,$00,$00,$00,$00,$00
76DC	DEFB $00,$00,$00,$00,$00,$00,$00,$00
76E4	DEFB $00,$00,$00,$00,$00,$00,$00,$00
76EC	DEFB $00,$00,$00,$00,$00,$00,$00,$00
76F4	DEFB $00,$00,$00,$00,$00,$00,$00,$00
76FC	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7704	DEFB $00,$00,$00,$00,$00,$00,$00,$00
770C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7714	DEFB $00,$00,$00,$00,$00,$00,$00,$00
771C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7724	DEFB $00,$00,$00,$00,$00,$00,$00,$00
772C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7734	DEFB $00,$00,$00,$00,$00,$00,$00,$00
773C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7744	DEFB $00,$00,$00,$00,$00,$00,$00,$00
774C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7754	DEFB $00,$00,$00,$00,$00,$00,$00,$00
775C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7764	DEFB $00,$00,$00,$00,$00,$00,$00,$00
776C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7774	DEFB $00,$00,$00,$00,$00,$00,$00,$00
777C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7784	DEFB $00,$00,$00,$00,$00,$00,$00,$00
778C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7794	DEFB $00,$00,$00,$00,$00,$00,$00,$00
779C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
77A4	DEFB $00,$00,$00,$00,$00,$00,$00,$00
77AC	DEFB $00,$00,$00,$00,$00,$00,$00,$00
77B4	DEFB $00,$00,$00,$00,$00,$00,$00,$00
77BC	DEFB $00,$00,$00,$00,$00,$00,$00,$00
77C4	DEFB $00,$00,$00,$00,$00,$00,$00,$00
77CC	DEFB $00,$00,$00,$00,$00,$00,$00,$00
77D4	DEFB $00,$00,$00,$00,$00,$00,$00,$00
77DC	DEFB $00,$00,$00,$00,$00,$00,$00,$00
77E4	DEFB $00,$00,$00,$00,$00,$00,$00,$00
77EC	DEFB $00,$00,$00,$00,$00,$00,$00,$00
77F4	DEFB $00,$00,$00,$00,$00,$00,$00,$00
77FC	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7804	DEFB $00,$00,$00,$00,$00,$00,$00,$00
780C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7814	DEFB $00,$00,$00,$00,$00,$00,$00,$00
781C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7824	DEFB $00,$00,$00,$00,$00,$00,$00,$00
782C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7834	DEFB $00,$00,$00,$00,$00,$00,$00,$00
783C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7844	DEFB $00,$00,$00,$00,$00,$00,$00,$00
784C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7854	DEFB $00,$00,$00,$00,$00,$00,$00,$00
785C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7864	DEFB $00,$00,$00,$00,$00,$00,$00,$00
786C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7874	DEFB $00,$00,$00,$00,$00,$00,$00,$00
787C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7884	DEFB $00,$00,$00,$00,$00,$00,$00,$00
788C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7894	DEFB $00,$00,$00,$00,$00,$00,$00,$00
789C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
78A4	DEFB $00,$00,$00,$00,$00,$00,$00,$00
78AC	DEFB $00,$00,$00,$00,$00,$00,$00,$00
78B4	DEFB $00,$00,$00,$00,$00,$00,$00,$00
78BC	DEFB $00,$00,$00,$00,$00,$00,$00,$00
78C4	DEFB $00,$00,$00,$00,$00,$00,$00,$00
78CC	DEFB $00,$00,$00,$00,$00,$00,$00,$00
78D4	DEFB $00,$00,$00,$00,$00,$00,$00,$00
78DC	DEFB $00,$00,$00,$00,$00,$00,$00,$00
78E4	DEFB $00,$00,$00,$00,$00,$00,$00,$00
78EC	DEFB $00,$00,$00,$00,$00,$00,$00,$00
78F4	DEFB $00,$00,$00,$00,$00,$00,$00,$00
78FC	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7904	DEFB $00,$00,$00,$00,$00,$00,$00,$00
790C	DEFB $00,$00,$00,$00,$00,$00,$00,$00
7914	DEFB $00,$00,$00,$00

7918: Room procedure (for 19 rooms with a guard)


7918	JP $B44C

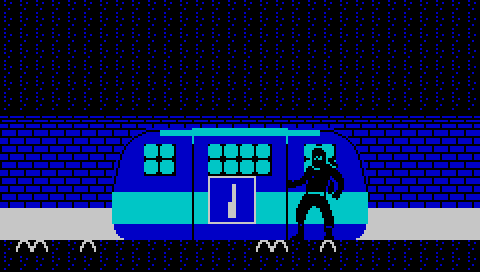

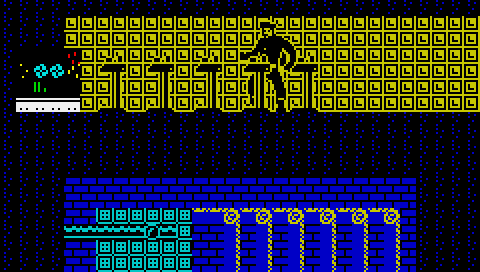

791B: Rooms 7C9C/92EF initialization


791B	JP $B425

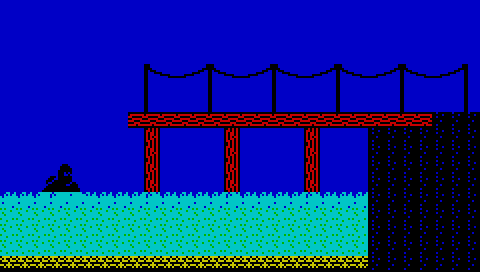

791E: Room 791E (room with pier)



791E	DEFW $B446	Room procedure
7920	DEFW $C64C	Initialization
7922	DEFW $0000
7924	DEFW $79C6	Room to Right
7926	DEFW $0000
7928	DEFW $0000
792A	DEFB $04,$0D	Fill entire screen with $0D
792C	DEFB $03,$FF,$07,$0A,$79,$66	Rectangle 7x10 tiles with $FF at $6679
7932	DEFB $02,$17,$F5,$70,$67	Fill horz 23 tiles with $F5 at $6770
7937	DEFB $02,$17,$0B,$EE,$70	Fill horz 23 tiles with $0B at $70EE
793C	DEFB $03,$0C,$17,$03,$0C,$71	Rectangle 23x3 tiles with $0C at $710C
7942	DEFB $02,$13,$F6,$6A,$66	Fill horz 19 tiles with $F6 at $666A
7947	DEFB $01,$08,$0C,$89,$66	Fill vert 8 tiles with $0C at $6689
794C	DEFB $01,$08,$0C,$8E,$66	Fill vert 8 tiles with $0C at $668E
7951	DEFB $01,$08,$0C,$93,$66	Fill vert 8 tiles with $0C at $6693
7956	DEFB $01,$0C,$F2,$EB,$65	Fill vert 12 tiles with $F2 at $65EB
795B	DEFB $05,$04,$03,$94,$71,$11,$66	Block 4x3 tiles from 7194 to $6611
7962	DEFB $05,$04,$03,$94,$71,$15,$66	Block 4x3 tiles from 7194 to $6615
7969	DEFB $05,$04,$03,$94,$71,$19,$66	Block 4x3 tiles from 7194 to $6619
7970	DEFB $05,$04,$03,$94,$71,$1D,$66	Block 4x3 tiles from 7194 to $661D
7977	DEFB $05,$04,$03,$94,$71,$21,$66	Block 4x3 tiles from 7194 to $6621
797E	DEFB $01,$03,$12,$25,$66	Fill vert 3 tiles with $12 at $6625
7983	DEFB $FF	End of sequence

7984: Blocks for rooms


7984	DEFB $F1,$F0	Back block 2x5 - ladder black on blue
7986	DEFB $07,$0A
7988	DEFB $07,$0A
798A	DEFB $07,$0A
798C	DEFB $07,$0A
798E	DEFB $FF,$FF,$39,$58	Front block 4x7 - ladder fencing
7992	DEFB $FF,$39,$3A,$58
7996	DEFB $39,$3A,$3A,$58
799A	DEFB $3A,$3A,$3A,$58
799E	DEFB $3A,$3A,$3B,$FF
79A2	DEFB $3A,$3B,$FF,$FF
79A6	DEFB $3B,$FF,$FF,$FF
79AA	DEFB $59,$3C,$FF,$FF	Front block 4x7 - ladder fencing
79AE	DEFB $59,$3D,$3C,$FF
79B2	DEFB $59,$3D,$3D,$3C
79B6	DEFB $59,$3D,$3D,$3D
79BA	DEFB $FF,$3E,$3D,$3D
79BE	DEFB $FF,$FF,$3E,$3D
79C2	DEFB $FF,$FF,$FF,$3E

79C6: Room 79C6 (next to room with pier)



79C6	DEFW $B452	Room procedure
79C8	DEFW $B42E	Initialization
79CA	DEFW $791E	Room to Left
79CC	DEFW $7A17	Room to Right
79CE	DEFW $0000
79D0	DEFW $0000
79D2	DEFB $04,$0D	Fill entire screen with $0D
79D4	DEFB $03,$FF,$1E,$0A,$62,$66	Rectangle 30x10 tiles with $FF at $6662
79DA	DEFB $03,$02,$15,$06,$C5,$66	Rectangle 21x6 tiles with $02 at $66C5
79E0	DEFB $02,$15,$03,$A7,$66	Fill horz 21 tiles with $03 at $66A7
79E5	DEFB $0C,$B9,$71,$02,$09,$6C,$66	Block 2 tiles from 71B9 to $666C copy 9 times
79EC	DEFB $03,$00,$08,$06,$C4,$65	Rectangle 8x6 tiles with $00 at $65C4
79F2	DEFB $02,$0A,$FF,$A4,$65	Fill horz 10 tiles with $FF at $65A4
79F7	DEFB $05,$02,$04,$BB,$71,$F8,$6F	Block 2x4 tiles from 71BB to $6FF8
79FE	DEFB $0E,$2A,$B9,$6F	Put tile $2A at $6FB9
7A02	DEFB $01,$05,$2B,$D7,$6F	Fill vert 5 tiles with $2B at $6FD7
7A07	DEFB $05,$06,$02,$88,$71,$3D,$71	Block 6x2 tiles from 7188 to $713D
7A0E	DEFB $0E,$F1,$6C,$66	Put tile $F1 at $666C
7A12	DEFB $0E,$F0,$6D,$66	Put tile $F0 at $666D
7A16	DEFB $FF	End of sequence

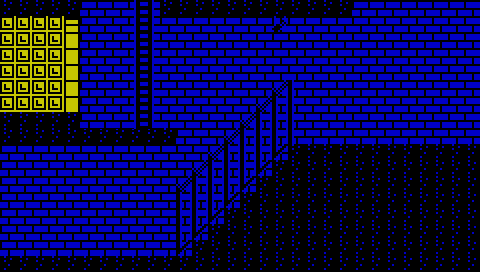

7A17: Room 7A17



7A17	DEFW $B483	Room procedure
7A19	DEFW $A142	Initialization
7A1B	DEFW $79C6	Room to Left
7A1D	DEFW $7B90	Room to Right
7A1F	DEFW $8238	Room Up
7A21	DEFW $0000
7A23	DEFB $04,$02	Fill entire screen with $02
7A25	DEFB $08,$FF,$06,$CD,$66	Triangle with $FF, count=6 at $66CD
7A2A	DEFB $02,$12,$FF,$70,$67	Fill horz 18 tiles with $FF at $6770
7A2F	DEFB $03,$FF,$0C,$08,$B0,$66	Rectangle 12x8 tiles with $FF at $66B0
7A35	DEFB $03,$00,$04,$06,$AE,$65	Rectangle 4x6 tiles with $00 at $65AE
7A3B	DEFB $02,$0B,$FF,$80,$66	Fill horz 11 tiles with $FF at $6680
7A40	DEFB $02,$05,$FF,$62,$66	Fill horz 5 tiles with $FF at $6662
7A45	DEFB $01,$05,$2B,$C6,$6F	Fill vert 5 tiles with $2B at $6FC6
7A4A	DEFB $0E,$2A,$A8,$6F	Put tile $2A at $6FA8
7A4E	DEFB $02,$05,$FF,$90,$65	Fill horz 5 tiles with $FF at $6590
7A53	DEFB $02,$0C,$FF,$9A,$65	Fill horz 12 tiles with $FF at $659A
7A58	DEFB $0C,$B9,$71,$02,$08,$98,$65	Block 2 tiles from 71B9 to $6598 copy 8 times
7A5F	DEFB $05,$04,$07,$8E,$79,$9F,$70	Block 4x7 tiles from 798E to $709F
7A66	DEFB $05,$04,$07,$8E,$79,$48,$70	Block 4x7 tiles from 798E to $7048
7A6D	DEFB $05,$04,$07,$8E,$79,$2B,$70	Block 4x7 tiles from 798E to $702B
7A74	DEFB $FF	End of sequence

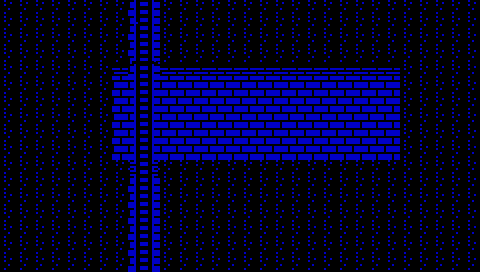

7A75: Room 7A75



7A75	DEFW $B41F	Room procedure
7A77	DEFW $B422	Initialization
7A79	DEFW $0000
7A7B	DEFW $0000
7A7D	DEFW $7BD2	Room Up
7A7F	DEFW $7A9E	Room Down
7A81	DEFB $04,$FF	Fill entire screen with $FF
7A83	DEFB $02,$12,$03,$0F,$66	Fill horz 18 tiles with $03 at $660F
7A88	DEFB $03,$02,$12,$05,$2D,$66	Rectangle 18x5 tiles with $02 at $662D
7A8E	DEFB $0C,$B9,$71,$02,$11,$98,$65	Block 2 tiles from 71B9 to $6598 copy 17 times
7A95	DEFB $0E,$F1,$C4,$66	Put tile $F1 at $66C4
7A99	DEFB $0E,$F0,$C5,$66	Put tile $F0 at $66C5
7A9D	DEFB $FF	End of sequence

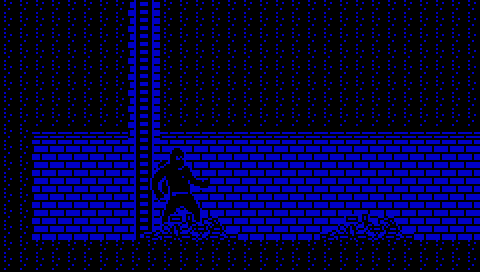

7A9E: Room 7A9E



7A9E	DEFW $B41F	Room procedure
7AA0	DEFW $B422	Initialization
7AA2	DEFW $0000
7AA4	DEFW $7ACD	Room to Right
7AA6	DEFW $7A75	Room Up
7AA8	DEFW $0000
7AAA	DEFB $04,$FF	Fill entire screen with $FF
7AAC	DEFB $02,$1C,$03,$82,$66	Fill horz 28 tiles with $03 at $6682
7AB1	DEFB $03,$02,$1C,$06,$A0,$66	Rectangle 28x6 tiles with $02 at $66A0
7AB7	DEFB $0C,$B9,$71,$02,$0F,$98,$65	Block 2 tiles from 71B9 to $6598 copy 15 times
7ABE	DEFB $05,$06,$02,$88,$71,$15,$71	Block 6x2 tiles from 7188 to $7115
7AC5	DEFB $05,$06,$02,$88,$71,$20,$71	Block 6x2 tiles from 7188 to $7120
7ACC	DEFB $FF	End of sequence

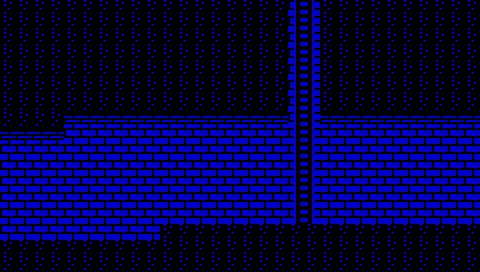

7ACD: Room 7ACD



7ACD	DEFW $B41F	Room procedure
7ACF	DEFW $B422	Initialization
7AD1	DEFW $7A9E	Room to Left
7AD3	DEFW $7AF8	Room to Right
7AD5	DEFW $7B56	Room Up
7AD7	DEFW $0000
7AD9	DEFB $04,$FF	Fill entire screen with $FF
7ADB	DEFB $03,$02,$1E,$06,$80,$66	Rectangle 30x6 tiles with $02 at $6680
7AE1	DEFB $02,$1A,$03,$66,$66	Fill horz 26 tiles with $03 at $6666
7AE6	DEFB $02,$04,$03,$80,$66	Fill horz 4 tiles with $03 at $6680
7AEB	DEFB $02,$0A,$02,$34,$67	Fill horz 10 tiles with $02 at $6734
7AF0	DEFB $0C,$B9,$71,$02,$0E,$A2,$65	Block 2 tiles from 71B9 to $65A2 copy 14 times
7AF7	DEFB $FF	End of sequence

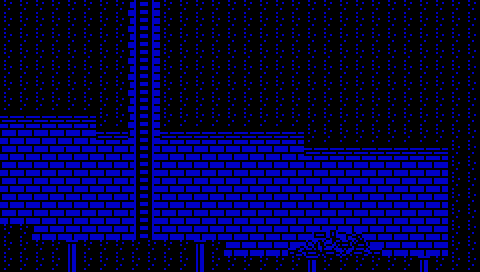

7AF8: Room 7AF8



7AF8	DEFW $B41F	Room procedure
7AFA	DEFW $B422	Initialization
7AFC	DEFW $7ACD	Room to Left
7AFE	DEFW $0001
7B00	DEFW $7C6D	Room Up
7B02	DEFW $0000
7B04	DEFB $04,$FF	Fill entire screen with $FF
7B06	DEFB $03,$02,$1C,$08,$80,$66	Rectangle 28x8 tiles with $02 at $6680
7B0C	DEFB $02,$0D,$03,$86,$66	Fill horz 13 tiles with $03 at $6686
7B11	DEFB $0C,$B9,$71,$02,$0F,$98,$65	Block 2 tiles from 71B9 to $6598 copy 15 times
7B18	DEFB $02,$06,$03,$62,$66	Fill horz 6 tiles with $03 at $6662
7B1D	DEFB $02,$09,$FF,$93,$66	Fill horz 9 tiles with $FF at $6693
7B22	DEFB $02,$09,$03,$B1,$66	Fill horz 9 tiles with $03 at $66B1
7B27	DEFB $05,$06,$02,$88,$71,$3C,$71	Block 6x2 tiles from 7188 to $713C
7B2E	DEFB $02,$02,$FF,$34,$67	Fill horz 2 tiles with $FF at $6734
7B33	DEFB $02,$0E,$FF,$52,$67	Fill horz 14 tiles with $FF at $6752
7B38	DEFB $0E,$FE,$83,$67	Put tile $FE at $6783
7B3C	DEFB $0E,$FE,$8A,$67	Put tile $FE at $678A
7B40	DEFB $05,$01,$02,$4F,$7B,$56,$67	Block 1x2 tiles from 7B4F to $6756
7B47	DEFB $05,$01,$02,$4F,$7B,$5E,$67	Block 1x2 tiles from 7B4F to $675E
7B4E	DEFB $FF	End of sequence

7B4F: Blocks for rooms


7B4F	DEFB $FE	Back block 1x2 - vertical pipe
7B50	DEFB $FD	Back block 1x2 - vertical pipe
7B51	DEFB $FD	Back block 1x1 - vertical pipe
7B52	DEFB $FD	Back block 1x4 - vertical pipe
7B53	DEFB $FD
7B54	DEFB $FD
7B55	DEFB $FC

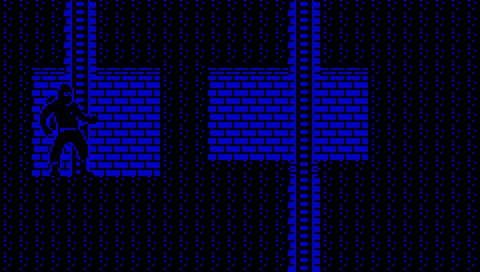

7B56: Room 7B56



7B56	DEFW $B41F	Room procedure
7B58	DEFW $B422	Initialization
7B5A	DEFW $0000
7B5C	DEFW $0000
7B5E	DEFW $7D5A	Room Up
7B60	DEFW $7ACD	Room Down
7B62	DEFB $04,$FF	Fill entire screen with $FF
7B64	DEFB $03,$02,$08,$06,$28,$66	Rectangle 8x6 tiles with $02 at $6628
7B6A	DEFB $03,$02,$0A,$05,$33,$66	Rectangle 10x5 tiles with $02 at $6633
7B70	DEFB $02,$08,$03,$0A,$66	Fill horz 8 tiles with $03 at $660A
7B75	DEFB $02,$0A,$03,$15,$66	Fill horz 10 tiles with $03 at $6615
7B7A	DEFB $0C,$B9,$71,$02,$0B,$94,$65	Block 2 tiles from 71B9 to $6594 copy 11 times
7B81	DEFB $0C,$B9,$71,$02,$11,$A2,$65	Block 2 tiles from 71B9 to $65A2 copy 17 times
7B88	DEFB $0C,$84,$79,$02,$01,$CE,$66	Block 2 tiles from 7984 to $66CE copy 1 times
7B8F	DEFB $FF	End of sequence

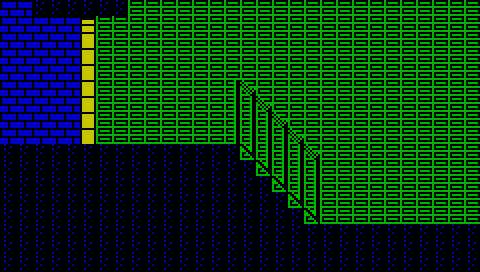

7B90: Room 7B90



7B90	DEFW $B41F	Room procedure
7B92	DEFW $B422	Initialization
7B94	DEFW $7A17	Room to Left
7B96	DEFW $7BD2	Room to Right
7B98	DEFW $0000
7B9A	DEFW $0000
7B9C	DEFB $04,$01	Fill entire screen with $01
7B9E	DEFB $03,$02,$05,$09,$90,$65	Rectangle 5x9 tiles with $02 at $6590
7BA4	DEFB $02,$06,$FF,$92,$65	Fill horz 6 tiles with $FF at $6592
7BA9	DEFB $0E,$2A,$A9,$6F	Put tile $2A at $6FA9
7BAD	DEFB $01,$07,$2B,$C7,$6F	Fill vert 7 tiles with $2B at $6FC7
7BB2	DEFB $03,$FF,$0F,$08,$9E,$66	Rectangle 15x8 tiles with $FF at $669E
7BB8	DEFB $03,$FF,$0F,$03,$43,$67	Rectangle 15x3 tiles with $FF at $6743
7BBE	DEFB $07,$FF,$04,$CB,$66	Triangle with $FF, count=4 at $66CB
7BC3	DEFB $05,$04,$07,$AA,$79,$68,$70	Block 4x7 tiles from 79AA to $7068
7BCA	DEFB $05,$04,$07,$AA,$79,$2A,$70	Block 4x7 tiles from 79AA to $702A
7BD1	DEFB $FF	End of sequence

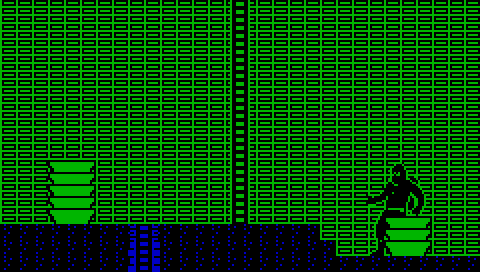

7BD2: Room 7BD2



7BD2	DEFW $B41F	Room procedure
7BD4	DEFW $B422	Initialization
7BD6	DEFW $7B90	Room to Left
7BD8	DEFW $7D5A	Room to Right
7BDA	DEFW $8162	Room Up
7BDC	DEFW $7A75	Room Down
7BDE	DEFB $04,$01	Fill entire screen with $01
7BE0	DEFB $03,$FF,$14,$03,$34,$67	Rectangle 20x3 tiles with $FF at $6734
7BE6	DEFB $02,$0A,$FF,$84,$67	Fill horz 10 tiles with $FF at $6784
7BEB	DEFB $0E,$FF,$66,$67	Put tile $FF at $6766
7BEF	DEFB $05,$03,$04,$0C,$7C,$B5,$70	Block 3x4 tiles from 7C0C to $70B5
7BF6	DEFB $05,$03,$03,$18,$7C,$24,$71	Block 3x3 tiles from 7C18 to $7124
7BFD	DEFB $0C,$2A,$7C,$02,$0E,$9E,$65	Block 2 tiles from 7C2A to $659E copy 14 times
7C04	DEFB $05,$02,$03,$84,$79,$3C,$67	Block 2x3 tiles from 7984 to $673C
7C0B	DEFB $FF	End of sequence

7C0C: Blocks for rooms


7C0C	DEFB $3F,$40,$41	Front block 3x4
7C0F	DEFB $42,$43,$44
7C12	DEFB $45,$46,$47
7C15	DEFB $48,$49,$4A
7C18	DEFB $4B,$4C,$4D	Front block 3x3
7C1B	DEFB $45,$46,$47
7C1E	DEFB $48,$49,$4A
7C21	DEFB $14,$15,$16	Front block 3x3 - barrel - to drow using token #00
7C24	DEFB $17,$18,$19
7C27	DEFB $1A,$1B,$1C
7C2A	DEFB $06,$09	Back block 2x1 - ladder black on green
7C2C	DEFB $ED,$EC	Back block 2x1 - ladder black on green

7C2E: Room 7C2E



7C2E	DEFW $B458	Room procedure
7C30	DEFW $A1A6	Initialization
7C32	DEFW $7D5A	Room to Left
7C34	DEFW $0000
7C36	DEFW $7DA9	Room Up
7C38	DEFW $7C6D	Room Down
7C3A	DEFB $04,$01	Fill entire screen with $01
7C3C	DEFB $03,$FF,$1E,$04,$16,$67	Rectangle 30x4 tiles with $FF at $6716
7C42	DEFB $03,$FF,$05,$06,$90,$65	Rectangle 5x6 tiles with $FF at $6590
7C48	DEFB $03,$FF,$03,$0D,$AB,$65	Rectangle 3x13 tiles with $FF at $65AB
7C4E	DEFB $0E,$2A,$3B,$70	Put tile $2A at $703B
7C52	DEFB $01,$06,$2B,$59,$70	Fill vert 6 tiles with $2B at $7059
7C57	DEFB $0C,$2A,$7C,$02,$0D,$95,$65	Block 2 tiles from 7C2A to $6595 copy 13 times
7C5E	DEFB $05,$02,$04,$84,$79,$1E,$67	Block 2x4 tiles from 7984 to $671E
7C65	DEFB $05,$02,$04,$84,$79,$2A,$67	Block 2x4 tiles from 7984 to $672A
7C6C	DEFB $FF	End of sequence

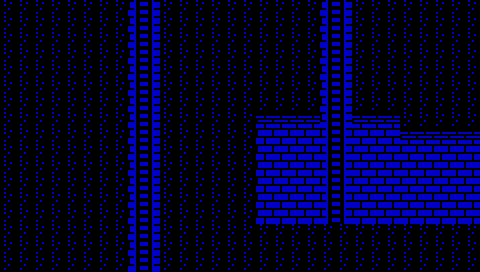

7C6D: Room 7C6D



7C6D	DEFW $B41F	Room procedure
7C6F	DEFW $B422	Initialization
7C71	DEFW $0000

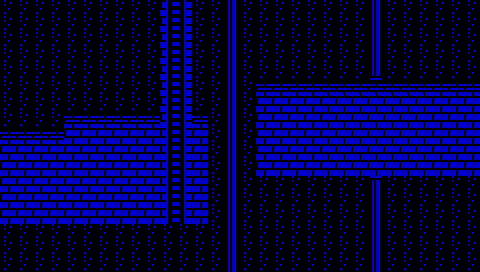

7C73	DEFW $7FC4	Room to Right
7C75	DEFW $7C2E	Room Up
7C77	DEFW $7AF8	Room Down
7C79	DEFB $04,$FF	Fill entire screen with $FF
7C7B	DEFB $0C,$B9,$71,$02,$11,$98,$65	Block 2 tiles from 71B9 to $6598 copy 17 times
7C82	DEFB $03,$02,$0E,$06,$90,$66	Rectangle 14x6 tiles with $02 at $6690
7C88	DEFB $02,$09,$03,$72,$66	Fill horz 9 tiles with $03 at $6672
7C8D	DEFB $02,$05,$03,$99,$66	Fill horz 5 tiles with $03 at $6699
7C92	DEFB $0C,$B9,$71,$02,$0E,$A4,$65	Block 2 tiles from 71B9 to $65A4 copy 14 times
7C99	DEFB $FF	End of sequence

7C9A: Blocks for rooms


7C9A	DEFB $06,$09	Back block 2x1 - ladder black on green

7C9C: Room 7C9C



7C9C	DEFW $C6A5	Room procedure
7C9E	DEFW $791B	Initialization

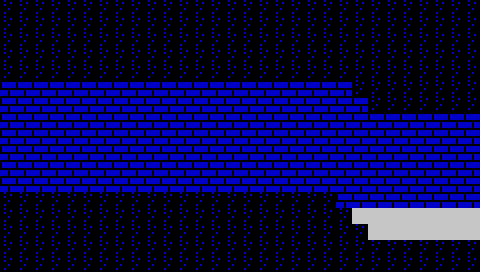

7CA0	DEFW $947C	Room to Left
7CA2	DEFW $93DF	Room to Right
7CA4	DEFW $0000
7CA6	DEFW $0000
7CA8	DEFB $04,$FF	Fill entire screen with $FF
7CAA	DEFB $02,$1E,$03,$62,$66	Fill horz 30 tiles with $03 at $6662
7CAF	DEFB $03,$02,$1E,$07,$80,$66	Rectangle 30x7 tiles with $02 at $6680
7CB5	DEFB $03,$22,$04,$02,$AB,$66	Rectangle 4x2 tiles with $22 at $66AB
7CBB	DEFB $03,$21,$1E,$02,$16,$67	Rectangle 30x2 tiles with $21 at $6716
7CC1	DEFB $05,$06,$07,$0D,$7D,$82,$70	Block 6x7 tiles from 7D0D to $7082
7CC8	DEFB $05,$05,$01,$08,$7D,$53,$67	Block 5x1 tiles from 7D08 to $6753
7CCF	DEFB $05,$05,$01,$08,$7D,$62,$67	Block 5x1 tiles from 7D08 to $6762
7CD6	DEFB $05,$05,$07,$E5,$7C,$87,$66	Block 5x7 tiles from 7CE5 to $6687
7CDD	DEFB $05,$05,$07,$37,$7D,$92,$66	Block 5x7 tiles from 7D37 to $6692
7CE4	DEFB $FF	End of sequence

7CE5: Blocks for rooms


7CE5	DEFB $02,$E9,$E8,$E7,$E7	Back block 5x7 - Train part
7CEA	DEFB $17,$0D,$15,$15,$0D
7CEF	DEFB $18,$0D,$15,$15,$0D
7CF4	DEFB $19,$0D,$0D,$0D,$0D
7CF9	DEFB $22,$22,$22,$22,$22
7CFE	DEFB $22,$22,$22,$22,$22
7D03	DEFB $1F,$0D,$0D,$0D,$0D
7D08	DEFB $FB,$FB,$FF,$FF,$FB	Back block 5x1 - Train part
7D0D	DEFB $56,$4E,$4E,$4E,$4E,$57	Front block 6x7 - Train central part
7D13	DEFB $52,$4F,$4F,$4F,$4F,$54
7D19	DEFB $52,$4F,$4F,$4F,$4F,$54
7D1F	DEFB $52,$6C,$6D,$6E,$50,$54
7D25	DEFB $53,$6F,$70,$71,$51,$55
7D2B	DEFB $53,$72,$73,$74,$51,$55
7D31	DEFB $52,$50,$50,$50,$50,$54
7D37	DEFB $E7,$E7,$E6,$E5,$02	Back block 5x7 - Train part
7D3C	DEFB $0D,$15,$15,$0D,$1C
7D41	DEFB $0D,$15,$15,$0D,$1D
7D46	DEFB $0D,$0D,$0D,$0D,$1E
7D4B	DEFB $22,$22,$22,$22,$22
7D50	DEFB $22,$22,$22,$22,$22
7D55	DEFB $0D,$0D,$0D,$0D,$20

7D5A: Room 7D5A



7D5A	DEFW $B483	Room procedure
7D5C	DEFW $A14A	Initialization
7D5E	DEFW $7BD2	Room to Left
7D60	DEFW $7C2E	Room to Right
7D62	DEFW $0000
7D64	DEFW $7B56	Room Down
7D66	DEFB $04,$01	Fill entire screen with $01
7D68	DEFB $03,$FF,$1E,$06,$90,$65	Rectangle 30x6 tiles with $FF at $6590
7D6E	DEFB $0C,$2A,$7C,$02,$10,$9B,$65	Block 2 tiles from 7C2A to $659B copy 16 times
7D75	DEFB $02,$02,$EA,$31,$66	Fill horz 2 tiles with $EA at $6631
7D7A	DEFB $02,$1E,$FF,$70,$67	Fill horz 30 tiles with $FF at $6770
7D7F	DEFB $03,$FF,$06,$03,$2E,$67	Rectangle 6x3 tiles with $FF at $672E
7D85	DEFB $08,$FF,$02,$4B,$67	Triangle with $FF, count=2 at $674B
7D8A	DEFB $0C,$84,$79,$02,$01,$74,$67	Block 2 tiles from 7984 to $6774 copy 1 times
7D91	DEFB $0C,$84,$79,$02,$01,$82,$67	Block 2 tiles from 7984 to $6782 copy 1 times
7D98	DEFB $0E,$2A,$56,$70	Put tile $2A at $7056
7D9C	DEFB $01,$06,$2B,$74,$70	Fill vert 6 tiles with $2B at $7074
7DA1	DEFB $05,$04,$07,$8E,$79,$A9,$70	Block 4x7 tiles from 798E to $70A9
7DA8	DEFB $FF	End of sequence

7DA9: Room 7DA9



7DA9	DEFW $7918	Room procedure
7DAB	DEFW $A0E8	Initialization
7DAD	DEFW $0000
7DAF	DEFW $7E8C	Room to Right
7DB1	DEFW $7E05	Room Up
7DB3	DEFW $7C2E	Room Down
7DB5	DEFB $04,$01	Fill entire screen with $01
7DB7	DEFB $02,$1E,$FF,$70,$67	Fill horz 30 tiles with $FF at $6770
7DBC	DEFB $02,$1E,$FF,$90,$65	Fill horz 30 tiles with $FF at $6590
7DC1	DEFB $03,$FF,$03,$03,$AE,$65	Rectangle 3x3 tiles with $FF at $65AE
7DC7	DEFB $01,$0C,$EB,$09,$66	Fill vert 12 tiles with $EB at $6609
7DCC	DEFB $05,$03,$04,$0C,$7C,$F0,$70	Block 3x4 tiles from 7C0C to $70F0
7DD3	DEFB $0C,$2C,$7C,$02,$01,$75,$67	Block 2 tiles from 7C2C to $6775 copy 1 times
7DDA	DEFB $0C,$9A,$7C,$02,$10,$99,$65	Block 2 tiles from 7C9A to $6599 copy 16 times
7DE1	DEFB $0C,$9A,$7C,$02,$10,$9C,$65	Block 2 tiles from 7C9A to $659C copy 16 times
7DE8	DEFB $0C,$9A,$7C,$02,$10,$9F,$65	Block 2 tiles from 7C9A to $659F copy 16 times
7DEF	DEFB $05,$03,$03,$18,$7C,$22,$71	Block 3x3 tiles from 7C18 to $7122
7DF6	DEFB $05,$03,$04,$0C,$7C,$01,$71	Block 3x4 tiles from 7C0C to $7101
7DFD	DEFB $05,$03,$04,$0C,$7C,$06,$71	Block 3x4 tiles from 7C0C to $7106
7E04	DEFB $FF	End of sequence

7E05: Room 7E05



7E05	DEFW $B452	Room procedure
7E07	DEFW $A35C	Initialization
7E09	DEFW $0000
7E0B	DEFW $80A7	Room to Right
7E0D	DEFW $83ED	Room Up
7E0F	DEFW $7DA9	Room Down
7E11	DEFB $02,$1E,$FF,$70,$67	Fill horz 30 tiles with $FF at $6770
7E16	DEFB $0C,$2C,$7C,$02,$01,$79,$67	Block 2 tiles from 7C2C to $6779 copy 1 times
7E1D	DEFB $0C,$2C,$7C,$02,$01,$7C,$67	Block 2 tiles from 7C2C to $677C copy 1 times
7E24	DEFB $0C,$2C,$7C,$02,$01,$7F,$67	Block 2 tiles from 7C2C to $677F copy 1 times
7E2B	DEFB $0C,$48,$73,$02,$10,$99,$65	Block 2 tiles from 7348 to $6599 copy 16 times
7E32	DEFB $01,$0C,$EB,$09,$66	Fill vert 12 tiles with $EB at $6609
7E37	DEFB $05,$03,$03,$21,$7C,$B5,$70	Block 3x3 tiles from 7C21 to $70B5
7E3E	DEFB $05,$03,$03,$21,$7C,$0E,$71	Block 3x3 tiles from 7C21 to $710E
7E45	DEFB $05,$03,$03,$21,$7C,$11,$71	Block 3x3 tiles from 7C21 to $7111
7E4C	DEFB $05,$03,$04,$0C,$7C,$03,$71	Block 3x4 tiles from 7C0C to $7103
7E53	DEFB $05,$04,$03,$7B,$7E,$1F,$71	Block 4x3 tiles from 7E7B to $711F
7E5A	DEFB $05,$03,$01,$87,$7E,$44,$71	Block 3x1 tiles from 7E87 to $7144
7E61	DEFB $05,$02,$01,$8A,$7E,$61,$71	Block 2x1 tiles from 7E8A to $7161
7E68	DEFB $05,$02,$01,$8A,$7E,$64,$71	Block 2x1 tiles from 7E8A to $7164
7E6F	DEFB $02,$05,$FF,$90,$65	Fill horz 5 tiles with $FF at $6590
7E74	DEFB $03,$FF,$03,$03,$AE,$65	Rectangle 3x3 tiles with $FF at $65AE
7E7A	DEFB $FF	End of sequence

7E7B: Blocks for rooms


7E7B	DEFB $00,$01,$01,$02	Front block 4x3 wooden box
7E7F	DEFB $03,$04,$04,$05
7E83	DEFB $06,$07,$07,$08
7E87	DEFB $09,$1D,$0A	Block 3x1
7E8A	DEFB $09,$0A	Block 2x1

7E8C: Room 7E8C



7E8C	DEFW $7918	Room procedure
7E8E	DEFW $A0ED	Initialization
7E90	DEFW $7DA9	Room to Left
7E92	DEFW $7EF2	Room to Right
7E94	DEFW $0000
7E96	DEFW $7F48	Room Down
7E98	DEFB $04,$01	Fill entire screen with $01
7E9A	DEFB $02,$1E,$FF,$90,$65	Fill horz 30 tiles with $FF at $6590
7E9F	DEFB $02,$1E,$FF,$70,$67	Fill horz 30 tiles with $FF at $6770
7EA4	DEFB $0C,$2C,$7C,$02,$01,$72,$67	Block 2 tiles from 7C2C to $6772 copy 1 times
7EAB	DEFB $0C,$2C,$7C,$02,$01,$84,$67	Block 2 tiles from 7C2C to $6784 copy 1 times
7EB2	DEFB $05,$03,$03,$18,$7C,$0C,$71	Block 3x3 tiles from 7C18 to $710C
7EB9	DEFB $05,$03,$04,$0C,$7C,$F2,$70	Block 3x4 tiles from 7C0C to $70F2
7EC0	DEFB $05,$04,$03,$7B,$7E,$11,$71	Block 4x3 tiles from 7E7B to $7111
7EC7	DEFB $05,$04,$03,$7B,$7E,$15,$71	Block 4x3 tiles from 7E7B to $7115
7ECE	DEFB $05,$04,$03,$7B,$7E,$BE,$70	Block 4x3 tiles from 7E7B to $70BE
7ED5	DEFB $05,$03,$03,$A0,$71,$BA,$70	Block 3x3 tiles from 71A0 to $70BA
7EDC	DEFB $05,$03,$03,$A0,$71,$1B,$71	Block 3x3 tiles from 71A0 to $711B
7EE3	DEFB $05,$03,$03,$18,$7C,$22,$71	Block 3x3 tiles from 7C18 to $7122
7EEA	DEFB $05,$03,$04,$0C,$7C,$06,$71	Block 3x4 tiles from 7C0C to $7106
7EF1	DEFB $FF	End of sequence

7EF2: Room 7EF2



7EF2	DEFW $B47A	Room procedure
7EF4	DEFW $A154	Initialization
7EF6	DEFW $7E8C	Room to Left
7EF8	DEFW $0000
7EFA	DEFW $0000
7EFC	DEFW $0000
7EFE	DEFB $04,$01	Fill entire screen with $01
7F00	DEFB $02,$1E,$FF,$90,$65	Fill horz 30 tiles with $FF at $6590
7F05	DEFB $02,$1E,$FF,$70,$67	Fill horz 30 tiles with $FF at $6770
7F0A	DEFB $01,$0F,$EB,$CA,$65	Fill vert 15 tiles with $EB at $65CA
7F0F	DEFB $05,$04,$03,$7B,$7E,$63,$70	Block 4x3 tiles from 7E7B to $7063
7F16	DEFB $05,$04,$03,$7B,$7E,$BA,$70	Block 4x3 tiles from 7E7B to $70BA
7F1D	DEFB $05,$04,$03,$7B,$7E,$17,$71	Block 4x3 tiles from 7E7B to $7117
7F24	DEFB $05,$03,$03,$A0,$71,$C0,$70	Block 3x3 tiles from 71A0 to $70C0
7F2B	DEFB $05,$03,$03,$A0,$71,$0E,$71	Block 3x3 tiles from 71A0 to $710E
7F32	DEFB $05,$03,$03,$A0,$71,$12,$71	Block 3x3 tiles from 71A0 to $7112
7F39	DEFB $05,$03,$03,$A0,$71,$1C,$71	Block 3x3 tiles from 71A0 to $711C
7F40	DEFB $05,$03,$03,$A0,$71,$23,$71	Block 3x3 tiles from 71A0 to $7123
7F47	DEFB $FF	End of sequence

7F48: Room 7F48



7F48	DEFW $B483	Room procedure
7F4A	DEFW $A14F	Initialization
7F4C	DEFW $0000
7F4E	DEFW $7F9C	Room to Right
7F50	DEFW $7E8C	Room Up
7F52	DEFW $7FC4	Room Down
7F54	DEFB $04,$FF	Fill entire screen with $FF
7F56	DEFB $03,$01,$08,$0C,$B2,$65	Rectangle 8x12 tiles with $01 at $65B2
7F5C	DEFB $03,$01,$12,$07,$6E,$66	Rectangle 18x7 tiles with $01 at $666E
7F62	DEFB $02,$04,$01,$1E,$67	Fill horz 4 tiles with $01 at $671E
7F67	DEFB $07,$01,$05,$D8,$65	Triangle with $01, count=5 at $65D8
7F6C	DEFB $0C,$9A,$7C,$02,$0D,$92,$65	Block 2 tiles from 7C9A to $6592 copy 13 times
7F73	DEFB $0C,$9A,$7C,$02,$0E,$A4,$65	Block 2 tiles from 7C9A to $65A4 copy 14 times
7F7A	DEFB $01,$01,$E4,$5E,$66	Fill vert 1 tiles with $E4 at $665E
7F7F	DEFB $05,$03,$03,$18,$7C,$DF,$70	Block 3x3 tiles from 7C18 to $70DF
7F86	DEFB $05,$01,$03,$4F,$7B,$42,$67	Block 1x3 tiles from 7B4F to $6742
7F8D	DEFB $05,$01,$03,$4F,$7B,$4B,$67	Block 1x3 tiles from 7B4F to $674B
7F94	DEFB $05,$02,$03,$84,$79,$3E,$67	Block 2x3 tiles from 7984 to $673E
7F9B	DEFB $FF	End of sequence

7F9C: Room 7F9C



7F9C	DEFW $B458	Room procedure
7F9E	DEFW $A1B5	Initialization
7FA0	DEFW $7F48	Room to Left
7FA2	DEFW $0000
7FA4	DEFW $0000
7FA6	DEFW $8008	Room Down
7FA8	DEFB $04,$FF	Fill entire screen with $FF
7FAA	DEFB $03,$01,$1B,$07,$62,$66	Rectangle 27x7 tiles with $01 at $6662
7FB0	DEFB $01,$01,$E4,$46,$66	Fill vert 1 tiles with $E4 at $6646
7FB5	DEFB $05,$02,$03,$84,$79,$38,$67	Block 2x3 tiles from 7984 to $6738
7FBC	DEFB $05,$02,$03,$84,$79,$48,$67	Block 2x3 tiles from 7984 to $6748
7FC3	DEFB $FF	End of sequence

7FC4: Room 7FC4



7FC4	DEFW $B41F	Room procedure
7FC6	DEFW $B422	Initialization
7FC8	DEFW $7C6D	Room to Left
7FCA	DEFW $8008	Room to Right
7FCC	DEFW $7F48	Room Up
7FCE	DEFW $0000
7FD0	DEFB $04,$FF	Fill entire screen with $FF
7FD2	DEFB $03,$02,$0D,$06,$80,$66	Rectangle 13x6 tiles with $02 at $6680
7FD8	DEFB $02,$04,$03,$80,$66	Fill horz 4 tiles with $03 at $6680
7FDD	DEFB $02,$09,$03,$66,$66	Fill horz 9 tiles with $03 at $6666
7FE2	DEFB $0C,$B9,$71,$02,$0E,$9A,$65	Block 2 tiles from 71B9 to $659A copy 14 times
7FE9	DEFB $01,$11,$FD,$9E,$65	Fill vert 17 tiles with $FD at $659E
7FEE	DEFB $02,$0E,$03,$36,$66	Fill horz 14 tiles with $03 at $6636
7FF3	DEFB $03,$02,$0E,$05,$54,$66	Rectangle 14x5 tiles with $02 at $6654
7FF9	DEFB $05,$01,$06,$4F,$7B,$F1,$66	Block 1x6 tiles from 7B4F to $66F1
8000	DEFB $05,$01,$05,$51,$7B,$A7,$65	Block 1x5 tiles from 7B51 to $65A7
8007	DEFB $FF	End of sequence

8008: Room 8008



8008	DEFW $B41F	Room procedure
800A	DEFW $B422	Initialization
800C	DEFW $7FC4	Room to Left
800E	DEFW $0000
8010	DEFW $7F9C	Room Up
8012	DEFW $8076	Room Down
8014	DEFB $04,$FF	Fill entire screen with $FF
8016	DEFB $02,$0D,$03,$26,$66	Fill horz 13 tiles with $03 at $6626
801B	DEFB $02,$0B,$03,$36,$66	Fill horz 11 tiles with $03 at $6636
8020	DEFB $03,$02,$0D,$05,$44,$66	Rectangle 13x5 tiles with $02 at $6644
8026	DEFB $03,$02,$0B,$06,$54,$66	Rectangle 11x6 tiles with $02 at $6654
802C	DEFB $02,$0A,$02,$DD,$66	Fill horz 10 tiles with $02 at $66DD
8031	DEFB $0C,$B9,$71,$02,$0C,$94,$65	Block 2 tiles from 71B9 to $6594 copy 12 times
8038	DEFB $0C,$B9,$71,$02,$0C,$A4,$65	Block 2 tiles from 71B9 to $65A4 copy 12 times
803F	DEFB $05,$02,$05,$84,$79,$FF,$66	Block 2x5 tiles from 7984 to $66FF
8046	DEFB $05,$02,$05,$84,$79,$0C,$67	Block 2x5 tiles from 7984 to $670C
804D	DEFB $05,$01,$05,$4F,$7B,$02,$67	Block 1x5 tiles from 7B4F to $6702
8054	DEFB $05,$01,$05,$4F,$7B,$0A,$67	Block 1x5 tiles from 7B4F to $670A
805B	DEFB $05,$01,$05,$4F,$7B,$11,$67	Block 1x5 tiles from 7B4F to $6711
8062	DEFB $05,$01,$05,$51,$7B,$A2,$65	Block 1x5 tiles from 7B51 to $65A2
8069	DEFB $05,$01,$05,$51,$7B,$A9,$65	Block 1x5 tiles from 7B51 to $65A9
8070	DEFB $01,$11,$FD,$9E,$65	Fill vert 17 tiles with $FD at $659E
8075	DEFB $FF	End of sequence

8076: Room 8076



8076	DEFW $B41F	Room procedure
8078	DEFW $B422	Initialization
807A	DEFW $0000
807C	DEFW $0000
807E	DEFW $8008	Room Up
8080	DEFW $8384	Room Down
8082	DEFB $04,$FF	Fill entire screen with $FF
8084	DEFB $01,$11,$FD,$9A,$65	Fill vert 17 tiles with $FD at $659A
8089	DEFB $01,$11,$FD,$9E,$65	Fill vert 17 tiles with $FD at $659E
808E	DEFB $01,$11,$FD,$A2,$65	Fill vert 17 tiles with $FD at $65A2
8093	DEFB $01,$11,$FD,$A9,$65	Fill vert 17 tiles with $FD at $65A9
8098	DEFB $0C,$B9,$71,$02,$11,$97,$65	Block 2 tiles from 71B9 to $6597 copy 17 times
809F	DEFB $0C,$B9,$71,$02,$11,$A4,$65	Block 2 tiles from 71B9 to $65A4 copy 17 times
80A6	DEFB $FF	End of sequence

80A7: Room 80A7



80A7	DEFW $B458	Room procedure
80A9	DEFW $A1CB	Initialization
80AB	DEFW $7E05	Room to Left
80AD	DEFW $80F6	Room to Right
80AF	DEFW $0000
80B1	DEFW $0000
80B3	DEFB $02,$1E,$FF,$90,$65	Fill horz 30 tiles with $FF at $6590
80B8	DEFB $02,$1E,$FF,$70,$67	Fill horz 30 tiles with $FF at $6770
80BD	DEFB $05,$03,$04,$0C,$7C,$F0,$70	Block 3x4 tiles from 7C0C to $70F0
80C4	DEFB $05,$03,$03,$21,$7C,$13,$71	Block 3x3 tiles from 7C21 to $7113
80CB	DEFB $05,$03,$03,$A0,$71,$17,$71	Block 3x3 tiles from 71A0 to $7117
80D2	DEFB $05,$04,$03,$7B,$7E,$1C,$71	Block 4x3 tiles from 7E7B to $711C
80D9	DEFB $05,$03,$03,$21,$7C,$C3,$70	Block 3x3 tiles from 7C21 to $70C3
80E0	DEFB $05,$03,$03,$21,$7C,$C9,$70	Block 3x3 tiles from 7C21 to $70C9
80E7	DEFB $05,$03,$03,$21,$7C,$22,$71	Block 3x3 tiles from 7C21 to $7122
80EE	DEFB $05,$03,$03,$21,$7C,$25,$71	Block 3x3 tiles from 7C21 to $7125
80F5	DEFB $FF	End of sequence

80F6: Room 80F6



80F6	DEFW $B452	Room procedure
80F8	DEFW $A38E	Initialization
80FA	DEFW $80A7	Room to Left
80FC	DEFW $0000
80FE	DEFW $0000
8100	DEFW $0000
8102	DEFB $02,$1E,$FF,$70,$67	Fill horz 30 tiles with $FF at $6770
8107	DEFB $03,$FF,$02,$10,$AC,$65	Rectangle 2x16 tiles with $FF at $65AC
810D	DEFB $05,$02,$04,$BB,$71,$F1,$70	Block 2x4 tiles from 71BB to $70F1
8114	DEFB $05,$03,$03,$21,$7C,$BA,$70	Block 3x3 tiles from 7C21 to $70BA
811B	DEFB $05,$03,$03,$21,$7C,$12,$71	Block 3x3 tiles from 7C21 to $7112
8122	DEFB $05,$03,$03,$21,$7C,$15,$71	Block 3x3 tiles from 7C21 to $7115
8129	DEFB $05,$03,$03,$21,$7C,$6F,$70	Block 3x3 tiles from 7C21 to $706F
8130	DEFB $05,$03,$03,$21,$7C,$C7,$70	Block 3x3 tiles from 7C21 to $70C7
8137	DEFB $05,$03,$03,$21,$7C,$CB,$70	Block 3x3 tiles from 7C21 to $70CB
813E	DEFB $05,$03,$03,$21,$7C,$1F,$71	Block 3x3 tiles from 7C21 to $711F
8145	DEFB $05,$03,$03,$21,$7C,$22,$71	Block 3x3 tiles from 7C21 to $7122
814C	DEFB $05,$03,$03,$21,$7C,$25,$71	Block 3x3 tiles from 7C21 to $7125
8153	DEFB $05,$04,$03,$7B,$7E,$1A,$71	Block 4x3 tiles from 7E7B to $711A
815A	DEFB $05,$02,$01,$8A,$7E,$55,$71	Block 2x1 tiles from 7E8A to $7155
8161	DEFB $FF	End of sequence

8162: Room 8162



8162	DEFW $B458	Room procedure
8164	DEFW $A1C0	Initialization
8166	DEFW $81E5	Room to Left
8168	DEFW $0000
816A	DEFW $8321	Room Up
816C	DEFW $7BD2	Room Down
816E	DEFB $03,$01,$1C,$08,$80,$66	Rectangle 28x8 tiles with $01 at $6680
8174	DEFB $02,$1C,$FF,$62,$66	Fill horz 28 tiles with $FF at $6662
8179	DEFB $02,$1E,$FF,$70,$67	Fill horz 30 tiles with $FF at $6770
817E	DEFB $02,$0D,$FF,$90,$65	Fill horz 13 tiles with $FF at $6590
8183	DEFB $02,$07,$FF,$A7,$65	Fill horz 7 tiles with $FF at $65A7
8188	DEFB $0C,$E3,$81,$02,$0F,$CA,$65	Block 2 tiles from 81E3 to $65CA copy 15 times
818F	DEFB $0C,$48,$73,$02,$07,$A0,$65	Block 2 tiles from 7348 to $65A0 copy 7 times
8196	DEFB $05,$02,$04,$BB,$71,$E7,$6F	Block 2x4 tiles from 71BB to $6FE7
819D	DEFB $05,$03,$04,$0C,$7C,$EF,$70	Block 3x4 tiles from 7C0C to $70EF
81A4	DEFB $05,$03,$03,$18,$7C,$10,$71	Block 3x3 tiles from 7C18 to $7110
81AB	DEFB $05,$03,$03,$18,$7C,$1D,$71	Block 3x3 tiles from 7C18 to $711D
81B2	DEFB $05,$03,$04,$0C,$7C,$04,$71	Block 3x4 tiles from 7C0C to $7104
81B9	DEFB $05,$03,$03,$18,$7C,$25,$71	Block 3x3 tiles from 7C18 to $7125
81C0	DEFB $0E,$2A,$A8,$6F	Put tile $2A at $6FA8
81C4	DEFB $01,$05,$2B,$C6,$6F	Fill vert 5 tiles with $2B at $6FC6
81C9	DEFB $0E,$2A,$AF,$6F	Put tile $2A at $6FAF
81CD	DEFB $01,$05,$2B,$CD,$6F	Fill vert 5 tiles with $2B at $6FCD
81D2	DEFB $0E,$2A,$BC,$6F	Put tile $2A at $6FBC
81D6	DEFB $01,$05,$2B,$DA,$6F	Fill vert 5 tiles with $2B at $6FDA
81DB	DEFB $0C,$2C,$7C,$02,$01,$7E,$67	Block 2 tiles from 7C2C to $677E copy 1 times
81E2	DEFB $FF	End of sequence

81E3: Blocks for rooms


81E3	DEFB $FF,$FF	Block 2x1

81E5: Room 81E5



81E5	DEFW $B452	Room procedure
81E7	DEFW $A353	Initialization
81E9	DEFW $8238	Room to Left
81EB	DEFW $8162	Room to Right
81ED	DEFW $0000
81EF	DEFW $0000
81F1	DEFB $03,$FF,$1E,$09,$80,$66	Rectangle 30x9 tiles with $FF at $6680
81F7	DEFB $03,$01,$1C,$07,$A0,$66	Rectangle 28x7 tiles with $01 at $66A0
81FD	DEFB $02,$05,$00,$80,$66	Fill horz 5 tiles with $00 at $6680
8202	DEFB $02,$06,$FF,$9E,$66	Fill horz 6 tiles with $FF at $669E
8207	DEFB $02,$0C,$FF,$90,$65	Fill horz 12 tiles with $FF at $6590
820C	DEFB $02,$0B,$FF,$A3,$65	Fill horz 11 tiles with $FF at $65A3
8211	DEFB $06,$FF,$02,$AE,$65	Triangle with $FF, count=2 at $65AE
8216	DEFB $0E,$2A,$AC,$6F	Put tile $2A at $6FAC
821A	DEFB $0E,$2A,$B8,$6F	Put tile $2A at $6FB8
821E	DEFB $01,$06,$2B,$CA,$6F	Fill vert 6 tiles with $2B at $6FCA
8223	DEFB $01,$05,$2B,$D6,$6F	Fill vert 5 tiles with $2B at $6FD6
8228	DEFB $02,$0A,$01,$94,$66	Fill horz 10 tiles with $01 at $6694
822D	DEFB $02,$18,$01,$A4,$66	Fill horz 24 tiles with $01 at $66A4
8232	DEFB $02,$0B,$FF,$75,$66	Fill horz 11 tiles with $FF at $6675
8237	DEFB $FF	End of sequence

8238: Room 8238



8238	DEFW $B41F	Room procedure
823A	DEFW $B422	Initialization
823C	DEFW $0000
823E	DEFW $81E5	Room to Right
8240	DEFW $8279	Room Up
8242	DEFW $7A17	Room Down
8244	DEFB $04,$FF	Fill entire screen with $FF
8246	DEFB $03,$00,$1C,$06,$EC,$65	Rectangle 28x6 tiles with $00 at $65EC
824C	DEFB $02,$0E,$00,$A0,$66	Fill horz 14 tiles with $00 at $66A0
8251	DEFB $0C,$B9,$71,$02,$11,$98,$65	Block 2 tiles from 71B9 to $6598 copy 17 times
8258	DEFB $0C,$48,$73,$02,$07,$F2,$65	Block 2 tiles from 7348 to $65F2 copy 7 times
825F	DEFB $05,$02,$01,$84,$79,$C4,$66	Block 2x1 tiles from 7984 to $66C4
8266	DEFB $0E,$2A,$E4,$6F	Put tile $2A at $6FE4
826A	DEFB $0E,$2A,$F8,$6F	Put tile $2A at $6FF8
826E	DEFB $01,$06,$2B,$02,$70	Fill vert 6 tiles with $2B at $7002
8273	DEFB $01,$05,$2B,$16,$70	Fill vert 5 tiles with $2B at $7016
8278	DEFB $FF	End of sequence

8279: Room 8279



8279	DEFW $B41F	Room procedure
827B	DEFW $B422	Initialization
827D	DEFW $0000
827F	DEFW $82DD	Room to Right
8281	DEFW $0000
8283	DEFW $8238	Room Down
8285	DEFB $0C,$E3,$81,$02,$11,$90,$65	Block 2 tiles from 81E3 to $6590 copy 17 times
828C	DEFB $07,$FF,$04,$BE,$66	Triangle with $FF, count=4 at $66BE
8291	DEFB $02,$0F,$FF,$34,$67	Fill horz 15 tiles with $FF at $6734
8296	DEFB $02,$15,$FF,$52,$67	Fill horz 21 tiles with $FF at $6752
829B	DEFB $02,$1E,$FF,$70,$67	Fill horz 30 tiles with $FF at $6770
82A0	DEFB $05,$03,$03,$21,$7C,$A5,$70	Block 3x3 tiles from 7C21 to $70A5
82A7	DEFB $05,$03,$03,$21,$7C,$C7,$70	Block 3x3 tiles from 7C21 to $70C7
82AE	DEFB $05,$03,$03,$21,$7C,$DB,$70	Block 3x3 tiles from 7C21 to $70DB
82B5	DEFB $05,$03,$03,$21,$7C,$FD,$70	Block 3x3 tiles from 7C21 to $70FD
82BC	DEFB $05,$03,$03,$21,$7C,$00,$71	Block 3x3 tiles from 7C21 to $7100
82C3	DEFB $05,$03,$03,$21,$7C,$21,$71	Block 3x3 tiles from 7C21 to $7121
82CA	DEFB $05,$03,$03,$21,$7C,$24,$71	Block 3x3 tiles from 7C21 to $7124
82D1	DEFB $05,$02,$03,$84,$79,$3C,$67	Block 2x3 tiles from 7984 to $673C
82D8	DEFB $0E,$00,$BE,$66	Put tile $00 at $66BE
82DC	DEFB $FF	End of sequence

82DD: Room 82DD



82DD	DEFW $B41F	Room procedure
82DF	DEFW $B422	Initialization
82E1	DEFW $8279	Room to Left
82E3	DEFW $8321	Room to Right
82E5	DEFW $0000
82E7	DEFW $81E5	Room Down
82E9	DEFB $02,$0D,$FF,$70,$67	Fill horz 13 tiles with $FF at $6770
82EE	DEFB $02,$07,$FF,$58,$67	Fill horz 7 tiles with $FF at $6758
82F3	DEFB $02,$06,$FF,$64,$67	Fill horz 6 tiles with $FF at $6764
82F8	DEFB $02,$0C,$FF,$82,$67	Fill horz 12 tiles with $FF at $6782
82FD	DEFB $05,$03,$03,$21,$7C,$0C,$71	Block 3x3 tiles from 7C21 to $710C
8304	DEFB $05,$03,$03,$21,$7C,$0F,$71	Block 3x3 tiles from 7C21 to $710F
830B	DEFB $05,$03,$03,$21,$7C,$F5,$70	Block 3x3 tiles from 7C21 to $70F5
8312	DEFB $05,$03,$03,$A0,$71,$02,$71	Block 3x3 tiles from 71A0 to $7102
8319	DEFB $05,$04,$03,$7B,$7E,$25,$71	Block 4x3 tiles from 7E7B to $7125
8320	DEFB $FF	End of sequence

8321: Room 8321



8321	DEFW $B41F	Room procedure
8323	DEFW $B422	Initialization
8325	DEFW $82DD	Room to Left
8327	DEFW $0000
8329	DEFW $844E	Room Up
832B	DEFW $8162	Room Down
832D	DEFB $02,$1E,$FF,$70,$67	Fill horz 30 tiles with $FF at $6770
8332	DEFB $05,$02,$01,$84,$79,$80,$67	Block 2x1 tiles from 7984 to $6780
8339	DEFB $03,$FF,$03,$04,$AB,$65	Rectangle 3x4 tiles with $FF at $65AB
833F	DEFB $01,$0C,$EB,$24,$66	Fill vert 12 tiles with $EB at $6624
8344	DEFB $05,$04,$03,$7B,$7E,$0E,$71	Block 4x3 tiles from 7E7B to $710E
834B	DEFB $05,$04,$03,$7B,$7E,$B6,$70	Block 4x3 tiles from 7E7B to $70B6
8352	DEFB $05,$03,$03,$A0,$71,$13,$71	Block 3x3 tiles from 71A0 to $7113
8359	DEFB $05,$03,$03,$21,$7C,$18,$71	Block 3x3 tiles from 7C21 to $7118
8360	DEFB $05,$03,$03,$A0,$71,$1F,$71	Block 3x3 tiles from 71A0 to $711F
8367	DEFB $05,$03,$03,$A0,$71,$24,$71	Block 3x3 tiles from 71A0 to $7124
836E	DEFB $05,$02,$01,$8A,$7E,$5F,$71	Block 2x1 tiles from 7E8A to $715F
8375	DEFB $05,$04,$03,$7B,$7E,$C7,$70	Block 4x3 tiles from 7E7B to $70C7
837C	DEFB $0C,$48,$73,$02,$10,$A0,$65	Block 2 tiles from 7348 to $65A0 copy 16 times
8383	DEFB $FF	End of sequence

8384: Room 8384



8384	DEFW $B41F	Room procedure
8386	DEFW $B422	Initialization
8388	DEFW $0000
838A	DEFW $0000
838C	DEFW $8076	Room Up
838E	DEFW $9376	Room Down
8390	DEFB $04,$FF	Fill entire screen with $FF
8392	DEFB $03,$02,$0F,$07,$28,$66	Rectangle 15x7 tiles with $02 at $6628
8398	DEFB $02,$0F,$03,$0A,$66	Fill horz 15 tiles with $03 at $660A
839D	DEFB $03,$02,$06,$07,$3C,$66	Rectangle 6x7 tiles with $02 at $663C
83A3	DEFB $02,$06,$03,$1E,$66	Fill horz 6 tiles with $03 at $661E
83A8	DEFB $0C,$B9,$71,$02,$0C,$97,$65	Block 2 tiles from 71B9 to $6597 copy 12 times
83AF	DEFB $0C,$B9,$71,$02,$11,$A4,$65	Block 2 tiles from 71B9 to $65A4 copy 17 times
83B6	DEFB $05,$02,$05,$84,$79,$FC,$66	Block 2x5 tiles from 7984 to $66FC
83BD	DEFB $05,$02,$01,$84,$79,$0C,$67	Block 2x1 tiles from 7984 to $670C
83C4	DEFB $01,$11,$FD,$A2,$65	Fill vert 17 tiles with $FD at $65A2
83C9	DEFB $05,$01,$04,$52,$7B,$9A,$65	Block 1x4 tiles from 7B52 to $659A
83D0	DEFB $05,$01,$04,$52,$7B,$9E,$65	Block 1x4 tiles from 7B52 to $659E
83D7	DEFB $05,$01,$04,$52,$7B,$A9,$65	Block 1x4 tiles from 7B52 to $65A9
83DE	DEFB $05,$01,$05,$4F,$7B,$02,$67	Block 1x5 tiles from 7B4F to $6702
83E5	DEFB $05,$01,$05,$4F,$7B,$11,$67	Block 1x5 tiles from 7B4F to $6711
83EC	DEFB $FF	End of sequence

83ED: Room 83ED



83ED	DEFW $B452	Room procedure
83EF	DEFW $A361	Initialization
83F1	DEFW $0000
83F3	DEFW $920A	Room to Right
83F5	DEFW $913F	Room Up
83F7	DEFW $7E05	Room Down
83F9	DEFB $02,$1E,$FF,$70,$67	Fill horz 30 tiles with $FF at $6770
83FE	DEFB $0C,$48,$73,$02,$10,$99,$65	Block 2 tiles from 7348 to $6599 copy 16 times
8405	DEFB $05,$02,$01,$84,$79,$79,$67	Block 2x1 tiles from 7984 to $6779
840C	DEFB $03,$FF,$03,$04,$90,$65	Rectangle 3x4 tiles with $FF at $6590
8412	DEFB $02,$02,$FF,$93,$65	Fill horz 2 tiles with $FF at $6593
8417	DEFB $01,$0C,$EB,$09,$66	Fill vert 12 tiles with $EB at $6609
841C	DEFB $05,$03,$04,$0C,$7C,$F2,$70	Block 3x4 tiles from 7C0C to $70F2
8423	DEFB $05,$03,$03,$A0,$71,$0E,$71	Block 3x3 tiles from 71A0 to $710E
842A	DEFB $05,$02,$01,$8A,$7E,$4E,$71	Block 2x1 tiles from 7E8A to $714E
8431	DEFB $05,$04,$03,$7B,$7E,$C4,$70	Block 4x3 tiles from 7E7B to $70C4
8438	DEFB $05,$04,$03,$7B,$7E,$1B,$71	Block 4x3 tiles from 7E7B to $711B
843F	DEFB $05,$03,$04,$0C,$7C,$06,$71	Block 3x4 tiles from 7C0C to $7106
8446	DEFB $05,$04,$03,$7B,$7E,$21,$71	Block 4x3 tiles from 7E7B to $7121
844D	DEFB $FF	End of sequence

844E: Room 844E



844E	DEFW $B452	Room procedure
8450	DEFW $A37F	Initialization
8452	DEFW $84A8	Room to Left
8454	DEFW $0000
8456	DEFW $0000
8458	DEFW $8321	Room Down
845A	DEFB $02,$1E,$FF,$70,$67	Fill horz 30 tiles with $FF at $6770
845F	DEFB $02,$06,$FF,$52,$67	Fill horz 6 tiles with $FF at $6752
8464	DEFB $03,$FF,$03,$04,$AB,$65	Rectangle 3x4 tiles with $FF at $65AB
846A	DEFB $01,$0C,$EB,$24,$66	Fill vert 12 tiles with $EB at $6624
846F	DEFB $05,$02,$01,$84,$79,$80,$67	Block 2x1 tiles from 7984 to $6780
8476	DEFB $05,$03,$03,$A0,$71,$F0,$70	Block 3x3 tiles from 71A0 to $70F0
847D	DEFB $05,$03,$03,$A0,$71,$12,$71	Block 3x3 tiles from 71A0 to $7112
8484	DEFB $00,$BE,$70	Barrel 3x3 tiles at $70BE
8487	DEFB $00,$16,$71	Barrel 3x3 tiles at $7116
848A	DEFB $00,$19,$71	Barrel 3x3 tiles at $7119
848D	DEFB $05,$04,$03,$7B,$7E,$1F,$71	Block 4x3 tiles from 7E7B to $711F
8494	DEFB $05,$03,$04,$9C,$84,$07,$71	Block 3x4 tiles from 849C to $7107
849B	DEFB $FF	End of sequence

849C: Blocks for rooms


849C	DEFB $00,$01,$02	Front block 3x4
849F	DEFB $03,$04,$05
84A2	DEFB $03,$04,$05
84A5	DEFB $06,$07,$08

84A8: Room 84A8



84A8	DEFW $B41F	Room procedure
84AA	DEFW $F973	Initialization
84AC	DEFW $84EE	Room to Left
84AE	DEFW $844E	Room to Right
84B0	DEFW $0000
84B2	DEFW $82DD	Room Down
84B4	DEFB $03,$FF,$0D,$02,$52,$67	Rectangle 13x2 tiles with $FF at $6752
84BA	DEFB $03,$FF,$0C,$02,$64,$67	Rectangle 12x2 tiles with $FF at $6764
84C0	DEFB $02,$03,$FF,$BC,$65	Fill horz 3 tiles with $FF at $65BC
84C5	DEFB $02,$0D,$FF,$9A,$65	Fill horz 13 tiles with $FF at $659A
84CA	DEFB $00,$F0,$70	Barrel 3x3 tiles at $70F0
84CD	DEFB $00,$97,$70	Barrel 3x3 tiles at $7097
84D0	DEFB $05,$04,$03,$7B,$7E,$04,$71	Block 4x3 tiles from 7E7B to $7104
84D7	DEFB $05,$05,$03,$DF,$84,$F2,$70	Block 5x3 tiles from 84DF to $70F2
84DE	DEFB $FF	End of sequence

84DF: Blocks for rooms


84DF	DEFB $00,$01,$01,$01,$02	Front block 5x3 - box
84E4	DEFB $03,$04,$04,$04,$05
84E9	DEFB $06,$07,$07,$07,$08

84EE: Room 84EE



84EE	DEFW $7918	Room procedure
84F0	DEFW $A10B	Initialization
84F2	DEFW $0000
84F4	DEFW $84A8	Room to Right
84F6	DEFW $8526	Room Up
84F8	DEFW $0000
84FA	DEFB $03,$FF,$02,$0F,$90,$65	Rectangle 2x15 tiles with $FF at $6590
8500	DEFB $03,$FF,$1E,$02,$52,$67	Rectangle 30x2 tiles with $FF at $6752
8506	DEFB $0C,$48,$73,$02,$0F,$98,$65	Block 2 tiles from 7348 to $6598 copy 15 times
850D	DEFB $00,$F0,$70	Barrel 3x3 tiles at $70F0
8510	DEFB $00,$F3,$70	Barrel 3x3 tiles at $70F3
8513	DEFB $00,$4D,$70	Barrel 3x3 tiles at $704D
8516	DEFB $00,$A6,$70	Barrel 3x3 tiles at $70A6
8519	DEFB $00,$A9,$70	Barrel 3x3 tiles at $70A9
851C	DEFB $00,$FE,$70	Barrel 3x3 tiles at $70FE
851F	DEFB $00,$01,$71	Barrel 3x3 tiles at $7101
8522	DEFB $00,$04,$71	Barrel 3x3 tiles at $7104
8525	DEFB $FF	End of sequence

8526: Room 8526



8526	DEFW $B483	Room procedure
8528	DEFW $A179	Initialization
852A	DEFW $0000
852C	DEFW $858F	Room to Right
852E	DEFW $8608	Room Up
8530	DEFW $84EE	Room Down
8532	DEFB $0C,$E3,$81,$02,$10,$90,$65	Block 2 tiles from 81E3 to $6590 copy 16 times
8539	DEFB $0C,$48,$73,$02,$10,$98,$65	Block 2 tiles from 7348 to $6598 copy 16 times
8540	DEFB $02,$1E,$FF,$70,$67	Fill horz 30 tiles with $FF at $6770
8545	DEFB $05,$02,$01,$84,$79,$78,$67	Block 2x1 tiles from 7984 to $6778
854C	DEFB $00,$B4,$70	Barrel 3x3 tiles at $70B4
854F	DEFB $00,$0F,$71	Barrel 3x3 tiles at $710F
8552	DEFB $00,$26,$71	Barrel 3x3 tiles at $7126
8555	DEFB $05,$02,$02,$77,$85,$38,$71	Block 2x2 tiles from 8577 to $7138
855C	DEFB $05,$03,$04,$9C,$84,$00,$71	Block 3x4 tiles from 849C to $7100
8563	DEFB $05,$02,$02,$77,$85,$3E,$71	Block 2x2 tiles from 8577 to $713E
856A	DEFB $05,$02,$02,$77,$85,$41,$71	Block 2x2 tiles from 8577 to $7141
8571	DEFB $02,$06,$FF,$9F,$65	Fill horz 6 tiles with $FF at $659F
8576	DEFB $FF	End of sequence

8577: Blocks for rooms


8577	DEFB $00,$02	Front block 2x2 - box
8579	DEFB $06,$08	Front block 2x2 - box
857B	DEFB $00,$01,$01,$01,$02	Front block 5x4 - box
8580	DEFB $03,$04,$04,$04,$05
8585	DEFB $03,$04,$04,$04,$05
858A	DEFB $06,$07,$07,$07,$08

858F: Room 858F



858F	DEFW $7918	Room procedure
8591	DEFW $A106	Initialization
8593	DEFW $8526	Room to Left
8595	DEFW $85BD	Room to Right
8597	DEFW $0000
8599	DEFW $0000
859B	DEFB $02,$1E,$FF,$70,$67	Fill horz 30 tiles with $FF at $6770
85A0	DEFB $05,$05,$04,$7B,$85,$F2,$70	Block 5x4 tiles from 857B to $70F2
85A7	DEFB $05,$05,$04,$7B,$85,$F9,$70	Block 5x4 tiles from 857B to $70F9
85AE	DEFB $05,$02,$01,$8A,$7E,$4E,$71	Block 2x1 tiles from 7E8A to $714E
85B5	DEFB $05,$03,$03,$A0,$71,$1E,$71	Block 3x3 tiles from 71A0 to $711E
85BC	DEFB $FF	End of sequence

85BD: Room 85BD



85BD	DEFW $B41F	Room procedure
85BF	DEFW $B422	Initialization
85C1	DEFW $858F	Room to Left
85C3	DEFW $0000
85C5	DEFW $8689	Room Up
85C7	DEFW $0000
85C9	DEFB $02,$1E,$FF,$70,$67	Fill horz 30 tiles with $FF at $6770
85CE	DEFB $03,$FF,$03,$04,$AB,$65	Rectangle 3x4 tiles with $FF at $65AB
85D4	DEFB $01,$0C,$EB,$24,$66	Fill vert 12 tiles with $EB at $6624
85D9	DEFB $0C,$48,$73,$02,$10,$9D,$65	Block 2 tiles from 7348 to $659D copy 16 times
85E0	DEFB $00,$04,$70	Barrel 3x3 tiles at $7004
85E3	DEFB $00,$5D,$70	Barrel 3x3 tiles at $705D
85E6	DEFB $00,$60,$70	Barrel 3x3 tiles at $7060
85E9	DEFB $00,$B5,$70	Barrel 3x3 tiles at $70B5
85EC	DEFB $00,$B8,$70	Barrel 3x3 tiles at $70B8
85EF	DEFB $00,$BB,$70	Barrel 3x3 tiles at $70BB
85F2	DEFB $00,$0E,$71	Barrel 3x3 tiles at $710E
85F5	DEFB $00,$11,$71	Barrel 3x3 tiles at $7111
85F8	DEFB $00,$14,$71	Barrel 3x3 tiles at $7114
85FB	DEFB $00,$1D,$71	Barrel 3x3 tiles at $711D
85FE	DEFB $00,$21,$71	Barrel 3x3 tiles at $7121
8601	DEFB $00,$24,$71	Barrel 3x3 tiles at $7124
8604	DEFB $00,$17,$71	Barrel 3x3 tiles at $7117
8607	DEFB $FF	End of sequence

8608: Room 8608



8608	DEFW $B452	Room procedure
860A	DEFW $A37A	Initialization
860C	DEFW $0000
860E	DEFW $86FD	Room to Right
8610	DEFW $0000
8612	DEFW $8526	Room Down
8614	DEFB $02,$1E,$FF,$70,$67	Fill horz 30 tiles with $FF at $6770
8619	DEFB $02,$1C,$FF,$82,$66	Fill horz 28 tiles with $FF at $6682
861E	DEFB $02,$0C,$FF,$74,$66	Fill horz 12 tiles with $FF at $6674
8623	DEFB $0C,$E3,$81,$02,$10,$90,$65	Block 2 tiles from 81E3 to $6590 copy 16 times
862A	DEFB $02,$0E,$FF,$92,$65	Fill horz 14 tiles with $FF at $6592
862F	DEFB $0C,$E3,$81,$02,$07,$BA,$66	Block 2 tiles from 81E3 to $66BA copy 7 times
8636	DEFB $05,$02,$01,$84,$79,$78,$67	Block 2x1 tiles from 7984 to $6778
863D	DEFB $05,$03,$03,$A0,$71,$C4,$6F	Block 3x3 tiles from 71A0 to $6FC4
8644	DEFB $05,$04,$03,$7B,$7E,$1E,$70	Block 4x3 tiles from 7E7B to $701E
864B	DEFB $05,$03,$03,$A0,$71,$24,$70	Block 3x3 tiles from 71A0 to $7024
8652	DEFB $00,$28,$70	Barrel 3x3 tiles at $7028
8655	DEFB $05,$03,$03,$18,$7C,$11,$70	Block 3x3 tiles from 7C18 to $7011
865C	DEFB $05,$03,$04,$0C,$7C,$F7,$6F	Block 3x4 tiles from 7C0C to $6FF7
8663	DEFB $05,$03,$03,$18,$7C,$18,$71	Block 3x3 tiles from 7C18 to $7118
866A	DEFB $00,$B5,$70	Barrel 3x3 tiles at $70B5
866D	DEFB $00,$0E,$71	Barrel 3x3 tiles at $710E
8670	DEFB $00,$11,$71	Barrel 3x3 tiles at $7111
8673	DEFB $00,$C4,$70	Barrel 3x3 tiles at $70C4
8676	DEFB $00,$C8,$70	Barrel 3x3 tiles at $70C8
8679	DEFB $00,$CB,$70	Barrel 3x3 tiles at $70CB
867C	DEFB $00,$1C,$71	Barrel 3x3 tiles at $711C
867F	DEFB $00,$1F,$71	Barrel 3x3 tiles at $711F
8682	DEFB $00,$22,$71	Barrel 3x3 tiles at $7122
8685	DEFB $00,$25,$71	Barrel 3x3 tiles at $7125
8688	DEFB $FF	End of sequence

8689: Room 8689



8689	DEFW $B41F	Room procedure
868B	DEFW $B422	Initialization
868D	DEFW $86FD	Room to Left
868F	DEFW $0000
8691	DEFW $0000
8693	DEFW $85BD	Room Down
8695	DEFB $02,$39,$FF,$BC,$66	Fill horz 57 tiles with $FF at $66BC
869A	DEFB $03,$FF,$03,$11,$AB,$65	Rectangle 3x17 tiles with $FF at $65AB
86A0	DEFB $05,$02,$02,$84,$79,$C9,$66	Block 2x2 tiles from 7984 to $66C9
86A7	DEFB $0C,$48,$73,$02,$05,$05,$67	Block 2 tiles from 7348 to $6705 copy 5 times
86AE	DEFB $05,$03,$03,$18,$7C,$67,$70	Block 3x3 tiles from 7C18 to $7067
86B5	DEFB $05,$04,$02,$F5,$86,$21,$70	Block 4x2 tiles from 86F5 to $7021
86BC	DEFB $05,$04,$03,$7B,$7E,$5B,$70	Block 4x3 tiles from 7E7B to $705B
86C3	DEFB $05,$03,$03,$A0,$71,$60,$70	Block 3x3 tiles from 71A0 to $7060
86CA	DEFB $05,$03,$01,$87,$7E,$96,$70	Block 3x1 tiles from 7E87 to $7096
86D1	DEFB $05,$05,$03,$DF,$84,$B9,$6F	Block 5x3 tiles from 84DF to $6FB9
86D8	DEFB $05,$03,$03,$A0,$71,$12,$70	Block 3x3 tiles from 71A0 to $7012
86DF	DEFB $05,$04,$03,$7B,$7E,$15,$70	Block 4x3 tiles from 7E7B to $7015
86E6	DEFB $05,$04,$03,$7B,$7E,$6B,$70	Block 4x3 tiles from 7E7B to $706B
86ED	DEFB $05,$04,$03,$7B,$7E,$6F,$70	Block 4x3 tiles from 7E7B to $706F
86F4	DEFB $FF	End of sequence

86F5: Blocks for rooms


86F5	DEFB $00,$01,$01,$02	Front block 4x2 - box
86F9	DEFB $06,$07,$07,$08

86FD: Room 86FD



86FD	DEFW $B41F	Room procedure
86FF	DEFW $B422	Initialization
8701	DEFW $8608	Room to Left
8703	DEFW $8689	Room to Right
8705	DEFW $8739	Room Up
8707	DEFW $0000
8709	DEFB $06,$FF,$04,$16,$67	Triangle with $FF, count=4 at $6716
870E	DEFB $02,$41,$FF,$BC,$66	Fill horz 65 tiles with $FF at $66BC
8713	DEFB $07,$FF,$02,$87,$66	Triangle with $FF, count=2 at $6687
8718	DEFB $03,$FF,$07,$03,$62,$66	Rectangle 7x3 tiles with $FF at $6662
871E	DEFB $0C,$48,$73,$02,$07,$93,$65	Block 2 tiles from 7348 to $6593 copy 7 times
8725	DEFB $05,$04,$07,$AA,$79,$E6,$6F	Block 4x7 tiles from 79AA to $6FE6
872C	DEFB $00,$0E,$70	Barrel 3x3 tiles at $700E
872F	DEFB $00,$66,$70	Barrel 3x3 tiles at $7066
8732	DEFB $00,$69,$70	Barrel 3x3 tiles at $7069
8735	DEFB $00,$6F,$70	Barrel 3x3 tiles at $706F
8738	DEFB $FF	End of sequence

8739: Room 8739



8739	DEFW $7918	Room procedure
873B	DEFW $A101	Initialization
873D	DEFW $8799	Room to Left
873F	DEFW $8802	Room to Right
8741	DEFW $0000
8743	DEFW $86FD	Room Down
8745	DEFB $01,$09,$3A,$94,$65	Fill vert 9 tiles with $3A at $6594
874A	DEFB $01,$09,$3A,$9E,$65	Fill vert 9 tiles with $3A at $659E
874F	DEFB $01,$09,$3A,$A1,$65	Fill vert 9 tiles with $3A at $65A1
8754	DEFB $01,$05,$3A,$A8,$65	Fill vert 5 tiles with $3A at $65A8
8759	DEFB $02,$78,$FF,$9E,$66	Fill horz 120 tiles with $FF at $669E
875E	DEFB $05,$02,$04,$84,$79,$A1,$66	Block 2x4 tiles from 7984 to $66A1
8765	DEFB $0C,$48,$73,$02,$04,$19,$67	Block 2 tiles from 7348 to $6719 copy 4 times
876C	DEFB $05,$02,$04,$BB,$71,$2E,$70	Block 2x4 tiles from 71BB to $702E
8773	DEFB $05,$03,$03,$18,$7C,$44,$70	Block 3x3 tiles from 7C18 to $7044
877A	DEFB $05,$03,$04,$0C,$7C,$23,$70	Block 3x4 tiles from 7C0C to $7023
8781	DEFB $05,$03,$04,$0C,$7C,$33,$70	Block 3x4 tiles from 7C0C to $7033
8788	DEFB $FF	End of sequence

8789: Blocks for rooms


8789	DEFB $00,$01,$01,$02	Front block 4x4
878D	DEFB $03,$04,$04,$05
8791	DEFB $03,$04,$04,$05
8795	DEFB $06,$07,$07,$08

8799: Room 8799



8799	DEFW $B41F	Room procedure
879B	DEFW $B422	Initialization
879D	DEFW $0000
879F	DEFW $8739	Room to Right
87A1	DEFW $0000
87A3	DEFW $0000
87A5	DEFB $01,$0F,$3A,$98,$65	Fill vert 15 tiles with $3A at $6598
87AA	DEFB $01,$0B,$3A,$9D,$65	Fill vert 11 tiles with $3A at $659D
87AF	DEFB $01,$09,$3A,$A1,$65	Fill vert 9 tiles with $3A at $65A1
87B4	DEFB $01,$09,$3A,$A4,$65	Fill vert 9 tiles with $3A at $65A4
87B9	DEFB $01,$09,$3A,$A7,$65	Fill vert 9 tiles with $3A at $65A7
87BE	DEFB $01,$09,$3A,$AB,$65	Fill vert 9 tiles with $3A at $65AB
87C3	DEFB $0C,$E3,$81,$02,$0F,$90,$65	Block 2 tiles from 81E3 to $6590 copy 15 times
87CA	DEFB $03,$FF,$10,$02,$52,$67	Rectangle 16x2 tiles with $FF at $6752
87D0	DEFB $03,$FF,$0E,$04,$AE,$66	Rectangle 14x4 tiles with $FF at $66AE
87D6	DEFB $08,$FF,$06,$AD,$66	Triangle with $FF, count=6 at $66AD
87DB	DEFB $06,$FF,$04,$26,$67	Triangle with $FF, count=4 at $6726
87E0	DEFB $02,$08,$FA,$CE,$65	Fill horz 8 tiles with $FA at $65CE
87E5	DEFB $05,$03,$03,$A0,$71,$78,$70	Block 3x3 tiles from 71A0 to $7078
87EC	DEFB $05,$04,$04,$89,$87,$D2,$70	Block 4x4 tiles from 8789 to $70D2
87F3	DEFB $05,$04,$07,$8E,$79,$7F,$70	Block 4x7 tiles from 798E to $707F
87FA	DEFB $05,$04,$07,$8E,$79,$28,$70	Block 4x7 tiles from 798E to $7028
8801	DEFB $FF	End of sequence

8802: Room 8802



8802	DEFW $B452	Room procedure
8804	DEFW $A375	Initialization
8806	DEFW $8739	Room to Left
8808	DEFW $0000
880A	DEFW $8834	Room Up
880C	DEFW $0000
880E	DEFB $01,$09,$3A,$9D,$65	Fill vert 9 tiles with $3A at $659D
8813	DEFB $01,$08,$3A,$A2,$65	Fill vert 8 tiles with $3A at $65A2
8818	DEFB $03,$FF,$03,$11,$AB,$65	Rectangle 3x17 tiles with $FF at $65AB
881E	DEFB $02,$84,$FF,$92,$66	Fill horz 132 tiles with $FF at $6692
8823	DEFB $00,$42,$70	Barrel 3x3 tiles at $7042
8826	DEFB $00,$46,$70	Barrel 3x3 tiles at $7046
8829	DEFB $00,$2F,$70	Barrel 3x3 tiles at $702F
882C	DEFB $0C,$48,$73,$02,$08,$A7,$65	Block 2 tiles from 7348 to $65A7 copy 8 times
8833	DEFB $FF	End of sequence

8834: Room 8834



8834	DEFW $B41F	Room procedure
8836	DEFW $B422	Initialization
8838	DEFW $889F	Room to Left
883A	DEFW $890E	Room to Right
883C	DEFW $8A81	Room Up
883E	DEFW $8802	Room Down
8840	DEFB $01,$0B,$3A,$EC,$65	Fill vert 11 tiles with $3A at $65EC
8845	DEFB $01,$0E,$3A,$97,$65	Fill vert 14 tiles with $3A at $6597
884A	DEFB $01,$10,$3A,$9D,$65	Fill vert 16 tiles with $3A at $659D
884F	DEFB $01,$11,$3A,$A2,$65	Fill vert 17 tiles with $3A at $65A2
8854	DEFB $02,$0A,$FF,$84,$67	Fill horz 10 tiles with $FF at $6784
8859	DEFB $0C,$48,$73,$02,$10,$A7,$65	Block 2 tiles from 7348 to $65A7 copy 16 times
8860	DEFB $0E,$3A,$5C,$67	Put tile $3A at $675C
8864	DEFB $05,$02,$01,$9D,$88,$D3,$66	Block 2x1 tiles from 889D to $66D3
886B	DEFB $05,$02,$01,$84,$79,$87,$67	Block 2x1 tiles from 7984 to $6787
8872	DEFB $02,$07,$FA,$7A,$67	Fill horz 7 tiles with $FA at $677A
8877	DEFB $05,$01,$02,$98,$88,$5E,$67	Block 1x2 tiles from 8898 to $675E
887E	DEFB $02,$0C,$FA,$34,$67	Fill horz 12 tiles with $FA at $6734
8883	DEFB $02,$04,$FA,$80,$66	Fill horz 4 tiles with $FA at $6680
8888	DEFB $02,$04,$FA,$E0,$66	Fill horz 4 tiles with $FA at $66E0
888D	DEFB $02,$06,$FA,$CD,$66	Fill horz 6 tiles with $FA at $66CD
8892	DEFB $01,$03,$28,$88,$6F	Fill vert 3 tiles with $28 at $6F88
8897	DEFB $FF	End of sequence

8898: Blocks for rooms


8898	DEFB $F9	Back block 1x1
8899	DEFB $F8	Back block 1x4
889A	DEFB $F9
889B	DEFB $F9
889C	DEFB $F9
889D	DEFB $EF,$EE	Back block 2x1 - ladder on yellow

889F: Room 889F



889F	DEFW $B41F	Room procedure
88A1	DEFW $B422	Initialization
88A3	DEFW $8953	Room to Left
88A5	DEFW $8834	Room to Right
88A7	DEFW $89B9	Room Up
88A9	DEFW $8739	Room Down
88AB	DEFB $01,$11,$3A,$94,$65	Fill vert 17 tiles with $3A at $6594
88B0	DEFB $01,$11,$3A,$A8,$65	Fill vert 17 tiles with $3A at $65A8
88B5	DEFB $01,$0C,$3A,$9C,$65	Fill vert 12 tiles with $3A at $659C
88BA	DEFB $01,$06,$3A,$9F,$65	Fill vert 6 tiles with $3A at $659F
88BF	DEFB $01,$06,$3A,$A3,$65	Fill vert 6 tiles with $3A at $65A3
88C4	DEFB $01,$04,$3A,$24,$67	Fill vert 4 tiles with $3A at $6724
88C9	DEFB $01,$06,$3A,$EB,$66	Fill vert 6 tiles with $3A at $66EB
88CE	DEFB $02,$07,$63,$53,$66	Fill horz 7 tiles with $63 at $6653
88D3	DEFB $01,$07,$3A,$19,$66	Fill vert 7 tiles with $3A at $6619
88D8	DEFB $0E,$63,$55,$66	Put tile $63 at $6655
88DC	DEFB $02,$04,$FA,$A2,$66	Fill horz 4 tiles with $FA at $66A2
88E1	DEFB $02,$0A,$FA,$DA,$66	Fill horz 10 tiles with $FA at $66DA
88E6	DEFB $02,$03,$FA,$04,$67	Fill horz 3 tiles with $FA at $6704
88EB	DEFB $02,$0B,$FA,$5F,$67	Fill horz 11 tiles with $FA at $675F
88F0	DEFB $02,$06,$FA,$98,$66	Fill horz 6 tiles with $FA at $6698
88F5	DEFB $02,$03,$FA,$4F,$67	Fill horz 3 tiles with $FA at $674F
88FA	DEFB $02,$06,$FA,$6A,$67	Fill horz 6 tiles with $FA at $676A
88FF	DEFB $05,$01,$01,$99,$88,$A4,$66	Block 1x1 tiles from 8899 to $66A4
8906	DEFB $05,$01,$04,$98,$88,$C2,$66	Block 1x4 tiles from 8898 to $66C2
890D	DEFB $FF	End of sequence

890E: Room 890E



890E	DEFW $B41F	Room procedure
8910	DEFW $B422	Initialization
8912	DEFW $8834	Room to Left
8914	DEFW $8BF0	Room to Right
8916	DEFW $0000
8918	DEFW $0000
891A	DEFB $01,$10,$3A,$99,$65	Fill vert 16 tiles with $3A at $6599
891F	DEFB $01,$10,$3A,$A1,$65	Fill vert 16 tiles with $3A at $65A1
8924	DEFB $01,$07,$3A,$B6,$66	Fill vert 7 tiles with $3A at $66B6
8929	DEFB $02,$1E,$FF,$70,$67	Fill horz 30 tiles with $FF at $6770
892E	DEFB $05,$03,$03,$18,$7C,$12,$71	Block 3x3 tiles from 7C18 to $7112
8935	DEFB $02,$05,$63,$19,$66	Fill horz 5 tiles with $63 at $6619
893A	DEFB $02,$03,$FA,$AE,$66	Fill horz 3 tiles with $FA at $66AE
893F	DEFB $02,$07,$FA,$97,$66	Fill horz 7 tiles with $FA at $6697
8944	DEFB $02,$09,$FA,$84,$66	Fill horz 9 tiles with $FA at $6684
8949	DEFB $01,$07,$F9,$F3,$65	Fill vert 7 tiles with $F9 at $65F3
894E	DEFB $0E,$F8,$89,$66	Put tile $F8 at $6689
8952	DEFB $FF	End of sequence

8953: Room 8953



8953	DEFW $B41F	Room procedure
8955	DEFW $B422	Initialization
8957	DEFW $0000
8959	DEFW $889F	Room to Right
895B	DEFW $89B9	Room Up
895D	DEFW $8799	Room Down
895F	DEFB $01,$11,$3A,$98,$65	Fill vert 17 tiles with $3A at $6598
8964	DEFB $01,$10,$3A,$9D,$65	Fill vert 16 tiles with $3A at $659D
8969	DEFB $01,$05,$3A,$A0,$65	Fill vert 5 tiles with $3A at $65A0
896E	DEFB $01,$09,$3A,$A3,$65	Fill vert 9 tiles with $3A at $65A3
8973	DEFB $01,$11,$3A,$AB,$65	Fill vert 17 tiles with $3A at $65AB
8978	DEFB $01,$07,$3A,$CD,$66	Fill vert 7 tiles with $3A at $66CD
897D	DEFB $01,$07,$3A,$D0,$66	Fill vert 7 tiles with $3A at $66D0
8982	DEFB $01,$02,$3A,$69,$67	Fill vert 2 tiles with $3A at $6769
8987	DEFB $0C,$E3,$81,$02,$11,$90,$65	Block 2 tiles from 81E3 to $6590 copy 17 times
898E	DEFB $0C,$48,$73,$02,$09,$95,$65	Block 2 tiles from 7348 to $6595 copy 9 times
8995	DEFB $02,$05,$63,$33,$66	Fill horz 5 tiles with $63 at $6633
899A	DEFB $02,$07,$FA,$A0,$66	Fill horz 7 tiles with $FA at $66A0
899F	DEFB $02,$08,$FA,$54,$67	Fill horz 8 tiles with $FA at $6754
89A4	DEFB $02,$03,$FA,$7C,$67	Fill horz 3 tiles with $FA at $677C
89A9	DEFB $02,$05,$FA,$AE,$66	Fill horz 5 tiles with $FA at $66AE
89AE	DEFB $02,$06,$FA,$47,$67	Fill horz 6 tiles with $FA at $6747
89B3	DEFB $02,$17,$FA,$E1,$66	Fill horz 23 tiles with $FA at $66E1
89B8	DEFB $FF	End of sequence

89B9: Room 89B9



89B9	DEFW $B41F	Room procedure
89BB	DEFW $B422	Initialization
89BD	DEFW $0000
89BF	DEFW $8A2D	Room to Right
89C1	DEFW $0000
89C3	DEFW $8953	Room Down
89C5	DEFB $0E,$3A,$B6,$66	Put tile $3A at $66B6
89C9	DEFB $0E,$3A,$2A,$67	Put tile $3A at $672A
89CD	DEFB $01,$08,$3A,$AB,$66	Fill vert 8 tiles with $3A at $66AB
89D2	DEFB $01,$08,$3A,$B9,$66	Fill vert 8 tiles with $3A at $66B9
89D7	DEFB $01,$02,$3A,$62,$67	Fill vert 2 tiles with $3A at $6762
89DC	DEFB $01,$02,$3A,$65,$67	Fill vert 2 tiles with $3A at $6765
89E1	DEFB $06,$FF,$0B,$90,$65	Triangle with $FF, count=11 at $6590
89E6	DEFB $02,$13,$FF,$9B,$65	Fill horz 19 tiles with $FF at $659B
89EB	DEFB $0C,$E3,$81,$02,$08,$9E,$66	Block 2 tiles from 81E3 to $669E copy 8 times
89F2	DEFB $0C,$48,$73,$02,$0B,$2B,$66	Block 2 tiles from 7348 to $662B copy 11 times
89F9	DEFB $05,$02,$01,$9D,$88,$75,$67	Block 2x1 tiles from 889D to $6775
8A00	DEFB $02,$0B,$FA,$77,$67	Fill horz 11 tiles with $FA at $6777
8A05	DEFB $02,$04,$FA,$8B,$66	Fill horz 4 tiles with $FA at $668B
8A0A	DEFB $02,$05,$FA,$44,$67	Fill horz 5 tiles with $FA at $6744
8A0F	DEFB $02,$08,$FA,$96,$66	Fill horz 8 tiles with $FA at $6696
8A14	DEFB $05,$01,$04,$98,$88,$F0,$66	Block 1x4 tiles from 8898 to $66F0
8A1B	DEFB $05,$01,$03,$98,$88,$D4,$66	Block 1x3 tiles from 8898 to $66D4
8A22	DEFB $02,$02,$FA,$F0,$66	Fill horz 2 tiles with $FA at $66F0
8A27	DEFB $02,$03,$FA,$0B,$67	Fill horz 3 tiles with $FA at $670B
8A2C	DEFB $FF	End of sequence

8A2D: Room 8A2D



8A2D	DEFW $B41F	Room procedure
8A2F	DEFW $B422	Initialization
8A31	DEFW $89B9	Room to Left
8A33	DEFW $8A81	Room to Right
8A35	DEFW $8B25	Room Up
8A37	DEFW $889F	Room Down
8A39	DEFB $01,$08,$3A,$A2,$66	Fill vert 8 tiles with $3A at $66A2
8A3E	DEFB $01,$08,$3A,$AD,$66	Fill vert 8 tiles with $3A at $66AD
8A43	DEFB $01,$08,$3A,$B1,$66	Fill vert 8 tiles with $3A at $66B1
8A48	DEFB $01,$05,$3A,$04,$67	Fill vert 5 tiles with $3A at $6704
8A4D	DEFB $02,$03,$FF,$90,$65	Fill horz 3 tiles with $FF at $6590
8A52	DEFB $02,$0F,$FA,$80,$66	Fill horz 15 tiles with $FA at $6680
8A57	DEFB $02,$05,$FA,$8F,$66	Fill horz 5 tiles with $FA at $668F
8A5C	DEFB $0C,$48,$73,$02,$08,$A1,$65	Block 2 tiles from 7348 to $65A1 copy 8 times
8A63	DEFB $02,$08,$FA,$55,$67	Fill horz 8 tiles with $FA at $6755
8A68	DEFB $02,$05,$FA,$E2,$66	Fill horz 5 tiles with $FA at $66E2
8A6D	DEFB $02,$04,$FA,$86,$67	Fill horz 4 tiles with $FA at $6786
8A72	DEFB $05,$01,$03,$99,$88,$E3,$66	Block 1x3 tiles from 8899 to $66E3
8A79	DEFB $05,$01,$03,$98,$88,$3D,$67	Block 1x3 tiles from 8898 to $673D
8A80	DEFB $FF	End of sequence

8A81: Room 8A81



8A81	DEFW $B41F	Room procedure
8A83	DEFW $B422	Initialization
8A85	DEFW $8A2D	Room to Left
8A87	DEFW $8AF4	Room to Right
8A89	DEFW $0000
8A8B	DEFW $8834	Room Down
8A8D	DEFB $01,$06,$3A,$E1,$66	Fill vert 6 tiles with $3A at $66E1
8A92	DEFB $01,$0C,$3A,$33,$66	Fill vert 12 tiles with $3A at $6633
8A97	DEFB $01,$05,$3A,$0A,$67	Fill vert 5 tiles with $3A at $670A
8A9C	DEFB $09,$FF,$04,$A7,$65	Triangle with $FF, count=4 at $65A7
8AA1	DEFB $06,$FF,$04,$A8,$65	Triangle with $FF, count=4 at $65A8
8AA6	DEFB $0C,$48,$73,$02,$0E,$01,$66	Block 2 tiles from 7348 to $6601 copy 14 times
8AAD	DEFB $05,$02,$01,$9D,$88,$F1,$66	Block 2x1 tiles from 889D to $66F1
8AB4	DEFB $05,$02,$01,$9D,$88,$4B,$67	Block 2x1 tiles from 889D to $674B
8ABB	DEFB $02,$05,$FA,$4D,$67	Fill horz 5 tiles with $FA at $674D
8AC0	DEFB $02,$06,$FA,$EB,$66	Fill horz 6 tiles with $FA at $66EB
8AC5	DEFB $02,$03,$FA,$C1,$66	Fill horz 3 tiles with $FA at $66C1
8ACA	DEFB $01,$04,$28,$0E,$71	Fill vert 4 tiles with $28 at $710E
8ACF	DEFB $02,$0B,$FA,$B8,$65	Fill horz 11 tiles with $FA at $65B8
8AD4	DEFB $05,$01,$05,$98,$88,$9D,$65	Block 1x5 tiles from 8898 to $659D
8ADB	DEFB $02,$03,$FA,$FF,$66	Fill horz 3 tiles with $FA at $66FF
8AE0	DEFB $02,$06,$FA,$1F,$67	Fill horz 6 tiles with $FA at $671F
8AE5	DEFB $05,$01,$04,$99,$88,$1E,$67	Block 1x4 tiles from 8899 to $671E
8AEC	DEFB $05,$01,$02,$98,$88,$E2,$66	Block 1x2 tiles from 8898 to $66E2
8AF3	DEFB $FF	End of sequence

8AF4: Room 8AF4



8AF4	DEFW $B41F	Room procedure
8AF6	DEFW $B422	Initialization
8AF8	DEFW $8A81	Room to Left
8AFA	DEFW $8C5A	Room to Right
8AFC	DEFW $8BAB	Room Up
8AFE	DEFW $890E	Room Down
8B00	DEFB $01,$08,$3A,$A7,$66	Fill vert 8 tiles with $3A at $66A7
8B05	DEFB $01,$08,$3A,$AF,$66	Fill vert 8 tiles with $3A at $66AF
8B0A	DEFB $02,$0B,$FA,$34,$67	Fill horz 11 tiles with $FA at $6734
8B0F	DEFB $02,$13,$FA,$88,$66	Fill horz 19 tiles with $FA at $6688
8B14	DEFB $0C,$48,$73,$02,$08,$A4,$65	Block 2 tiles from 7348 to $65A4 copy 8 times
8B1B	DEFB $01,$06,$F9,$8E,$66	Fill vert 6 tiles with $F9 at $668E
8B20	DEFB $0E,$F8,$8E,$66	Put tile $F8 at $668E
8B24	DEFB $FF	End of sequence

8B25: Room 8B25



8B25	DEFW $B483	Room procedure
8B27	DEFW $A174	Initialization
8B29	DEFW $0000
8B2B	DEFW $8B71	Room to Right
8B2D	DEFW $0000
8B2F	DEFW $8A2D	Room Down
8B31	DEFB $02,$1E,$FF,$70,$67	Fill horz 30 tiles with $FF at $6770
8B36	DEFB $02,$48,$FF,$90,$65	Fill horz 72 tiles with $FF at $6590
8B3B	DEFB $0C,$48,$73,$02,$0E,$DD,$65	Block 2 tiles from 7348 to $65DD copy 14 times
8B42	DEFB $05,$02,$01,$84,$79,$81,$67	Block 2x1 tiles from 7984 to $6781
8B49	DEFB $05,$04,$04,$A9,$71,$F7,$70	Block 4x4 tiles from 71A9 to $70F7
8B50	DEFB $05,$04,$04,$A9,$71,$F5,$70	Block 4x4 tiles from 71A9 to $70F5
8B57	DEFB $05,$04,$04,$A9,$71,$F0,$70	Block 4x4 tiles from 71A9 to $70F0
8B5E	DEFB $05,$04,$04,$A9,$71,$07,$71	Block 4x4 tiles from 71A9 to $7107
8B65	DEFB $06,$FF,$0B,$EA,$65	Triangle with $FF, count=11 at $65EA
8B6A	DEFB $03,$FF,$03,$04,$F8,$66	Rectangle 3x4 tiles with $FF at $66F8
8B70	DEFB $FF	End of sequence

8B71: Room 8B71



8B71	DEFW $7918	Room procedure
8B73	DEFW $A0FC	Initialization
8B75	DEFW $8B25	Room to Left
8B77	DEFW $8BAB	Room to Right
8B79	DEFW $0000
8B7B	DEFW $0000
8B7D	DEFB $02,$1E,$FF,$70,$67	Fill horz 30 tiles with $FF at $6770
8B82	DEFB $02,$3C,$FF,$90,$65	Fill horz 60 tiles with $FF at $6590
8B87	DEFB $05,$04,$04,$A9,$71,$EF,$70	Block 4x4 tiles from 71A9 to $70EF
8B8E	DEFB $05,$04,$04,$A9,$71,$F5,$70	Block 4x4 tiles from 71A9 to $70F5
8B95	DEFB $05,$04,$04,$A9,$71,$FB,$70	Block 4x4 tiles from 71A9 to $70FB
8B9C	DEFB $05,$04,$04,$A9,$71,$00,$71	Block 4x4 tiles from 71A9 to $7100
8BA3	DEFB $05,$04,$04,$A9,$71,$07,$71	Block 4x4 tiles from 71A9 to $7107
8BAA	DEFB $FF	End of sequence

8BAB: Room 8BAB



8BAB	DEFW $B41F	Room procedure
8BAD	DEFW $B422	Initialization
8BAF	DEFW $8B71	Room to Left
8BB1	DEFW $0000
8BB3	DEFW $0000
8BB5	DEFW $8AF4	Room Down
8BB7	DEFB $02,$3C,$FF,$90,$65	Fill horz 60 tiles with $FF at $6590
8BBC	DEFB $03,$FF,$02,$0E,$E8,$65	Rectangle 2x14 tiles with $FF at $65E8
8BC2	DEFB $02,$09,$FF,$70,$67	Fill horz 9 tiles with $FF at $6770
8BC7	DEFB $02,$10,$FF,$7E,$67	Fill horz 16 tiles with $FF at $677E
8BCC	DEFB $0C,$48,$73,$02,$0E,$E0,$65	Block 2 tiles from 7348 to $65E0 copy 14 times
8BD3	DEFB $05,$02,$01,$9D,$88,$84,$67	Block 2x1 tiles from 889D to $6784
8BDA	DEFB $05,$03,$03,$A0,$71,$1B,$71	Block 3x3 tiles from 71A0 to $711B
8BE1	DEFB $05,$04,$04,$A9,$71,$F2,$70	Block 4x4 tiles from 71A9 to $70F2
8BE8	DEFB $05,$04,$04,$A9,$71,$06,$71	Block 4x4 tiles from 71A9 to $7106
8BEF	DEFB $FF	End of sequence

8BF0: Room 8BF0



8BF0	DEFW $B41F	Room procedure
8BF2	DEFW $B422	Initialization
8BF4	DEFW $890E	Room to Left
8BF6	DEFW $8CC8	Room to Right
8BF8	DEFW $0000
8BFA	DEFW $9005	Room Down
8BFC	DEFB $01,$10,$3A,$93,$65	Fill vert 16 tiles with $3A at $6593
8C01	DEFB $01,$08,$3A,$98,$65	Fill vert 8 tiles with $3A at $6598
8C06	DEFB $01,$08,$3A,$9C,$65	Fill vert 8 tiles with $3A at $659C
8C0B	DEFB $01,$08,$3A,$A0,$65	Fill vert 8 tiles with $3A at $65A0
8C10	DEFB $01,$08,$3A,$A3,$65	Fill vert 8 tiles with $3A at $65A3
8C15	DEFB $01,$08,$3A,$A7,$65	Fill vert 8 tiles with $3A at $65A7
8C1A	DEFB $01,$08,$3A,$AB,$65	Fill vert 8 tiles with $3A at $65AB
8C1F	DEFB $02,$1E,$FF,$70,$67	Fill horz 30 tiles with $FF at $6770
8C24	DEFB $03,$FF,$04,$07,$B8,$66	Rectangle 4x7 tiles with $FF at $66B8
8C2A	DEFB $02,$17,$FF,$87,$66	Fill horz 23 tiles with $FF at $6687
8C2F	DEFB $0C,$48,$73,$02,$07,$B0,$66	Block 2 tiles from 7348 to $66B0 copy 7 times
8C36	DEFB $05,$02,$01,$84,$79,$82,$67	Block 2x1 tiles from 7984 to $6782
8C3D	DEFB $02,$04,$FA,$80,$66	Fill horz 4 tiles with $FA at $6680
8C42	DEFB $0E,$F9,$95,$65	Put tile $F9 at $6595
8C46	DEFB $02,$06,$63,$31,$66	Fill horz 6 tiles with $63 at $6631
8C4B	DEFB $0E,$2A,$9D,$70	Put tile $2A at $709D
8C4F	DEFB $01,$06,$2B,$BB,$70	Fill vert 6 tiles with $2B at $70BB
8C54	DEFB $01,$01,$FF,$89,$66	Fill vert 1 tiles with $FF at $6689
8C59	DEFB $FF	End of sequence

8C5A: Room 8C5A



8C5A	DEFW $B41F	Room procedure
8C5C	DEFW $B422	Initialization
8C5E	DEFW $8AF4	Room to Left
8C60	DEFW $8D18	Room to Right
8C62	DEFW $0000
8C64	DEFW $8BF0	Room Down
8C66	DEFB $01,$05,$3A,$DD,$66	Fill vert 5 tiles with $3A at $66DD
8C6B	DEFB $01,$0D,$3A,$F2,$65	Fill vert 13 tiles with $3A at $65F2
8C70	DEFB $01,$0F,$3A,$D8,$65	Fill vert 15 tiles with $3A at $65D8
8C75	DEFB $01,$07,$3A,$CC,$66	Fill vert 7 tiles with $3A at $66CC
8C7A	DEFB $01,$07,$3A,$CF,$66	Fill vert 7 tiles with $3A at $66CF
8C7F	DEFB $01,$0D,$3A,$1F,$66	Fill vert 13 tiles with $3A at $661F
8C84	DEFB $01,$0D,$3A,$23,$66	Fill vert 13 tiles with $3A at $6623
8C89	DEFB $09,$FF,$03,$A6,$65	Triangle with $FF, count=3 at $65A6
8C8E	DEFB $03,$FF,$07,$04,$A7,$65	Rectangle 7x4 tiles with $FF at $65A7
8C94	DEFB $02,$0A,$FA,$B3,$65	Fill horz 10 tiles with $FA at $65B3
8C99	DEFB $05,$01,$03,$98,$88,$98,$65	Block 1x3 tiles from 8898 to $6598
8CA0	DEFB $01,$03,$F9,$1B,$67	Fill vert 3 tiles with $F9 at $671B
8CA5	DEFB $02,$07,$FA,$73,$67	Fill horz 7 tiles with $FA at $6773
8CAA	DEFB $0E,$F8,$75,$67	Put tile $F8 at $6775
8CAE	DEFB $02,$0A,$FA,$BD,$66	Fill horz 10 tiles with $FA at $66BD
8CB3	DEFB $02,$04,$FA,$E5,$66	Fill horz 4 tiles with $FA at $66E5
8CB8	DEFB $02,$04,$FA,$AE,$66	Fill horz 4 tiles with $FA at $66AE
8CBD	DEFB $02,$03,$FA,$EF,$66	Fill horz 3 tiles with $FA at $66EF
8CC2	DEFB $02,$05,$FA,$2F,$67	Fill horz 5 tiles with $FA at $672F
8CC7	DEFB $FF	End of sequence

8CC8: Room 8CC8



8CC8	DEFW $B41F	Room procedure
8CCA	DEFW $B422	Initialization
8CCC	DEFW $8BF0	Room to Left
8CCE	DEFW $8E9C	Room to Right
8CD0	DEFW $0000
8CD2	DEFW $0000
8CD4	DEFB $01,$0C,$3A,$96,$65	Fill vert 12 tiles with $3A at $6596
8CD9	DEFB $01,$10,$3A,$9E,$65	Fill vert 16 tiles with $3A at $659E
8CDE	DEFB $01,$10,$3A,$A3,$65	Fill vert 16 tiles with $3A at $65A3
8CE3	DEFB $01,$10,$3A,$AA,$65	Fill vert 16 tiles with $3A at $65AA
8CE8	DEFB $07,$FF,$07,$A1,$66	Triangle with $FF, count=7 at $66A1
8CED	DEFB $02,$1E,$FF,$70,$67	Fill horz 30 tiles with $FF at $6770
8CF2	DEFB $03,$FF,$03,$08,$80,$66	Rectangle 3x8 tiles with $FF at $6680
8CF8	DEFB $02,$06,$63,$F5,$65	Fill horz 6 tiles with $63 at $65F5
8CFD	DEFB $02,$0A,$FA,$92,$66	Fill horz 10 tiles with $FA at $6692
8D02	DEFB $05,$04,$07,$AA,$79,$9B,$70	Block 4x7 tiles from 79AA to $709B
8D09	DEFB $05,$04,$07,$AA,$79,$3E,$70	Block 4x7 tiles from 79AA to $703E
8D10	DEFB $05,$04,$07,$AA,$79,$00,$70	Block 4x7 tiles from 79AA to $7000
8D17	DEFB $FF	End of sequence

8D18: Room 8D18



8D18	DEFW $B41F	Room procedure
8D1A	DEFW $B422	Initialization
8D1C	DEFW $8C5A	Room to Left
8D1E	DEFW $8EE1	Room to Right
8D20	DEFW $8D5C	Room Up
8D22	DEFW $8CC8	Room Down
8D24	DEFB $01,$03,$3A,$3A,$67	Fill vert 3 tiles with $3A at $673A
8D29	DEFB $01,$03,$3A,$42,$67	Fill vert 3 tiles with $3A at $6742
8D2E	DEFB $01,$03,$3A,$4E,$67	Fill vert 3 tiles with $3A at $674E
8D33	DEFB $01,$11,$3A,$A3,$65	Fill vert 17 tiles with $3A at $65A3
8D38	DEFB $03,$FF,$0A,$04,$90,$65	Rectangle 10x4 tiles with $FF at $6590
8D3E	DEFB $0C,$48,$73,$02,$0D,$9A,$65	Block 2 tiles from 7348 to $659A copy 13 times
8D45	DEFB $02,$12,$FA,$16,$67	Fill horz 18 tiles with $FA at $6716
8D4A	DEFB $02,$06,$FA,$2E,$67	Fill horz 6 tiles with $FA at $672E
8D4F	DEFB $02,$05,$63,$74,$66	Fill horz 5 tiles with $63 at $6674
8D54	DEFB $05,$02,$04,$BB,$71,$A1,$70	Block 2x4 tiles from 71BB to $70A1
8D5B	DEFB $FF	End of sequence

8D5C: Room 8D5C



8D5C	DEFW $B483	Room procedure
8D5E	DEFW $A1A1	Initialization
8D60	DEFW $8DCA	Room to Left
8D62	DEFW $0000
8D64	DEFW $0000
8D66	DEFW $8D18	Room Down
8D68	DEFB $04,$01	Fill entire screen with $01
8D6A	DEFB $02,$3E,$FF,$90,$65	Fill horz 62 tiles with $FF at $6590
8D6F	DEFB $03,$FF,$02,$04,$EA,$65	Rectangle 2x4 tiles with $FF at $65EA
8D75	DEFB $02,$04,$FF,$62,$66	Fill horz 4 tiles with $FF at $6662
8D7A	DEFB $09,$FF,$07,$E4,$65	Triangle with $FF, count=7 at $65E4
8D7F	DEFB $03,$FF,$05,$0C,$E5,$65	Rectangle 5x12 tiles with $FF at $65E5
8D85	DEFB $02,$41,$FF,$4D,$67	Fill horz 65 tiles with $FF at $674D
8D8A	DEFB $05,$02,$02,$84,$79,$5C,$67	Block 2x2 tiles from 7984 to $675C
8D91	DEFB $05,$03,$03,$A0,$71,$F2,$70	Block 3x3 tiles from 71A0 to $70F2
8D98	DEFB $05,$03,$03,$A0,$71,$A3,$70	Block 3x3 tiles from 71A0 to $70A3
8D9F	DEFB $05,$03,$03,$A0,$71,$A7,$70	Block 3x3 tiles from 71A0 to $70A7
8DA6	DEFB $05,$03,$03,$A0,$71,$FC,$70	Block 3x3 tiles from 71A0 to $70FC
8DAD	DEFB $05,$03,$03,$A0,$71,$FF,$70	Block 3x3 tiles from 71A0 to $70FF
8DB4	DEFB $05,$03,$03,$A0,$71,$03,$71	Block 3x3 tiles from 71A0 to $7103
8DBB	DEFB $01,$01,$FF,$64,$66	Fill vert 1 tiles with $FF at $6664
8DC0	DEFB $0E,$2A,$78,$70	Put tile $2A at $7078
8DC4	DEFB $01,$06,$2B,$96,$70	Fill vert 6 tiles with $2B at $7096
8DC9	DEFB $FF	End of sequence

8DCA: Room 8DCA (helicopter)



8DCA	DEFW $B41F	Room procedure
8DCC	DEFW $B422	Initialization
8DCE	DEFW $0000
8DD0	DEFW $8D5C	Room to Right
8DD2	DEFW $0000
8DD4	DEFW $0000
8DD6	DEFB $04,$01	Fill entire screen with $01
8DD8	DEFB $02,$3F,$FF,$90,$65	Fill horz 63 tiles with $FF at $6590
8DDD	DEFB $03,$FF,$02,$0D,$EA,$65	Rectangle 2x13 tiles with $FF at $65EA
8DE3	DEFB $02,$25,$FF,$69,$67	Fill horz 37 tiles with $FF at $6769
8DE8	DEFB $02,$0A,$91,$5A,$67	Fill horz 10 tiles with $91 at $675A
8DED	DEFB $02,$17,$01,$93,$65	Fill horz 23 tiles with $01 at $6593
8DF2	DEFB $02,$1B,$E2,$AF,$65	Fill horz 27 tiles with $E2 at $65AF
8DF7	DEFB $0E,$FF,$E6,$65	Put tile $FF at $65E6
8DFB	DEFB $03,$FF,$03,$06,$E7,$65	Rectangle 3x6 tiles with $FF at $65E7
8E01	DEFB $0E,$2A,$91,$70	Put tile $2A at $7091
8E05	DEFB $01,$06,$2B,$AF,$70	Fill vert 6 tiles with $2B at $70AF
8E0A	DEFB $05,$04,$07,$47,$8E,$63,$70	Block 4x7 tiles from 8E47 to $7063
8E11	DEFB $05,$02,$06,$6C,$8E,$89,$66	Block 2x6 tiles from 8E6C to $6689
8E18	DEFB $05,$05,$01,$67,$8E,$3E,$67	Block 5x1 tiles from 8E67 to $673E
8E1F	DEFB $05,$01,$02,$63,$8E,$06,$67	Block 1x2 tiles from 8E63 to $6706
8E26	DEFB $05,$03,$08,$78,$8E,$71,$66	Block 3x8 tiles from 8E78 to $6671
8E2D	DEFB $02,$11,$D4,$2C,$66	Fill horz 17 tiles with $D4 at $662C
8E32	DEFB $05,$01,$02,$65,$8E,$34,$66	Block 1x2 tiles from 8E65 to $6634
8E39	DEFB $05,$03,$04,$90,$8E,$56,$66	Block 3x4 tiles from 8E90 to $6656
8E40	DEFB $03,$1B,$04,$04,$8B,$66	Rectangle 4x4 tiles with $1B at $668B
8E46	DEFB $FF	End of sequence

8E47: Blocks for rooms


8E47	DEFB $64,$65,$5A,$5A	Front block 4x7
8E4B	DEFB $5B,$FF,$5C,$63
8E4F	DEFB $FF,$FF,$FF,$62
8E53	DEFB $5A,$5A,$61,$62
8E57	DEFB $5A,$5A,$5A,$60
8E5B	DEFB $5A,$5A,$5A,$5F
8E5F	DEFB $5D,$5A,$5A,$5E
8E63	DEFB $23	Block 1x2
8E64	DEFB $24	Block 1x2
8E65	DEFB $D3	Block 1x2
8E66	DEFB $D2	Block 1x2
8E67	DEFB $E0,$D9,$D8,$D5,$E0	Back block 5x1
8E6C	DEFB $01,$DA	Back block 2x6
8E6E	DEFB $DC,$DB
8E70	DEFB $DD,$D7
8E72	DEFB $DE,$D6
8E74	DEFB $DF,$D6
8E76	DEFB $01,$E1
8E78	DEFB $2F,$30,$01	Back block 3x8
8E7B	DEFB $2E,$28,$31
8E7E	DEFB $2D,$28,$28
8E81	DEFB $2B,$28,$2C
8E84	DEFB $28,$28,$2A
8E87	DEFB $28,$29,$01
8E8A	DEFB $27,$01,$01
8E8D	DEFB $25,$26,$01
8E90	DEFB $36,$01,$01	Back block 3x4
8E93	DEFB $34,$35,$37
8E96	DEFB $28,$28,$01
8E99	DEFB $32,$33,$01

8E9C: Room 8E9C



8E9C	DEFW $B41F	Room procedure
8E9E	DEFW $B422	Initialization
8EA0	DEFW $8CC8	Room to Left
8EA2	DEFW $0000
8EA4	DEFW $8EE1	Room Up
8EA6	DEFW $8F20	Room Down
8EA8	DEFB $01,$10,$3A,$91,$65	Fill vert 16 tiles with $3A at $6591
8EAD	DEFB $01,$10,$3A,$99,$65	Fill vert 16 tiles with $3A at $6599
8EB2	DEFB $01,$10,$3A,$9C,$65	Fill vert 16 tiles with $3A at $659C
8EB7	DEFB $01,$06,$3A,$C1,$66	Fill vert 6 tiles with $3A at $66C1
8EBC	DEFB $01,$07,$3A,$CF,$66	Fill vert 7 tiles with $3A at $66CF
8EC1	DEFB $01,$07,$3A,$D3,$66	Fill vert 7 tiles with $3A at $66D3
8EC6	DEFB $02,$0E,$FF,$70,$67	Fill horz 14 tiles with $FF at $6770
8ECB	DEFB $02,$08,$FA,$A1,$66	Fill horz 8 tiles with $FA at $66A1
8ED0	DEFB $02,$06,$FA,$B1,$66	Fill horz 6 tiles with $FA at $66B1
8ED5	DEFB $02,$04,$FA,$45,$67	Fill horz 4 tiles with $FA at $6745
8EDA	DEFB $03,$FF,$02,$11,$AC,$65	Rectangle 2x17 tiles with $FF at $65AC
8EE0	DEFB $FF	End of sequence

8EE1: Room 8EE1



8EE1	DEFW $B41F	Room procedure
8EE3	DEFW $B422	Initialization
8EE5	DEFW $8D18	Room to Left
8EE7	DEFW $0000
8EE9	DEFW $0000
8EEB	DEFW $8E9C	Room Down
8EED	DEFB $01,$03,$3A,$35,$67	Fill vert 3 tiles with $3A at $6735
8EF2	DEFB $01,$0F,$3A,$D5,$65	Fill vert 15 tiles with $3A at $65D5
8EF7	DEFB $0E,$3A,$7C,$67	Put tile $3A at $677C
8EFB	DEFB $0E,$FF,$93,$65	Put tile $FF at $6593
8EFF	DEFB $03,$FF,$1A,$02,$94,$65	Rectangle 26x2 tiles with $FF at $6594
8F05	DEFB $03,$FF,$02,$0F,$E8,$65	Rectangle 2x15 tiles with $FF at $65E8
8F0B	DEFB $09,$FF,$07,$E7,$65	Triangle with $FF, count=7 at $65E7
8F10	DEFB $02,$04,$FA,$16,$67	Fill horz 4 tiles with $FA at $6716
8F15	DEFB $02,$07,$FA,$5B,$67	Fill horz 7 tiles with $FA at $675B
8F1A	DEFB $02,$04,$63,$E0,$66	Fill horz 4 tiles with $63 at $66E0
8F1F	DEFB $FF	End of sequence

8F20: Room 8F20



8F20	DEFW $B41F	Room procedure
8F22	DEFW $B422	Initialization
8F24	DEFW $8FBD	Room to Left
8F26	DEFW $0000
8F28	DEFW $8E9C	Room Up
8F2A	DEFW $8F84	Room Down
8F2C	DEFB $02,$0E,$FF,$90,$65	Fill horz 14 tiles with $FF at $6590
8F31	DEFB $01,$01,$FF,$96,$65	Fill vert 1 tiles with $FF at $6596
8F36	DEFB $0E,$2A,$AA,$6F	Put tile $2A at $6FAA
8F3A	DEFB $0E,$2A,$AF,$6F	Put tile $2A at $6FAF
8F3E	DEFB $01,$07,$2B,$C8,$6F	Fill vert 7 tiles with $2B at $6FC8
8F43	DEFB $01,$07,$2B,$CD,$6F	Fill vert 7 tiles with $2B at $6FCD
8F48	DEFB $03,$FF,$02,$09,$AC,$65	Rectangle 2x9 tiles with $FF at $65AC
8F4E	DEFB $03,$FF,$1E,$08,$9E,$66	Rectangle 30x8 tiles with $FF at $669E
8F54	DEFB $05,$02,$02,$84,$79,$6A,$67	Block 2x2 tiles from 7984 to $676A
8F5B	DEFB $03,$00,$08,$06,$B2,$66	Rectangle 8x6 tiles with $00 at $66B2
8F61	DEFB $09,$00,$05,$B1,$66	Triangle with $00, count=5 at $66B1
8F66	DEFB $05,$04,$07,$AA,$79,$87,$70	Block 4x7 tiles from 79AA to $7087
8F6D	DEFB $05,$04,$07,$AA,$79,$2A,$70	Block 4x7 tiles from 79AA to $702A
8F74	DEFB $01,$0E,$3A,$A3,$65	Fill vert 14 tiles with $3A at $65A3
8F79	DEFB $01,$0F,$3A,$A7,$65	Fill vert 15 tiles with $3A at $65A7
8F7E	DEFB $02,$05,$FA,$97,$66	Fill horz 5 tiles with $FA at $6697
8F83	DEFB $FF	End of sequence

8F84: Room 8F84



8F84	DEFW $7918	Room procedure
8F86	DEFW $A0F7	Initialization
8F88	DEFW $9053	Room to Left
8F8A	DEFW $0000
8F8C	DEFW $8F20	Room Up
8F8E	DEFW $91BA	Room Down
8F90	DEFB $04,$FF	Fill entire screen with $FF
8F92	DEFB $03,$00,$1C,$08,$26,$66	Rectangle 28x8 tiles with $00 at $6626
8F98	DEFB $08,$00,$04,$C5,$65	Triangle with $00, count=4 at $65C5
8F9D	DEFB $03,$00,$02,$03,$E6,$65	Rectangle 2x3 tiles with $00 at $65E6
8FA3	DEFB $0E,$00,$C8,$65	Put tile $00 at $65C8
8FA7	DEFB $05,$02,$04,$BB,$71,$A2,$70	Block 2x4 tiles from 71BB to $70A2
8FAE	DEFB $0C,$48,$73,$02,$0D,$A8,$65	Block 2 tiles from 7348 to $65A8 copy 13 times
8FB5	DEFB $05,$02,$04,$84,$79,$2A,$67	Block 2x4 tiles from 7984 to $672A
8FBC	DEFB $FF	End of sequence

8FBD: Room 8FBD



8FBD	DEFW $B483	Room procedure
8FBF	DEFW $A16A	Initialization
8FC1	DEFW $9005	Room to Left
8FC3	DEFW $8F20	Room to Right
8FC5	DEFW $0000
8FC7	DEFW $9053	Room Down
8FC9	DEFB $03,$FF,$1E,$08,$9E,$66	Rectangle 30x8 tiles with $FF at $669E
8FCF	DEFB $03,$39,$07,$07,$C5,$66	Rectangle 7x7 tiles with $39 at $66C5
8FD5	DEFB $02,$05,$38,$A8,$66	Fill horz 5 tiles with $38 at $66A8
8FDA	DEFB $02,$06,$FF,$90,$65	Fill horz 6 tiles with $FF at $6590
8FDF	DEFB $02,$04,$FF,$AA,$65	Fill horz 4 tiles with $FF at $65AA
8FE4	DEFB $0E,$2A,$A5,$6F	Put tile $2A at $6FA5
8FE8	DEFB $0E,$2A,$BF,$6F	Put tile $2A at $6FBF
8FEC	DEFB $01,$07,$2B,$C3,$6F	Fill vert 7 tiles with $2B at $6FC3
8FF1	DEFB $01,$07,$2B,$DD,$6F	Fill vert 7 tiles with $2B at $6FDD
8FF6	DEFB $05,$02,$04,$BB,$71,$1F,$70	Block 2x4 tiles from 71BB to $701F
8FFD	DEFB $05,$02,$04,$BB,$71,$31,$70	Block 2x4 tiles from 71BB to $7031
9004	DEFB $FF	End of sequence

9005: Room 9005



9005	DEFW $B41F	Room procedure
9007	DEFW $B422	Initialization
9009	DEFW $92A7	Room to Left
900B	DEFW $8FBD	Room to Right
900D	DEFW $8BF0	Room Up
900F	DEFW $0000
9011	DEFB $02,$1E,$FF,$90,$65	Fill horz 30 tiles with $FF at $6590
9016	DEFB $05,$02,$04,$BB,$71,$33,$70	Block 2x4 tiles from 71BB to $7033
901D	DEFB $0C,$48,$73,$02,$08,$C0,$65	Block 2 tiles from 7348 to $65C0 copy 8 times
9024	DEFB $05,$02,$01,$84,$79,$A2,$65	Block 2x1 tiles from 7984 to $65A2
902B	DEFB $0E,$2A,$B1,$6F	Put tile $2A at $6FB1
902F	DEFB $01,$07,$2B,$CF,$6F	Fill vert 7 tiles with $2B at $6FCF
9034	DEFB $03,$FF,$13,$05,$A9,$66	Rectangle 19x5 tiles with $FF at $66A9
903A	DEFB $02,$4F,$FF,$3F,$67	Fill horz 79 tiles with $FF at $673F
903F	DEFB $08,$FF,$05,$C6,$66	Triangle with $FF, count=5 at $66C6
9044	DEFB $05,$04,$07,$8E,$79,$7B,$70	Block 4x7 tiles from 798E to $707B
904B	DEFB $05,$04,$07,$8E,$79,$24,$70	Block 4x7 tiles from 798E to $7024
9052	DEFB $FF	End of sequence

9053: Room 9053



9053	DEFW $B41F	Room procedure
9055	DEFW $B422	Initialization
9057	DEFW $909F	Room to Left
9059	DEFW $8F84	Room to Right
905B	DEFW $8FBD	Room Up
905D	DEFW $90DB	Room Down
905F	DEFB $03,$FF,$1E,$09,$90,$65	Rectangle 30x9 tiles with $FF at $6590
9065	DEFB $03,$00,$0A,$04,$3A,$66	Rectangle 10x4 tiles with $00 at $663A
906B	DEFB $02,$27,$FF,$67,$67	Fill horz 39 tiles with $FF at $6767
9070	DEFB $02,$04,$FF,$30,$67	Fill horz 4 tiles with $FF at $6730
9075	DEFB $02,$06,$FF,$4C,$67	Fill horz 6 tiles with $FF at $674C
907A	DEFB $05,$02,$04,$BB,$71,$F1,$70	Block 2x4 tiles from 71BB to $70F1
9081	DEFB $05,$02,$04,$BB,$71,$E5,$70	Block 2x4 tiles from 71BB to $70E5
9088	DEFB $03,$39,$07,$08,$99,$65	Rectangle 7x8 tiles with $39 at $6599
908E	DEFB $03,$39,$04,$07,$A7,$66	Rectangle 4x7 tiles with $39 at $66A7
9094	DEFB $02,$04,$38,$79,$67	Fill horz 4 tiles with $38 at $6779
9099	DEFB $02,$04,$38,$89,$66	Fill horz 4 tiles with $38 at $6689
909E	DEFB $FF	End of sequence

909F: Room 909F



909F	DEFW $B47A	Room procedure
90A1	DEFW $A15F	Initialization
90A3	DEFW $92EF	Room to Left
90A5	DEFW $9053	Room to Right
90A7	DEFW $0000
90A9	DEFW $0000
90AB	DEFB $02,$1E,$FF,$90,$65	Fill horz 30 tiles with $FF at $6590
90B0	DEFB $09,$FF,$08,$CB,$65	Triangle with $FF, count=8 at $65CB
90B5	DEFB $03,$FF,$05,$09,$62,$66	Rectangle 5x9 tiles with $FF at $6662
90BB	DEFB $02,$1E,$FF,$70,$67	Fill horz 30 tiles with $FF at $6770
90C0	DEFB $07,$FF,$08,$85,$66	Triangle with $FF, count=8 at $6685
90C5	DEFB $05,$04,$07,$AA,$79,$9E,$70	Block 4x7 tiles from 79AA to $709E
90CC	DEFB $05,$04,$07,$AA,$79,$41,$70	Block 4x7 tiles from 79AA to $7041
90D3	DEFB $05,$04,$07,$AA,$79,$E4,$6F	Block 4x7 tiles from 79AA to $6FE4
90DA	DEFB $FF	End of sequence

90DB: Room 90DB



90DB	DEFW $B452	Room procedure
90DD	DEFW $A370	Initialization
90DF	DEFW $913F	Room to Left
90E1	DEFW $91BA	Room to Right
90E3	DEFW $9053	Room Up
90E5	DEFW $0000
90E7	DEFB $04,$FF	Fill entire screen with $FF
90E9	DEFB $03,$00,$16,$06,$D4,$65	Rectangle 22x6 tiles with $00 at $65D4
90EF	DEFB $02,$0C,$00,$C0,$65	Fill horz 12 tiles with $00 at $65C0
90F4	DEFB $06,$00,$07,$92,$66	Triangle with $00, count=7 at $6692
90F9	DEFB $03,$00,$12,$06,$9E,$66	Rectangle 18x6 tiles with $00 at $669E
90FF	DEFB $02,$04,$39,$99,$65	Fill horz 4 tiles with $39 at $6599
9104	DEFB $02,$04,$38,$B7,$65	Fill horz 4 tiles with $38 at $65B7
9109	DEFB $05,$03,$03,$18,$7C,$F5,$70	Block 3x3 tiles from 7C18 to $70F5
9110	DEFB $05,$03,$03,$18,$7C,$F9,$70	Block 3x3 tiles from 7C18 to $70F9
9117	DEFB $0E,$2A,$95,$70	Put tile $2A at $7095
911B	DEFB $01,$05,$2B,$B3,$70	Fill vert 5 tiles with $2B at $70B3
9120	DEFB $0E,$2A,$A4,$70	Put tile $2A at $70A4
9124	DEFB $01,$05,$2B,$C2,$70	Fill vert 5 tiles with $2B at $70C2
9129	DEFB $05,$04,$07,$8E,$79,$88,$70	Block 4x7 tiles from 798E to $7088
9130	DEFB $05,$04,$07,$8E,$79,$31,$70	Block 4x7 tiles from 798E to $7031
9137	DEFB $05,$04,$07,$8E,$79,$14,$70	Block 4x7 tiles from 798E to $7014
913E	DEFB $FF	End of sequence

913F: Room 913F



913F	DEFW $B41F	Room procedure
9141	DEFW $B422	Initialization
9143	DEFW $0000
9145	DEFW $90DB	Room to Right
9147	DEFW $0000
9149	DEFW $83ED	Room Down
914B	DEFB $09,$FF,$09,$AD,$65	Triangle with $FF, count=9 at $65AD
9150	DEFB $02,$27,$FF,$67,$67	Fill horz 39 tiles with $FF at $6767
9155	DEFB $02,$05,$FF,$90,$65	Fill horz 5 tiles with $FF at $6590
915A	DEFB $03,$FF,$03,$03,$AE,$65	Rectangle 3x3 tiles with $FF at $65AE
9160	DEFB $01,$0C,$EB,$09,$66	Fill vert 12 tiles with $EB at $6609
9165	DEFB $05,$02,$01,$84,$79,$79,$67	Block 2x1 tiles from 7984 to $6779
916C	DEFB $05,$03,$03,$A0,$71,$0E,$71	Block 3x3 tiles from 71A0 to $710E
9173	DEFB $05,$03,$03,$18,$7C,$11,$71	Block 3x3 tiles from 7C18 to $7111
917A	DEFB $05,$02,$01,$8A,$7E,$4E,$71	Block 2x1 tiles from 7E8A to $714E
9181	DEFB $05,$03,$04,$0C,$7C,$FE,$70	Block 3x4 tiles from 7C0C to $70FE
9188	DEFB $05,$03,$01,$87,$7E,$3A,$71	Block 3x1 tiles from 7E87 to $713A
918F	DEFB $05,$03,$01,$87,$7E,$56,$71	Block 3x1 tiles from 7E87 to $7156
9196	DEFB $05,$02,$01,$8A,$7E,$37,$71	Block 2x1 tiles from 7E8A to $7137
919D	DEFB $05,$02,$01,$8A,$7E,$54,$71	Block 2x1 tiles from 7E8A to $7154
91A4	DEFB $05,$02,$01,$8A,$7E,$5A,$71	Block 2x1 tiles from 7E8A to $715A
91AB	DEFB $05,$02,$01,$8A,$7E,$40,$71	Block 2x1 tiles from 7E8A to $7140
91B2	DEFB $05,$02,$01,$8A,$7E,$43,$71	Block 2x1 tiles from 7E8A to $7143
91B9	DEFB $FF	End of sequence

91BA: Room 91BA



91BA	DEFW $B452	Room procedure
91BC	DEFW $A36B	Initialization
91BE	DEFW $90DB	Room to Left
91C0	DEFW $0000
91C2	DEFW $8F84	Room Up
91C4	DEFW $924E	Room Down
91C6	DEFB $02,$04,$FF,$90,$65	Fill horz 4 tiles with $FF at $6590
91CB	DEFB $0E,$2A,$A5,$6F	Put tile $2A at $6FA5
91CF	DEFB $01,$07,$2B,$C3,$6F	Fill vert 7 tiles with $2B at $6FC3
91D4	DEFB $03,$FF,$04,$03,$9E,$66	Rectangle 4x3 tiles with $FF at $669E
91DA	DEFB $02,$98,$FF,$F6,$66	Fill horz 152 tiles with $FF at $66F6
91DF	DEFB $0C,$E3,$81,$02,$0B,$AC,$65	Block 2 tiles from 81E3 to $65AC copy 11 times
91E6	DEFB $07,$FF,$02,$C0,$66	Triangle with $FF, count=2 at $66C0
91EB	DEFB $0C,$48,$73,$02,$0C,$A4,$65	Block 2 tiles from 7348 to $65A4 copy 12 times
91F2	DEFB $05,$02,$05,$84,$79,$0C,$67	Block 2x5 tiles from 7984 to $670C
91F9	DEFB $05,$03,$03,$18,$7C,$9B,$70	Block 3x3 tiles from 7C18 to $709B
9200	DEFB $00,$9F,$70	Barrel 3x3 tiles at $709F
9203	DEFB $00,$A2,$70	Barrel 3x3 tiles at $70A2
9206	DEFB $00,$AD,$70	Barrel 3x3 tiles at $70AD
9209	DEFB $FF	End of sequence

920A: Room 920A



920A	DEFW $7918	Room procedure
920C	DEFW $A0F2	Initialization
920E	DEFW $83ED	Room to Left
9210	DEFW $924E	Room to Right
9212	DEFW $0000
9214	DEFW $0000
9216	DEFB $02,$1E,$FF,$70,$67	Fill horz 30 tiles with $FF at $6770
921B	DEFB $05,$03,$04,$0C,$7C,$F1,$70	Block 3x4 tiles from 7C0C to $70F1
9222	DEFB $05,$03,$03,$A0,$71,$13,$71	Block 3x3 tiles from 71A0 to $7113
9229	DEFB $00,$17,$71	Barrel 3x3 tiles at $7117
922C	DEFB $00,$1A,$71	Barrel 3x3 tiles at $711A
922F	DEFB $00,$BE,$70	Barrel 3x3 tiles at $70BE
9232	DEFB $00,$C1,$70	Barrel 3x3 tiles at $70C1
9235	DEFB $00,$26,$71	Barrel 3x3 tiles at $7126
9238	DEFB $05,$04,$03,$7B,$7E,$C4,$70	Block 4x3 tiles from 7E7B to $70C4
923F	DEFB $05,$04,$03,$7B,$7E,$1B,$71	Block 4x3 tiles from 7E7B to $711B
9246	DEFB $05,$04,$03,$7B,$7E,$20,$71	Block 4x3 tiles from 7E7B to $7120
924D	DEFB $FF	End of sequence

924E: Room 924E



924E	DEFW $B452	Room procedure
9250	DEFW $A366	Initialization
9252	DEFW $920A	Room to Left
9254	DEFW $0000
9256	DEFW $91BA	Room Up
9258	DEFW $0000
925A	DEFB $02,$10,$FF,$9E,$65	Fill horz 16 tiles with $FF at $659E
925F	DEFB $0C,$E3,$81,$02,$0E,$CA,$65	Block 2 tiles from 81E3 to $65CA copy 14 times
9266	DEFB $02,$20,$FF,$6E,$67	Fill horz 32 tiles with $FF at $676E
926B	DEFB $0C,$48,$73,$02,$0F,$C2,$65	Block 2 tiles from 7348 to $65C2 copy 15 times
9272	DEFB $05,$02,$01,$B9,$71,$A4,$65	Block 2x1 tiles from 71B9 to $65A4
9279	DEFB $05,$03,$03,$A0,$71,$1C,$71	Block 3x3 tiles from 71A0 to $711C
9280	DEFB $05,$03,$03,$A0,$71,$CB,$70	Block 3x3 tiles from 71A0 to $70CB
9287	DEFB $05,$04,$03,$7B,$7E,$24,$71	Block 4x3 tiles from 7E7B to $7124
928E	DEFB $00,$5D,$70	Barrel 3x3 tiles at $705D
9291	DEFB $00,$B5,$70	Barrel 3x3 tiles at $70B5
9294	DEFB $00,$B9,$70	Barrel 3x3 tiles at $70B9
9297	DEFB $00,$BC,$70	Barrel 3x3 tiles at $70BC
929A	DEFB $00,$0E,$71	Barrel 3x3 tiles at $710E
929D	DEFB $00,$11,$71	Barrel 3x3 tiles at $7111
92A0	DEFB $00,$14,$71	Barrel 3x3 tiles at $7114
92A3	DEFB $00,$18,$71	Barrel 3x3 tiles at $7118
92A6	DEFB $FF	End of sequence

92A7: Room 92A7


3rd console: flips trigger "A": set/remove wall in room 7F48.
92A7	DEFW $B483	Room procedure
92A9	DEFW $A16F	Initialization
92AB	DEFW $0000
92AD	DEFW $9005	Room to Right
92AF	DEFW $0000
92B1	DEFW $0000
92B3	DEFB $02,$20,$FF,$90,$65	Fill horz 32 tiles with $FF at $6590
92B8	DEFB $0C,$E3,$81,$02,$0D,$CC,$65	Block 2 tiles from 81E3 to $65CC copy 13 times
92BF	DEFB $02,$3C,$FF,$52,$67	Fill horz 60 tiles with $FF at $6752
92C4	DEFB $05,$04,$04,$A9,$71,$D1,$70	Block 4x4 tiles from 71A9 to $70D1
92CB	DEFB $05,$04,$04,$A9,$71,$E1,$70	Block 4x4 tiles from 71A9 to $70E1
92D2	DEFB $05,$02,$04,$BB,$71,$D6,$70	Block 2x4 tiles from 71BB to $70D6
92D9	DEFB $05,$02,$04,$BB,$71,$D8,$70	Block 2x4 tiles from 71BB to $70D8
92E0	DEFB $05,$02,$04,$BB,$71,$DB,$70	Block 2x4 tiles from 71BB to $70DB
92E7	DEFB $05,$02,$04,$BB,$71,$DE,$70	Block 2x4 tiles from 71BB to $70DE
92EE	DEFB $FF	End of sequence

92EF: Room 92EF


1st conosole: flips trigger "C": set/remove wall in room 8D5C.
92EF	DEFW $7918	Room procedure
92F1	DEFW $791B	Initialization
92F3	DEFW $0000
92F5	DEFW $909F	Room to Right
92F7	DEFW $0000
92F9	DEFW $0000
92FB	DEFB $04,$FF	Fill entire screen with $FF
92FD	DEFB $03,$00,$1A,$06,$B2,$65	Rectangle 26x6 tiles with $00 at $65B2
9303	DEFB $03,$02,$16,$06,$DE,$66	Rectangle 22x6 tiles with $02 at $66DE
9309	DEFB $03,$CC,$06,$04,$1C,$67	Rectangle 6x4 tiles with $CC at $671C
930F	DEFB $02,$07,$D1,$38,$67	Fill horz 7 tiles with $D1 at $6738
9314	DEFB $0E,$D0,$3D,$67	Put tile $D0 at $673D
9318	DEFB $02,$0C,$CD,$22,$67	Fill horz 12 tiles with $CD at $6722
931D	DEFB $05,$01,$04,$72,$93,$24,$67	Block 1x4 tiles from 9372 to $6724
9324	DEFB $05,$01,$04,$72,$93,$26,$67	Block 1x4 tiles from 9372 to $6726
932B	DEFB $05,$01,$04,$72,$93,$28,$67	Block 1x4 tiles from 9372 to $6728
9332	DEFB $05,$01,$04,$72,$93,$2A,$67	Block 1x4 tiles from 9372 to $672A
9339	DEFB $05,$01,$04,$72,$93,$2C,$67	Block 1x4 tiles from 9372 to $672C
9340	DEFB $05,$01,$04,$72,$93,$2E,$67	Block 1x4 tiles from 9372 to $672E
9347	DEFB $05,$04,$04,$A9,$71,$E1,$6F	Block 4x4 tiles from 71A9 to $6FE1
934E	DEFB $05,$02,$04,$BB,$71,$E6,$6F	Block 2x4 tiles from 71BB to $6FE6
9355	DEFB $05,$02,$04,$BB,$71,$E9,$6F	Block 2x4 tiles from 71BB to $6FE9
935C	DEFB $05,$02,$04,$BB,$71,$EC,$6F	Block 2x4 tiles from 71BB to $6FEC
9363	DEFB $05,$02,$04,$BB,$71,$EF,$6F	Block 2x4 tiles from 71BB to $6FEF
936A	DEFB $05,$02,$04,$BB,$71,$F2,$6F	Block 2x4 tiles from 71BB to $6FF2
9371	DEFB $FF	End of sequence

9372: Blocks for rooms


9372	DEFB $CE	Back block 1x4
9373	DEFB $CF
9374	DEFB $CF
9375	DEFB $CF

9376: Room 9376



9376	DEFW $B41F	Room procedure
9378	DEFW $B422	Initialization
937A	DEFW $93DF	Room to Left
937C	DEFW $0000
937E	DEFW $8384	Room Up
9380	DEFW $0000
9382	DEFB $04,$FF	Fill entire screen with $FF
9384	DEFB $03,$02,$0C,$06,$80,$66	Rectangle 12x6 tiles with $02 at $6680
938A	DEFB $03,$02,$0B,$06,$90,$66	Rectangle 11x6 tiles with $02 at $6690
9390	DEFB $02,$0C,$03,$62,$66	Fill horz 12 tiles with $03 at $6662
9395	DEFB $02,$0B,$03,$72,$66	Fill horz 11 tiles with $03 at $6672
939A	DEFB $03,$0C,$0B,$02,$FE,$70	Rectangle 11x2 tiles with $0C at $70FE
93A0	DEFB $02,$0B,$0B,$E0,$70	Fill horz 11 tiles with $0B at $70E0
93A5	DEFB $0C,$B9,$71,$02,$0E,$94,$65	Block 2 tiles from 71B9 to $6594 copy 14 times
93AC	DEFB $0C,$B9,$71,$02,$0E,$A4,$65	Block 2 tiles from 71B9 to $65A4 copy 14 times
93B3	DEFB $05,$06,$02,$88,$71,$F3,$70	Block 6x2 tiles from 7188 to $70F3
93BA	DEFB $01,$07,$FD,$9A,$65	Fill vert 7 tiles with $FD at $659A
93BF	DEFB $01,$07,$FD,$A2,$65	Fill vert 7 tiles with $FD at $65A2
93C4	DEFB $01,$07,$FD,$A9,$65	Fill vert 7 tiles with $FD at $65A9
93C9	DEFB $05,$01,$03,$4F,$7B,$36,$67	Block 1x3 tiles from 7B4F to $6736
93D0	DEFB $05,$01,$03,$4F,$7B,$3A,$67	Block 1x3 tiles from 7B4F to $673A
93D7	DEFB $05,$01,$03,$4F,$7B,$3E,$67	Block 1x3 tiles from 7B4F to $673E
93DE	DEFB $FF	End of sequence

93DF: Room 93DF



93DF	DEFW $B41F	Room procedure
93E1	DEFW $C671	Initialization
93E3	DEFW $7C9C	Room to Left
93E5	DEFW $9376	Room to Right
93E7	DEFW $9431	Room Up
93E9	DEFW $0000
93EB	DEFB $04,$02	Fill entire screen with $02
93ED	DEFB $03,$21,$05,$02,$16,$67	Rectangle 5x2 tiles with $21 at $6716
93F3	DEFB $02,$04,$03,$7C,$66	Fill horz 4 tiles with $03 at $667C
93F8	DEFB $02,$99,$FF,$90,$65	Fill horz 153 tiles with $FF at $6590
93FD	DEFB $02,$10,$FF,$36,$66	Fill horz 16 tiles with $FF at $6636
9402	DEFB $02,$04,$FF,$5E,$66	Fill horz 4 tiles with $FF at $665E
9407	DEFB $02,$11,$FF,$1B,$67	Fill horz 17 tiles with $FF at $671B
940C	DEFB $02,$56,$FF,$38,$67	Fill horz 86 tiles with $FF at $6738
9411	DEFB $0C,$B9,$71,$02,$0D,$96,$65	Block 2 tiles from 71B9 to $6596 copy 13 times
9418	DEFB $01,$05,$FD,$9E,$65	Fill vert 5 tiles with $FD at $659E
941D	DEFB $01,$06,$FD,$A7,$65	Fill vert 6 tiles with $FD at $65A7
9422	DEFB $05,$01,$04,$4F,$7B,$24,$67	Block 1x4 tiles from 7B4F to $6724
9429	DEFB $05,$01,$03,$4F,$7B,$4B,$67	Block 1x3 tiles from 7B4F to $674B
9430	DEFB $FF	End of sequence

9431: Room 9431



9431	DEFW $B41F	Room procedure
9433	DEFW $B422	Initialization
9435	DEFW $0000
9437	DEFW $0000
9439	DEFW $9451	Room Up
943B	DEFW $93DF	Room Down
943D	DEFB $04,$FF	Fill entire screen with $FF
943F	DEFB $0C,$B9,$71,$02,$11,$96,$65	Block 2 tiles from 71B9 to $6596 copy 17 times
9446	DEFB $01,$11,$FD,$9E,$65	Fill vert 17 tiles with $FD at $659E
944B	DEFB $01,$11,$FD,$A7,$65	Fill vert 17 tiles with $FD at $65A7
9450	DEFB $FF	End of sequence

9451: Room 9451



9451	DEFW $B41F	Room procedure
9453	DEFW $B422	Initialization
9455	DEFW $0000
9457	DEFW $0000
9459	DEFW $0000
945B	DEFW $9431	Room Down
945D	DEFB $04,$FF	Fill entire screen with $FF
945F	DEFB $05,$02,$04,$84,$79,$1C,$67	Block 2x4 tiles from 7984 to $671C
9466	DEFB $01,$11,$FD,$9E,$65	Fill vert 17 tiles with $FD at $659E
946B	DEFB $01,$11,$FD,$A7,$65	Fill vert 17 tiles with $FD at $65A7
9470	DEFB $03,$02,$18,$06,$65,$66	Rectangle 24x6 tiles with $02 at $6665
9476	DEFB $02,$18,$03,$47,$66	Fill horz 24 tiles with $03 at $6647
947B	DEFB $FF	End of sequence

947C: Room 947C



947C	DEFW $B41F	Room procedure
947E	DEFW $C671	Initialization
9480	DEFW $94AB	Room to Left
9482	DEFW $7C9C	Room to Right
9484	DEFW $0000
9486	DEFW $0000
9488	DEFB $04,$FF	Fill entire screen with $FF
948A	DEFB $03,$02,$15,$07,$26,$66	Rectangle 21x7 tiles with $02 at $6626
9490	DEFB $03,$02,$07,$06,$79,$66	Rectangle 7x6 tiles with $02 at $6679
9496	DEFB $01,$08,$02,$3B,$66	Fill vert 8 tiles with $02 at $663B
949B	DEFB $01,$07,$02,$5A,$66	Fill vert 7 tiles with $02 at $665A
94A0	DEFB $02,$08,$21,$2C,$67	Fill horz 8 tiles with $21 at $672C
94A5	DEFB $02,$07,$21,$4B,$67	Fill horz 7 tiles with $21 at $674B
94AA	DEFB $FF	End of sequence

94AB: Room 94AB



94AB	DEFW $7918	Room procedure
94AD	DEFW $A0DF	Initialization
94AF	DEFW $95D6	Room to Left
94B1	DEFW $947C	Room to Right
94B3	DEFW $0000
94B5	DEFW $0000
94B7	DEFB $04,$FF	Fill entire screen with $FF
94B9	DEFB $03,$00,$1E,$07,$26,$66	Rectangle 30x7 tiles with $00 at $6626
94BF	DEFB $03,$02,$02,$07,$42,$66	Rectangle 2x7 tiles with $02 at $6642
94C5	DEFB $0E,$2A,$37,$70	Put tile $2A at $7037
94C9	DEFB $01,$06,$2B,$55,$70	Fill vert 6 tiles with $2B at $7055
94CE	DEFB $FF	End of sequence

94CF: Room 94CF



94CF	DEFW $7918	Room procedure
94D1	DEFW $A11A	Initialization
94D3	DEFW $9552	Room to Left
94D5	DEFW $9A9A	Room to Right
94D7	DEFW $0000
94D9	DEFW $0000
94DB	DEFB $02,$3C,$FF,$52,$67	Fill horz 60 tiles with $FF at $6752
94E0	DEFB $03,$0D,$12,$07,$80,$66	Rectangle 18x7 tiles with $0D at $6680
94E6	DEFB $03,$A3,$1B,$02,$90,$65	Rectangle 27x2 tiles with $A3 at $6590
94EC	DEFB $0E,$9C,$AB,$65	Put tile $9C at $65AB
94F0	DEFB $0E,$9B,$C9,$65	Put tile $9B at $65C9
94F4	DEFB $03,$BF,$12,$06,$CC,$65	Rectangle 18x6 tiles with $BF at $65CC
94FA	DEFB $05,$02,$04,$BB,$71,$E8,$70	Block 2x4 tiles from 71BB to $70E8
9501	DEFB $02,$12,$BA,$CC,$65	Fill horz 18 tiles with $BA at $65CC
9506	DEFB $02,$12,$B3,$62,$66	Fill horz 18 tiles with $B3 at $6662
950B	DEFB $05,$01,$06,$28,$95,$CD,$65	Block 1x6 tiles from 9528 to $65CD
9512	DEFB $05,$01,$06,$2E,$95,$D4,$65	Block 1x6 tiles from 952E to $65D4
9519	DEFB $05,$02,$06,$34,$95,$DA,$65	Block 2x6 tiles from 9534 to $65DA
9520	DEFB $05,$03,$06,$40,$95,$DE,$65	Block 3x6 tiles from 9540 to $65DE
9527	DEFB $FF	End of sequence

9528: Blocks for rooms


9528	DEFB $A9	Back block 1x6
9529	DEFB $A8
952A	DEFB $A8
952B	DEFB $A8
952C	DEFB $A8
952D	DEFB $A7
952E	DEFB $A6	Back block 1x6
952F	DEFB $A5
9530	DEFB $A4
9531	DEFB $A8
9532	DEFB $A2
9533	DEFB $A1
9534	DEFB $BA,$CB	Back block 2x6
9536	DEFB $BF,$CA
9538	DEFB $C9,$C8
953A	DEFB $C7,$C6
953C	DEFB $CA,$BF
953E	DEFB $C4,$B3
9540	DEFB $BA,$BA,$C3	Back block 3x6
9543	DEFB $BF,$C2,$C1
9546	DEFB $BF,$C0,$00
9549	DEFB $C2,$C1,$00
954C	DEFB $C0,$00,$00
954F	DEFB $C1,$00,$00

9552: Room 9552



9552	DEFW $B483	Room procedure
9554	DEFW $A197	Initialization
9556	DEFW $9A5A	Room to Left
9558	DEFW $94CF	Room to Right
955A	DEFW $0000
955C	DEFW $0000
955E	DEFB $02,$3C,$FF,$52,$67	Fill horz 60 tiles with $FF at $6752
9563	DEFB $03,$0D,$12,$07,$8C,$66	Rectangle 18x7 tiles with $0D at $668C
9569	DEFB $03,$A3,$1B,$02,$93,$65	Rectangle 27x2 tiles with $A3 at $6593
956F	DEFB $0E,$9E,$92,$65	Put tile $9E at $6592
9573	DEFB $0E,$9D,$B0,$65	Put tile $9D at $65B0
9577	DEFB $03,$BF,$12,$06,$D8,$65	Rectangle 18x6 tiles with $BF at $65D8
957D	DEFB $05,$02,$04,$BB,$71,$DD,$70	Block 2x4 tiles from 71BB to $70DD
9584	DEFB $05,$02,$04,$BB,$71,$E3,$70	Block 2x4 tiles from 71BB to $70E3
958B	DEFB $02,$12,$BA,$D8,$65	Fill horz 18 tiles with $BA at $65D8
9590	DEFB $02,$12,$B3,$6E,$66	Fill horz 18 tiles with $B3 at $666E
9595	DEFB $05,$01,$06,$28,$95,$E8,$65	Block 1x6 tiles from 9528 to $65E8
959C	DEFB $05,$01,$06,$B2,$95,$E1,$65	Block 1x6 tiles from 95B2 to $65E1
95A3	DEFB $05,$02,$06,$B8,$95,$DA,$65	Block 2x6 tiles from 95B8 to $65DA
95AA	DEFB $05,$03,$06,$C4,$95,$D5,$65	Block 3x6 tiles from 95C4 to $65D5
95B1	DEFB $FF	End of sequence

95B2: Blocks for rooms


95B2	DEFB $A0	Back block 1x6
95B3	DEFB $A2
95B4	DEFB $A8
95B5	DEFB $A4
95B6	DEFB $A5
95B7	DEFB $9F
95B8	DEFB $BB,$BA	Back block 2x6
95BA	DEFB $B9,$BF
95BC	DEFB $B8,$B7
95BE	DEFB $B6,$B5
95C0	DEFB $BF,$B9
95C2	DEFB $B3,$B2
95C4	DEFB $B1,$BA,$BA	Back block 3x6
95C7	DEFB $B0,$AF,$BF
95CA	DEFB $00,$AE,$BF
95CD	DEFB $00,$B0,$AF
95D0	DEFB $00,$00,$AE
95D3	DEFB $00,$00,$B0

95D6: Room 95D6



95D6	DEFW $B483	Room procedure
95D8	DEFW $A183	Initialization
95DA	DEFW $95F8	Room to Left
95DC	DEFW $94AB	Room to Right
95DE	DEFW $0000
95E0	DEFW $0000
95E2	DEFB $02,$96,$FF,$90,$65	Fill horz 150 tiles with $FF at $6590
95E7	DEFB $03,$FF,$10,$05,$06,$67	Rectangle 16x5 tiles with $FF at $6706
95ED	DEFB $02,$07,$00,$06,$67	Fill horz 7 tiles with $00 at $6706
95F2	DEFB $02,$10,$FA,$16,$67	Fill horz 16 tiles with $FA at $6716
95F7	DEFB $FF	End of sequence

95F8: Room 95F8



95F8	DEFW $B41F	Room procedure
95FA	DEFW $B422	Initialization
95FC	DEFW $0000
95FE	DEFW $95D6	Room to Right
9600	DEFW $0000
9602	DEFW $9634	Room Down
9604	DEFB $04,$FF	Fill entire screen with $FF
9606	DEFB $03,$00,$17,$08,$2D,$66	Rectangle 23x8 tiles with $00 at $662D
960C	DEFB $06,$FF,$03,$2D,$66	Triangle with $FF, count=3 at $662D
9611	DEFB $02,$0C,$FA,$28,$67	Fill horz 12 tiles with $FA at $6728
9616	DEFB $02,$0A,$00,$48,$67	Fill horz 10 tiles with $00 at $6748
961B	DEFB $02,$16,$00,$5A,$67	Fill horz 22 tiles with $00 at $675A
9620	DEFB $02,$18,$00,$76,$67	Fill horz 24 tiles with $00 at $6776
9625	DEFB $0C,$48,$73,$02,$0C,$34,$66	Block 2 tiles from 7348 to $6634 copy 12 times
962C	DEFB $05,$02,$01,$9D,$88,$24,$67	Block 2x1 tiles from 889D to $6724
9633	DEFB $FF	End of sequence

9634: Room 9634



9634	DEFW $B41F	Room procedure
9636	DEFW $B422	Initialization
9638	DEFW $0000
963A	DEFW $968A	Room to Right
963C	DEFW $95F8	Room Up
963E	DEFW $990D	Room Down
9640	DEFB $03,$FF,$04,$0D,$90,$65	Rectangle 4x13 tiles with $FF at $6590
9646	DEFB $03,$FF,$18,$04,$1C,$67	Rectangle 24x4 tiles with $FF at $671C
964C	DEFB $07,$FF,$05,$84,$66	Triangle with $FF, count=5 at $6684
9651	DEFB $0E,$00,$84,$66	Put tile $00 at $6684
9655	DEFB $09,$FF,$03,$1B,$67	Triangle with $FF, count=3 at $671B
965A	DEFB $05,$02,$02,$86,$96,$52,$67	Block 2x2 tiles from 9686 to $6752
9661	DEFB $0C,$48,$73,$02,$0D,$9E,$65	Block 2 tiles from 7348 to $659E copy 13 times
9668	DEFB $02,$0C,$00,$28,$67	Fill horz 12 tiles with $00 at $6728
966D	DEFB $02,$0C,$00,$62,$67	Fill horz 12 tiles with $00 at $6762
9672	DEFB $02,$10,$00,$7C,$67	Fill horz 16 tiles with $00 at $677C
9677	DEFB $0C,$48,$73,$02,$02,$6B,$67	Block 2 tiles from 7348 to $676B copy 2 times
967E	DEFB $05,$02,$01,$9D,$88,$4D,$67	Block 2x1 tiles from 889D to $674D
9685	DEFB $FF	End of sequence

9686: Blocks for rooms


9686	DEFB $B4,$AA	Back block 2x2
9688	DEFB $AD,$AB

968A: Room 968A



968A	DEFW $B483	Room procedure
968C	DEFW $A188	Initialization
968E	DEFW $9634	Room to Left
9690	DEFW $96CC	Room to Right
9692	DEFW $0000
9694	DEFW $9715	Room Down
9696	DEFB $03,$FF,$10,$05,$9E,$65	Rectangle 16x5 tiles with $FF at $659E
969C	DEFB $01,$0C,$3A,$40,$66	Fill vert 12 tiles with $3A at $6640
96A1	DEFB $03,$FF,$0B,$02,$52,$67	Rectangle 11x2 tiles with $FF at $6752
96A7	DEFB $02,$10,$FF,$34,$67	Fill horz 16 tiles with $FF at $6734
96AC	DEFB $02,$09,$FA,$44,$67	Fill horz 9 tiles with $FA at $6744
96B1	DEFB $02,$06,$FA,$6A,$67	Fill horz 6 tiles with $FA at $676A
96B6	DEFB $05,$02,$04,$BB,$71,$B6,$70	Block 2x4 tiles from 71BB to $70B6
96BD	DEFB $0C,$48,$73,$02,$02,$5E,$67	Block 2 tiles from 7348 to $675E copy 2 times
96C4	DEFB $05,$02,$01,$9D,$88,$40,$67	Block 2x1 tiles from 889D to $6740
96CB	DEFB $FF	End of sequence

96CC: Room 96CC



96CC	DEFW $B41F	Room procedure
96CE	DEFW $B422	Initialization
96D0	DEFW $968A	Room to Left
96D2	DEFW $0000
96D4	DEFW $0000
96D6	DEFW $96F3	Room Down
96D8	DEFB $02,$96,$FF,$90,$65	Fill horz 150 tiles with $FF at $6590
96DD	DEFB $03,$FF,$0F,$0C,$35,$66	Rectangle 15x12 tiles with $FF at $6635
96E3	DEFB $09,$FF,$09,$34,$66	Triangle with $FF, count=9 at $6634
96E8	DEFB $01,$0C,$3A,$27,$66	Fill vert 12 tiles with $3A at $6627
96ED	DEFB $02,$04,$FA,$52,$67	Fill horz 4 tiles with $FA at $6752
96F2	DEFB $FF	End of sequence

96F3: Room 96F3



96F3	DEFW $B41F	Room procedure
96F5	DEFW $B422	Initialization
96F7	DEFW $9715	Room to Left
96F9	DEFW $0000
96FB	DEFW $0000
96FD	DEFW $976E	Room Down
96FF	DEFB $03,$FF,$0F,$11,$9F,$65	Rectangle 15x17 tiles with $FF at $659F
9705	DEFB $01,$11,$3A,$91,$65	Fill vert 17 tiles with $3A at $6591
970A	DEFB $01,$0A,$3A,$68,$66	Fill vert 10 tiles with $3A at $6668
970F	DEFB $02,$09,$FA,$80,$66	Fill horz 9 tiles with $FA at $6680
9714	DEFB $FF	End of sequence

9715: Room 9715



9715	DEFW $B41F	Room procedure
9717	DEFW $B422	Initialization
9719	DEFW $0000
971B	DEFW $96F3	Room to Right
971D	DEFW $968A	Room Up
971F	DEFW $9739	Room Down
9721	DEFB $03,$FF,$0B,$11,$90,$65	Rectangle 11x17 tiles with $FF at $6590
9727	DEFB $0C,$48,$73,$02,$11,$9C,$65	Block 2 tiles from 7348 to $659C copy 17 times
972E	DEFB $01,$11,$3A,$AA,$65	Fill vert 17 tiles with $3A at $65AA
9733	DEFB $02,$08,$FA,$96,$66	Fill horz 8 tiles with $FA at $6696
9738	DEFB $FF	End of sequence

9739: Room 9739



9739	DEFW $B452	Room procedure
973B	DEFW $A384	Initialization
973D	DEFW $99A6	Room to Left
973F	DEFW $976E	Room to Right
9741	DEFW $9715	Room Up
9743	DEFW $97A6	Room Down
9745	DEFB $03,$FF,$0B,$0A,$90,$65	Rectangle 11x10 tiles with $FF at $6590
974B	DEFB $08,$00,$06,$12,$66	Triangle with $00, count=6 at $6612
9750	DEFB $02,$22,$FF,$6C,$67	Fill horz 34 tiles with $FF at $676C
9755	DEFB $01,$01,$E4,$A0,$66	Fill vert 1 tiles with $E4 at $66A0
975A	DEFB $01,$0F,$3A,$AA,$65	Fill vert 15 tiles with $3A at $65AA
975F	DEFB $05,$02,$01,$9D,$88,$76,$67	Block 2x1 tiles from 889D to $6776
9766	DEFB $0C,$48,$73,$02,$10,$9C,$65	Block 2 tiles from 7348 to $659C copy 16 times
976D	DEFB $FF	End of sequence

976E: Room 976E



976E	DEFW $B41F	Room procedure
9770	DEFW $B422	Initialization
9772	DEFW $9739	Room to Left
9774	DEFW $0000
9776	DEFW $0000
9778	DEFW $0000
977A	DEFB $04,$FF	Fill entire screen with $FF
977C	DEFB $03,$00,$0F,$08,$90,$65	Rectangle 15x8 tiles with $00 at $6590
9782	DEFB $03,$00,$07,$07,$80,$66	Rectangle 7x7 tiles with $00 at $6680
9788	DEFB $02,$06,$00,$87,$66	Fill horz 6 tiles with $00 at $6687
978D	DEFB $02,$04,$00,$A5,$66	Fill horz 4 tiles with $00 at $66A5
9792	DEFB $02,$02,$00,$C3,$66	Fill horz 2 tiles with $00 at $66C3
9797	DEFB $01,$0F,$3A,$91,$65	Fill vert 15 tiles with $3A at $6591
979C	DEFB $01,$0F,$3A,$96,$65	Fill vert 15 tiles with $3A at $6596
97A1	DEFB $0E,$FA,$E0,$66	Put tile $FA at $66E0
97A5	DEFB $FF	End of sequence

97A6: Room 97A6



97A6	DEFW $B483	Room procedure
97A8	DEFW $B368	Initialization
97AA	DEFW $9876	Room to Left
97AC	DEFW $97F8	Room to Right
97AE	DEFW $9739	Room Up
97B0	DEFW $0000
97B2	DEFB $03,$FF,$09,$07,$80,$66	Rectangle 9x7 tiles with $FF at $6680
97B8	DEFB $02,$3C,$FF,$52,$67	Fill horz 60 tiles with $FF at $6752
97BD	DEFB $07,$FF,$06,$A7,$66	Triangle with $FF, count=6 at $66A7
97C2	DEFB $0C,$48,$73,$02,$08,$96,$65	Block 2 tiles from 7348 to $6596 copy 8 times
97C9	DEFB $03,$FF,$04,$08,$AA,$65	Rectangle 4x8 tiles with $FF at $65AA
97CF	DEFB $0E,$00,$31,$67	Put tile $00 at $6731
97D3	DEFB $0E,$2A,$91,$70	Put tile $2A at $7091
97D7	DEFB $01,$06,$2B,$AF,$70	Fill vert 6 tiles with $2B at $70AF
97DC	DEFB $05,$04,$07,$AA,$79,$82,$70	Block 4x7 tiles from 79AA to $7082
97E3	DEFB $05,$04,$07,$AA,$79,$25,$70	Block 4x7 tiles from 79AA to $7025
97EA	DEFB $05,$04,$07,$AA,$79,$06,$70	Block 4x7 tiles from 79AA to $7006
97F1	DEFB $03,$02,$02,$07,$9C,$66	Rectangle 2x7 tiles with $02 at $669C
97F7	DEFB $FF	End of sequence

97F8: Room 97F8



97F8	DEFW $7918	Room procedure
97FA	DEFW $A115	Initialization
97FC	DEFW $97A6	Room to Left
97FE	DEFW $0000
9800	DEFW $0000
9802	DEFW $982B	Room Down
9804	DEFB $04,$FF	Fill entire screen with $FF
9806	DEFB $03,$02,$1C,$07,$80,$66	Rectangle 28x7 tiles with $02 at $6680
980C	DEFB $03,$02,$10,$04,$0E,$66	Rectangle 16x4 tiles with $02 at $660E
9812	DEFB $08,$02,$03,$2B,$66	Triangle with $02, count=3 at $662B
9817	DEFB $07,$02,$03,$3C,$66	Triangle with $02, count=3 at $663C
981C	DEFB $0C,$B9,$71,$02,$09,$99,$66	Block 2 tiles from 71B9 to $6699 copy 9 times
9823	DEFB $05,$02,$01,$84,$79,$6B,$67	Block 2x1 tiles from 7984 to $676B
982A	DEFB $FF	End of sequence

982B: Room 982B



982B	DEFW $B41F	Room procedure
982D	DEFW $C681	Initialization
982F	DEFW $7C9C	Room to Left
9831	DEFW $0000
9833	DEFW $97F8	Room Up
9835	DEFW $0000
9837	DEFB $04,$FF	Fill entire screen with $FF
9839	DEFB $03,$02,$13,$06,$B7,$65	Rectangle 19x6 tiles with $02 at $65B7
983F	DEFB $03,$02,$13,$06,$62,$66	Rectangle 19x6 tiles with $02 at $6662
9845	DEFB $08,$02,$05,$D4,$65	Triangle with $02, count=5 at $65D4
984A	DEFB $06,$02,$05,$75,$66	Triangle with $02, count=5 at $6675
984F	DEFB $02,$12,$21,$16,$67	Fill horz 18 tiles with $21 at $6716
9854	DEFB $02,$11,$21,$34,$67	Fill horz 17 tiles with $21 at $6734
9859	DEFB $0C,$B9,$71,$02,$07,$A9,$65	Block 2 tiles from 71B9 to $65A9 copy 7 times
9860	DEFB $05,$04,$07,$8E,$79,$86,$70	Block 4x7 tiles from 798E to $7086
9867	DEFB $05,$04,$07,$8E,$79,$2F,$70	Block 4x7 tiles from 798E to $702F
986E	DEFB $05,$04,$07,$8E,$79,$F5,$6F	Block 4x7 tiles from 798E to $6FF5
9875	DEFB $FF	End of sequence

9876: Room 9876



9876	DEFW $B41F	Room procedure
9878	DEFW $B422	Initialization
987A	DEFW $98C0	Room to Left
987C	DEFW $97A6	Room to Right
987E	DEFW $0000
9880	DEFW $0000
9882	DEFB $04,$FF	Fill entire screen with $FF
9884	DEFB $03,$00,$0A,$07,$80,$66	Rectangle 10x7 tiles with $00 at $6680
988A	DEFB $03,$00,$0E,$07,$2E,$66	Rectangle 14x7 tiles with $00 at $662E
9890	DEFB $03,$00,$0A,$07,$C2,$65	Rectangle 10x7 tiles with $00 at $65C2
9896	DEFB $08,$00,$02,$4B,$66	Triangle with $00, count=2 at $664B
989B	DEFB $08,$00,$03,$DF,$65	Triangle with $00, count=3 at $65DF
98A0	DEFB $06,$00,$02,$02,$67	Triangle with $00, count=2 at $6702
98A5	DEFB $06,$00,$03,$96,$66	Triangle with $00, count=3 at $6696
98AA	DEFB $05,$04,$07,$8E,$79,$7F,$70	Block 4x7 tiles from 798E to $707F
98B1	DEFB $05,$04,$07,$8E,$79,$31,$70	Block 4x7 tiles from 798E to $7031
98B8	DEFB $05,$04,$07,$8E,$79,$14,$70	Block 4x7 tiles from 798E to $7014
98BF	DEFB $FF	End of sequence

98C0: Room 98C0 (think door)



98C0	DEFW $B41F	Room procedure
98C2	DEFW $B422	Initialization
98C4	DEFW $9A9A	Room to Left
98C6	DEFW $9876	Room to Right
98C8	DEFW $0000
98CA	DEFW $0000
98CC	DEFB $02,$F0,$FF,$90,$65	Fill horz 240 tiles with $FF at $6590
98D1	DEFB $02,$3C,$FF,$52,$67	Fill horz 60 tiles with $FF at $6752
98D6	DEFB $05,$04,$03,$7B,$7E,$EF,$70	Block 4x3 tiles from 7E7B to $70EF
98DD	DEFB $05,$03,$03,$A0,$71,$98,$70	Block 3x3 tiles from 71A0 to $7098
98E4	DEFB $05,$03,$03,$A0,$71,$F4,$70	Block 3x3 tiles from 71A0 to $70F4
98EB	DEFB $05,$01,$05,$03,$99,$AB,$66	Block 1x5 tiles from 9903 to $66AB
98F2	DEFB $05,$01,$05,$08,$99,$AE,$66	Block 1x5 tiles from 9908 to $66AE
98F9	DEFB $0C,$01,$99,$02,$07,$8E,$66	Block 2 tiles from 9901 to $668E copy 7 times
9900	DEFB $FF	End of sequence

9901: Blocks for rooms


9901	DEFB $9A,$99	Back block 2x1
9903	DEFB $C5	Back block 1x5
9904	DEFB $C5
9905	DEFB $BC
9906	DEFB $C5
9907	DEFB $C5
9908	DEFB $C5	Back block 1x5
9909	DEFB $C5
990A	DEFB $BD
990B	DEFB $C5
990C	DEFB $C5

990D: Room 990D



990D	DEFW $B41F	Room procedure
990F	DEFW $B422	Initialization
9911	DEFW $0000
9913	DEFW $0000
9915	DEFW $9634	Room Up
9917	DEFW $0000
9919	DEFB $03,$FF,$14,$11,$9A,$65	Rectangle 20x17 tiles with $FF at $659A
991F	DEFB $03,$00,$11,$0C,$9B,$65	Rectangle 17x12 tiles with $00 at $659B
9925	DEFB $03,$00,$08,$04,$0C,$67	Rectangle 8x4 tiles with $00 at $670C
992B	DEFB $09,$00,$03,$0B,$67	Triangle with $00, count=3 at $670B
9930	DEFB $0C,$48,$73,$02,$10,$A9,$65	Block 2 tiles from 7348 to $65A9 copy 16 times
9937	DEFB $05,$04,$07,$AA,$79,$A5,$70	Block 4x7 tiles from 79AA to $70A5
993E	DEFB $05,$04,$07,$AA,$79,$86,$70	Block 4x7 tiles from 79AA to $7086
9945	DEFB $03,$0D,$02,$11,$94,$65	Rectangle 2x17 tiles with $0D at $6594
994B	DEFB $01,$07,$2B,$26,$70	Fill vert 7 tiles with $2B at $7026
9950	DEFB $05,$03,$01,$97,$99,$B2,$65	Block 3x1 tiles from 9997 to $65B2
9957	DEFB $05,$03,$01,$97,$99,$2A,$66	Block 3x1 tiles from 9997 to $662A
995E	DEFB $05,$03,$01,$97,$99,$C0,$66	Block 3x1 tiles from 9997 to $66C0
9965	DEFB $05,$03,$01,$97,$99,$38,$67	Block 3x1 tiles from 9997 to $6738
996C	DEFB $05,$04,$03,$9A,$99,$CC,$65	Block 4x3 tiles from 999A to $65CC
9973	DEFB $05,$04,$03,$9A,$99,$26,$66	Block 4x3 tiles from 999A to $6626
997A	DEFB $05,$04,$03,$9A,$99,$80,$66	Block 4x3 tiles from 999A to $6680
9981	DEFB $05,$04,$03,$9A,$99,$DA,$66	Block 4x3 tiles from 999A to $66DA
9988	DEFB $05,$04,$03,$9A,$99,$34,$67	Block 4x3 tiles from 999A to $6734
998F	DEFB $05,$04,$02,$9E,$99,$90,$65	Block 4x2 tiles from 999E to $6590
9996	DEFB $FF	End of sequence

9997: Blocks for rooms


9997	DEFB $1A,$1A,$16	Back block 3x1
999A	DEFB $B4,$AA,$B4,$AA	Back block 4x1
999E	DEFB $AC,$BE,$AC,$BE	Back block 4x2
99A2	DEFB $AD,$AB,$AD,$AB	Back block 4x2

99A6: Room 99A6


Console: flips trigger "E": set/remove wall in room 97A6.
99A6	DEFW $7918	Room procedure
99A8	DEFW $A110	Initialization
99AA	DEFW $0000
99AC	DEFW $9739	Room to Right
99AE	DEFW $0000
99B0	DEFW $0000
99B2	DEFB $02,$1E,$FF,$70,$67	Fill horz 30 tiles with $FF at $6770
99B7	DEFB $01,$0E,$FF,$D6,$65	Fill vert 14 tiles with $FF at $65D6
99BC	DEFB $01,$07,$2B,$9E,$70	Fill vert 7 tiles with $2B at $709E
99C1	DEFB $03,$FF,$14,$02,$9A,$65	Rectangle 20x2 tiles with $FF at $659A
99C7	DEFB $03,$FF,$03,$08,$E7,$65	Rectangle 3x8 tiles with $FF at $65E7
99CD	DEFB $0E,$00,$B9,$66	Put tile $00 at $66B9
99D1	DEFB $05,$02,$04,$BB,$71,$01,$71	Block 2x4 tiles from 71BB to $7101
99D8	DEFB $03,$0D,$02,$10,$94,$65	Rectangle 2x16 tiles with $0D at $6594
99DE	DEFB $05,$04,$03,$9A,$99,$CC,$65	Block 4x3 tiles from 999A to $65CC
99E5	DEFB $05,$04,$03,$9A,$99,$26,$66	Block 4x3 tiles from 999A to $6626
99EC	DEFB $05,$04,$03,$9A,$99,$80,$66	Block 4x3 tiles from 999A to $6680
99F3	DEFB $05,$04,$03,$9A,$99,$DA,$66	Block 4x3 tiles from 999A to $66DA
99FA	DEFB $05,$04,$02,$9A,$99,$34,$67	Block 4x2 tiles from 999A to $6734
9A01	DEFB $05,$03,$01,$97,$99,$EE,$65	Block 3x1 tiles from 9997 to $65EE
9A08	DEFB $05,$03,$01,$97,$99,$48,$66	Block 3x1 tiles from 9997 to $6648
9A0F	DEFB $05,$03,$01,$97,$99,$C0,$66	Block 3x1 tiles from 9997 to $66C0
9A16	DEFB $05,$04,$02,$9E,$99,$90,$65	Block 4x2 tiles from 999E to $6590
9A1D	DEFB $FF	End of sequence

9A1E: Room 9A1E



9A1E	DEFW $B41F	Room procedure
9A20	DEFW $B422	Initialization
9A22	DEFW $0000
9A24	DEFW $7C9C	Room to Right
9A26	DEFW $9A5A	Room Up
9A28	DEFW $0000
9A2A	DEFB $04,$FF	Fill entire screen with $FF
9A2C	DEFB $03,$02,$06,$08,$92,$65	Rectangle 6x8 tiles with $02 at $6592
9A32	DEFB $03,$02,$08,$06,$D4,$65	Rectangle 8x6 tiles with $02 at $65D4
9A38	DEFB $09,$02,$06,$8F,$66	Triangle with $02, count=6 at $668F
9A3D	DEFB $03,$02,$0E,$06,$72,$66	Rectangle 14x6 tiles with $02 at $6672
9A43	DEFB $07,$02,$04,$FA,$65	Triangle with $02, count=4 at $65FA
9A48	DEFB $0C,$B9,$71,$02,$08,$94,$65	Block 2 tiles from 71B9 to $6594 copy 8 times
9A4F	DEFB $02,$0F,$21,$25,$67	Fill horz 15 tiles with $21 at $6725
9A54	DEFB $02,$0E,$21,$44,$67	Fill horz 14 tiles with $21 at $6744
9A59	DEFB $FF	End of sequence

9A5A: Room 9A5A



9A5A	DEFW $B452	Room procedure
9A5C	DEFW $A389	Initialization
9A5E	DEFW $0000
9A60	DEFW $9552	Room to Right
9A62	DEFW $9B51	Room Up
9A64	DEFW $9A1E	Room Down
9A66	DEFB $04,$FF	Fill entire screen with $FF
9A68	DEFB $03,$00,$1C,$0B,$92,$65	Rectangle 28x11 tiles with $00 at $6592
9A6E	DEFB $03,$00,$07,$04,$F1,$66	Rectangle 7x4 tiles with $00 at $66F1
9A74	DEFB $09,$00,$03,$F0,$66	Triangle with $00, count=3 at $66F0
9A79	DEFB $03,$02,$06,$02,$54,$67	Rectangle 6x2 tiles with $02 at $6754
9A7F	DEFB $02,$04,$02,$37,$67	Fill horz 4 tiles with $02 at $6737
9A84	DEFB $0C,$B9,$71,$02,$05,$FC,$66	Block 2 tiles from 71B9 to $66FC copy 5 times
9A8B	DEFB $05,$02,$01,$84,$79,$DE,$66	Block 2x1 tiles from 7984 to $66DE
9A92	DEFB $0C,$48,$73,$02,$0B,$99,$65	Block 2 tiles from 7348 to $6599 copy 11 times
9A99	DEFB $FF	End of sequence

9A9A: Room 9A9A



9A9A	DEFW $B483	Room procedure
9A9C	DEFW $A192	Initialization
9A9E	DEFW $94CF	Room to Left
9AA0	DEFW $98C0	Room to Right
9AA2	DEFW $9ADC	Room Up
9AA4	DEFW $0000
9AA6	DEFB $02,$0A,$FF,$91,$65	Fill horz 10 tiles with $FF at $6591
9AAB	DEFB $02,$3C,$FF,$52,$67	Fill horz 60 tiles with $FF at $6752
9AB0	DEFB $03,$FF,$04,$08,$AA,$65	Rectangle 4x8 tiles with $FF at $65AA
9AB6	DEFB $0E,$2A,$90,$70	Put tile $2A at $7090
9ABA	DEFB $01,$06,$2B,$AE,$70	Fill vert 6 tiles with $2B at $70AE
9ABF	DEFB $0C,$48,$73,$02,$0F,$A5,$65	Block 2 tiles from 7348 to $65A5 copy 15 times
9AC6	DEFB $05,$04,$04,$A9,$71,$D4,$70	Block 4x4 tiles from 71A9 to $70D4
9ACD	DEFB $05,$04,$04,$A9,$71,$DB,$70	Block 4x4 tiles from 71A9 to $70DB
9AD4	DEFB $05,$04,$04,$A9,$71,$E0,$70	Block 4x4 tiles from 71A9 to $70E0
9ADB	DEFB $FF	End of sequence

9ADC: Room 9ADC



9ADC	DEFW $B41F	Room procedure
9ADE	DEFW $B422	Initialization
9AE0	DEFW $0000
9AE2	DEFW $0000
9AE4	DEFW $9B19	Room Up
9AE6	DEFW $9A9A	Room Down
9AE8	DEFB $04,$FF	Fill entire screen with $FF
9AEA	DEFB $03,$00,$18,$08,$92,$65	Rectangle 24x8 tiles with $00 at $6592
9AF0	DEFB $03,$00,$0F,$07,$8B,$66	Rectangle 15x7 tiles with $00 at $668B
9AF6	DEFB $09,$00,$06,$8A,$66	Triangle with $00, count=6 at $668A
9AFB	DEFB $0C,$48,$73,$02,$11,$A5,$65	Block 2 tiles from 7348 to $65A5 copy 17 times
9B02	DEFB $01,$0F,$3A,$A0,$65	Fill vert 15 tiles with $3A at $65A0
9B07	DEFB $02,$0D,$FF,$70,$66	Fill horz 13 tiles with $FF at $6670
9B0C	DEFB $02,$0D,$27,$66,$70	Fill horz 13 tiles with $27 at $7066
9B11	DEFB $05,$02,$01,$9D,$88,$67,$67	Block 2x1 tiles from 889D to $6767
9B18	DEFB $FF	End of sequence

9B19: Room 9B19



9B19	DEFW $7918	Room procedure
9B1B	DEFW $A133	Initialization
9B1D	DEFW $0000
9B1F	DEFW $0000
9B21	DEFW $9BE7	Room Up
9B23	DEFW $9ADC	Room Down
9B25	DEFB $03,$FF,$02,$11,$90,$65	Rectangle 2x17 tiles with $FF at $6590
9B2B	DEFB $03,$FF,$04,$11,$AA,$65	Rectangle 4x17 tiles with $FF at $65AA
9B31	DEFB $0C,$48,$73,$02,$11,$A5,$65	Block 2 tiles from 7348 to $65A5 copy 17 times
9B38	DEFB $01,$11,$3A,$A0,$65	Fill vert 17 tiles with $3A at $65A0
9B3D	DEFB $02,$1A,$FA,$F9,$66	Fill horz 26 tiles with $FA at $66F9
9B42	DEFB $05,$03,$03,$A0,$71,$96,$70	Block 3x3 tiles from 71A0 to $7096
9B49	DEFB $05,$02,$01,$9D,$88,$0D,$67	Block 2x1 tiles from 889D to $670D
9B50	DEFB $FF	End of sequence

9B51: Room 9B51



9B51	DEFW $7918	Room procedure
9B53	DEFW $A11F	Initialization
9B55	DEFW $0000
9B57	DEFW $0000
9B59	DEFW $9B9D	Room Up
9B5B	DEFW $9A5A	Room Down
9B5D	DEFB $04,$FF	Fill entire screen with $FF
9B5F	DEFB $03,$00,$1A,$0E,$92,$65	Rectangle 26x14 tiles with $00 at $6592
9B65	DEFB $01,$07,$00,$7F,$66	Fill vert 7 tiles with $00 at $667F
9B6A	DEFB $01,$07,$2B,$74,$70	Fill vert 7 tiles with $2B at $7074
9B6F	DEFB $0C,$48,$73,$02,$02,$5B,$67	Block 2 tiles from 7348 to $675B copy 2 times
9B76	DEFB $0C,$48,$73,$02,$0E,$A5,$65	Block 2 tiles from 7348 to $65A5 copy 14 times
9B7D	DEFB $05,$02,$01,$9D,$88,$3D,$67	Block 2x1 tiles from 889D to $673D
9B84	DEFB $00,$D5,$70	Barrel 3x3 tiles at $70D5
9B87	DEFB $05,$04,$04,$89,$87,$B4,$70	Block 4x4 tiles from 8789 to $70B4
9B8E	DEFB $05,$04,$04,$89,$87,$C0,$70	Block 4x4 tiles from 8789 to $70C0
9B95	DEFB $05,$03,$03,$A0,$71,$E9,$70	Block 3x3 tiles from 71A0 to $70E9
9B9C	DEFB $FF	End of sequence

9B9D: Room 9B9D



9B9D	DEFW $B458	Room procedure
9B9F	DEFW $A1D6	Initialization
9BA1	DEFW $0000
9BA3	DEFW $0000
9BA5	DEFW $9F3A	Room Up
9BA7	DEFW $9B51	Room Down
9BA9	DEFB $04,$FF	Fill entire screen with $FF
9BAB	DEFB $03,$00,$1A,$07,$A0,$66	Rectangle 26x7 tiles with $00 at $66A0
9BB1	DEFB $03,$00,$18,$08,$94,$65	Rectangle 24x8 tiles with $00 at $6594
9BB7	DEFB $05,$02,$01,$9D,$88,$85,$67	Block 2x1 tiles from 889D to $6785
9BBE	DEFB $05,$02,$01,$9D,$88,$8A,$66	Block 2x1 tiles from 889D to $668A
9BC5	DEFB $0C,$48,$73,$02,$07,$A8,$66	Block 2 tiles from 7348 to $66A8 copy 7 times
9BCC	DEFB $0C,$48,$73,$02,$08,$A6,$65	Block 2 tiles from 7348 to $65A6 copy 8 times
9BD3	DEFB $05,$03,$03,$A0,$71,$24,$71	Block 3x3 tiles from 71A0 to $7124
9BDA	DEFB $00,$B5,$70	Barrel 3x3 tiles at $70B5
9BDD	DEFB $00,$0F,$71	Barrel 3x3 tiles at $710F
9BE0	DEFB $00,$12,$71	Barrel 3x3 tiles at $7112
9BE3	DEFB $00,$19,$71	Barrel 3x3 tiles at $7119
9BE6	DEFB $FF	End of sequence

9BE7: Room 9BE7



9BE7	DEFW $B483	Room procedure
9BE9	DEFW $A19C	Initialization
9BEB	DEFW $0000
9BED	DEFW $9DF5	Room to Right
9BEF	DEFW $9E73	Room Up
9BF1	DEFW $9B19	Room Down
9BF3	DEFB $03,$FF,$02,$0C,$26,$66	Rectangle 2x12 tiles with $FF at $6626
9BF9	DEFB $03,$FF,$09,$05,$96,$65	Rectangle 9x5 tiles with $FF at $6596
9BFF	DEFB $08,$FF,$05,$95,$65	Triangle with $FF, count=5 at $6595
9C04	DEFB $06,$FF,$09,$28,$66	Triangle with $FF, count=9 at $6628
9C09	DEFB $02,$04,$FF,$AA,$65	Fill horz 4 tiles with $FF at $65AA
9C0E	DEFB $03,$FF,$04,$04,$30,$67	Rectangle 4x4 tiles with $FF at $6730
9C14	DEFB $01,$11,$3A,$A0,$65	Fill vert 17 tiles with $3A at $65A0
9C19	DEFB $0C,$48,$73,$02,$0D,$A2,$65	Block 2 tiles from 7348 to $65A2 copy 13 times
9C20	DEFB $0C,$48,$73,$02,$03,$49,$67	Block 2 tiles from 7348 to $6749 copy 3 times
9C27	DEFB $02,$1A,$FA,$17,$67	Fill horz 26 tiles with $FA at $6717
9C2C	DEFB $05,$02,$01,$9D,$88,$2B,$67	Block 2x1 tiles from 889D to $672B
9C33	DEFB $01,$04,$F9,$A5,$66	Fill vert 4 tiles with $F9 at $66A5
9C38	DEFB $FF	End of sequence

9C39: Data block at 9C39


9C39	DEFB $00,$00,$00,$00,$00,$00,$00
9C40	DEFB $08	Ninja Y within the room, 0 at the top
9C41	DEFB $06	Ninja X within the room
9C42	DEFW $00F6	Ninja position in tilemap: Y * 30 + X

9C44: Process a dog

Used by the routines at B452, B458 and B47A.
9C44	LD HL,$71D3	dog Y position address
9C47	LD A,($9C40)	get Ninja Y
9C4A	SUB (HL)
9C4B	CP $07
9C4D	JR NC,$9C80
9C4F	LD HL,$7345
9C52	XOR A
9C53	CP (HL)
9C54	JR NZ,$9C5A
9C56	LD (HL),$19	!!MUT-ARG!! ??
9C58	JR $9C80
9C5A	DEC (HL)
9C5B	CP (HL)
9C5C	JR NZ,$9C80
9C5E	LD A,($71CD)	get Dog direction
9C61	CP $00	left?
9C63	JR NZ,$9C71	right =>
9C65	LD A,($9C41)	get Ninja X
9C68	INC A
9C69	LD HL,$71CE	Dog X position address
9C6C	CP (HL)
9C6D	JR C,$9C80
9C6F	JR $9C7B
9C71	LD A,($9C41)	get Ninja X
9C74	INC A
9C75	LD HL,$71CE	Dog X position address
9C78	CP (HL)
9C79	JR NC,$9C80
9C7B	LD A,$01
9C7D	LD ($7344),A	set "Dog ignore left/right limit" flag
9C80	LD A,($71CD)	!!MUT-ARG!! get Dog direction
9C83	LD ($71CD),A
9C86	LD HL,$71CD
9C89	LD ($9C81),HL
9C8C	CALL $9D5C	Set update flags for Dog
9C8F	LD A,($71CF)
9C92	CP $42
9C94	JR C,$9CA8
9C96	LD HL,$9C9C	Sprite Dog dead
9C99	JP $9D31	=> Set Dog sprite = HL, Draw Dog in tilemap

9C9C: Sprite Dog dead


9C9C	DEFB $FF,$FF,$FF,$FF
9CA0	DEFB $FF,$FF,$FF,$FF
9CA4	DEFB $5D,$5E,$5F,$60

9CA8: Part of Dog processing

Used by the routine at 9C44.
9CA8	CP $00
9CAA	JP NZ,$9D8B
9CAD	LD HL,($71CB)	get Dog position in tilemap
9CB0	LD DE,$69AD	$69AD = $698C (Tile screen 2) + 33: for right direction
9CB3	LD A,($71CD)	get Dog direction
9CB6	CP $01	right?
9CB8	JR Z,$9CBD	right =>
9CBA	LD DE,$69AA	$69AA = $698C (Tile screen 2) + 30: for left direction
9CBD	ADD HL,DE	now HL = Dog position in Ninja tile screen
9CBE	LD A,(HL)	get tile from Ninja tile screen
9CBF	INC A	$FF?
9CC0	LD B,$05
9CC2	CALL NZ,$9DD9	not $FF => Dog bites, decrease Energy by 5
9CC5	LD A,($71CD)	get Dog direction
9CC8	CP $00	left?
9CCA	JR Z,$9CF1	left =>
Dog runs right
9CCC	LD HL,($71CB)	get Dog position in tilemap
9CCF	INC HL	one tile right
9CD0	LD ($71CB),HL	update Dog position in tilemap
9CD3	LD HL,$71CE	Dog X position address
9CD6	INC (HL)	one tile right
9CD7	LD A,($7344)
9CDA	CP $01
9CDC	JR Z,$9CE4
9CDE	LD A,($71D1)	get Dog's right limit
9CE1	CP (HL)
9CE2	JR NZ,$9D14
9CE4	XOR A
9CE5	LD ($7344),A
9CE8	LD ($71D2),A
9CEB	INC A
9CEC	LD ($71CF),A	?? = 1
9CEF	JR $9D14
Dog runs left
9CF1	LD HL,($71CB)	get Dog position in tilemap
9CF4	DEC HL	one tile left
9CF5	LD ($71CB),HL	update Dog position in tilemap
9CF8	LD HL,$71CE	Dog X position address
9CFB	DEC (HL)	one tile left
9CFC	LD A,($7344)
9CFF	CP $01
9D01	JR Z,$9D09
9D03	LD A,($71D0)	get Dog's left limit
9D06	CP (HL)
9D07	JR NZ,$9D14
9D09	XOR A
9D0A	LD ($7344),A
9D0D	INC A
9D0E	LD ($71D2),A
9D11	LD ($71CF),A	?? = 1
9D14	LD HL,$71D5
9D17	INC (HL)
9D18	LD A,$03
9D1A	CP (HL)
9D1B	JR NZ,$9D1F
9D1D	LD (HL),$00
9D1F	LD A,(HL)
9D20	LD HL,$71F2	Sprite Dog 1
9D23	CP $00
9D25	JR Z,$9D31	=> Set Dog sprite = HL, Draw Dog in tilemap
9D27	LD HL,$71FE	Sprite Dog 2
9D2A	CP $01
9D2C	JR Z,$9D31	=> Set Dog sprite = HL, Draw Dog in tilemap
9D2E	LD HL,$720A	Sprite Dog 3
Set Dog sprite = HL, Draw Dog in tilemap
9D31	LD ($9D3C),HL	set DOg sprite = HL
Draw Dog in tilemap
9D34	LD HL,($71CB)
9D37	LD DE,$6B8A	Tile screen 3 start address
9D3A	ADD HL,DE
9D3B	LD DE,$71FE	!!MUT-ARG!! current Dog sprite address
9D3E	LD B,$03	3 rows
9D40	LD A,($71CD)	get Dog direction
9D43	CP $00	left?
9D45	JR Z,$9D75	left => draw Dog facing left
Draw Dog facing right in tilemap
9D47	LD C,$04	4 columns
9D49	LD A,(DE)
9D4A	LD (HL),A
9D4B	INC HL
9D4C	INC DE
9D4D	DEC C
9D4E	JR NZ,$9D49
9D50	PUSH DE
9D51	LD DE,$001A	26
9D54	ADD HL,DE	next row
9D55	POP DE
9D56	DJNZ $9D47
This entry point is used by the routine at 9D75.
9D58	CALL $9D5C	Set update flags for Dog, 4x3 tiles
9D5B	RET

9D5C: Set update flags for Dog, 4x3 tiles

Used by the routines at 9C44 and 9CA8.
9D5C	LD C,$03	3 rows
9D5E	LD HL,($71CB)
9D61	LD DE,$678E	Tile screen 1 start address
9D64	ADD HL,DE
9D65	LD A,$01	"need to update" flag
9D67	LD DE,$001A	26
9D6A	LD B,$04	4 columns
9D6C	LD (HL),A	set the flag
9D6D	INC HL	next column
9D6E	DJNZ $9D6C
9D70	ADD HL,DE	next row
9D71	DEC C
9D72	JR NZ,$9D6A	continue loop by rows
9D74	RET

9D75: Draw Dog facing left in tilemap

Used by the routine at 9CA8.
9D75	INC HL
9D76	INC HL
9D77	INC HL
9D78	LD C,$04	4 rows
9D7A	LD A,(DE)
9D7B	LD (HL),A
9D7C	DEC HL
9D7D	INC DE
9D7E	DEC C
9D7F	JR NZ,$9D7A
9D81	PUSH DE
9D82	LD DE,$0022	34
9D85	ADD HL,DE
9D86	POP DE
9D87	DJNZ $9D78
9D89	JR $9D58	=> Set update flags for Dog, and RET

9D8B: ?? something about Dog

Used by the routine at 9CA8.
9D8B	LD HL,$7216	Sprite Dog 4
9D8E	LD ($9D3C),HL
9D91	LD A,($71D2)
9D94	CP $00
9D96	JR Z,$9DB3
9D98	LD A,($71CD)	get Dog direction
9D9B	CP $00	left?
9D9D	JR Z,$9DA6	left =>
9D9F	DEC A
9DA0	LD ($71CF),A
9DA3	JP $9D34
9DA6	INC A
9DA7	LD ($71D4),A
9DAA	LD HL,$71D4
9DAD	LD ($9C81),HL
9DB0	JP $9D34
9DB3	LD A,($71CD)	get Dog direction
9DB6	CP $00	left?
9DB8	JR Z,$9DC7	left =>
9DBA	DEC A
9DBB	LD ($71D4),A
9DBE	LD HL,$71D4
9DC1	LD ($9C81),HL
9DC4	JP $9D34
9DC7	LD ($71CF),A
9DCA	JP $9D34

9DCD: Initialize a dog

Used by the routines at A154, A15F, A1A6, A1B5, A1C0, A1CB, A1D6, A353, B42E and B437.

Input
HL	dog data address

9DCD

LD DE,$71CB

current dog data address

9DD0

LD ($B674),HL

save current Dog data address

9DD3

LD BC,$0009

9 = size of Dog data

9DD6

LDIR

Copy Dog data

9DD8

RET

9DD9: Decrease Energy by B

Used by the routines at 9CA8, A434, B937, BC55, C22F, C4F6, C50D, C5C6 and FA31.
9DD9	RET	!!MUT-CMD!! $C5 PUSH BC or $C9 RET
9DDA	CALL $749E	Decrease Energy
9DDD	POP BC
9DDE	LD A,($749C)	get Energy
9DE1	CP $04	Energy = MIN ?
9DE3	JR NZ,$9DF1
9DE5	LD A,($749D)	get Energy lower
9DE8	CP $01
9DEA	JR NZ,$9DF1
9DEC	JP $BEAA	Energy is out => Saboteur dead
9DEF	DI	!!UNUSED!!
9DF0	RET	!!UNUSED!!
9DF1	DJNZ $9DD9	continue loop by B
9DF3	DI
9DF4	RET

9DF5: Room 9DF5



9DF5	DEFW $7918	Room procedure
9DF7	DEFW $A138	Initialization
9DF9	DEFW $9BE7	Room to Left
9DFB	DEFW $0000
9DFD	DEFW $9E22	Room Up
9DFF	DEFW $0000
9E01	DEFB $02,$07,$FF,$90,$65	Fill horz 7 tiles with $FF at $6590
9E06	DEFB $03,$FF,$02,$0C,$AC,$65	Rectangle 2x12 tiles with $FF at $65AC
9E0C	DEFB $02,$7A,$FF,$14,$67	Fill horz 122 tiles with $FF at $6714
9E11	DEFB $0C,$48,$73,$02,$0D,$A4,$65	Block 2 tiles from 7348 to $65A4 copy 13 times
9E18	DEFB $0E,$2A,$A7,$6F	Put tile $2A at $6FA7
9E1C	DEFB $01,$0B,$2B,$C5,$6F	Fill vert 11 tiles with $2B at $6FC5
9E21	DEFB $FF	End of sequence

9E22: Room 9E22



9E22	DEFW $B41F	Room procedure
9E24	DEFW $B422	Initialization
9E26	DEFW $0000
9E28	DEFW $0000
9E2A	DEFW $0000
9E2C	DEFW $9DF5	Room Down
9E2E	DEFB $04,$FF	Fill entire screen with $FF
9E30	DEFB $03,$00,$14,$02,$5A,$67	Rectangle 20x2 tiles with $00 at $675A
9E36	DEFB $03,$02,$1A,$0C,$B0,$65	Rectangle 26x12 tiles with $02 at $65B0
9E3C	DEFB $09,$FF,$05,$C9,$65	Triangle with $FF, count=5 at $65C9
9E41	DEFB $0C,$48,$73,$02,$03,$48,$67	Block 2 tiles from 7348 to $6748 copy 3 times
9E48	DEFB $05,$02,$01,$9D,$88,$2A,$67	Block 2x1 tiles from 889D to $672A
9E4F	DEFB $05,$02,$04,$BB,$71,$A5,$70	Block 2x4 tiles from 71BB to $70A5
9E56	DEFB $05,$03,$03,$A0,$71,$B7,$70	Block 3x3 tiles from 71A0 to $70B7
9E5D	DEFB $05,$03,$03,$A0,$71,$BD,$70	Block 3x3 tiles from 71A0 to $70BD
9E64	DEFB $05,$03,$03,$A0,$71,$CA,$70	Block 3x3 tiles from 71A0 to $70CA
9E6B	DEFB $05,$03,$04,$9C,$84,$96,$70	Block 3x4 tiles from 849C to $7096
9E72	DEFB $FF	End of sequence

9E73: Room 9E73



9E73	DEFW $B41F	Room procedure
9E75	DEFW $B422	Initialization
9E77	DEFW $9EB8	Room to Left
9E79	DEFW $0000
9E7B	DEFW $0000
9E7D	DEFW $9BE7	Room Down
9E7F	DEFB $02,$78,$FF,$90,$65	Fill horz 120 tiles with $FF at $6590
9E84	DEFB $03,$FF,$06,$0D,$20,$66	Rectangle 6x13 tiles with $FF at $6620
9E8A	DEFB $03,$FF,$06,$06,$E4,$66	Rectangle 6x6 tiles with $FF at $66E4
9E90	DEFB $08,$FF,$04,$1F,$67	Triangle with $FF, count=4 at $671F
9E95	DEFB $02,$0C,$FA,$DA,$66	Fill horz 12 tiles with $FA at $66DA
9E9A	DEFB $01,$0D,$3A,$18,$66	Fill vert 13 tiles with $3A at $6618
9E9F	DEFB $01,$07,$3A,$0C,$66	Fill vert 7 tiles with $3A at $660C
9EA4	DEFB $02,$0A,$FA,$E9,$66	Fill horz 10 tiles with $FA at $66E9
9EA9	DEFB $0C,$48,$73,$02,$0D,$1A,$66	Block 2 tiles from 7348 to $661A copy 13 times
9EB0	DEFB $05,$02,$01,$9D,$88,$EC,$66	Block 2x1 tiles from 889D to $66EC
9EB7	DEFB $FF	End of sequence

9EB8: Room 9EB8



9EB8	DEFW $7918	Room procedure
9EBA	DEFW $A12E	Initialization
9EBC	DEFW $9ED9	Room to Left
9EBE	DEFW $9E73	Room to Right
9EC0	DEFW $0000
9EC2	DEFW $0000
9EC4	DEFB $02,$78,$FF,$90,$65	Fill horz 120 tiles with $FF at $6590
9EC9	DEFB $02,$1E,$FA,$DA,$66	Fill horz 30 tiles with $FA at $66DA
9ECE	DEFB $01,$07,$28,$03,$70	Fill vert 7 tiles with $28 at $7003
9ED3	DEFB $01,$07,$28,$13,$70	Fill vert 7 tiles with $28 at $7013
9ED8	DEFB $FF	End of sequence

9ED9: Room 9ED9



9ED9	DEFW $B41F	Room procedure
9EDB	DEFW $B422	Initialization
9EDD	DEFW $9EFA	Room to Left
9EDF	DEFW $9EB8	Room to Right
9EE1	DEFW $0000
9EE3	DEFW $0000
9EE5	DEFB $02,$78,$FF,$90,$65	Fill horz 120 tiles with $FF at $6590
9EEA	DEFB $02,$1E,$FA,$DA,$66	Fill horz 30 tiles with $FA at $66DA
9EEF	DEFB $01,$07,$28,$05,$70	Fill vert 7 tiles with $28 at $7005
9EF4	DEFB $01,$07,$28,$11,$70	Fill vert 7 tiles with $28 at $7011
9EF9	DEFB $FF	End of sequence

9EFA: Room 9EFA



9EFA	DEFW $B41F	Room procedure
9EFC	DEFW $B422	Initialization
9EFE	DEFW $0000
9F00	DEFW $9ED9	Room to Right
9F02	DEFW $0000
9F04	DEFW $9F3A	Room Down
9F06	DEFB $02,$7D,$FF,$90,$65	Fill horz 125 tiles with $FF at $6590
9F0B	DEFB $03,$FF,$05,$0C,$26,$66	Rectangle 5x12 tiles with $FF at $6626
9F11	DEFB $03,$FF,$14,$05,$01,$67	Rectangle 20x5 tiles with $FF at $6701
9F17	DEFB $02,$13,$FF,$DF,$66	Fill horz 19 tiles with $FF at $66DF
9F1C	DEFB $02,$06,$FA,$F2,$66	Fill horz 6 tiles with $FA at $66F2
9F21	DEFB $01,$07,$3A,$16,$66	Fill vert 7 tiles with $3A at $6616
9F26	DEFB $01,$07,$28,$17,$70	Fill vert 7 tiles with $28 at $7017
9F2B	DEFB $0C,$48,$73,$02,$0D,$0E,$66	Block 2 tiles from 7348 to $660E copy 13 times
9F32	DEFB $05,$02,$01,$9D,$88,$E0,$66	Block 2x1 tiles from 889D to $66E0
9F39	DEFB $FF	End of sequence

9F3A: Room 9F3A



9F3A	DEFW $7918	Room procedure
9F3C	DEFW $A124	Initialization
9F3E	DEFW $0000
9F40	DEFW $9F7E	Room to Right
9F42	DEFW $9EFA	Room Up
9F44	DEFW $9B9D	Room Down
9F46	DEFB $03,$FF,$05,$0F,$90,$65	Rectangle 5x15 tiles with $FF at $6590
9F4C	DEFB $02,$3C,$FF,$52,$67	Fill horz 60 tiles with $FF at $6752
9F51	DEFB $03,$FF,$14,$02,$99,$65	Rectangle 20x2 tiles with $FF at $6599
9F57	DEFB $0C,$48,$73,$02,$0F,$96,$65	Block 2 tiles from 7348 to $6596 copy 15 times
9F5E	DEFB $05,$02,$04,$BB,$71,$E3,$70	Block 2x4 tiles from 71BB to $70E3
9F65	DEFB $01,$0D,$3A,$DA,$65	Fill vert 13 tiles with $3A at $65DA
9F6A	DEFB $01,$0D,$3A,$E5,$65	Fill vert 13 tiles with $3A at $65E5
9F6F	DEFB $05,$02,$01,$9D,$88,$68,$67	Block 2x1 tiles from 889D to $6768
9F76	DEFB $05,$02,$01,$48,$73,$86,$67	Block 2x1 tiles from 7348 to $6786
9F7D	DEFB $FF	End of sequence

9F7E: Room 9F7E



9F7E	DEFW $7918	Room procedure
9F80	DEFW $A129	Initialization
9F82	DEFW $9F3A	Room to Left
9F84	DEFW $A022	Room to Right
9F86	DEFW $0000
9F88	DEFW $0000
9F8A	DEFB $03,$FF,$02,$02,$52,$67	Rectangle 2x2 tiles with $FF at $6752
9F90	DEFB $03,$A3,$1B,$02,$55,$67	Rectangle 27x2 tiles with $A3 at $6755
9F96	DEFB $05,$01,$02,$08,$A0,$54,$67	Block 1x2 tiles from A008 to $6754
9F9D	DEFB $03,$F5,$1A,$0A,$20,$70	Rectangle 26x10 tiles with $F5 at $7020
9FA3	DEFB $03,$FF,$02,$02,$20,$70	Rectangle 2x2 tiles with $FF at $7020
9FA9	DEFB $05,$02,$02,$04,$A0,$2A,$66	Block 2x2 tiles from A004 to $662A
9FB0	DEFB $05,$04,$04,$0A,$A0,$7C,$70	Block 4x4 tiles from A00A to $707C
9FB7	DEFB $05,$04,$04,$0A,$A0,$80,$70	Block 4x4 tiles from A00A to $7080
9FBE	DEFB $05,$04,$04,$0A,$A0,$84,$70	Block 4x4 tiles from A00A to $7084
9FC5	DEFB $05,$04,$04,$0A,$A0,$88,$70	Block 4x4 tiles from A00A to $7088
9FCC	DEFB $05,$04,$04,$0A,$A0,$8C,$70	Block 4x4 tiles from A00A to $708C
9FD3	DEFB $05,$04,$04,$0A,$A0,$90,$70	Block 4x4 tiles from A00A to $7090
9FDA	DEFB $03,$1B,$18,$04,$86,$66	Rectangle 24x4 tiles with $1B at $6686
9FE0	DEFB $03,$A3,$18,$02,$F0,$65	Rectangle 24x2 tiles with $A3 at $65F0
9FE6	DEFB $05,$01,$02,$08,$A0,$EF,$65	Block 1x2 tiles from A008 to $65EF
9FED	DEFB $0E,$98,$D3,$65	Put tile $98 at $65D3
9FF1	DEFB $02,$16,$0D,$D4,$65	Fill horz 22 tiles with $0D at $65D4
9FF6	DEFB $05,$04,$02,$1A,$A0,$A6,$65	Block 4x2 tiles from A01A to $65A6
9FFD	DEFB $03,$0D,$04,$02,$AA,$65	Rectangle 4x2 tiles with $0D at $65AA
A003	DEFB $FF	End of sequence

A004: Blocks for rooms


A004	DEFB $00,$98	Back block 2x2
A006	DEFB $98,$95	Back block 2x2
A008	DEFB $9E	Back block 1x2
A009	DEFB $9D	Back block 1x2
A00A	DEFB $FE,$FB,$FB,$F8	Front block 4x4
A00E	DEFB $FD,$FF,$FF,$F7
A012	DEFB $FD,$FF,$FF,$F7
A016	DEFB $FC,$F9,$F9,$F6
A01A	DEFB $00,$00,$97,$96	Back block 4x2
A01E	DEFB $97,$96,$0D,$0D	Back block 4x2

A022: Room A022



A022	DEFW $B41F	Room procedure
A024	DEFW $B422	Initialization
A026	DEFW $9F7E	Room to Left
A028	DEFW $0000
A02A	DEFW $0000
A02C	DEFW $0000
A02E	DEFB $03,$A3,$1B,$02,$52,$67	Rectangle 27x2 tiles with $A3 at $6752
A034	DEFB $03,$F5,$1A,$0A,$1C,$70	Rectangle 26x10 tiles with $F5 at $701C
A03A	DEFB $03,$FF,$02,$02,$34,$70	Rectangle 2x2 tiles with $FF at $7034
A040	DEFB $05,$02,$02,$A7,$A0,$3E,$66	Block 2x2 tiles from A0A7 to $663E
A047	DEFB $05,$04,$04,$0A,$A0,$76,$70	Block 4x4 tiles from A00A to $7076
A04E	DEFB $05,$04,$04,$0A,$A0,$7A,$70	Block 4x4 tiles from A00A to $707A
A055	DEFB $05,$04,$04,$0A,$A0,$7E,$70	Block 4x4 tiles from A00A to $707E
A05C	DEFB $05,$04,$04,$0A,$A0,$82,$70	Block 4x4 tiles from A00A to $7082
A063	DEFB $05,$04,$04,$0A,$A0,$86,$70	Block 4x4 tiles from A00A to $7086
A06A	DEFB $05,$04,$04,$0A,$A0,$8A,$70	Block 4x4 tiles from A00A to $708A
A071	DEFB $03,$1B,$18,$04,$80,$66	Rectangle 24x4 tiles with $1B at $6680
A077	DEFB $03,$A3,$18,$02,$EA,$65	Rectangle 24x2 tiles with $A3 at $65EA
A07D	DEFB $05,$01,$02,$AB,$A0,$02,$66	Block 1x2 tiles from A0AB to $6602
A084	DEFB $0E,$94,$E2,$65	Put tile $94 at $65E2
A088	DEFB $02,$16,$0D,$CC,$65	Fill horz 22 tiles with $0D at $65CC
A08D	DEFB $05,$04,$02,$AD,$A0,$94,$65	Block 4x2 tiles from A0AD to $6594
A094	DEFB $03,$0D,$04,$02,$90,$65	Rectangle 4x2 tiles with $0D at $6590
A09A	DEFB $01,$08,$FF,$7B,$66	Fill vert 8 tiles with $FF at $667B
A09F	DEFB $05,$01,$02,$AB,$A0,$6D,$67	Block 1x2 tiles from A0AB to $676D
A0A6	DEFB $FF	End of sequence

A0A7: Blocks for rooms


A0A7	DEFB $94,$00	Back block 2x2
A0A9	DEFB $0D,$94	Back block 2x2
A0AB	DEFB $9C	Back block 1x2
A0AC	DEFB $9B	Back block 1x2
A0AD	DEFB $93,$92,$00,$00	Back block 4x2
A0B1	DEFB $0D,$0D,$93,$92	Back block 4x2

A0B5: Sprite Ninja/Guard dead, 6x7 tiles


A0B5	DEFB $FF,$FF,$FF,$FF,$FF,$FF
A0BB	DEFB $FF,$FF,$FF,$FF,$FF,$FF
A0C1	DEFB $FF,$FF,$FF,$FF,$FF,$FF
A0C7	DEFB $FF,$FF,$FF,$FF,$FF,$FF
A0CD	DEFB $FF,$FF,$FF,$FF,$FF,$FF
A0D3	DEFB $FF,$FF,$ED,$EC,$EB,$FF
A0D9	DEFB $F3,$F2,$F1,$F0,$EF,$EE

A0DF: Room 94AB initialization


A0DF	LD HL,$A1E1	Guard data address
Initialize a guard, then Standard room initialization
A0E2	CALL $B40A	Initialize a guard
This entry point is used by the routine at A142.
A0E5	JP $B422	Standard room initialization

A0E8: Room 7DA9 initialization


A0E8	LD HL,$A1E7	Guard data address
A0EB	JR $A0E2	Initialize a guard, then Standard room initialization

A0ED: Room 7E8C initialization


A0ED	LD HL,$A1ED	Guard data address
A0F0	JR $A0E2	Initialize a guard, then Standard room initialization

A0F2: Room 920A initialization


A0F2	LD HL,$A1F3	Guard data address
A0F5	JR $A0E2	Initialize a guard, then Standard room initialization

A0F7: Room 8F84 initialization


A0F7	LD HL,$A1F9	Guard data address
A0FA	JR $A0E2	Initialize a guard, then Standard room initialization

A0FC: Room 8B71 initialization


A0FC	LD HL,$A1FF	Guard data address
A0FF	JR $A0E2	Initialize a guard, then Standard room initialization

A101: Room 8739 initialization


A101	LD HL,$A205	Guard data address
A104	JR $A0E2	Initialize a guard, then Standard room initialization

A106: Room 858F initialization


A106	LD HL,$A20B	Guard data address
A109	JR $A0E2	Initialize a guard, then Standard room initialization

A10B: Room 84EE initialization


A10B	LD HL,$A211	Guard data address
A10E	JR $A0E2	Initialize a guard, then Standard room initialization

A110: Room 99A6 initialization


A110	LD HL,$A21D	Guard data address
A113	JR $A0E2	Initialize a guard, then Standard room initialization

A115: Room 97F8 initialization


A115	LD HL,$A223	Guard data address
A118	JR $A0E2	Initialize a guard, then Standard room initialization

A11A: Room 94CF initialization


A11A	LD HL,$A229	Guard data address
A11D	JR $A0E2	Initialize a guard, then Standard room initialization

A11F: Room 9B51 initialization


A11F	LD HL,$A22F	Guard data address
A122	JR $A0E2	Initialize a guard, then Standard room initialization

A124: Room 9F3A initialization


A124	LD HL,$A235	Guard data address
A127	JR $A0E2	Initialize a guard, then Standard room initialization

A129: Room 9F7E initialization


A129	LD HL,$A23B	Guard data address
A12C	JR $A0E2	Initialize a guard, then Standard room initialization

A12E: Room 9EB8 initialization


A12E	LD HL,$A241	Guard data address
A131	JR $A0E2	Initialize a guard, then Standard room initialization

A133: Room 9B19 initialization


A133	LD HL,$A247	Guard data address
A136	JR $A0E2	Initialize a guard, then Standard room initialization

A138: Room 9DF5 initialization


A138	LD HL,$A24D	Guard data address
A13B	JR $A0E2	Initialize a guard, then Standard room initialization

A13D: ?? UNUSED??


A13D	LD HL,$A217	Guard data address
A140	JR $A0E2	Initialize a guard, then Standard room initialization

A142: Room 7A17 initialization


A142	LD HL,$A33E	Turret data address
Initialize a turret, then Standard room initialization
A145	CALL $B461	Initialize a turret
A148	JR $A0E5	Standard room initialization

A14A: Room 7D5A initialization


A14A	LD HL,$A32F	Turret data address
A14D	JR $A145	Initialize a turret, then Standard room initialization

A14F: Room 7F48 initialization


A14F	LD HL,$A332	Turret data address
A152	JR $A145	Initialize a turret, then Standard room initialization

A154: Room 7EF2 initialization


A154	LD HL,$A299	Dog data address
A157	CALL $9DCD	Initialize a dog
A15A	LD HL,$A338	Turret data address
A15D	JR $A145	Initialize a turret, then Standard room initialization

A15F: Room 909F initialization


A15F	LD HL,$A2E9	Dog data address
A162	CALL $9DCD	Initialize a dog
A165	LD HL,$A338	Turret data address
A168	JR $A145	Initialize a turret, then Standard room initialization

A16A: Room 8FBD initialization


A16A	LD HL,$A335	Turret data address
A16D	JR $A145	Initialize a turret, then Standard room initialization

A16F: Room 92A7 initialization


A16F	LD HL,$A338	Turret data address
A172	JR $A145	Initialize a turret, then Standard room initialization

A174: Room 8B25 initialization


A174	LD HL,$A33B	Turret data address
A177	JR $A145	Initialize a turret, then Standard room initialization

A179: Room 8526 initialization


A179	LD HL,$A33E	Turret data address
A17C	JR $A145	Initialize a turret, then Standard room initialization

A17E: ?? UNUSED??


A17E	LD HL,$A341	Turret data address
A181	JR $A145	Initialize a turret, then Standard room initialization

A183: Room 95D6 initialization


A183	LD HL,$A344	Turret data address
A186	JR $A145	Initialize a turret, then Standard room initialization

A188: Room 968A initialization


A188	LD HL,$A347	Turret data address
A18B	JR $A145	Initialize a turret, then Standard room initialization

A18D: Finish Room 97A6 initialization

Used by the routine at B368.
A18D	LD HL,$A34A	Turret data address
A190	JR $A145	Initialize a turret, then Standard room initialization

A192: Room 9A9A initialization


A192	LD HL,$A332	Turret data address
A195	JR $A145	Initialize a turret, then Standard room initialization

A197: Room 9552 initialization


A197	LD HL,$A34D	Turret data address
A19A	JR $A145	Initialize a turret, then Standard room initialization

A19C: Room 9BE7 initialization


A19C	LD HL,$A350	Turret data address
A19F	JR $A145	Initialize a turret, then Standard room initialization

A1A1: Room 8D5C initialization


A1A1	LD HL,$A33B	Turret data address
A1A4	JR $A145	Initialize a turret, then Standard room initialization

A1A6: Room 7C2E initialization


A1A6	LD HL,$A271	Dog data address
A1A9	CALL $9DCD	Initialize a dog
A1AC	LD HL,$A253	Guard data address

A1AF: Finish room initialization

Used by the routines at A1B5, A1C0, A1CB and A1D6.
A1AF	CALL $B40A	Initialize a guard
A1B2	JP $B422	Standard room initialization

A1B5: Room 7F9C initialization


A1B5	LD HL,$A27B	Dog data address
A1B8	CALL $9DCD	Initialize a dog
A1BB	LD HL,$A259	Guard data address
A1BE	JR $A1AF	Initialize a guard, then Standard room initialization

A1C0: Room 8162 initialization


A1C0	LD HL,$A28F	Dog data address
A1C3	CALL $9DCD	Initialize a dog
A1C6	LD HL,$A25F	Guard data address
A1C9	JR $A1AF	Initialize a guard, then Standard room initialization

A1CB: Room 80A7 initialization


A1CB	LD HL,$A2AD	Dog data address
A1CE	CALL $9DCD	Initialize a dog
A1D1	LD HL,$A265	Guard data address
A1D4	JR $A1AF	Initialize a guard, then Standard room initialization

A1D6: Room 9B9D initialization


A1D6	LD HL,$A325	Dog data address
A1D9	CALL $9DCD	Initialize a dog
A1DC	LD HL,$A26B	Guard data address
A1DF	JR $A1AF	Initialize a guard, then Standard room initialization

A1E1: Guards data, 24 records, 6 bytes each


+$04: Guard energy, initially 10
A1E1	DEFB $9D,$00,$07,$05,$0A,$01	Room 94AB guard
A1E7	DEFB $18,$01,$0A,$09,$0A,$00	Room 7DA9 guard
A1ED	DEFB $14,$01,$06,$09,$0A,$00	Room 7E8C guard
A1F3	DEFB $13,$01,$05,$09,$0A,$00	Room 920A guard
A1F9	DEFB $C8,$00,$14,$06,$0A,$00	Room 8F84 guard
A1FF	DEFB $20,$01,$12,$09,$0A,$01	Room 8B71 guard
A205	DEFB $50,$00,$14,$02,$0A,$01	Room 8739 guard
A20B	DEFB $1E,$01,$10,$09,$0A,$00	Room 858F guard
A211	DEFB $01,$01,$11,$08,$0A,$01	Room 84EE guard
A217	DEFB $18,$01,$0A,$09,$0A,$00	UNUSED, see A13D
A21D	DEFB $22,$01,$14,$09,$0A,$01	Room 99A6 guard
A223	DEFB $F9,$00,$09,$08,$0A,$00	Room 97F8 guard
A229	DEFB $02,$01,$12,$08,$0A,$01	Room 94CF guard
A22F	DEFB $DF,$00,$0D,$07,$0A,$01	Room 9B51 guard
A235	DEFB $F7,$00,$07,$08,$0A,$01	Room 9F3A guard
A23B	DEFB $F8,$00,$08,$08,$0A,$00	Room 9F7E guard
A241	DEFB $86,$00,$0E,$04,$0A,$01	Room 9EB8 guard
A247	DEFB $A2,$00,$0C,$05,$0A,$00	Room 9B19 guard
A24D	DEFB $BB,$00,$07,$06,$0A,$00	Room 9DF5 guard
A253	DEFB $C2,$00,$0E,$06,$0A,$00	Room 7C2E guard
A259	DEFB $D4,$00,$02,$07,$0A,$00	Room 7F9C guard
A25F	DEFB $0B,$00,$0B,$00,$0A,$01	Room 8162 guard
A265	DEFB $20,$01,$12,$09,$0A,$01	Room 80A7 guard
A26B	DEFB $30,$00,$12,$01,$0A,$01	Room 9B9D guard

A271: Dogs data, 19 records, 10 bytes each


+$00/$01: Dog position in tilemap +$02: Dog direction +$03: Dog X position +$05: Dog left limit +$06: Dog right limit +$08: Dog Y position
A271	DEFB $3C,$01,$00,$10,$00,$03,$16,$00,$03,$01	Room 7C2E dog
A27B	DEFB $5E,$01,$01,$14,$00,$03,$16,$01,$04,$01	Room 7F9C dog
A285	DEFB $A5,$00,$00,$0F,$00,$05,$0F,$00,$FE,$01	Room 81E5 dog
A28F	DEFB $7A,$00,$01,$02,$00,$00,$18,$01,$FD,$01	Room 8162 dog
A299	DEFB $8F,$01,$01,$09,$00,$03,$18,$01,$06,$01	Room 7EF2 dog
A2A3	DEFB $8A,$01,$01,$04,$00,$02,$1A,$01,$06,$01	Room 7E05 dog
A2AD	DEFB $9A,$01,$00,$14,$01,$03,$15,$01,$06,$01	Room 80A7 dog
A2B7	DEFB $92,$01,$00,$0C,$00,$05,$19,$00,$06,$01	Room 83ED dog
A2C1	DEFB $8C,$01,$01,$06,$01,$01,$17,$00,$06,$01	Room 80F6 dog
A2CB	DEFB $90,$01,$00,$0A,$00,$04,$17,$00,$06,$01	Room 924E dog
A2D5	DEFB $1B,$01,$01,$0D,$00,$06,$18,$01,$02,$01	Room 91BA dog
A2DF	DEFB $76,$01,$01,$0E,$00,$00,$0F,$01,$05,$01	Room 90DB dog
A2E9	DEFB $97,$01,$01,$11,$00,$0D,$1A,$01,$06,$01	Room 909F dog
A2F3	DEFB $BC,$00,$00,$08,$00,$01,$0E,$00,$FF,$01	Room 8802 dog
A2FD	DEFB $A4,$00,$00,$0E,$00,$02,$0E,$00,$FE,$01	Room 8608 dog
A307	DEFB $8E,$01,$00,$08,$00,$07,$17,$00,$06,$01	Room 844E dog
A311	DEFB $8D,$01,$01,$07,$00,$03,$15,$01,$06,$01	Room 9739 dog
A31B	DEFB $F6,$00,$00,$06,$00,$02,$0F,$00,$01,$01	Room 9A5A dog
A325	DEFB $8C,$01,$01,$06,$00,$04,$18,$01,$06,$01	Room 9B9D dog

A32F: Turrets data, 12 records, 3 bytes each


A32F	DEFB $C4,$00,$0E	Room 7A17 turret
A332	DEFB $27,$00,$07	Room 7F48/9A9A turret
A335	DEFB $11,$00,$0F	Room 8FBD turret
A338	DEFB $2B,$00,$0A	Room 7EF2/909F/92A7 turret
A33B	DEFB $4B,$00,$0D	Room 8B25/8D5C turret
A33E	DEFB $2F,$00,$0F	Room 7A17/8526 turret
A341	DEFB $32,$00,$12	UNUSED, see A17E
A344	DEFB $9D,$00,$05	Room 95D6 turret
A347	DEFB $A6,$00,$0E	Room 968A turret
A34A	DEFB $0A,$01,$18	Room 97A6 turret
A34D	DEFB $3F,$00,$01	Room 9552 turret
A350	DEFB $A3,$00,$0B	Room 9BE7 turret

A353: Room 81E5 initialization


A353	LD HL,$A285	Dog data address
Initialize a dog, then Standard room initialization
A356	CALL $9DCD	Initialize a dog
A359	JP $B422	Standard room initialization

A35C: Room 7E05 initialization


A35C	LD HL,$A2A3	Dog data address
A35F	JR $A356	Initialize a dog, then Standard room initialization

A361: Room 83ED initialization


A361	LD HL,$A2B7	Dog data address
A364	JR $A356	Initialize a dog, then Standard room initialization

A366: Room 924E initialization


A366	LD HL,$A2CB	Dog data address
A369	JR $A356	Initialize a dog, then Standard room initialization

A36B: Room 91BA initialization


A36B	LD HL,$A2D5	Dog data address
A36E	JR $A356	Initialize a dog, then Standard room initialization

A370: Room 90DB initialization


A370	LD HL,$A2DF	Dog data address
A373	JR $A356	Initialize a dog, then Standard room initialization

A375: Room 8802 initialization


A375	LD HL,$A2F3	Dog data address
A378	JR $A356	Initialize a dog, then Standard room initialization

A37A: Room 8608 initialization


A37A	LD HL,$A2FD	Dog data address
A37D	JR $A356	Initialize a dog, then Standard room initialization

A37F: Room 844E initialization


A37F	LD HL,$A307	Dog data address
A382	JR $A356	Initialize a dog, then Standard room initialization

A384: Room 9739 initialization


A384	LD HL,$A311	Dog data address
A387	JR $A356	Initialize a dog, then Standard room initialization

A389: Room 9A5A initialization


A389	LD HL,$A31B	Dog data address
A38C	JR $A356	Initialize a dog, then Standard room initialization

A38E: Room 80F6 initialization


A38E	LD HL,$A2C1	Dog data address
A391	JR $A356	Initialize a dog, then Standard room initialization

A393: Data block at A393


A393	DEFB $90,$01,$01,$0A,$42,$01,$17,$01
A39B	DEFB $06,$01,$00,$00,$00,$C4,$00,$00
A3A3	DEFB $03,$06,$10,$00,$45,$01,$05,$05
A3AB	DEFB $0A,$19,$00,$69,$00,$06,$06,$03
A3B3	DEFB $0F
A3B4	DEFB $01	?? Guard counter

A3B5: ?? something about Ninja and Guard

Used by the routine at A434.
A3B5	LD A,($9C40)	get Ninja Y
A3B8	LD HL,$71C6	Guard Y position address
A3BB	CP (HL)	compare Ninja Y to Guard Y
A3BC	RET NZ
A3BD	POP HL
A3BE	LD A,$14	!!MUT-ARG!! ??
A3C0	LD ($A3B4),A
A3C3	LD A,$0B
A3C5	LD ($7346),A	set Guard state = $0B
A3C8	LD HL,$D504	Sprite Ninja/Guard punching
A3CB	LD ($A70F),HL	set Guard sprite
A3CE	JP $A6FF	=> Draw Guard on tilemap

A3D1: ?? something about Ninja and Guard

Used by the routine at A434.
A3D1	LD A,($9C40)	get Ninja Y
A3D4	LD HL,$71C6	Guard Y position address
A3D7	CP (HL)	compare Ninja Y to Guard Y
A3D8	RET NZ
A3D9	LD A,($A3A6)
A3DC	CP $00
A3DE	RET NZ
A3DF	POP HL
A3E0	LD A,$14
A3E2	LD ($7346),A	set Guard state = $14
A3E5	LD HL,$D504	Sprite Ninja/Guard punching
A3E8	LD ($A70F),HL	set Guard sprite
A3EB	JP $A6FF	=> Draw Guard on tilemap

A3EE: ?? something about Ninja and Guard

Used by the routine at A434.
A3EE	LD A,($9C40)	get Ninja Y
A3F1	LD HL,$71C6	Guard Y position address
A3F4	CP (HL)	compare Ninja Y to Guard Y
A3F5	RET NZ
A3F6	LD HL,($71C3)	get Guard position in tilemap
A3F9	LD DE,$6592	$6592 = $6590 (Tile screen 0) + 2
A3FC	ADD HL,DE	now HL in Back tile screen
A3FD	LD A,$64
A3FF	CP (HL)
A400	RET C
A401	INC HL
A402	CP (HL)
A403	RET C
A404	POP HL
A405	LD A,$05
A407	LD ($7346),A	set Guard state = $05
A40A	LD A,$02
A40C	LD ($A3B4),A	set Guard counter
A40F	LD HL,$D4B0	Sprite Ninja/Guard jumping
A412	LD ($A70F),HL	set Guard sprite
A415	JP $A6FF	=> Draw Guard on tilemap

A418: ?? something about Ninja and Guard

Used by the routine at A434.
A418	LD A,($9C40)	get Ninja Y
A41B	LD HL,$71C6	Guard Y position address
A41E	CP (HL)	compare Ninja Y to Guard Y
A41F	RET NZ
A420	POP HL
A421	LD A,$08
A423	LD ($7346),A	set Guard state = $08
A426	LD A,$03
A428	LD ($A3B4),A	set Guard counter
A42B	LD HL,$D504	Sprite Ninja/Guard punching
A42E	LD ($A70F),HL	set Guard sprite
A431	JP $A6FF	=> Draw Guard on tilemap

A434: ?? something about Guard

Used by the routines at B44C and B458.
A434	CALL $A75B	Set update flags for Guard, 6x7 tiles
A437	LD HL,$7346	Guard state address
A43A	LD A,(HL)	get Guard state
Guard state = $0B ?
A43B	CP $0B
A43D	JP NZ,$A4E7
A440	LD HL,$A3B4	Guard counter address
A443	DEC (HL)	decrease Guard counter
A444	LD A,(HL)	get Guard counter
A445	CP $06
A447	JP NC,$A6FF	=> Draw Guard on tilemap
A44A	LD A,$10
A44C	OUT ($FE),A
A44E	LD A,($71C6)	get Guard Y
A451	ADD A,A	Guard Y * 2
A452	LD ($A45F),A
A455	INC A	Guard Y * 2 + 1
A456	LD ($A462),A
A459	LD IX,$A747
A45D	LD L,(IX+$04)
A460	LD H,(IX+$05)
A463	LD A,($71C5)	get Guard X
A466	LD D,$00
A468	LD E,A
A469	ADD HL,DE
A46A	LD DE,$003C
A46D	LD A,($71C5)	get Guard X
A470	INC A
A471	PUSH HL
A472	LD HL,($71C3)	get Current Guard position in tilemap
A475	ADD HL,DE
A476	EX DE,HL
A477	POP HL
A478	LD B,A
A479	LD A,$2B	"DEC HL" instruction
A47B	LD ($A4D0),A	set the instruction
A47E	LD A,$1B	"DEC DE" instruction
A480	LD ($A4D1),A	set the instruction
A483	LD A,($7347)	get Guard direction
A486	CP $00	left?
A488	JR Z,$A4A2	yes =>
A48A	LD A,$1A	26
A48C	SUB B
A48D	LD B,A
A48E	INC DE
A48F	INC DE
A490	INC DE
A491	INC DE
A492	INC DE	+5
A493	INC HL
A494	INC HL
A495	INC HL
A496	INC HL
A497	INC HL	+5
A498	LD A,$23	"INC HL" instruction
A49A	LD ($A4D0),A	set the instruction
A49D	LD A,$13	"INC DE" instruction
A49F	LD ($A4D1),A	set the instruction
A4A2	PUSH HL
A4A3	LD HL,$6590	Tile screen 0 start address
A4A6	ADD HL,DE
A4A7	LD A,$64
A4A9	CP (HL)
A4AA	JR C,$A4CD
A4AC	LD HL,$6F86	Tile screen 5 start address
A4AF	ADD HL,DE
A4B0	LD A,(HL)
A4B1	INC A
A4B2	JR NZ,$A4C0
A4B4	LD HL,$678E	Tile screen 1 start address
A4B7	ADD HL,DE
A4B8	LD (HL),$01
A4BA	POP HL
A4BB	PUSH HL
A4BC	LD A,$CC
A4BE	XOR (HL)
A4BF	LD (HL),A
A4C0	LD HL,$698C	Tile screen 2 start address
A4C3	ADD HL,DE
A4C4	LD A,(HL)
A4C5	INC A
A4C6	JR Z,$A4CF
A4C8	LD B,$04
A4CA	CALL $9DD9	Decrease Energy by B
A4CD	LD B,$01
A4CF	POP HL
A4D0	DEC HL	!!MUT-CMD!! "DEC HL" or "INC HL" instruction
A4D1	DEC DE	!!MUT-CMD!! "DEC DE" or "INC DE" instruction
A4D2	DJNZ $A4A2
A4D4	XOR A
A4D5	OUT ($FE),A
A4D7	LD A,($A3B4)	get Guard counter
A4DA	CP $00
A4DC	JP NZ,$A6FF	=> Draw Guard on tilemap
A4DF	LD A,$04
A4E1	LD ($7346),A	set Guard state = $04
A4E4	JP $A6FF	=> Draw Guard on tilemap
Guard state = $14 ?
A4E7	CP $14
A4E9	JR NZ,$A52F
A4EB	LD (HL),$04	set Guard state = $04
A4ED	LD HL,$D486	Sprite Ninja/Guard standing
A4F0	LD ($A70F),HL	set Guard sprite
A4F3	LD HL,($71C3)	get Guard position in tilemap
A4F6	LD DE,$003C	60
A4F9	LD B,$00
A4FB	LD C,$03
A4FD	LD A,($7347)	get Guard direction
A500	CP $00	left?
A502	JR Z,$A50B	left =>
A504	LD C,$05
A506	LD B,$05
A508	LD DE,$0041	65
A50B	ADD HL,DE
A50C	LD ($A3A7),HL
A50F	LD A,($71C5)	get Guard X
A512	ADD A,B
A513	LD IX,$A3A6
A517	LD (IX+$00),$CA
A51B	LD (IX+$03),C
A51E	LD (IX+$04),C
A521	LD (IX+$06),A
A524	LD A,($71C6)	get Guard Y
A527	ADD A,$02	Guard Y + 2
A529	LD (IX+$05),A
A52C	JP $A6FF	=> Draw Guard on tilemap
Guard state = $0A ?
A52F	CP $0A
A531	JR NZ,$A56D
A533	LD HL,$D486	Sprite Ninja/Guard standing
A536	LD ($A70F),HL	set Guard sprite
A539	LD HL,$9C40	Ninja Y address
A53C	LD A,($71C6)	get Guard Y
A53F	ADD A,$03	Guard Y + 3
A541	CP (HL)	compare with Ninja Y
A542	JP C,$A6FF	Guard above Ninja => Draw Guard on tilemap
A545	LD A,($A39E)
A548	DEC A
A549	JR Z,$A565
A54B	LD A,($7347)	get Guard direction: 0 / 1
A54E	DEC A	$FF left / 0 right
A54F	LD A,($71C5)	get Guard X
A552	LD HL,$9C41	Ninja X address
A555	JR Z,$A55F	right =>
A557	ADD A,$02	for left, Guard X + 2
A559	CP (HL)	compare with Ninja X
A55A	JP C,$A6FF	Guard still behind Ninja => Draw Guard on tilemap
A55D	JR $A565
A55F	SUB $03	for right, Guard X - 3
A561	CP (HL)	compare with Ninja X
A562	JP NC,$A6FF	Guard not reached Ninja => Draw Guard on tilemap
A565	LD A,$04	state $04
A567	LD ($7346),A	set Guard state = $04
A56A	JP $A6FF	=> Draw Guard on tilemap
Guard state = $09 ? - Guard is dead
A56D	CP $09
A56F	JR NZ,$A57A
A571	LD HL,$A0B5	Sprite Ninja dead
A574	LD ($A70F),HL	set Guard sprite
A577	JP $A6FF	=> Draw Guard on tilemap
Guard state = $08 ?
A57A	CP $08
A57C	JR NZ,$A5AA
A57E	PUSH HL
A57F	LD HL,$A3B4	Guard counter address
A582	DEC (HL)	decrease Guard counter
A583	POP HL
A584	JP NZ,$A6FF	=> Draw Guard on tilemap
A587	LD (HL),$03	set Guard state = walking state 3
A589	LD HL,($71C3)
A58C	LD DE,$69CC	$69CC = $698C (Tile screen 2) + 64
A58F	LD A,($7347)	get Guard direction
A592	CP $01	right?
A594	JR Z,$A599	yes =>
A596	LD DE,$69C9	$69C9 = $698C (Tile screen 2) + 61
A599	ADD HL,DE
A59A	LD A,(HL)
A59B	INC A
A59C	LD B,$06
A59E	CALL NZ,$FA31	=> Decrease Energy by B + Sound
A5A1	LD HL,$D486	Sprite Ninja/Guard standing
A5A4	LD ($A70F),HL	set Guard sprite
A5A7	JP $A6FF	=> Draw Guard on tilemap
Guard state = $05 ? - Preparing for jump-kick
A5AA	CP $05
A5AC	JR NZ,$A5C7
A5AE	PUSH HL
A5AF	LD HL,$A3B4	Guard counter address
A5B2	DEC (HL)	decrease Guard counter
A5B3	POP HL
A5B4	JP NZ,$A6FF	=> Draw Guard on tilemap
A5B7	LD A,$03
A5B9	LD ($A3B4),A	set Guard counter value
A5BC	LD (HL),$06	set Guard state = $06: jump-kick
A5BE	LD HL,$D4DA	Sprite Ninja/Guard jump-kick
A5C1	LD ($A70F),HL	set Guard sprite
A5C4	JP $A6FF	=> Draw Guard on tilemap
Guard state = $06 ?
A5C7	CP $06
A5C9	JR NZ,$A5FC
A5CB	PUSH HL
A5CC	LD HL,$A3B4	Guard counter address
A5CF	DEC (HL)	decrease Guard counter
A5D0	POP HL
A5D1	JP NZ,$A6FF	=> Draw Guard on tilemap
A5D4	LD A,$01
A5D6	LD ($A3B4),A	set Guard counter value
A5D9	LD (HL),$07	set Guard state = $07: back to standing
A5DB	LD HL,$D4B0	Sprite Ninja/Guard jumping
A5DE	LD ($A70F),HL	set Guard sprite
A5E1	LD HL,($71C3)	get Guard position in tilemap
A5E4	LD DE,$69CD	$69CD = $698C (Tile screen 2) + 65
A5E7	LD A,($7347)	get Guard direction
A5EA	CP $01	right?
A5EC	JR Z,$A5F1	right =>
A5EE	LD DE,$69C8	$69C8 = $698C (Tile screen 2) + 60
A5F1	ADD HL,DE	now HL = address in Ninja tile screen
A5F2	LD A,(HL)	get tile from Ninja screen
A5F3	INC A	$FF ?
A5F4	LD B,$0A	10 damage
A5F6	CALL NZ,$FA31	not $FF => Decrease Energy by 10 + Sound
A5F9	JP $A6FF	=> Draw Guard on tilemap
Guard state = $07 ? - back to standing
A5FC	CP $07
A5FE	JR NZ,$A614
A600	PUSH HL
A601	LD HL,$A3B4	Guard counter address
A604	DEC (HL)	decrease Guard counter
A605	POP HL
A606	JP NZ,$A6FF	counter not zero => Draw Guard on tilemap
A609	LD (HL),$03	set Guard state = walking phase 3
A60B	LD HL,$D486	Sprite Ninja/Guard standing
A60E	LD ($A70F),HL	set Guard sprite
A611	JP $A6FF	=> Draw Guard on tilemap
Guard state is none of the above
A614	LD HL,$9C41	Ninja X address
A617	LD A,($71C5)	get Guard X
A61A	SUB (HL)	compare to Ninja X
A61B	JR NZ,$A635	not equal =>
A61D	CALL $A418
A620	LD HL,$7346	Guard state address
A623	LD A,$0A
A625	CP (HL)	Guard state = $0A ?
A626	JP Z,$A6FF	Guard state is $0A => Draw Guard on tilemap
A629	LD A,$04
A62B	LD (HL),A	set Guard state = $04
A62C	LD HL,$D486	Sprite Ninja/Guard standing
A62F	LD ($A70F),HL	set Guard sprite
A632	JP $A6FF	=> Draw Guard on tilemap
Guard X != Ninja X
A635	JR C,$A68C	Guard X < Ninja X =>
Ninja X < Guard X
A637	LD B,A	save value "Guard X - Ninja X"
A638	LD A,($7347)	get Guard direction
A63B	CP $00	left?
A63D	JR Z,$A65B	left =>
A63F	LD A,($7346)	get Guard state
A642	CP $04	Guard state = $04 ?
A644	JR Z,$A654
A646	LD A,$04
A648	LD ($7346),A	set Guard state = $04
A64B	LD HL,$D486	Sprite Ninja/Guard standing
A64E	LD ($A70F),HL	set Guard sprite
A651	JP $A6FF	=> Draw Guard on tilemap
A654	XOR A
A655	LD ($7347),A	set Guard direction = left
A658	JP $A6FF	=> Draw Guard on tilemap
A65B	LD A,B	restore value "Guard X - Ninja X"
A65C	CP $03	3
A65E	CALL Z,$A3EE
A661	CP $01	1
A663	CALL Z,$A418
A666	CP $09	9
A668	CALL Z,$A3D1
A66B	CP $0C	12
A66D	CALL Z,$A3B5
A670	LD A,($7346)	get Guard state
A673	CP $04	Guard state = $04 ?
A675	JR NZ,$A67F	no =>
A677	LD A,$03	walking phase 3
A679	LD ($7346),A	set Guard state
A67C	JP $A6FF	=> Draw Guard on tilemap
A67F	LD HL,$71C5	Guard X address
A682	DEC (HL)	decrease Guard X - move one tile left
A683	XOR A
A684	LD ($7347),A	set Guard direction = left
A687	LD DE,$FFFF
A68A	JR $A6DE
Guard X < Ninja X
A68C	LD B,A
A68D	LD A,($7347)	get Guard direction
A690	CP $01	right?
A692	JR Z,$A6AF	right =>
A694	LD A,($7346)	get Guard state
A697	CP $04	Guard state = $04 ?
A699	JR Z,$A6A8
A69B	LD A,$04
A69D	LD ($7346),A	set Guard state = $04
A6A0	LD HL,$D486	Sprite Ninja/Guard standing
A6A3	LD ($A70F),HL	set Guard sprite
A6A6	JR $A6FF	=> Draw Guard on tilemap
A6A8	LD A,$01
A6AA	LD ($7347),A	set Guard direction = right
A6AD	JR $A6FF	=> Draw Guard on tilemap
A6AF	LD A,B
A6B0	CP $FD	-3
A6B2	CALL Z,$A3EE
A6B5	CP $FF	-1
A6B7	CALL Z,$A418
A6BA	CP $F7	-9
A6BC	CALL Z,$A3D1
A6BF	CP $F4	-12
A6C1	CALL Z,$A3B5
A6C4	LD A,($7346)	get Guard state
A6C7	CP $04	Guard state = $04 ?
A6C9	JR NZ,$A6D2
A6CB	LD A,$03
A6CD	LD ($7346),A	set Guard state = walking phase 3
A6D0	JR $A6FF	=> Draw Guard on tilemap
A6D2	LD HL,$71C5	Guard X address
A6D5	INC (HL)	increase Guard X - move one tile right
A6D6	LD A,$01
A6D8	LD ($7347),A	set Guard direction = right
A6DB	LD DE,$0001
A6DE	LD HL,($71C3)	get Guard position in tilemap
A6E1	ADD HL,DE
A6E2	LD ($71C3),HL	update Guard position in tilemap
A6E5	LD A,($7346)	get Guard state
A6E8	INC A	next walking phase
A6E9	AND $03	0..3
A6EB	LD ($7346),A	set Guard state
A6EE	ADD A,A	* 2
A6EF	LD L,A
A6F0	LD H,$00
A6F2	LD DE,$733B	Table of four Ninja/Guard walking sprites
A6F5	ADD HL,DE
A6F6	LD DE,$A70F	Guard sprite address
A6F9	LD A,(HL)
A6FA	LD (DE),A
A6FB	INC HL
A6FC	INC DE
A6FD	LD A,(HL)
A6FE	LD (DE),A
Draw Guard on tilemap
A6FF	LD DE,($71C3)	get Guard position in tilemap
A703	LD A,($7347)	get Guard direction
A706	CP $00	left?
A708	JR NZ,$A728	right =>
A70A	LD HL,$6D8D	Tile screen 4 start address + 5
A70D	ADD HL,DE
A70E	LD DE,$D432	!!MUT-ARG!! current Ninja/Guard sprite address
A711	LD B,$07	7 rows
A713	LD C,$06	6 rows
A715	LD A,(DE)
A716	CALL $A775	Translate Ninja tile A into Guard tile
A719	LD (HL),A
A71A	DEC HL
A71B	INC DE
A71C	DEC C
A71D	JR NZ,$A715
A71F	PUSH DE
A720	LD DE,$0024	36
A723	ADD HL,DE	next row
A724	POP DE
A725	DJNZ $A713	continue loop by rows
A727	RET
A728	LD HL,$6D88	Tile screen 4 start address
A72B	ADD HL,DE
A72C	LD DE,($A70F)	get Guard sprite address
A730	LD B,$07	7 rows
A732	LD C,$06	6 rows
A734	LD A,(DE)	get tile
A735	CALL $A775	Translate Ninja tile A into Guard tile
A738	LD (HL),A
A739	INC HL
A73A	INC DE
A73B	DEC C
A73C	JR NZ,$A734
A73E	PUSH DE
A73F	LD DE,$0018	24
A742	ADD HL,DE	next row
A743	POP DE
A744	DJNZ $A732	continue loop by rows
A746	RET

A747: Data block at A747


A747	DEFB $61,$45,$81,$45,$A1,$45,$C1,$45
A74F	DEFB $E1,$45,$01,$4D,$21,$4D,$41,$4D
A757	DEFB $61,$4D,$81,$4D

A75B: Set update flags for Guard, 6x7 tiles

Used by the routine at A434.
A75B	LD DE,($71C3)	get Current Guard position in tilemap
A75F	LD HL,$678E	Tile screen 1 start address
A762	ADD HL,DE	now HL in update flags tilemap
A763	LD DE,$0018	24
A766	LD A,$01	"need to update" flag
A768	LD B,$07	7 rows
A76A	LD C,$06	6 columns
A76C	LD (HL),A	set the flag
A76D	INC HL	next column
A76E	DEC C
A76F	JR NZ,$A76C	continue loop by columns
A771	ADD HL,DE	next row
A772	DJNZ $A76A	continue loop by rows
A774	RET

A775: Translate Ninja tile A into Guard tile, using A787 table

Used by the routine at A434.
A775	EXX
A776	LD HL,$A787	Translate table address
A779	LD B,$13	19 records
A77B	CP (HL)	found the tile?
A77C	INC HL
A77D	JR NZ,$A782
A77F	LD A,(HL)	get the new tile
A780	EXX
A781	RET
A782	INC HL
A783	DJNZ $A77B	continue the loop
A785	EXX
A786	RET

A787: Table used to translate Ninja tiles to Guard tiles, 19 records


A787	DEFB $50,$C7,$51,$DC,$54,$DD,$EA,$DE
A78F	DEFB $13,$DF,$15,$E0,$16,$E1,$00,$E2
A797	DEFB $01,$E3,$03,$E4,$04,$E5,$4D,$E6
A79F	DEFB $22,$E7,$2F,$E8,$30,$E9,$F4,$E2
A7A7	DEFB $F5,$E3,$E4,$E4,$F6,$E5

A7AD: Pictures of NEAR/HELD items, 32x24px each


A7AD	DEFB $00,$00,$00,$00,$00,$00,$00,$00	Nothing
A7B5	DEFB $00,$00,$00,$00,$00,$00,$00,$00
A7BD	DEFB $00,$00,$00,$00,$00,$00,$00,$00
A7C5	DEFB $00,$00,$00,$00,$00,$00,$00,$00
A7CD	DEFB $00,$00,$00,$00,$00,$00,$00,$00
A7D5	DEFB $00,$00,$00,$00,$00,$00,$00,$00
A7DD	DEFB $00,$00,$00,$00,$00,$00,$00,$00
A7E5	DEFB $00,$00,$00,$00,$45,$DD,$54,$5E
A7ED	DEFB $65,$49,$56,$52,$65,$49,$56,$52
A7F5	DEFB $55,$49,$D5,$50,$55,$49,$55,$56
A7FD	DEFB $4D,$49,$54,$D2,$4D,$49,$54,$D2
A805	DEFB $45,$C9,$54,$5E,$00,$00,$00,$00
A80D	DEFB $06,$06,$06,$06,$06,$06,$06,$06	attributes
A815	DEFB $06,$06,$06,$06	attributes
A819	DEFB $00,$00,$00,$00,$00,$00,$80,$00	Shuriken
A821	DEFB $00,$00,$80,$00,$00,$00,$80,$00
A829	DEFB $00,$01,$80,$00,$00,$01,$80,$00
A831	DEFB $00,$03,$C0,$00,$00,$7F,$F0,$00
A839	DEFB $00,$0F,$FE,$00,$00,$03,$C0,$00
A841	DEFB $00,$01,$80,$00,$00,$01,$80,$00
A849	DEFB $00,$01,$00,$00,$00,$01,$00,$00
A851	DEFB $00,$01,$00,$00,$00,$00,$00,$00
A859	DEFB $00,$00,$00,$00,$00,$00,$00,$00
A861	DEFB $75,$56,$55,$D2,$45,$55,$55,$1A
A869	DEFB $77,$56,$59,$9E,$15,$55,$55,$16
A871	DEFB $75,$25,$55,$D2,$00,$00,$00,$00
A879	DEFB $0E,$0D,$4F,$0E,$0E,$4D,$0F,$4F	attributes
A881	DEFB $06,$06,$06,$06	attributes
A885	DEFB $00,$00,$00,$0C,$00,$00,$00,$7C	Knife
A88D	DEFB $00,$00,$07,$D8,$00,$00,$0F,$B8
A895	DEFB $00,$00,$1F,$B0,$00,$00,$7F,$60
A89D	DEFB $00,$00,$FE,$C0,$00,$01,$F9,$80
A8A5	DEFB $00,$07,$CF,$00,$00,$0F,$BE,$00
A8AD	DEFB $00,$BE,$78,$00,$00,$BD,$E0,$00
A8B5	DEFB $03,$5F,$80,$00,$0F,$AC,$00,$00
A8BD	DEFB $1F,$50,$00,$00,$DF,$48,$00,$00
A8C5	DEFB $EF,$84,$00,$00,$6F,$04,$00,$00
A8CD	DEFB $74,$00,$00,$00,$38,$00,$00,$00
A8D5	DEFB $00,$00,$00,$00,$00,$00,$00,$00
A8DD	DEFB $00,$00,$00,$00,$00,$00,$00,$00
A8E5	DEFB $0A,$0F,$0F,$4F,$0A,$0F,$4F,$4F	attributes
A8ED	DEFB $0A,$0A,$0A,$0A	attributes
A8F1	DEFB $00,$00,$00,$00,$00,$00,$00,$00	??
A8F9	DEFB $00,$00,$00,$00,$00,$00,$00,$00
A901	DEFB $00,$00,$70,$00,$00,$00,$FC,$00
A909	DEFB $00,$01,$3E,$00,$00,$71,$3F,$00
A911	DEFB $00,$FE,$3F,$C0,$00,$BF,$1F,$E0
A919	DEFB $01,$3F,$9F,$F0,$01,$3F,$DF,$F0
A921	DEFB $01,$1F,$FF,$F0,$00,$9F,$FC,$F0
A929	DEFB $00,$8F,$F9,$F8,$00,$47,$F3,$F8
A931	DEFB $00,$31,$F3,$F0,$01,$88,$7F,$E0
A939	DEFB $01,$C7,$C3,$C0,$00,$00,$00,$06
A941	DEFB $18,$04,$00,$00,$00,$00,$00,$00
A949	DEFB $00,$00,$00,$00,$00,$00,$00,$00
A951	DEFB $0E,$0E,$0E,$0E,$0E,$0E,$0E,$0E	attributes
A959	DEFB $0E,$0E,$0E,$0E	attributes
A95D	DEFB $00,$00,$3E,$00,$00,$00,$F5,$C0	Brick
A965	DEFB $00,$03,$FA,$B8,$00,$0F,$F5,$56
A96D	DEFB $00,$3F,$FB,$AF,$00,$FF,$FE,$FF
A975	DEFB $03,$FF,$F5,$6B,$0F,$FF,$EA,$D5
A97D	DEFB $3F,$FF,$57,$AB,$EA,$FE,$AD,$55
A985	DEFB $BD,$55,$7A,$AB,$D7,$BA,$F5,$55
A98D	DEFB $AA,$EF,$AA,$AB,$D5,$5F,$55,$56
A995	DEFB $AA,$AA,$AA,$BE,$D5,$57,$55,$78
A99D	DEFB $AA,$AA,$AA,$E0,$D5,$57,$57,$80
A9A5	DEFB $6A,$AA,$AE,$00,$1D,$57,$78,$00
A9AD	DEFB $03,$AB,$E0,$00,$00,$77,$80,$00
A9B5	DEFB $00,$0C,$00,$00,$00,$00,$00,$00
A9BD	DEFB $02,$02,$02,$02,$02,$02,$02,$02	attributes
A9C5	DEFB $02,$02,$02,$02	attributes
A9C9	DEFB $00,$00,$00,$00,$00,$00,$00,$00	Pipe
A9D1	DEFB $00,$00,$00,$00,$00,$00,$00,$00
A9D9	DEFB $7F,$FF,$FF,$FE,$60,$00,$00,$02
A9E1	DEFB $71,$3E,$07,$CA,$7F,$FF,$FF,$FA
A9E9	DEFB $7F,$FF,$FF,$F2,$7F,$FF,$FF,$FE
A9F1	DEFB $00,$00,$00,$00,$00,$00,$00,$00
A9F9	DEFB $00,$00,$00,$00,$00,$00,$00,$00
AA01	DEFB $00,$00,$00,$00,$00,$00,$00,$00
AA09	DEFB $00,$00,$00,$00,$3F,$3E,$7C,$FC
AA11	DEFB $21,$08,$44,$80,$21,$08,$44,$FC
AA19	DEFB $3F,$08,$7C,$80,$20,$08,$40,$80
AA21	DEFB $20,$3E,$40,$FC,$00,$00,$00,$00
AA29	DEFB $4F,$4F,$4F,$4F,$4D,$4D,$4D,$4D	attributes
AA31	DEFB $06,$06,$06,$06	attributes
AA35	DEFB $00,$00,$00,$00,$00,$00,$00,$00	Granade
AA3D	DEFB $00,$00,$00,$E0,$00,$00,$39,$B0
AA45	DEFB $00,$00,$0D,$18,$00,$0F,$F6,$18
AA4D	DEFB $00,$7E,$7B,$70,$00,$CF,$9D,$A0
AA55	DEFB $01,$F2,$6D,$C0,$03,$FD,$F6,$C0
AA5D	DEFB $07,$72,$F6,$C0,$0F,$6F,$6A,$C0
AA65	DEFB $0F,$5F,$AA,$C0,$1B,$BF,$BE,$C0
AA6D	DEFB $1B,$5F,$DC,$C0,$3A,$EF,$DC,$C0
AA75	DEFB $3D,$F7,$AC,$C0,$3D,$FB,$69,$C0
AA7D	DEFB $16,$FD,$F9,$80,$1F,$62,$71,$80
AA85	DEFB $0C,$9F,$E3,$00,$0F,$E7,$C7,$00
AA8D	DEFB $03,$FF,$8E,$00,$00,$FE,$00,$00
AA95	DEFB $0C,$0C,$0C,$0C,$0C,$04,$04,$0C	attributes
AA9D	DEFB $0C,$04,$0C,$0C	attributes
AAA1	DEFB $00,$00,$00,$00,$01,$FF,$FF,$F8	Disk
AAA9	DEFB $01,$FF,$FF,$F8,$01,$FF,$FF,$F8
AAB1	DEFB $01,$FF,$FF,$F8,$01,$FF,$FF,$F8
AAB9	DEFB $01,$FF,$FF,$F8,$01,$FF,$FF,$F8
AAC1	DEFB $01,$FF,$0C,$F8,$01,$FE,$F7,$F8
AAC9	DEFB $01,$FD,$FB,$F8,$01,$85,$FB,$F8
AAD1	DEFB $01,$85,$FB,$F8,$01,$FD,$FB,$F8
AAD9	DEFB $01,$FE,$F7,$F8,$01,$FF,$0F,$F8
AAE1	DEFB $00,$00,$00,$00,$0F,$84,$FC,$84
AAE9	DEFB $08,$44,$8C,$84,$08,$44,$80,$84
AAF1	DEFB $08,$CC,$FC,$FC,$08,$CC,$0C,$98
AAF9	DEFB $08,$CC,$8C,$98,$0F,$8C,$FC,$98
AB01	DEFB $0C,$08,$08,$08,$0A,$38,$38,$08	attributes
AB09	DEFB $46,$46,$46,$46	attributes
AB0D	DEFB $00,$00,$00,$00,$00,$06,$80,$00	Bomb
AB15	DEFB $00,$89,$40,$00,$01,$68,$20,$00
AB1D	DEFB $02,$10,$33,$00,$07,$77,$00,$00
AB25	DEFB $07,$77,$FF,$C0,$07,$77,$FF,$C0
AB2D	DEFB $07,$77,$DD,$C0,$07,$77,$AA,$D0
AB35	DEFB $07,$77,$AA,$D0,$07,$77,$AA,$D0
AB3D	DEFB $07,$77,$DD,$D0,$07,$77,$FF,$C0
AB45	DEFB $07,$77,$FF,$C0,$07,$77,$FF,$C0
AB4D	DEFB $00,$00,$00,$00,$0F,$1C,$8B,$C0
AB55	DEFB $08,$A2,$DA,$20,$0F,$22,$AB,$C0
AB5D	DEFB $08,$A2,$8A,$20,$08,$A2,$8A,$20
AB65	DEFB $0F,$1C,$8B,$C0,$00,$00,$00,$00
AB6D	DEFB $0A,$0A,$08,$08,$0A,$02,$38,$08	attributes
AB75	DEFB $06,$06,$06,$06	attributes
AB79	DEFB $00,$00,$00,$00,$00,$00,$00,$00	Console
AB81	DEFB $00,$00,$00,$00,$00,$00,$00,$00
AB89	DEFB $00,$00,$00,$00,$00,$00,$00,$00
AB91	DEFB $00,$03,$03,$40,$00,$03,$23,$40
AB99	DEFB $00,$0F,$FF,$E0,$00,$0C,$00,$60
ABA1	DEFB $00,$0D,$FF,$FC,$01,$FA,$00,$0C
ABA9	DEFB $0F,$83,$FF,$EC,$0C,$7F,$E0,$2C
ABB1	DEFB $0C,$FF,$FF,$CC,$0F,$FC,$81,$3C
ABB9	DEFB $00,$00,$FF,$00,$00,$00,$FD,$00
ABC1	DEFB $00,$00,$FD,$00,$00,$00,$FD,$00
ABC9	DEFB $00,$00,$FD,$00,$00,$00,$FD,$00
ABD1	DEFB $00,$00,$FD,$00,$00,$00,$FF,$00
ABD9	DEFB $07,$46,$42,$44,$45,$45,$4D,$45	attributes
ABE1	DEFB $07,$07,$0D,$07	attributes

ABE5: Explosion image, 3x3 tiles


ABE5	DEFB $04,$66,$06,$03,$4B,$E3,$C3,$43
ABED	DEFB $48,$08,$18,$18,$39,$BB,$FF,$FF
ABF5	DEFB $01,$04,$60,$C0,$86,$1C,$F8,$F1
ABFD	DEFB $03,$7F,$1F,$03,$43,$C7,$0F,$AF
AC05	DEFB $88,$01,$81,$01,$65,$E7,$EF,$E0
AC0D	DEFB $E0,$C8,$82,$86,$84,$C4,$E1,$F0
AC15	DEFB $0F,$9E,$BC,$30,$61,$C3,$83,$10
AC1D	DEFB $7D,$38,$38,$30,$10,$11,$10,$50
AC25	DEFB $F1,$F9,$38,$1C,$06,$03,$10,$41

AC2D: Data block at AC2D


AC2D	DEFB $00,$00,$00,$00,$00,$00,$00,$00
AC35	DEFB $00,$00,$00,$00,$00,$00,$00,$00
AC3D	DEFB $00,$00,$00,$00,$00,$00,$00

AC44: Reset Guard data and Dog data

Used by the routine at B5C7.
AC44	LD HL,$AC72	address for Table of Guard data addresses
AC47	LD B,$18	24
AC49	LD E,(HL)
AC4A	INC HL
AC4B	LD D,(HL)	now DE = Guard data address
AC4C	INC HL
AC4D	PUSH HL
AC4E	LD HL,$0004
AC51	ADD HL,DE
AC52	LD (HL),$0A	set initial Guard energy = 10
AC54	POP HL
AC55	DJNZ $AC49
AC57	LD HL,$ACA2	address for Table of Dog data addresses
AC5A	LD B,$14	20
AC5C	LD E,(HL)
AC5D	INC HL
AC5E	LD D,(HL)
AC5F	INC HL
AC60	PUSH HL
AC61	LD HL,$0004
AC64	ADD HL,DE
AC65	LD A,$41
AC67	CP (HL)
AC68	JR NC,$AC6E
AC6A	LD A,(HL)
AC6B	SUB $42
AC6D	LD (HL),A
AC6E	POP HL
AC6F	DJNZ $AC5C
AC71	RET

AC72: Table of Guard data addresses, 24 records


AC72	DEFW $A26B,$A265,$A25F,$A259
AC7A	DEFW $A253,$A217,$A24D,$A247
AC82	DEFW $A241,$A23B,$A235,$A22F
AC8A	DEFW $A229,$A223,$A21D,$A211
AC92	DEFW $A20B,$A205,$A1FF,$A1F9
AC9A	DEFW $A1F3,$A1ED,$A1E7,$A1E1

ACA2: Table of Dog data addresses, 20 records


ACA2	DEFW $A31B,$A311,$A307,$A2FD
ACAA	DEFW $A2F3,$A2DF,$A2D5,$A2CB
ACB2	DEFW $A2C1,$A2B7,$A2A3,$A285
ACBA	DEFW $A325,$A2AD,$A28F,$A27B
ACC2	DEFW $A271,$A2E9,$A299,$71D6

ACCA: Draw game screen frames and indicator text

Used by the routine at B5C7.
ACCA	EXX
ACCB	LD DE,$5800
ACCE	EXX
ACCF	LD HL,$4000	Screen start address
ACD2	LD DE,$AD65	Game screen frames/indicators RLE encoded sequence
ACD5	LD A,(DE)
ACD6	PUSH DE
ACD7	LD C,$01
ACD9	CP $FF
ACDB	JR Z,$AD1D
ACDD	CP $17
ACDF	JR C,$ACE8
ACE1	SUB $14
ACE3	LD C,A
ACE4	POP DE
ACE5	INC DE
ACE6	LD A,(DE)
ACE7	PUSH DE
ACE8	PUSH HL
ACE9	LD H,$00
ACEB	LD L,A
ACEC	PUSH HL
ACED	POP DE
ACEE	ADD HL,HL
ACEF	ADD HL,HL
ACF0	ADD HL,HL	* 8
ACF1	ADD HL,DE	* 9
ACF2	LD DE,$AE02	Indicator tiles address
ACF5	ADD HL,DE
ACF6	POP DE
ACF7	LD B,$08
ACF9	PUSH HL
ACFA	PUSH DE
ACFB	LD A,(HL)
ACFC	LD (DE),A
ACFD	INC HL
ACFE	INC D
ACFF	DJNZ $ACFB
AD01	LD A,(HL)
AD02	EXX
AD03	LD (DE),A
AD04	INC DE
AD05	EXX
AD06	POP DE
AD07	POP HL
AD08	RR D
AD0A	RR D
AD0C	RR D
AD0E	INC DE
AD0F	RL D
AD11	RL D
AD13	RL D
AD15	DEC C
AD16	JR NZ,$ACF7
AD18	EX DE,HL
AD19	POP DE
AD1A	INC DE
AD1B	JR $ACD5
AD1D	POP DE
AD1E	LD DE,$5067
AD21	LD HL,$AD4A	Indicator messages address
AD24	LD C,$0D
AD26	CALL $AED1	Print string "PAY : $ XXXXX"
AD29	LD DE,$5097
AD2C	LD C,$02
AD2E	CALL $AED1	Print string "99"
AD31	LD DE,$50C1
AD34	LD C,$04
AD36	CALL $AED1	Print string "HELD"
AD39	LD DE,$50D6
AD3C	LD C,$04
AD3E	CALL $AED1	Print string "TIME"
AD41	LD DE,$50DB
AD44	LD C,$04
AD46	CALL $AED1	Print string "NEAR"
AD49	RET

AD4A: Indicator messages


AD4A	DEFM "PAY : $ "
AD52	DEFM "00000"	Pay value text
AD57	DEFM "99"	Indicator time value
AD59	DEFM "HELDTIMENEAR"

AD65: Game screen frames/indicators RLE encoded sequence


AD65	DEFB $00,$32,$01,$02,$03,$32,$0B,$04
AD6D	DEFB $03,$32,$0B,$04,$03,$32,$0B,$04
AD75	DEFB $03,$32,$0B,$04,$03,$32,$0B,$04
AD7D	DEFB $03,$32,$0B,$04,$03,$32,$0B,$04
AD85	DEFB $03,$32,$0B,$04,$03,$32,$0B,$04
AD8D	DEFB $03,$32,$0B,$04,$03,$32,$0B,$04
AD95	DEFB $03,$32,$0B,$04,$03,$32,$0B,$04
AD9D	DEFB $03,$32,$0B,$04,$03,$32,$0B,$04
ADA5	DEFB $03,$32,$0B,$04,$03,$32,$0B,$04
ADAD	DEFB $05,$18,$06,$07,$23,$06,$07,$18
ADB5	DEFB $06,$07,$18,$06,$08,$03,$18,$0B
ADBD	DEFB $03,$23,$0B,$03,$0E,$0F,$0F,$10
ADC5	DEFB $03,$18,$0B,$04,$03,$18,$0B,$05
ADCD	DEFB $23,$06,$08,$11,$0B,$0B,$12,$03
ADD5	DEFB $18,$0B,$04,$03,$18,$0B,$03,$23
ADDD	DEFB $16,$03,$13,$14,$14,$15,$03,$18
ADE5	DEFB $0B,$04,$03,$18,$09,$03,$23,$16
ADED	DEFB $03,$18,$09,$03,$18,$09,$04,$0A
ADF5	DEFB $18,$06,$0C,$23,$06,$0C,$18,$06
ADFD	DEFB $0C,$18,$06,$0D,$FF

AE02: Tiles for game screen frames/indicators, 9 bytes each


AE02	DEFB $30,$08,$04,$05,$02,$8D,$70,$1C,$02
AE0B	DEFB $22,$22,$14,$E7,$3C,$24,$44,$00,$02
AE14	DEFB $00,$10,$21,$22,$A4,$64,$A8,$30,$02
AE1D	DEFB $10,$50,$3C,$08,$08,$6A,$9C,$08,$02
AE26	DEFB $10,$48,$39,$0E,$08,$78,$17,$10,$02
AE2F	DEFB $0A,$9C,$68,$04,$03,$4C,$38,$14,$02
AE38	DEFB $00,$11,$22,$62,$BF,$44,$44,$42,$02
AE41	DEFB $00,$24,$22,$22,$A7,$66,$5A,$89,$02
AE4A	DEFB $10,$78,$27,$20,$C0,$2E,$70,$10,$02
AE53	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$06
AE5C	DEFB $08,$0E,$08,$36,$43,$02,$04,$18,$02
AE65	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$0F
AE6E	DEFB $50,$72,$54,$CE,$25,$28,$28,$08,$02
AE77	DEFB $10,$3C,$92,$61,$A0,$18,$04,$04,$02
AE80	DEFB $7F,$80,$80,$87,$88,$88,$88,$88,$0F
AE89	DEFB $FF,$00,$00,$FF,$00,$00,$00,$00,$0F
AE92	DEFB $FE,$01,$01,$E1,$11,$11,$11,$11,$0F
AE9B	DEFB $88,$88,$88,$88,$88,$88,$88,$88,$0F
AEA4	DEFB $11,$11,$11,$11,$11,$11,$11,$11,$0F
AEAD	DEFB $88,$88,$88,$88,$87,$80,$80,$7F,$0F
AEB6	DEFB $00,$00,$00,$00,$FF,$00,$00,$FF,$0F
AEBF	DEFB $11,$11,$11,$11,$E1,$01,$01,$FE,$0F
AEC8	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$0A

AED1: Print string with standard font

Used by the routines at 6590, ACCA, AEF0, AF9C, B005, B040, B4DE, B77B, BEB3, BFD5, DEC1, DF60, E097 and E2A7.

Input
C	Length
HL	string address
DE	screen address

AED1

LD A,(HL)

AED2

PUSH HL

AED3

LD H,$00

AED5

LD L,A

AED6

ADD HL,HL

AED7

ADD HL,HL

AED8

ADD HL,HL

* 8

AED9

PUSH DE

AEDA

LD DE,$3C00

AEDD

ADD HL,DE

AEDE

POP DE

AEDF

PUSH DE

AEE0

LD B,$08

AEE2

LD A,(HL)

AEE3

LD (DE),A

AEE4

INC HL

AEE5

INC D

AEE6

DJNZ $AEE2

AEE8

POP DE

AEE9

POP HL

AEEA

INC DE

AEEB

INC HL

AEEC

DEC C

AEED

JR NZ,$AED1

AEEF

RET

AEF0: Routine at AEF0

Used by the routine at BC0D.
AEF0	LD HL,$5800	attributes screen address
AEF3	LD C,$10
AEF5	LD B,$0C
AEF7	LD (HL),$08
AEF9	INC HL
AEFA	DJNZ $AEF7
AEFC	LD B,$14
AEFE	LD (HL),$0E
AF00	INC HL
AF01	DJNZ $AEFE
AF03	DEC C
AF04	JR NZ,$AEF5
AF06	LD B,$00
AF08	LD (HL),$20
AF0A	INC HL
AF0B	DJNZ $AF08
AF0D	LD HL,$B066
AF10	LD B,$01
AF12	PUSH HL
AF13	LD DE,$AD52	Pay value text address
AF16	LD C,$01
AF18	LD A,(DE)
AF19	SUB (HL)
AF1A	JR Z,$AF22
AF1C	JP P,$AF38
AF1F	JP $AF2A
AF22	INC C
AF23	INC HL
AF24	INC DE
AF25	LD A,C
AF26	CP $04
AF28	JR NZ,$AF18
AF2A	INC B
AF2B	POP HL
AF2C	LD DE,$000D
AF2F	ADD HL,DE
AF30	LD A,B
AF31	CP $0B
AF33	JR NZ,$AF12
AF35	JP $B005	=> Print table of records
AF38	PUSH BC
AF39	LD DE,$402C
AF3C	LD HL,$B0F2
AF3F	LD C,$0F
AF41	CALL $AED1	Print string "EXCELLENT WORK."
AF44	LD DE,$408C
AF47	LD C,$0E
AF49	CALL $AED1	Print string "YOU ARE ONE OF"
AF4C	LD DE,$40AC
AF4F	LD C,$0D
AF51	CALL $AED1	Print string " OUR TEN BEST"
AF54	LD DE,$40CC
AF57	LD C,$10
AF59	CALL $AED1	Print string "NINJA SABOTEURS."
AF5C	LD DE,$480C
AF5F	LD C,$11
AF61	CALL $AED1	Print string "ENTER YOUR NAME..."
AF64	POP BC
AF65	LD C,$0A
AF67	PUSH BC
AF68	LD DE,$484D	screen address
AF6B	LD HL,$B0E8	address of string 10 spaces
AF6E	CALL $AED1	Print string
AF71	LD B,$01
AF73	EXX
AF74	LD DE,$594D
AF77	EXX
AF78	LD DE,$484D
AF7B	LD HL,$B0E8	address of string 10 spaces
This entry point is used by the routine at AF9C.
AF7E	PUSH BC
AF7F	EXX
AF80	LD A,$E3
AF82	LD (DE),A
AF83	EXX
This entry point is used by the routine at AF9C.
AF84	XOR A
AF85	LD ($5C08),A	clear LASTK
AF88	RST $38
AF89	LD A,($5C08)	get LASTK
AF8C	CP $5B
AF8E	JP M,$AF93
AF91	SUB $20
AF93	CP $20
AF95	JR Z,$AFAA
AF97	CP $0C
AF99	JP $F968

AF9C: Routine at AF9C

Used by the routine at F913.
AF9C	CP $0D
AF9E	JR Z,$AFCD
AFA0	CP $41
AFA2	JP M,$AF84
AFA5	CP $5C
AFA7	JP P,$AF84
This entry point is used by the routine at AEF0.
AFAA	LD (HL),A
AFAB	LD C,$01
AFAD	CALL $AED1	Print string
AFB0	EXX
AFB1	LD A,$0E
AFB3	LD (DE),A
AFB4	INC DE
AFB5	EXX
AFB6	POP BC
AFB7	INC B
AFB8	LD A,B
AFB9	CP $0B
AFBB	JR Z,$AFD3
AFBD	PUSH BC
This entry point is used by the routine at B040.
AFBE	PUSH DE
AFBF	PUSH HL
AFC0	CALL $028E	KEY-SCAN
AFC3	INC DE
AFC4	LD A,D
AFC5	OR E
AFC6	JR NZ,$AFC0
AFC8	POP HL
AFC9	POP DE
AFCA	POP BC
AFCB	JR $AF7E
AFCD	POP BC
AFCE	EXX
AFCF	LD A,$0E
AFD1	LD (DE),A
AFD2	EXX
AFD3	POP BC
AFD4	LD A,$0A
AFD6	SUB B
AFD7	JR Z,$AFEC
AFD9	LD B,A
AFDA	LD HL,$B0E7
AFDD	LD DE,$B0DA
AFE0	LD C,$0D
AFE2	LD A,(DE)
AFE3	LD (HL),A
AFE4	DEC HL
AFE5	DEC DE
AFE6	DEC C
AFE7	JR NZ,$AFE2
AFE9	DEC B
AFEA	JR NZ,$AFE0
AFEC	POP HL
AFED	LD DE,$AD52	Pay value text address
AFF0	LD C,$03
AFF2	LD A,(DE)
AFF3	LD (HL),A
AFF4	INC HL
AFF5	INC DE
AFF6	DEC C
AFF7	JR NZ,$AFF2
AFF9	LD DE,$B0E8	address of string 10 spaces
AFFC	LD C,$0A
AFFE	LD A,(DE)
AFFF	LD (HL),A
B000	INC HL
B001	INC DE
B002	DEC C
B003	JR NZ,$AFFE

B005: Print table of records

Used by the routine at AEF0.
B005	LD B,$0A
B007	LD HL,$B066
B00A	LD DE,$402C
B00D	PUSH BC
B00E	PUSH HL
B00F	LD HL,$B065
B012	LD C,$01
B014	CALL $AED1	Print string
B017	POP HL
B018	LD C,$03
B01A	CALL $AED1	Print string
B01D	PUSH HL
B01E	LD HL,$B061
B021	LD C,$04
B023	CALL $AED1	Print string
B026	POP HL
B027	LD C,$0A
B029	CALL $AED1	Print string
B02C	EX DE,HL
B02D	PUSH DE
B02E	LD DE,$000E	+14
B031	ADD HL,DE
B032	POP DE
B033	EX DE,HL
B034	POP BC
B035	LD A,B
B036	CP $04
B038	JR NZ,$B03D
B03A	LD DE,$480C
B03D	DJNZ $B00D
B03F	RET

B040: Routine at B040

Used by the routine at F913.
B040	POP BC
B041	LD A,B
B042	CP $01
B044	JR Z,$B05D
B046	DEC B
B047	PUSH BC
B048	LD A,$20
B04A	LD (HL),A
B04B	LD C,$01
B04D	CALL $AED1	Print string
B050	DEC HL
B051	DEC HL
B052	DEC DE
B053	DEC DE
B054	EXX
B055	LD A,$0E
B057	LD (DE),A
B058	DEC DE
B059	EXX
B05A	JP $AFBE
B05D	PUSH BC
B05E	JP $AFBE

B061: Message at B061


B061	DEFM "00 $"

B066: Table of records


B066	DEFM "020 THE CAT "
B073	DEFM "018JOOLZ "
B080	DEFM "016MICKY "
B08D	DEFM "014DAVE "
B09A	DEFM "012GEOFF P "
B0A7	DEFM "010SHARFACE "
B0B4	DEFM "008HOLLY "
B0C1	DEFM "006BRAD "
B0CE	DEFM "004TOZZY "
B0DB	DEFM "002MAT LE FAT"

B0E8: String 10 spaces


B0E8	DEFM " "

B0F2: Message at B0F2


B0F2	DEFM "EXCELLENT WORK."
B101	DEFM "YOU ARE ONE OF"
B10F	DEFM " OUR TEN BEST"
B11C	DEFM "NINJA SABOTEURS."
B12C	DEFM "ENTER YOUR NAME..."

B13E: Tile buffer


B13E	DEFB $FE,$82,$A2,$00,$FE,$FF,$FF,$7E	Pixel bytes
B146	DEFB $32	Attribute byte
B147	DEFB $30	Background attribute byte

B148: Draw tile map on the screen

Used by the routines at B724 and B937.
B148	LD HL,$5821	Screen attributes address
B14B	LD B,$11	17 rows
B14D	LD ($7233),HL
B150	LD HL,$6F86	Tile screen 5 start address
B153	LD ($7235),HL
B156	LD HL,$6D88	Tile screen 4 start address
B159	LD ($7237),HL
B15C	LD HL,$678E	Tile screen 1 start address
B15F	LD DE,$4021	screen address where game screen starts
B162	EXX
B163	LD HL,$6590	Tile screen 0 start address
B166	LD DE,$698C	Tile screen 2 start address
B169	LD BC,$6B8A	Tile screen 3 start address
B16C	EXX
Loop start
B16D	LD C,$1E	30 column
B16F	XOR A
B170	CP (HL)	Check "need update" flag in Tile screen 1
B171	JP Z,$B2A9	zero => Skip this tile rendering
B174	PUSH HL
B175	PUSH BC
B176	PUSH DE
Process Tile screen 0 - background tile
B177	EXX
B178	LD A,(HL)	get byte from Tile screen 0 tile
B179	EXX
B17A	LD HL,$B1A3	for non-$FF, don't skip Ninja tile processing
B17D	CP $FF	$FF - "earth" background?
B17F	JR NZ,$B184	byte <> $FF =>
B181	LD HL,$B1F9	for $FF, skip Ninja tile processing
B184	LD ($B1A1),HL	save the chosen jump address ($B1A3 or $B1F9)
B187	LD H,$00
B189	LD L,A
B18A	PUSH HL
B18B	ADD HL,HL
B18C	ADD HL,HL
B18D	ADD HL,HL
B18E	POP DE
B18F	ADD HL,DE	* 9
B190	LD DE,$F700	Background tiles start address
B193	ADD HL,DE	now HL = tile data address
B194	LD DE,$B13E	Tile buffer address
B197	LD B,$09	8 pixel bytes + attribute byte
B199	LD A,(HL)	get byte from tile data
B19A	LD (DE),A	store the byte to tile buffer
B19B	INC HL	move to next byte in tile data
B19C	INC DE	move to next byte in tile buffer
B19D	DJNZ $B199	loop for 9 bytes
B19F	LD (DE),A	save attribute byte once more
B1A0	JP $B1A3	!!MUT-ARG!! $B1A3 or $B1F9
Process Tile screen 2 tile - Ninja
B1A3	EXX
B1A4	LD A,(DE)	get tile from Tile Screen 2 tile
B1A5	EXX
B1A6	CP $FF	$FF - transparent?
B1A8	JR Z,$B1F9	$FF => skip Ninja tile drawing
B1AA	LD L,A
B1AB	CP $C8
B1AD	JR C,$B1D5
B1AF	CP $F4
B1B1	JR NC,$B1D5
B1B3	LD H,$02
B1B5	CP $DA
B1B7	JR NC,$B1CC
B1B9	LD H,$05
B1BB	CP $D8
B1BD	JR NC,$B1CC
B1BF	LD H,$07
B1C1	LD A,($B146)	get attribute byte from the tile buffer
B1C4	AND $38
B1C6	CP $20
B1C8	JR C,$B1CC
B1CA	LD H,$01
B1CC	LD A,($B146)	get attribute byte from the tile buffer
B1CF	AND $F8
B1D1	OR H
B1D2	LD ($B146),A	set attribute byte
B1D5	LD H,$00
B1D7	ADD HL,HL
B1D8	ADD HL,HL
B1D9	ADD HL,HL
B1DA	ADD HL,HL	* 16
B1DB	LD DE,$E700	Ninja tiles base address
B1DE	ADD HL,DE	now HL = tile data address
B1DF	LD B,$08	8 bytes
B1E1	LD DE,$B13E	Tile buffer address
B1E4	INC HL
B1E5	LD A,(DE)	get byte from tile buffer
B1E6	LD C,A
B1E7	LD A,(HL)	get byte from tile data (mask)
B1E8	CALL $B2E8	Mirror byte if needed
B1EB	AND C	AND with byte from the buffer - apply the mask
B1EC	LD C,A
B1ED	DEC HL
B1EE	LD A,(HL)	get byte from tile data (pixels)
B1EF	CALL $B2E8	Mirror byte if needed
B1F2	OR C	OR with the byte from buffer - apply pixels
B1F3	INC HL
B1F4	INC HL
B1F5	LD (DE),A
B1F6	INC DE
B1F7	DJNZ $B1E4	loop for all 8 bytes
B1F9	JP $B1FC
Process Tile screen 3 tile - Dog
B1FC	EXX
B1FD	PUSH BC
B1FE	EXX
B1FF	POP BC
B200	LD A,(BC)	get tile from Tile screen 3
B201	CP $FF	$FF - transparent?
B203	JR Z,$B230	$FF => skip Dog tile drawing
B205	CALL $B2FE	Exchange $7239 (Ninja direction) and $71CD (Dog direction)
B208	LD H,$00
B20A	LD L,A
B20B	ADD HL,HL
B20C	ADD HL,HL
B20D	ADD HL,HL
B20E	ADD HL,HL	* 16
B20F	LD DE,$F0F0	Dog tiles base address
B212	ADD HL,DE	now HL = tile data address
B213	LD B,$08
B215	LD DE,$B13E	Tile buffer address
B218	INC HL
B219	LD A,(DE)	get byte from tile buffer
B21A	LD C,A
B21B	LD A,(HL)
B21C	CALL $B2E8	Mirror byte if needed
B21F	AND C
B220	LD C,A
B221	DEC HL
B222	LD A,(HL)
B223	CALL $B2E8	Mirror byte if needed
B226	OR C
B227	INC HL
B228	INC HL
B229	LD (DE),A
B22A	INC DE
B22B	DJNZ $B218
B22D	CALL $B2FE	Exchange $7239 (Ninja direction) and $71CD (Dog direction)
Process Tile screen 4 tile - Guard
B230	LD HL,($7237)	get address in Tile screen 4
B233	LD A,(HL)	get tile from the tilemap
B234	CP $FF	$FF - transparent?
B236	JR Z,$B263	$FF => skip Guard tile drawing
B238	LD H,$00
B23A	LD L,A
B23B	ADD HL,HL
B23C	ADD HL,HL
B23D	ADD HL,HL
B23E	ADD HL,HL	* 16
B23F	LD DE,$E700	tiles base address
B242	ADD HL,DE	now HL = tile data address
B243	LD B,$08
B245	LD DE,$B13E	Tile buffer address
B248	CALL $B30F	Exchange $7239 (Ninja direction) and $7347 (Guard direction)
B24B	INC HL
B24C	LD A,(DE)	get byte from tile buffer
B24D	LD C,A
B24E	LD A,(HL)	get byte from tile data (mask)
B24F	CALL $B2E8	Mirror byte if needed
B252	AND C	AND with byte from buffer - masking
B253	LD C,A
B254	DEC HL
B255	LD A,(HL)	get byte from tile data (pixels)
B256	CALL $B2E8	Mirror byte if needed
B259	OR C	OR with byte from buffer
B25A	INC HL
B25B	INC HL
B25C	LD (DE),A	save result byte to tile buffer
B25D	INC DE
B25E	DJNZ $B24B	loop for all 8 bytes
B260	CALL $B30F	Exchange $7239 (Ninja direction) and $7347 (Guard direction)
Process Tile screen 5 tile - front
B263	LD HL,($7235)	get address in Tile screen 5
B266	LD A,(HL)	get tile from the tilemap
B267	CP $FF	$FF - transparent?
B269	JR Z,$B293	$FF => skip front tile drawing
B26B	LD H,$00
B26D	LD L,A
B26E	LD A,($B147)	get Background tile attribute
B271	LD ($B146),A	set it as current tile attribute
B274	PUSH HL
B275	ADD HL,HL
B276	ADD HL,HL
B277	ADD HL,HL
B278	ADD HL,HL	* 16
B279	POP DE
B27A	ADD HL,DE	* 17
B27B	LD DE,$D600	Front tiles base address
B27E	ADD HL,DE	now HL = address of tile data
B27F	LD B,$08
B281	LD DE,$B13E	Tile buffer address
B284	LD A,(DE)	get byte from buffer
B285	AND (HL)	AND with mask byte
B286	INC HL	move to next byte in tile data
B287	OR (HL)	OR with pixel byte
B288	LD (DE),A	store result back to tile buffer
B289	INC HL	move to next byte in tile data
B28A	INC DE	move to next buffer byte
B28B	DJNZ $B284	loop for all 8 bytes
B28D	LD A,(HL)	get attribute byte from the tile data
B28E	CP $FF	$FF?
B290	JR Z,$B293	$FF => skip
B292	LD (DE),A	set as current attribute
Draw prepared tile on the screen
B293	NOP
B294	POP DE
B295	PUSH DE
B296	LD HL,$B13E	Tile buffer address
B299	LD B,$08	8 bytes
B29B	LD A,(HL)	get byte from the buffer
B29C	LD (DE),A	put byte on the screen
B29D	INC HL
B29E	INC D
B29F	DJNZ $B29B	loop for all 8 bytes
B2A1	LD A,(HL)	get attribute byte from the buffer
B2A2	LD HL,($7233)	get address in screen attributes
B2A5	LD (HL),A	put the attribute
Next column
B2A6	POP DE
B2A7	POP BC
B2A8	POP HL
B2A9	INC DE	Next address in screen
B2AA	INC HL	Next address in Tile screen 1
B2AB	EXX
B2AC	INC DE
B2AD	INC HL	Next address in Tile screen 0
B2AE	INC BC
B2AF	EXX
B2B0	PUSH HL
B2B1	LD HL,($7233)
B2B4	INC HL	Next address in screen attributes
B2B5	LD ($7233),HL
B2B8	LD HL,($7235)
B2BB	INC HL	Next address in Tile screen 5
B2BC	LD ($7235),HL
B2BF	LD HL,($7237)
B2C2	INC HL	Next address in Tile screen 4
B2C3	LD ($7237),HL
B2C6	POP HL
B2C7	DEC C	Decrease column counter
B2C8	JP NZ,$B16F	Continue loop by columns
Next tile row
B2CB	RR D
B2CD	RR D
B2CF	RR D
B2D1	INC DE
B2D2	INC DE
B2D3	RL D
B2D5	RL D
B2D7	RL D
B2D9	PUSH HL
B2DA	LD HL,($7233)	get screen attributes address
B2DD	INC HL
B2DE	INC HL	increase address by 2 - next row
B2DF	LD ($7233),HL	set screen attributes address
B2E2	POP HL
B2E3	DEC B	Decrease line counter
B2E4	JP NZ,$B16D	Continue loop by lines
B2E7	RET

B2E8: Mirror byte if needed

Used by the routine at B148.
B2E8	PUSH BC
B2E9	LD B,A
B2EA	LD A,($7239)	get Ninja direction
B2ED	CP $00	left?
B2EF	LD A,B
B2F0	POP BC
B2F1	RET NZ	right - no need to mirror => return
B2F2	LD IX,$72BA	Mirror table half address
B2F6	LD ($B2FB),A
B2F9	LD A,(IX+$7E)
B2FC	RET

B2FD: Data block at B2FD


B2FD	DEFB $C3	Counter for Ninja/Guard head tile change

B2FE: Exchange $7239 (Ninja direction) and $71CD (dog direction)

Used by the routine at B148.
B2FE	PUSH AF
B2FF	LD A,($7239)	get Ninja direction
B302	PUSH AF
B303	LD A,($71CD)	get Dog direction
B306	LD ($7239),A
B309	POP AF
B30A	LD ($71CD),A
B30D	POP AF
B30E	RET

B30F: Exchange $7239 (Ninja direction) and $7347 (Guard direction)

Used by the routine at B148.
B30F	PUSH AF
B310	LD A,($7239)	get Ninja direction
B313	PUSH AF
B314	LD A,($7347)	get Guard direction
B317	LD ($7239),A
B31A	POP AF
B31B	LD ($7347),A
B31E	POP AF
B31F	RET

B320: Object procedure: flip trigger "D": set/remove wall in room 9739


B320	LD A,($9756)
B323	XOR $06
B325	LD ($9756),A
B328	JR $B350	=> Change Console color in NEAR

B32A: Object procedure: flip trigger "E": set/remove wall in room 97A6


B32A	LD A,($97D0)
B32D	XOR $FF
B32F	LD ($97D0),A
B332	JR $B350	=> Change Console color in NEAR

B334: Object procedure: flip trigger "C": set/remove wall in room 8D5C


B334	LD A,($8DBC)
B337	XOR $06
B339	LD ($8DBC),A
B33C	JR $B350	=> Change Console color in NEAR

B33E: Object procedure: flip trigger "B": set/remove wall in room 8F20


B33E	LD A,($8F32)
B341	XOR $08
B343	LD ($8F32),A
B346	JR $B350	=> Change Console color in NEAR

B348: Object procedure: flip trigger "A": set/remove wall in room 7F48


B348	LD A,($7F7B)
B34B	XOR $09
B34D	LD ($7F7B),A
Change Console color in NEAR, so we see that console action worked
B350	LD HL,$5A7B	address in screen attributes
B353	LD DE,$001C	28
B356	LD C,$03	3 rows
B358	LD B,$04	4 columns
B35A	LD A,(HL)
B35B	XOR $06
B35D	LD (HL),A
B35E	INC HL
B35F	DJNZ $B35A
B361	ADD HL,DE	next row
B362	DEC C
B363	JR NZ,$B358
B365	JP $B8D0	=> Update Ninja on tilemap

B368: Room 97A6 initialization


B368	LD A,($97D0)	get trigger "E" value
B36B	LD ($66F5),A
B36E	JP $A18D	=> Finish Room 97A6 initialization

B371: Play melody ??; HL = melody address

Used by the routine at BC55.
B371	DI
B372	LD C,$C8
B374	LD A,(HL)
B375	AND $07
B377	LD B,A
B378	INC HL
B379	LD A,$10
B37B	OUT ($FE),A
B37D	PUSH BC
B37E	LD A,(HL)
B37F	AND $3F
B381	LD B,A
B382	DJNZ $B382
B384	POP BC
B385	XOR A
B386	OUT ($FE),A
B388	DJNZ $B379
B38A	INC HL
B38B	DEC C
B38C	JR NZ,$B374
B38E	RET

B38F: Room token #00: Barrel, 3x3 tiles 7C21; params: 2 bytes (address)


B38F	POP HL
B390	INC HL
B391	LD A,(HL)
B392	INC HL
B393	PUSH HL
B394	LD H,(HL)
B395	LD L,A
B396	LD DE,$7C21	Tile block address
B399	LD C,$03
B39B	LD B,$03
B39D	LD A,(DE)
B39E	LD (HL),A
B39F	INC DE
B3A0	INC HL
B3A1	DJNZ $B39D
B3A3	PUSH DE
B3A4	LD DE,$001B
B3A7	ADD HL,DE
B3A8	POP DE
B3A9	DEC C
B3AA	JR NZ,$B39B
B3AC	JP $734A	=> B702 Proceed to the next room token

B3AF: Unused


B3AF	DEFS $01

B3B0: Routine at B3B0

Used by the routine at F913.
B3B0	LD HL,$C681
B3B3	LD ($982D),HL
B3B6	LD HL,$B674	current dog data address
B3B9	LD ($9DD1),HL
B3BC	LD HL,$C6A5
B3BF	LD ($7C9C),HL
B3C2	LD HL,$C671
B3C5	LD ($947E),HL
B3C8	LD ($93E1),HL
B3CB	LD HL,$B422
B3CE	LD ($7BD4),HL
B3D1	LD HL,$C64C
B3D4	LD ($7920),HL
B3D7	LD HL,$B702
B3DA	LD ($734B),HL
B3DD	LD B,$00
B3DF	LD D,$80
B3E1	LD HL,$723A	Mirror table address
B3E4	LD C,$08
B3E6	LD A,D
B3E7	RR A
B3E9	RL E
B3EB	DEC C
B3EC	JR NZ,$B3E7
B3EE	LD (HL),E	store reversed byte
B3EF	INC HL
B3F0	INC D
B3F1	DJNZ $B3E4
B3F3	EXX
B3F4	PUSH HL
B3F5	EXX
B3F6	LD A,$01
B3F8	LD ($5C09),A	set REPDEL = 1
B3FB	LD ($5C0A),A	set REPPER = 1
B3FE	JP $B5C7

B401: Unused


B401	DEFS $09

B40A: Initialize a guard

Used by the routines at A0DF, A1AF, B425 and B437.

Input
HL	Guard data address, see A1E1

B40A

LD DE,$71C3

address to store guard data

B40D

LD ($B696),HL

Save Guard data address

B410

LD BC,$0004

B413

LDIR

B415

LD A,(HL)

B416

LD ($7346),A

set Guard state

B419

INC HL

B41A

LD A,(HL)

get Guard direction from Guard data

B41B

LD ($7347),A

set Guard direction

B41E

RET

B41F: Standard room procedure (for 63 rooms)


B41F	JP $B937

B422: Standard room initialization (for 60 rooms)

Used by the routines at A0DF, A1AF, A353 and F973.
B422	JP $B724	=> Finish room initialization

B425: Rooms 7C9C/92EF initialization (redirect from 791B)

Used by the routine at 791B.
B425	LD HL,$C66B	Guard data address
B428	CALL $B40A	Initialize a guard
B42B	JP $B724	=> Finish room initialization

B42E: Room 79C6 initialization


B42E	LD HL,$71D6	Dog data address
B431	CALL $9DCD	Initialize a dog
B434	JP $B724	=> Finish room initialization

B437: UNUSED: Room XXXX initialization


B437	LD HL,$71D6
B43A	CALL $9DCD	Initialize a dog
B43D	LD HL,$C66B
B440	CALL $B40A	Initialize a guard
B443	JP $B724	=> Finish room initialization

B446: Room B513 procedure (initial Room)


B446	CALL $B4FA	Processing in the initial room
B449	JP $B937	Standard room procedure

B44C: Room procedure (for 19 rooms with a guard) (redirect from 7918)

Used by the routine at 7918.
B44C	CALL $A434	Process a guard
B44F	JP $B937	Standard room procedure

B452: Room procedure (for 18 rooms with a dog)


B452	CALL $9C44	Process a dog
B455	JP $B937	Standard room procedure

B458: Room procedure (for 5 rooms with a guard and a dog)


B458	CALL $9C44	Process a dog
B45B	CALL $A434	Process a guard
B45E	JP $B937	Standard room procedure

B461: Turret initialization

Used by the routine at A142.

Input
HL	turret data address

B461

LD E,(HL)

get Turret offset low byte

B462

INC HL

B463

LD D,(HL)

get Turret offset high byte

B464

PUSH HL

save offset

B465

LD HL,$678E

Tile screen 1 start address

B468

ADD HL,DE

B469

LD ($B4CC),HL

set Turret address on Tile Screen 1

B46C

LD DE,$07F8

B46F

ADD HL,DE

B470

LD ($B48E),HL

set Turret address on Tile Screen 5

B473

POP HL

restore offset

B474

INC HL

B475

LD A,(HL)

B476

LD ($B4D4),A

B479

RET

B47A: Room procedure (for 2 rooms with a turret and a dog)


B47A	CALL $9C44	Process a dog
B47D	CALL $B489	Process turret
B480	JP $B937	Standard room procedure

B483: Room procedure (for 14 rooms with a turret)


B483	CALL $B489	Process turret
B486	JP $B937	Standard room procedure

B489: Process turret

Used by the routines at B47A and B483.
B489	LD A,($B4DD)	get Turret counter
B48C	DEC A	decrease counter
B48D	LD HL,$6FB5	!!MUT-ARG!! Turret address on Tile Screen 5
B490	JR NZ,$B4C6
B492	LD A,(HL)
B493	PUSH HL
B494	LD DE,$907A
B497	ADD HL,DE
B498	SUB $26
B49A	LD IX,$A3AD
B49E	LD (IX+$03),A
B4A1	LD (IX+$04),A
B4A4	LD ($A3AE),HL
B4A7	LD (IX+$00),$DA
B4AB	LD DE,$FFE2	-30
B4AE	LD B,$00
B4B0	XOR A
B4B1	CP H
B4B2	JR Z,$B4B8
B4B4	ADD HL,DE
B4B5	INC B
B4B6	JR $B4B0
B4B8	LD A,$1E
B4BA	CP L
B4BB	JR C,$B4B4
B4BD	LD (IX+$06),L
B4C0	LD (IX+$05),B
B4C3	LD A,$32	!!MUT-ARG!! ??
B4C5	POP HL
B4C6	LD ($B4DD),A	update Turret counter
B4C9	LD A,$01
B4CB	LD ($67BD),A	!!MUT-ARG!! set "need update" mark for Turret on Tile Screen 1
B4CE	LD (HL),$2D
B4D0	LD A,($9C41)	get Ninja X
B4D3	LD B,$0F	!!MUT-ARG!! Turret counter value
B4D5	CP B
B4D6	RET Z
B4D7	DEC (HL)
B4D8	CP B
B4D9	RET M
B4DA	INC (HL)
B4DB	INC (HL)
B4DC	RET

B4DD: Data block at B4DD


B4DD	DEFB $32	Turret counter 50..0

B4DE: Increase PAY value by B * 100

Used by the routines at B77B, B937, BC55, BDB2, BFD5 and C4A7.
B4DE	LD HL,$AD54	PAY value 3rd digit address
B4E1	LD A,$3A	':' = '9' + 1
B4E3	INC (HL)
B4E4	CP (HL)
B4E5	JP NZ,$B4ED
B4E8	LD (HL),$30	'0'
B4EA	DEC HL	previous digit
B4EB	JR $B4E3
B4ED	DJNZ $B4DE
B4EF	LD HL,$AD52	Pay value text address
B4F2	LD C,$05	five digits
B4F4	LD DE,$506F	Screen address
B4F7	JP $AED1	=> Print string, and RET

B4FA: Processing in initial room - the boat moving

Used by the routine at B446.
B4FA	LD B,$06
B4FC	LD HL,$D6BB
B4FF	LD A,(HL)
B500	RR A
B502	RR (HL)
B504	INC HL
B505	DJNZ $B4FF
B507	LD HL,$68F6
B50A	LD B,$1E
B50C	LD A,$01
B50E	LD (HL),A
B50F	INC HL
B510	DJNZ $B50E
B512	RET

B513: Room B513: Initial Room



B513	DEFW $B446	Room procedure
B515	DEFW $B422	Initialization
B517	DEFW $0000
B519	DEFW $791E	Room to Right
B51B	DEFW $0000
B51D	DEFW $0000
B51F	DEFB $04,$0D	Fill entire screen with $0D
B521	DEFB $02,$1E,$F5,$70,$67	Fill horz 30 tiles with $F5 at $6770
B526	DEFB $02,$1E,$0B,$EE,$70	Fill horz 30 tiles with $0B at $70EE
B52B	DEFB $03,$0C,$1E,$03,$0C,$71	Rectangle 30x3 tiles with $0C at $710C
B531	DEFB $FF	End of sequence

B532: Movement handler for initial room (B8CE handler)


B532	LD HL,($9C42)
B535	INC HL	increase Ninja position in tilemap
B536	LD ($9C42),HL
B539	LD HL,$9C41	Ninja X address
B53C	INC (HL)
B53D	LD DE,$70E3
B540	LD HL,$B5A7	Boat sprite address
B543	LD BC,$0009
B546	LDIR	copy Boat sprite
B548	LD HL,$F807
B54B	ADD HL,DE
B54C	LD (HL),$01
B54E	LD DE,$FFF8
B551	ADD HL,DE
B552	LD (HL),$01
B554	LD HL,($B53E)
B557	INC HL
B558	LD ($B53E),HL
B55B	LD A,($B5A8)
B55E	XOR $01
B560	LD ($B5A8),A
B563	LD C,$FE
B565	LD B,$05
B567	LD A,$10
B569	OUT (C),A
B56B	DJNZ $B56B	delay
B56D	XOR A
B56E	OUT (C),A
B570	LD HL,$7343	counter address
B573	DEC (HL)	decrease counter
B574	JP NZ,$B8D0	=> Update Ninja on tilemap
B577	LD HL,$9C41	Ninja X address
B57A	INC (HL)	Moving right one tile
B57B	LD HL,($9C42)
B57E	INC HL	increase Ninja position in tilemap
B57F	LD ($9C42),HL
B582	LD HL,$70E3
B585	LD (HL),$FF
B587	LD DE,$D5AC	Sprite Ninja jumping 3
B58A	LD HL,$C4F6	Movement handler address
B58D	LD A,$04
B58F	LD ($7343),A	set counter = 4
B592	JP $BFB0	Set movement handler = HL, Ninja sprite = DE

B595: Data block at B595


B595	DEFB $00

B596: Routine at B596

Used by the routines at BDB2 and C4A7.
B596	LD B,$14
This entry point is used by the routine at B59E.
B598	JP $F9A1

B59B: Data block at B59B


B59B	DEFB $FE,$0E,$2D

B59E: Routine at B59E

Used by the routine at C5C6.
B59E	DEC C
B59F	JR NZ,$B59E
B5A1	XOR A
B5A2	OUT ($FE),A
B5A4	DJNZ $B598
B5A6	RET

B5A7: Boat sprite for initial room


B5A7	DEFB $FF
B5A8	DEFB $67,$68,$6A,$6A,$6A,$6A,$6A,$6B

B5B0: Table of items: addresses for NEAR/HELD items


B5B0	DEFW $A7AD	#0 Nothing
B5B2	DEFW $A819	#1 Shuriken
B5B4	DEFW $A885	#2 Knife
B5B6	DEFW $A8F1	#3 ??
B5B8	DEFW $A95D	#4 Brick
B5BA	DEFW $A9C9	#5 Pipe
B5BC	DEFW $AA35	#6 Granade
B5BE	DEFW $AAA1	#7 Disk
B5C0	DEFW $AB0D	#8 Bomb
B5C2	DEFW $AB79	#9 Console

B5C4: Data block at B5C4


B5C4	DEFB $15	Time fast counter 50..0
B5C5	DEFB $01	Ninja standing counter
B5C6	DEFB $00	Time mode: $00 = time ticking; $01 = Time stopped; $02 = BOMB ticking mode

B5C7: Routine at B5C7

Used by the routine at B3B0.
B5C7	CALL $AC44	Reset Guard data and Dog data
B5CA	LD ($BC0E),SP
B5CE	LD HL,$B7CB
B5D1	LD ($E345),HL
B5D4	LD HL,$BC3B
B5D7	LD ($DFD2),HL
B5DA	LD A,$C5	command = $C5 PUSH BC
B5DC	LD ($9DD9),A	set command = PUSH BC = enable Energy decrease
B5DF	LD HL,$BEAA
B5E2	LD ($9DED),HL
B5E5	LD HL,$B8D0	Object procedure address for "Update Ninja on tilemap"
B5E8	LD ($D285),HL	set Object procedure for object #6 in Table of objects D256
B5EB	LD ($B366),HL
B5EE	LD A,$30
B5F0	LD HL,$AD52	Pay value text address
B5F3	LD B,$03
B5F5	LD (HL),A
B5F6	INC HL
B5F7	DJNZ $B5F5
B5F9	CALL $ACCA	Draw game screen frames and indicator text
B5FC	XOR A
B5FD	LD ($5C48),A	set BORDCR = 0
B600	LD ($B5C6),A	set Time mode = time ticking
B603	LD ($B850),A	clear HELD tile
B606	LD ($D48E),A	set tile in Ninja sprite
B609	OUT ($FE),A	set border black, sound off
B60B	INC A
B60C	LD ($D48F),A	set head tile for Ninja/Guard standing sprite
B60F	LD ($7239),A	set Ninja direction = 1 = right
B612	LD ($B84F),A	set NEAR item = 1
B615	LD HL,$70D0
B618	LD ($B53E),HL
B61B	LD HL,$B5B0	address for Table of items
B61E	LD ($74D4),HL
B621	CALL $B851	Set initial data in Table of Objects
B624	LD HL,$0000
B627	LD ($B674),HL	set current Dog data address = no dog
B62A	LD ($B696),HL	set current Guard data address = no guard
B62D	LD A,$04
B62F	LD ($C66F),A
B632	LD ($D495),A
B635	LD A,$FA
B637	LD ($B2FD),A
B63A	LD A,$C8
B63C	LD ($BD7A),A
B63F	CALL $7472
B642	DI
B643	LD HL,$B513	Initial room address
B646	LD ($7184),HL	set Current Room address
B649	LD HL,$B532	movement handler for initial room
B64C	LD ($B8CE),HL	set movement handler address
B64F	LD HL,$D558	Sprite Ninja sitting
B652	LD ($7186),HL	set Ninja sprite address
B655	LD A,$01
B657	LD ($9C41),A	set Ninja X = 1
B65A	LD A,$05
B65C	LD ($9C40),A	set Ninja Y = 5
B65F	LD HL,$0097
B662	LD ($9C42),HL	set Ninja position in tilemap: Y * 30 + X
B665	LD A,$13
B667	LD ($7343),A	set counter = 19

B66A: Current Room changed, entering the new Room

Used by the routines at C2FA, C319, C604 and C623.
B66A	LD A,($71D4)
B66D	LD ($0000),A	!!MUT-ARG!! address for current Dog flag
B670	LD HL,$71CB
B673	LD DE,$0000	!!MUT-ARG!! current Dog data address
B676	LD BC,$0009
B679	LDIR
B67B	LD HL,$B263	For first drawing entering the room, skip Dog and Guard tiles drawing
B67E	LD ($B1FA),HL
B681	CALL $DE68	Find record for the current room in DE84 table
B684	CP $00
B686	JR NZ,$B68B	found =>
B688	LD HL,$0000
B68B	LD A,(HL)	get flag
B68C	LD ($71D4),A
B68F	LD ($B66E),HL
B692	LD HL,$71C3
B695	LD DE,$0000	!!MUT-ARG!! current Guard data address
B698	LD BC,$0004
B69B	LDIR
B69D	LD A,($7346)	get Guard state
B6A0	LD (DE),A
B6A1	INC DE
B6A2	LD A,($7347)	get Guard direction
B6A5	LD (DE),A
B6A6	LD HL,$0000
B6A9	LD ($B674),HL	set current Dog data address = no dog
B6AC	LD ($B696),HL	set current Guard data address = no guard
B6AF	XOR A
B6B0	LD ($BAB2),A
B6B3	LD HL,$A39F
B6B6	LD B,$03
B6B8	LD DE,$0007
B6BB	LD (HL),A
B6BC	ADD HL,DE
B6BD	DJNZ $B6BB
B6BF	LD HL,$6590	Tile screen 0 start address
B6C2	LD (HL),A	fill with $00
B6C3	INC A
B6C4	LD ($A3B4),A
B6C7	LD BC,$01FD	510 - 1
B6CA	LD DE,$6591	Tile screen 0 start address + 1
B6CD	LDIR	Fill Tile screen 0
B6CF	LD HL,$6D88	Tile screen 4 start address
B6D2	LD (HL),$FF	fill with transparent tile
B6D4	LD BC,$03FB	510 + 510 - 1
B6D7	LD DE,$6D89	Tile screen 4 start address
B6DA	LDIR	Fill Tile screen 4 and Tile screen 5
B6DC	LD HL,($7184)	get Current Room address
B6DF	INC HL
B6E0	INC HL
B6E1	LD A,(HL)	get Room init address low byte
B6E2	INC HL
B6E3	PUSH HL
B6E4	LD H,(HL)	get Room init address high byte
B6E5	LD L,A
B6E6	LD ($B6F2),HL	set Room init address
B6E9	POP HL
B6EA	LD DE,$0009
B6ED	ADD HL,DE	now HL = room sequence start address
This entry point is used by the routine at B702.
B6EE	LD A,(HL)	get next token
B6EF	CP $FF	End of sequence?
B6F1	JP Z,$F973	!!MUT-ARG!! yes => run Room initialization code
B6F4	PUSH HL	Save address in the room sequence
B6F5	LD L,A
B6F6	LD H,$00
B6F8	ADD HL,HL	* 2
B6F9	LD DE,$B706	Table of Room tokens
B6FC	ADD HL,DE	now HL = address in the table
B6FD	LD A,(HL)	get address low byte
B6FE	INC HL
B6FF	LD H,(HL)	get address high byte
B700	LD L,A	now HL = room token procedure address
B701	JP (HL)	=> run token procedure

B702: Proceed to the next room token

Used by the routine at 734A.
B702	POP HL	Restore address in the room sequence
B703	INC HL	to next token
B704	JR $B6EE	=> continue room sequence processing

B706: Table of Room tokens


B706	DEFW $B38F	#00: Put 3x3 tiles $7C21; params: 2 bytes (address)
B708	DEFW $7381	#01: Fill to down; params: 4 bytes (count, filler, address)
B70A	DEFW $739F	#02: Fill to right; params: 4 bytes (count, filler, address)
B70C	DEFW $7452	#03: Fill rectangle; params: 5 bytes (filler, width, height, address)
B70E	DEFW $73F3	#04: Fill whole Tile screen 0 with one tile; params: 1 byte (filler)
B710	DEFW $7406	#05: Copy block of tiles; params: 6 bytes (width, height, srcaddr, address)
B712	DEFW $73A4	#06: Fill triangle from wide top; params: 4 bytes (filler, count, address)
B714	DEFW $73C5	#07: Fill triangle from wide bottom; params: 4 bytes (filler, count, address)
B716	DEFW $73EB	#08: Fill triangle from wide bottom; params: 4 bytes (filler, count, address)
B718	DEFW $73EF	#09: Fill triangle from wide top; params: 4 bytes (filler, count, address)
B71A	DEFW $7395	#0A: Fill to down-right; params: 4 bytes (count, filler, address)
B71C	DEFW $739A	#0B: Fill to down-left; params: 4 bytes (count, filler, address)
B71E	DEFW $742B	#0C: Copy block of tiles N times; params: 6 bytes (srcaddr, width, count, address)
B720	DEFW $7359	#0D: Set border color; params: 1 byte
B722	DEFW $734D	#0E: Put one tile at the given address; params: 3 bytes (tile, address)

B724: Finish room initialization

Used by the routines at B422, B425, B42E, B437, C64C and C681.
Called to finish room initialization from room initialization procedure
B724	LD HL,$678E	Tile screen 1 start address
B727	LD (HL),$01	Filler = $01 = "need update" mark
B729	LD BC,$01FD	510 - 1
B72C	LD DE,$678F	Tile screen 1 start address + 1
B72F	LDIR
B731	LD HL,$698C	Tile screen 2 start address
B734	LD (HL),$FF	Filler = transparent tile
B736	LD BC,$01FD	510 - 1
B739	LD DE,$698D	Tile screen 2 start address + 1
B73C	LDIR
B73E	LD HL,$6B8A	Tile screen 3 start address
B741	LD (HL),$FF	Filler = transparent tile
B743	LD BC,$01FD	510 - 1
B746	LD DE,$6B8B	Tile screen 3 start address + 1
B749	LDIR
B74B	CALL $B148	Draw tile map on the screen
B74E	LD HL,$D34D	Table of objects address
B751	LD B,$23	35 objects
B753	PUSH HL	save address in Table of objects
B754	LD A,($7184)	get Current Room address, low byte
B757	CP (HL)
B758	JR NZ,$B768
B75A	INC HL
B75B	LD A,($7185)	get Current Room address, high byte
B75E	CP (HL)
B75F	JR NZ,$B768
B761	INC HL
B762	LD E,(HL)	get address in Tile screen 0, low byte
B763	INC HL
B764	LD D,(HL)	get address in Tile screen 0, high byte
B765	INC HL
B766	LD A,(HL)	get tile byte
B767	LD (DE),A	set tile byte in Tile screen 0
B768	POP HL	restore address in Table of objects
B769	LD DE,$0005
B76C	ADD HL,DE	next object
B76D	DJNZ $B753	continue loop by objects
B76F	LD A,($7346)	get Guard state
B772	CP $09
B774	JR Z,$B77B
B776	LD A,$0A
B778	LD ($7346),A	set Guard state = $0A

B77B: Game loop start

Used by the routines at B724 and B937.
B77B	XOR A
B77C	LD ($5C08),A	clear LASTK
B77F	RST $38
B780	DI
B781	LD A,($5C08)	get LASTK
B784	LD A,($B5C6)	get Time mode
B787	CP $01	time stopped?
B789	JR Z,$B7AF	yes =>
Decrease Time, check if Time is out
B78B	LD HL,$B5C4	address for Time fast counter
B78E	DEC (HL)	decrease the counter
B78F	JR NZ,$B7AF	not zero => skip Time decrease
B791	LD (HL),$28	reset fast counter to 50
B793	LD HL,$AD58	address for Time lower digit
B796	DEC (HL)	Decrease Time lower digit
B797	LD A,$2F
B799	CP (HL)
B79A	JR NZ,$B7A4
B79C	LD (HL),$39	'9'
B79E	DEC HL	go to higher digit
B79F	DEC (HL)	decrease Time higher digit
B7A0	CP (HL)
B7A1	JP Z,$BE71	time is out =>
B7A4	LD DE,$5097	screen address for timer value
B7A7	LD HL,$AD57	Indicator Time value address
B7AA	LD C,$02	Two digits
B7AC	CALL $AED1	Print string
Check for BOMB
B7AF	LD A,($D28B)	check Object #7 in Table of objects D256
B7B2	CP $D6	BOMB tile in the place of Diskette?
B7B4	JR NZ,$B7ED	no => skip
BOMB ticking mode
B7B6	LD HL,$B5C6	Time mode address
B7B9	LD A,$02
B7BB	CP (HL)	already in BOMB ticking mode?
B7BC	JR Z,$B7ED
B7BE	LD (HL),A	set Time mode = BOMB ticking mode
B7BF	LD HL,$BD2F	"BOMB"
B7C2	LD DE,$50D6	screen address under timer value
B7C5	LD C,$04
B7C7	CALL $AED1	Print string "BOMB"
B7CA	LD HL,$3939	!!MUT-ARG!! "99" bomb timer initial value
B7CD	LD ($AD57),HL	set Indicator Time value
B7D0	LD A,$01
B7D2	LD ($B5C4),A
B7D5	LD HL,$5A76
B7D8	LD DE,$001C	28
B7DB	LD C,$03
B7DD	LD B,$04
B7DF	LD (HL),$D6
B7E1	INC HL
B7E2	DJNZ $B7DF
B7E4	ADD HL,DE
B7E5	DEC C
B7E6	JR NZ,$B7DD
B7E8	LD B,$32
B7EA	CALL $B4DE	Increase PAY value by 5000
B7ED	LD HL,$678E	Tile screen 1 start address
B7F0	LD (HL),$00	"no need to update" value
B7F2	LD BC,$01FD	510 - 1
B7F5	LD DE,$678F	Tile screen 1 start address + 1
B7F8	LDIR
B7FA	CALL $BBBB	Set update flags for Ninja, 6x7 tiles
B7FD	LD HL,$698C	Tile screen 2 start address
B800	LD (HL),$FF
B802	LD BC,$01FD	510 - 1
B805	LD DE,$698D	Tile screen 2 start address + 1
B808	LDIR	Fill the Tile screen 2
B80A	XOR A
B80B	LD ($B84C),A	clear Object tile
B80E	LD C,A
B80F	LD B,$23	35 = number of records in D256
B811	LD DE,$D256	Table address
Loop through the table
B814	LD A,(DE)	get byte +$00
B815	LD L,A
B816	INC DE
B817	LD A,(DE)	get byte +$01
B818	LD H,A
B819	INC DE
B81A	PUSH DE	save address in the table
B81B	LD DE,($9C42)
B81F	ADD HL,DE	add Ninja position in tilemap
B820	POP DE	restore address in the table
B821	LD A,(DE)	get byte +$02
B822	INC DE
B823	CP (HL)
B824	JP NZ,$B889
B827	LD A,(DE)	get byte +$03
B828	LD C,A
B829	LD B,$03
B82B	LD HL,$B84C	address to store Object tile and Object procedure address
B82E	INC DE
B82F	LD ($B84A),DE	store Object address + 4
B833	LD A,(DE)	get byte +$04/$05/$06
B834	LD (HL),A
B835	INC HL
B836	INC DE
B837	DJNZ $B833
B839	JP $B891

B83C: Increase Energy a bit

Used by the routine at BC55.
B83C	LD A,($749D)	get Energy lower
B83F	RRC A
B841	LD ($749D),A	set Energy lower
B844	RET NC
B845	LD HL,$749C	Energy address
B848	INC (HL)	increase Energy
B849	RET

B84A: Data block at B84A


B84A	DEFW $D2FB	Object address + 4, in table D256
B84C	DEFB $00	Object tile
B84D	DEFW $0000	Object procedure address
B84F	DEFB $00	NEAR item
B850	DEFB $C8	HELD tile

B851: Set initial data in Table of Objects

Used by the routine at B5C7.
B851	LD B,$23	35 objects
B853	LD DE,$0007	7 = size of record in Table of Objects
B856	LD IX,$D259	= D256 (address for Table of Objects) + 3
B85A	LD HL,$D210	Address for table with initial data
B85D	LD A,(HL)
B85E	LD (IX+$00),A	set byte +$03 in the record
B861	INC HL
B862	LD A,(HL)
B863	LD (IX+$01),A	set byte +$04 in the record
B866	INC HL
B867	ADD IX,DE	next record
B869	DJNZ $B85D	continue the loop
B86B	RET

B86C: ?? Adjust table 751B by DE

Used by the routine at B889.

Input
DE	??
A	??

B86C

LD B,$18

B86E

LD ($74F4),A

B871

LD IX,$751B

B875

LD L,(IX+$00)

B878

LD H,(IX+$01)

B87B

ADD HL,DE

B87C

LD (IX+$00),L

B87F

LD (IX+$01),H

B882

INC IX

B884

INC IX

B886

DJNZ $B875

B888

RET

B889: Routine at B889

Used by the routine at B77B.
B889	INC DE
B88A	INC DE
B88B	INC DE
B88C	INC DE
B88D	DEC B
B88E	JP NZ,$B814	continue th loop through the table
This entry point is used by the routine at B77B.
B891	LD HL,$B84F	NEAR item address
B894	LD A,C
B895	CP (HL)
B896	JR Z,$B8B0
B898	LD (HL),A
B899	LD ($74CE),A
B89C	LD DE,$001A
B89F	LD A,$7B
B8A1	CALL $B86C
B8A4	CALL $74CD	Draw NEAR/HELD item
B8A7	DI
B8A8	LD DE,$FFE6	-26
B8AB	LD A,$61
B8AD	CALL $B86C
B8B0	LD HL,$B850	HELD tile address
B8B3	LD A,($BD7A)
B8B6	CP (HL)
B8B7	JR Z,$B8C9
B8B9	LD (HL),A
B8BA	CP $00
B8BC	JR Z,$B8C2
B8BE	SUB $C6
B8C0	SRL A
B8C2	LD ($74CE),A
B8C5	CALL $74CD	Draw NEAR/HELD item
B8C8	DI
B8C9	XOR A
B8CA	LD ($A39E),A
B8CD	JP $BEB3	!!MUT-ARG!! => run handler

B8D0: Update Ninja on tilemap

Used by the routines at B348, B532, BBD4, BC55, BE0D, BFB0, C094, C13D, C1B6, C24B, C339, C3D9, C4A7, C4DE, C5C6 and C6E2.
B8D0	CALL $BBBB	Set update flags for Ninja, 6x7 tiles
B8D3	LD HL,$6D88	Tile screen 4 start address
B8D6	LD (HL),$FF
B8D8	LD BC,$01FD	510 - 1
B8DB	LD DE,$6D89
B8DE	LDIR
Draw Ninja on tilemap
B8E0	LD HL,($9C42)	get Ninja position in tilemap
B8E3	LD A,($7239)	get Ninja direction
B8E6	CP $00	left?
B8E8	JR NZ,$B907
B8EA	LD DE,$6991
B8ED	ADD HL,DE
B8EE	LD DE,($7186)	get Ninja sprite address
B8F2	LD B,$07
B8F4	LD C,$06
B8F6	LD A,(DE)
B8F7	LD (HL),A
B8F8	DEC HL
B8F9	INC DE
B8FA	DEC C
B8FB	JR NZ,$B8F6
B8FD	PUSH DE
B8FE	LD DE,$0024
B901	ADD HL,DE
B902	POP DE
B903	DJNZ $B8F4
B905	JR $B922
B907	LD DE,$698C	Tile screen 2 start address
B90A	ADD HL,DE
B90B	LD DE,($7186)	get Ninja sprite address
B90F	LD B,$07
B911	LD C,$06
B913	LD A,(DE)
B914	LD (HL),A
B915	INC HL
B916	INC DE
B917	DEC C
B918	JR NZ,$B913
B91A	PUSH DE
B91B	LD DE,$0018
B91E	ADD HL,DE
B91F	POP DE
B920	DJNZ $B911
B922	LD HL,$6B8A	Tile screen 3 start address
B925	LD (HL),$FF
B927	LD DE,$6B8B	Tile screen 3 start address + 1
B92A	LD BC,$01FD	510 - 1
B92D	LDIR
B92F	LD HL,($7184)	get Current Room address
B932	LD A,(HL)
B933	INC HL
B934	LD H,(HL)
B935	LD L,A
B936	JP (HL)

B937: Standard room procedure (redirect from B41F)

Used by the routines at B41F, B446, B44C, B452, B458, B47A, B483 and C6A5.
B937	LD IX,$A39F
B93B	LD B,$03
B93D	LD A,$03
B93F	LD ($B951),A
B942	XOR A
B943	CP (IX+$00)
B946	PUSH BC
B947	JP Z,$BA20
B94A	CALL $BBAE
B94D	LD B,$02
B94F	LD A,(IX+$03)	!!MUT-ARG!!
B952	LD DE,$0000
B955	CP $03
B957	JR NC,$B95F
B959	LD DE,$FFE2	-30
B95C	DEC (IX+$05)
B95F	CP $06
B961	JR C,$B969
B963	LD DE,$001E	+30
B966	INC (IX+$05)
B969	CP $01
B96B	JR Z,$B98D
B96D	CP $04
B96F	JR Z,$B98D
B971	CP $07
B973	JR Z,$B98D
B975	DEC DE
B976	DEC (IX+$06)
B979	CP $03
B97B	JR Z,$B98D
B97D	CP $00
B97F	JR Z,$B98D
B981	CP $06
B983	JR Z,$B98D
B985	INC DE
B986	INC DE
B987	INC (IX+$06)
B98A	INC (IX+$06)
B98D	LD L,(IX+$01)
B990	LD H,(IX+$02)
B993	ADD HL,DE
B994	LD (IX+$01),L
B997	LD (IX+$02),H
B99A	LD A,(IX+$05)
B99D	CP $FF
B99F	JP Z,$BBA7
B9A2	CP $11
B9A4	JP Z,$BBA7
B9A7	LD A,(IX+$06)
B9AA	CP $1E
B9AC	JP Z,$BBA7
B9AF	CP $FF
B9B1	JP Z,$BBA7
B9B4	PUSH HL
B9B5	LD DE,$6590	Tile screen 0 start address
B9B8	ADD HL,DE
B9B9	LD A,$64
B9BB	CP (HL)
B9BC	POP HL
B9BD	JP C,$BAD5
B9C0	PUSH HL
B9C1	LD DE,$6B8A	Tile screen 3 start address
B9C4	ADD HL,DE
B9C5	LD A,(HL)
B9C6	POP HL
B9C7	INC A
B9C8	JR Z,$B9DA
B9CA	LD A,($71CF)
B9CD	CP $42
B9CF	JP NC,$BAD5
B9D2	ADD A,$42
B9D4	LD ($71CF),A
B9D7	JP $BAD5
B9DA	PUSH HL
B9DB	LD DE,$6D88	Tile screen 4 start address
B9DE	ADD HL,DE
B9DF	LD A,(HL)
B9E0	POP HL
B9E1	INC A
B9E2	JR Z,$B9F9
B9E4	LD A,($7346)	get Guard state
B9E7	CP $09
B9E9	JP Z,$BAD5
B9EC	LD A,$09
B9EE	LD ($7346),A	set Guard state = $09
B9F1	LD B,$01
B9F3	CALL $B4DE	Increase PAY value by 100 - Guard killed by weapon
B9F6	JP $BAD5
B9F9	PUSH HL
B9FA	LD HL,$B951
B9FD	INC (HL)
B9FE	POP HL
B9FF	DEC B
BA00	JP NZ,$B94F
BA03	LD DE,$698C	Tile screen 2 start address
BA06	ADD HL,DE
BA07	LD A,(HL)
BA08	CP $C8
BA0A	JR NC,$BA14
BA0C	LD B,$14
BA0E	CALL $9DD9	Decrease Energy by B = 20
BA11	JP $BAD5
BA14	LD A,(IX+$00)
BA17	LD (HL),A
BA18	XOR $01
BA1A	LD (IX+$00),A
BA1D	CALL $BBAE
This entry point is used by the routine at BAD5.
BA20	POP BC
BA21	LD DE,$0007
BA24	ADD IX,DE
BA26	DEC B
BA27	JP NZ,$B93D
BA2A	LD HL,$6833	!!MUT-ARG!!
BA2D	LD B,$03
BA2F	LD C,$03
BA31	PUSH HL
BA32	LD (HL),$01
BA34	INC HL
BA35	DEC C
BA36	JR NZ,$BA32
BA38	POP HL
BA39	PUSH DE
BA3A	LD DE,$001E	+30
BA3D	ADD HL,DE
BA3E	POP DE
BA3F	DJNZ $BA2F
BA41	CALL $B148	Draw tile map on the screen
BA44	LD HL,$B1FC	Restore drawing of Dog and Guard tiles
BA47	LD ($B1FA),HL
BA4A	LD HL,$BAB2
BA4D	XOR A
BA4E	CP (HL)
BA4F	JP Z,$B77B	=> Game loop start
Draw Explosion image on the screen and make some noise
BA52	LD A,$10
BA54	OUT ($FE),A
BA56	DEC (HL)
BA57	LD HL,$40D0	!!MUT-ARG!! address on the screen
BA5A	LD DE,$ABE5	!!MUT-ARG!! Explosion image address
BA5D	LD B,$03	!!MUT-ARG!!
BA5F	LD C,$03	!!MUT-ARG!!
BA61	PUSH HL
BA62	PUSH DE
BA63	PUSH HL
BA64	PUSH BC
BA65	LD B,$08
BA67	LD A,(DE)
BA68	LD (HL),A
BA69	INC DE
BA6A	INC H
BA6B	DJNZ $BA67
BA6D	POP BC
BA6E	POP HL
BA6F	INC HL
BA70	DEC C
BA71	JR NZ,$BA63
BA73	POP DE
BA74	LD HL,$0018
BA77	ADD HL,DE
BA78	EX DE,HL
BA79	POP HL
BA7A	PUSH DE
BA7B	LD DE,$0020
BA7E	RR H
BA80	RR H
BA82	RR H
BA84	ADD HL,DE
BA85	RL H
BA87	RL H
BA89	RL H
BA8B	POP DE
BA8C	DJNZ $BA5F
BA8E	LD HL,$58D0	!!MUT-ARG!!
BA91	LD B,$03
BA93	LD DE,$0020
BA96	LD C,$03	!!MUT-ARG!!
BA98	PUSH HL
BA99	LD A,(HL)
BA9A	AND $F8
BA9C	OR $42
BA9E	LD (HL),A
BA9F	INC HL
BAA0	DEC C
BAA1	JR NZ,$BA99
BAA3	POP HL
BAA4	ADD HL,DE
BAA5	DJNZ $BA96
BAA7	LD A,$72
BAA9	LD ($58F1),A	!!MUT-ARG!!
BAAC	XOR A
BAAD	OUT ($FE),A
BAAF	JP $B77B	=> Game loop start

BAB2: Data block at BAB2


BAB2	DEFB $00	??
BAB3	DEFW $4000,$4020,$4040,$4060	Screen addresses for every 17 rows
BABB	DEFW $4080,$40A0,$40C0,$40E0
BAC3	DEFW $4800,$4820,$4840,$4860
BACB	DEFW $4880,$48A0,$48C0,$48E0
BAD3	DEFW $5000

BAD5: Routine at BAD5

Used by the routine at B937.
BAD5	CALL $FA28
BAD8	CP $CA	current room address low byte = $CA ?
BADA	JR NZ,$BAE4
BADC	LD A,($7185)
BADF	CP $8D	current room address high byte = $8D ?
BAE1	JP Z,$BBA7	room 8DCA (room with helicopter) =>
BAE4	LD A,(IX+$00)
BAE7	CP $D2
BAE9	JR Z,$BAF0
BAEB	CP $D3
BAED	JP NZ,$BBA7
BAF0	LD HL,$BAB2
BAF3	XOR A
BAF4	CP (HL)
BAF5	JP NZ,$BBA7
BAF8	LD (HL),$0A
BAFA	LD L,(IX+$01)
BAFD	LD H,(IX+$02)
BB00	LD DE,$676F
BB03	ADD HL,DE
BB04	LD ($BA2B),HL
BB07	LD H,$00
BB09	LD A,(IX+$05)
BB0C	ADD A,A	* 2
BB0D	LD L,A
BB0E	LD DE,$5800
BB11	ADD HL,HL
BB12	ADD HL,HL
BB13	ADD HL,HL
BB14	ADD HL,HL	* 32
BB15	ADD HL,DE	now HL = address in screen attributes
BB16	LD D,$00
BB18	LD E,(IX+$06)
BB1B	ADD HL,DE
BB1C	LD ($BA8F),HL
BB1F	LD ($BB2E),A
BB22	INC A
BB23	LD ($BB31),A
BB26	PUSH IX
BB28	LD IX,$BAB3	Address for table of screen addresses for 17 rows
BB2C	LD L,(IX+$0C)	!!MUT-ARG!!
BB2F	LD H,(IX+$0D)	!!MUT-ARG!!
BB32	POP IX
BB34	ADD HL,DE
BB35	LD ($BA58),HL
BB38	LD HL,($BA8F)
BB3B	LD DE,$0021
BB3E	ADD HL,DE
BB3F	LD ($BAAA),HL
BB42	LD B,$03
BB44	LD C,$03
BB46	EXX
BB47	LD DE,$ABE5	Explosion image address
BB4A	EXX
BB4B	LD HL,($BA2B)
BB4E	LD DE,$0000
BB51	LD A,(IX+$05)
BB54	CP $10
BB56	JR NZ,$BB59
BB58	DEC B
BB59	CP $00
BB5B	JR NZ,$BB6A
BB5D	DEC B
BB5E	LD DE,$001E	30
BB61	ADD HL,DE
BB62	LD DE,$0020
BB65	EXX
BB66	LD DE,$ABFD
BB69	EXX
BB6A	LD A,(IX+$06)
BB6D	CP $1D
BB6F	JR NZ,$BB72
BB71	DEC C
BB72	CP $00
BB74	JR NZ,$BB7C
BB76	DEC C
BB77	INC HL
BB78	INC DE
BB79	EXX
BB7A	INC DE
BB7B	EXX
BB7C	LD A,B
BB7D	LD ($BA2E),A
BB80	LD ($BA5E),A
BB83	LD ($BA92),A
BB86	LD A,C
BB87	LD ($BA30),A
BB8A	LD ($BA60),A
BB8D	LD ($BA97),A
BB90	LD ($BA2B),HL
BB93	LD HL,($BA58)
BB96	ADD HL,DE
BB97	LD ($BA58),HL
BB9A	LD HL,($BA8F)
BB9D	ADD HL,DE
BB9E	LD ($BA8F),HL
BBA1	EXX
BBA2	LD ($BA5B),DE
BBA6	EXX
This entry point is used by the routine at B937.
BBA7	XOR A
BBA8	LD (IX+$00),A
BBAB	JP $BA20

BBAE: Routine at BBAE

Used by the routine at B937.
BBAE	LD L,(IX+$01)
BBB1	LD H,(IX+$02)
BBB4	LD DE,$678E	Tile screen 1 start address
BBB7	ADD HL,DE
BBB8	LD (HL),$01	set "need update" mark
BBBA	RET

BBBB: Set update flags for Ninja, 6x7 tiles

Used by the routines at B77B and B8D0.
BBBB	LD HL,($9C42)	get Ninja position in tilemap
BBBE	LD DE,$678E	Tile screen 1 start address
BBC1	ADD HL,DE
BBC2	LD DE,$0018	24
BBC5	LD A,$01	"need to update" mark
BBC7	LD B,$07	7 rows
BBC9	LD C,$06	6 columns
BBCB	LD (HL),A	set the flag
BBCC	INC HL
BBCD	DEC C
BBCE	JR NZ,$BBCB	continue by columns
BBD0	ADD HL,DE	next row
BBD1	DJNZ $BBC9	continue by rows
BBD3	RET

BBD4: Movement handler: Ninja punching


BBD4	CALL $BBDF	Read Input
BBD7	BIT 4,A	check FIRE bit
BBD9	JP NZ,$B8D0	=> Update Ninja on tilemap
BBDC	JP $C226	=> Ninja standing

BBDF: Read Input

Used by the routines at BBD4, BC55, C1B6, C22F, C24B, C3D9 and F9B9.
BBDF	PUSH HL
BBE0	LD HL,$7222
BBE3	XOR A
BBE4	CP (HL)	Input method = Keyboard/Protek?
BBE5	JR Z,$BBEE
BBE7	IN A,($1F)	read joystick port
BBE9	LD ($7232),A	store input bits
BBEC	POP HL
BBED	RET
BBEE	PUSH BC
BBEF	LD B,$05
BBF1	LD C,$00
BBF3	INC HL
BBF4	LD A,(HL)
BBF5	IN A,($FE)
BBF7	INC HL
BBF8	AND (HL)
BBF9	INC HL
BBFA	JR NZ,$BC07
BBFC	LD A,(HL)
BBFD	ADD A,A
BBFE	ADD A,A
BBFF	ADD A,A	* 8
BC00	ADD A,$C1
BC02	LD ($BC06),A
BC05	SET 1,C
BC07	DJNZ $BBF3
BC09	LD A,C
BC0A	POP BC
BC0B	JR $BBE9	=> store input bits and RET

BC0D: Routine at BC0D

Used by the routine at BEB3.
Prepare screen background for title picture
BC0D	LD SP,$6257	!!MUT-ARG!!
BC10	EXX
BC11	POP HL
BC12	EXX
This entry point is used by the routine at F9E7.
BC13	LD HL,$E5DC	Melody start address
BC16	LD ($E442),HL	set melody current address
BC19	LD HL,$4000
BC1C	LD BC,$1000
BC1F	LD DE,$4001
BC22	LD (HL),$00
BC24	LDIR	clear screen
BC26	LD C,$00
BC28	PUSH HL
BC29	LD B,$04
BC2B	LD (HL),$AA
BC2D	INC H
BC2E	LD (HL),$55
BC30	INC H
BC31	DJNZ $BC2B
BC33	POP HL
BC34	INC HL
BC35	DEC C
BC36	JR NZ,$BC28
Show the title picture
BC38	CALL $6289	Show title picture (two ninjas)
This entry point is used by the routine at DF60.
BC3B	CALL $AEF0
BC3E	LD HL,$AD52
BC41	LD B,$03
BC43	LD (HL),$30
BC45	INC HL
BC46	DJNZ $BC43
BC48	LD HL,$B0E8	address of string 10 spaces
BC4B	LD B,$0A
BC4D	LD (HL),$20
BC4F	INC HL
BC50	DJNZ $BC4D
BC52	JP $DF37

BC55: Movement handler: Ninja standing


Increase Energy if needed
BC55	LD HL,$B5C5	Ninja standing counter address
BC58	DEC (HL)	decrease counter
BC59	JR NZ,$BC76
BC5B	LD (HL),$02	reload the counter
BC5D	LD A,($749C)	get Energy
BC60	CP $13	energy at MAX?
BC62	JR NZ,$BC6B
BC64	LD A,($749D)	get Energy lower
BC67	CP $01
BC69	JR Z,$BC76
BC6B	CALL $B83C	Increase Energy a bit
BC6E	LD B,$01
BC70	CALL $9DD9	Decrease Energy by B
BC73	CALL $B83C	Increase Energy a bit
Move the head (idle animation)
BC76	LD HL,$B2FD	address for head movement counter
BC79	INC (HL)	increase counter
BC7A	JR NZ,$BC98	not zero => skip head animation
BC7C	LD (HL),$BE	reset counter (how often head moves)
BC7E	LD A,($D48E)
BC81	XOR $F4	toggle tile
BC83	LD ($D48E),A	set head tile
BC86	LD A,($D48F)
BC89	XOR $F4	toggle between $01 and $F5 tiles
BC8B	LD ($D48F),A	set head tile for Ninja/Guard standing sprite
BC8E	LD A,($D495)
BC91	XOR $F2	toggle tile
BC93	LD ($D495),A	update the tile
BC96	JR $BC9D
BC98	LD A,$D2
BC9A	CP (HL)
BC9B	JR Z,$BC7E
Check for suicide key combination
BC9D	LD A,$FE
BC9F	IN A,($FE)
BCA1	BIT 0,A	check for CAPS SHIFT key
BCA3	JR NZ,$BCB6	not pressed => skip suicide
BCA5	LD A,$7F
BCA7	IN A,($FE)
BCA9	BIT 0,A	check for "1" key
BCAB	JR NZ,$BCB6	not pressed => skip suicide
BCAD	LD HL,$BEEF	"SEPUKU" / "MISSION ABORTED"
BCB0	LD ($BEB4),HL	set two-line Game Over message
BCB3	JP $BE5A	=> Ninja sit, and then fall and DIE
BCB6	CALL $C5A3	Check for falling
BCB9	JP Z,$C643	=> Ninja falling
BCBC	LD HL,$B595
BCBF	XOR A
BCC0	CP (HL)
BCC1	JR Z,$BCC4
BCC3	DEC (HL)
BCC4	CALL $BBDF	Read Input
BCC7	BIT 4,A	check FIRE bit
BCC9	JP Z,$BDDD
FIRE pressed, ninja standing
BCCC	LD HL,$B595	action cooldown counter
BCCF	XOR A
BCD0	CP (HL)	check if counter is 0
BCD1	JP NZ,$BDB2	not zero =>
BCD4	LD (HL),$05	reset cooldown (5 ticks until next action)
BCD6	LD A,($B84C)	get Object tile
BCD9	CP $63
BCDB	JR Z,$BD33	=> execute the object procedure
BCDD	LD B,A
BCDE	LD HL,($9C42)	get Ninja position in tilemap
BCE1	LD DE,$6669	$6669 = $6590 (Tile screen 0) + 217
BCE4	ADD HL,DE
BCE5	LD A,$9C
BCE7	CP (HL)
BCE8	JR NZ,$BCF3
BCEA	LD A,($B5C6)	get Time mode
BCED	CP $02	BOMB ticking mode?
BCEF	JR Z,$BD37	yes =>
BCF1	JR $BCF7
BCF3	XOR A
BCF4	CP B	Object tile = nothing?
BCF5	JR Z,$BD37	nothing =>
BCF7	LD A,($B850)	get HELD tile
BCFA	LD DE,($B84A)	get Object address + 4
BCFE	LD (DE),A	set Object tile
BCFF	DEC DE
BD00	CP $00	held nothing?
BD02	JR Z,$BD08	nothing =>
BD04	SUB $C6
BD06	SRL A
BD08	LD (DE),A
BD09	LD A,$09
BD0B	LD ($D28A),A	set ?? in Object #7 in Table of objects D256
BD0E	LD A,B
BD0F	LD ($BD7A),A
BD12	CP $D4
BD14	JP NZ,$B8D0	=> Update Ninja on tilemap
BD17	LD HL,$B5C6	Time mode address
BD1A	XOR A	0 = time ticking
BD1B	CP (HL)
BD1C	JP NZ,$B8D0	=> Update Ninja on tilemap
BD1F	LD (HL),$01	set Time mode = time stopped
BD21	LD HL,$0190
BD24	CALL $B371	Play melody
BD27	LD B,$32	50
BD29	CALL $B4DE	Increase PAY value by 5000
BD2C	JP $B8D0	=> Update Ninja on tilemap

BD2F: "BOMB" message


BD2F	DEFM "BOMB"

BD33: Routine at BD33

Used by the routine at BC55.
BD33	LD HL,($B84D)	get object procedure address
BD36	JP (HL)	execute the object procedure

BD37: Fire pressed, Ninja standing, no object nearby

Used by the routine at BC55.
BD37	LD HL,$A39F
BD3A	XOR A
BD3B	CP (HL)
BD3C	JP NZ,$BDB2
BD3F	LD A,($B850)	get HELD tile
BD42	CP $00	nothing?
BD44	JP Z,$BDB2
BD47	CP $D4
BD49	JP Z,$BDB2
BD4C	CP $D6	BOMB?
BD4E	JP Z,$BDB2
BD51	LD (HL),A
BD52	LD HL,($9C42)	get Ninja position in tilemap
BD55	LD DE,$003D	61
BD58	ADD HL,DE
BD59	LD A,($9C41)	get Ninja X
BD5C	INC A
BD5D	LD B,A
BD5E	LD A,($7239)	get Ninja direction
BD61	DEC A
BD62	JR NZ,$BD6A
BD64	INC B
BD65	INC B
BD66	INC B
BD67	INC HL
BD68	INC HL
BD69	INC HL
BD6A	LD A,B
BD6B	LD ($A3A5),A
BD6E	LD ($A3A0),HL
BD71	LD A,($9C40)	get Ninja Y
BD74	ADD A,$02
BD76	LD ($A3A4),A
BD79	LD A,$C8	!!MUT-ARG!!
BD7B	LD ($A39F),A
BD7E	XOR A
BD7F	LD ($BD7A),A
BD82	LD B,$03
BD84	LD A,($7239)	get Ninja direction
BD87	CP $00	left?
BD89	JR Z,$BD8D	left =>
BD8B	INC B
BD8C	INC B
BD8D	LD A,B
BD8E	LD ($A3A3),A
BD91	LD A,($7232)	get Input bits
BD94	BIT 3,A	check UP bit
BD96	JR Z,$BD9B
BD98	DEC B
BD99	DEC B
BD9A	DEC B
BD9B	BIT 2,A	check DOWN bit
BD9D	JR Z,$BDA2
BD9F	INC B
BDA0	INC B
BDA1	INC B
BDA2	LD A,B
BDA3	LD ($A3A2),A
BDA6	CALL $F9F9
BDA9	LD DE,$D504	Sprite Ninja/Guard punching
BDAC	JP $BFB0	Set movement handler = HL, Ninja sprite = DE

BDAF: Ninja standing (redirect)


BDAF	JP $C226	=> Ninja standing

BDB2: Routine at BDB2

Used by the routines at BC55 and BD37.
BDB2	LD HL,($9C42)	get Ninja position in tilemap
BDB5	LD DE,$6DAA	$6DAA = $6D88 (Tile screen 4) + 34 for right
BDB8	LD A,($7239)	get Ninja direction
BDBB	CP $01	right?
BDBD	JR Z,$BDC2	right =>
BDBF	LD DE,$6DA7	$6DA7 = $6D88 (Tile screen 4) + 31 for left
BDC2	ADD HL,DE	now HL = address in Guard tilemap
BDC3	LD A,(HL)	get tile
BDC4	INC A	$FF ?
BDC5	JR Z,$BDD4	$FF =>
BDC7	LD A,$09
BDC9	LD ($7346),A	set Guard state = $09
BDCC	CALL $B596
BDCF	LD B,$05	5 hundreds
BDD1	CALL $B4DE	Increase PAY value by 500 - Guard killed by punch/kick
BDD4	LD HL,$BBD4	Movement handler address
BDD7	LD DE,$D504	Sprite Ninja/Guard punching
BDDA	JP $BFB0	Set movement handler = HL, Ninja sprite = DE

BDDD: Routine at BDDD

Used by the routine at BC55.
BDDD	BIT 3,A
BDDF	JP Z,$BFBA
BDE2	LD HL,$65AE
BDE5	LD DE,($9C42)	get Ninja position in tilemap
BDE9	ADD HL,DE
BDEA	LD A,$DA
BDEC	CP (HL)
BDED	JP NZ,$BF7B
BDF0	LD A,$0B
BDF2	LD ($7343),A	set counter = 11
BDF5	LD HL,$65BC
BDF8	LD ($BE0E),HL
BDFB	LD ($BE1D),HL
BDFE	LD HL,$68BC
BE01	LD ($BA2B),HL
BE04	LD HL,$BE0D	Movement handler
BE07	LD DE,$D486	Sprite Ninja/Guard standing
BE0A	JP $BFB0	Set movement handler = HL, Ninja sprite = DE

BE0D: ?? Movement handler


BE0D	LD HL,$65B1	!!MUT-ARG!!
BE10	LD A,$01
BE12	LD (HL),A
BE13	DEC HL
BE14	LD ($BE0E),HL
BE17	LD DE,$01FF	511
BE1A	ADD HL,DE
BE1B	LD (HL),A
BE1C	LD HL,$65C7	!!MUT-ARG!!
BE1F	LD (HL),A
BE20	INC HL
BE21	LD ($BE1D),HL
BE24	LD DE,$01FD	509
BE27	ADD HL,DE
BE28	LD (HL),A
BE29	LD HL,$7343	counter address
BE2C	DEC (HL)	decrease counter
BE2D	JP NZ,$B8D0	=> Update Ninja on tilemap
BE30	LD (HL),$14	reset the counter
BE32	LD HL,$675A
BE35	LD DE,$6958
BE38	LD B,$0A	10
BE3A	LD (HL),A
BE3B	LD (DE),A
BE3C	INC DE
BE3D	INC HL
BE3E	DJNZ $BE3A
BE40	LD HL,$0110
BE43	LD ($9C42),HL	set Ninja position in tilemap
BE46	LD HL,$6860
BE49	LD DE,$6861
BE4C	LD BC,$00D1	210 - 1 = 7 rows
BE4F	LDIR
BE51	LD HL,$C094	Movement handler (helicopter?)
BE54	LD DE,$C0E6	Empty sprite
BE57	JP $BFB0	Set movement handler = HL, Ninja sprite = DE

BE5A: Ninja sit, and then fall and DIE

Used by the routine at BC55.
BE5A	LD HL,$BE63	Movement handler: Ninja dead
BE5D	LD DE,$D558	Sprite Ninja sitting
BE60	JP $BFB0	Set movement handler = HL, Ninja sprite = DE

BE63: Movement handler (B8CE handler): Ninja dead

Used by the routine at BE71.
BE63	LD A,$C9	command = $C9 RET
BE65	LD ($9DD9),A	set command = RET = disable Energy decrease
BE68	LD HL,$BEB3	Movement handler: Game Over
BE6B	LD DE,$A0B5	Sprite Ninja dead
BE6E	JP $BFB0	Set movement handler = HL, Ninja sprite = DE

BE71: Time is out

Used by the routine at B77B.
BE71	LD A,($B5C6)	get Time mode
BE74	CP $02	BOMB ticking mode?
BE76	JR Z,$BE80	yes =>
BE78	LD HL,$BF35	"TIME OUT" / "MISSION TERMINATED"
BE7B	LD ($BEB4),HL	set two-line Game Over message
BE7E	JR $BE63	=> Ninja dead
BOMB time is out, BOMB explodes
BE80	LD B,$06
BE82	LD IX,$0000
BE86	LD C,$00
BE88	LD HL,$5821
BE8B	LD A,(IX+$00)
BE8E	OUT ($FE),A
BE90	INC IX
BE92	PUSH BC
BE93	LD C,$11	17
BE95	LD B,$1E	30
BE97	INC (HL)
BE98	INC HL
BE99	DJNZ $BE97
BE9B	INC HL
BE9C	INC HL
BE9D	DEC C
BE9E	JR NZ,$BE95
BEA0	POP BC
BEA1	DEC C
BEA2	JR NZ,$BE88
BEA4	DJNZ $BE86
BEA6	XOR A
BEA7	OUT ($FE),A
BEA9	PUSH HL
Saboteur is dead
BEAA	POP HL
BEAB	LD HL,$BF58	"SABOTEUR DEAD" / "MISSION FAILURE"
BEAE	LD ($BEB4),HL	set two-line Game Over message
BEB1	JR $BE63	=> Ninja dead

BEB3: Movement handler: Game Over

Used by the routines at B889 and BFD5.
BEB3	LD HL,$BEEF	!!MUT-ARG!! two-line message address
BEB6	LD DE,$4068
BEB9	LD C,$0F
BEBB	CALL $AED1	Print string 1st line
BEBE	LD DE,$40A6
BEC1	LD C,$14
BEC3	CALL $AED1	Print string 2nd line
BEC6	LD HL,$5868
BEC9	LD B,$0F
BECB	LD (HL),$0F
BECD	INC HL
BECE	DJNZ $BECB
BED0	LD HL,$58A6
BED3	LD B,$14
BED5	LD (HL),$0F
BED7	INC HL
BED8	DJNZ $BED5
BEDA	CALL $F9B9	Pause, then wait for any key pressed
BEDD	NOP
BEDE	NOP
BEDF	NOP	!!MUT-CMD!!
BEE0	NOP
BEE1	NOP
BEE2	NOP
BEE3	NOP
BEE4	NOP
BEE5	NOP
BEE6	NOP
BEE7	LD A,$0A	"LD A,(BC)" instruction code
BEE9	LD ($BEDF),A
BEEC	JP $BC0D	=> Title picture and music, then go to Main menu

BEEF: Game over two-line messages


BEEF	DEFM " SEPUKU "
BEFE	DEFM " MISSION ABORTED "
BF12	DEFM " ESCAPE "
BF21	DEFM " MISSION SUCCESSFUL "
BF35	DEFM " TIME OUT "
BF44	DEFM " MISSION TERMINATED "
BF58	DEFM " SABOTEUR DEAD "
BF67	DEFM " MISSION FAILURE "

BF7B: Routine at BF7B

Used by the routine at BDDD.
BF7B	LD HL,$6592	$6592 = $6590 (Tile screen 0) + 2
BF7E	ADD HL,DE
BF7F	LD A,$64
BF81	CP (HL)
BF82	JP C,$C16E	=> Object procedure
BF85	INC HL
BF86	CP (HL)
BF87	JP C,$C16E	=> Update Ninja on tilemap
BF8A	LD A,$03
BF8C	LD ($7343),A	set counter = 3
BF8F	LD A,($7239)	get Ninja direction
BF92	CP $00	left?
BF94	LD A,($7232)	get Input bits
BF97	JR Z,$BFA0
BF99	BIT 0,A	check RIGHT bit
BF9B	CALL NZ,$C4E8
BF9E	JR $BFA5
BFA0	BIT 1,A	check LEFT bit
BFA2	CALL NZ,$C4E8
BFA5	LD HL,$C339	Movement handler: Ninja jumping
BFA8	LD A,$02
BFAA	LD ($7343),A	set counter = 2
BFAD	LD DE,$D4B0	Sprite Ninja/Guard jumping

BFB0: Set movement handler = HL, set Ninja sprite = DE

Used by the routines at B532, BD37, BDB2, BDDD, BE0D, BE5A, BE63, BFBA, C13D, C226, C339, C3BB, C4A7, C4E8, C4F6, C50D and C643.
BFB0	LD ($B8CE),HL
BFB3	LD ($7186),DE	set Ninja sprite address = DE
BFB7	JP $B8D0	=> Update Ninja on tilemap

BFBA: Routine at BFBA

Used by the routine at BDDD.
BFBA	BIT 2,A
BFBC	JP Z,$C13D
BFBF	LD HL,($9C42)	get Ninja position in tilemap
BFC2	LD DE,$6664
BFC5	ADD HL,DE
BFC6	CALL $C392
BFC9	JP Z,$C12E	=> Ninja on ladder
This entry point is used by the routine at C5C6.
BFCC	LD HL,$C22F	Movement handler: Ninja sitting
BFCF	LD DE,$D558	Sprite Ninja sitting
BFD2	JP $BFB0	Set movement handler = HL, Ninja sprite = DE

BFD5: Escaped; clear screen, show final messages, then Game Over

Used by the routine at C094.
BFD5	LD B,$0A
BFD7	CALL $B4DE	Increase PAY value by 1000 - Escape by Helicopter
BFDA	LD A,($BD7A)
BFDD	CP $D4
BFDF	JR NZ,$C04A
BFE1	LD B,$32
BFE3	CALL $B4DE	Increase PAY value by 5000
BFE6	LD HL,$4000	Screen start address
BFE9	LD DE,$4001
BFEC	LD BC,$1800
BFEF	LD (HL),$00
BFF1	LDIR	Clear whole screen
BFF3	LD BC,$02FF
BFF6	LD (HL),$0F
BFF8	LDIR	Clear all attributes
BFFA	LD HL,$C062	Messages address
BFFD	LD DE,$4089	Screen address
C000	LD C,$0E
C002	CALL $AED1	Print string "DISK RETRIEVED"
C005	LD DE,$4828
C008	LD C,$12
C00A	CALL $AED1	Print string "DISK BONUS: $05000"
C00D	LD DE,$4865
C010	LD C,$05
C012	CALL $AED1	Print string "LEVEL"
C015	LD DE,$5062
C018	LD C,$0D
C01A	CALL $AED1	Print string "TOTAL PAY : $"
C01D	LD DE,$486D
C020	LD HL,$C075	Messages address
C023	LD C,$0D
C025	CALL $AED1	Print string "BONUS: $05000"
C028	LD DE,$4875
C02B	LD HL,$E388
C02E	LD C,$03
C030	CALL $AED1	Print string
C033	LD A,($E38B)
C036	LD B,A
C037	CALL $B4DE	Increase PAY value by B * 100
C03A	LD DE,$486B
C03D	LD HL,$E1EC	Skill level address
C040	LD C,$01
C042	CALL $AED1	Print skill level digit
C045	LD A,$14	"INC D" instruction code
C047	LD ($BEDF),A
C04A	LD A,($B5C6)	get Time mode
C04D	CP $02	BOMB ticking mode?
C04F	JR NZ,$C056	no =>
C051	LD B,$64	100
C053	CALL $B4DE	Increase PAY value by 10000 - Escape with Disk and Bomb
C056	LD HL,$BF12	"ESCAPE" / "MISSION SUCCESSFUL"
C059	LD ($BEB4),HL	set two-line Game Over message
C05C	NOP
C05D	NOP
C05E	NOP
C05F	JP $BEB3	=> Game Over

C062: Message at C062


C062	DEFM "DISK RETRIEVED"
C070	DEFM "DISK "
C075	DEFM "BONUS: $05000"
C082	DEFM "LEVEL"
C087	DEFM "TOTAL PAY : $"

C094: ?? Movement handler (helicopter?)


C094	LD HL,$7343	counter address
C097	DEC (HL)	decrease counter
C098	JP Z,$BFD5	zero => Escaped; final messages, then Game Over
C09B	LD A,$10
C09D	OUT ($FE),A
C09F	LD HL,$4047
C0A2	LD DE,$4027
C0A5	LD C,$0F
C0A7	PUSH HL
C0A8	PUSH DE
C0A9	LD B,$08
C0AB	PUSH HL
C0AC	PUSH DE
C0AD	PUSH BC
C0AE	LD BC,$0011
C0B1	LDIR
C0B3	POP BC
C0B4	POP DE
C0B5	POP HL
C0B6	INC D
C0B7	INC H
C0B8	DJNZ $C0AB
C0BA	POP DE
C0BB	POP HL
C0BC	PUSH BC
C0BD	LD BC,$0020
C0C0	RR H
C0C2	RR H
C0C4	RR H
C0C6	ADD HL,BC
C0C7	RL H
C0C9	RL H
C0CB	RL H
C0CD	EX DE,HL
C0CE	RR H
C0D0	RR H
C0D2	RR H
C0D4	ADD HL,BC
C0D5	RL H
C0D7	RL H
C0D9	RL H
C0DB	EX DE,HL
C0DC	POP BC
C0DD	DEC C
C0DE	JR NZ,$C0A7
C0E0	XOR A
C0E1	OUT ($FE),A
C0E3	JP $B8D0	=> Update Ninja on tilemap

C0E6: Empty sprite


C0E6	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
C0EE	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
C0F6	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
C0FE	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
C106	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
C10E	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
C116	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
C11E	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF
C126	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF

C12E: Ninja on ladder

Used by the routine at BFBA.
C12E	LD HL,$C3D9	Movement handler for Ninja on ladder
C131	LD ($B8CE),HL
C134	LD HL,$D52E	Sprite Ninja on ladder
C137	LD ($7186),HL	set Ninja sprite address
C13A	JP $C498	=> Move down one tile

C13D: Routine at C13D

Used by the routine at BFBA.
C13D	BIT 1,A
C13F	JR Z,$C154
C141	LD HL,$7239	Ninja direction address
C144	XOR A
C145	CP (HL)	left?
C146	JR Z,$C14B
C148	DEC (HL)
C149	JR $C16E	=> Update Ninja on tilemap
This entry point is used by the routine at C3D9.
C14B	LD HL,$C24B	Movement handler address
C14E	LD DE,$D3DE	Sprite Ninja/Guard walking 1
C151	JP $BFB0	Set movement handler = HL, Ninja sprite = DE
C154	BIT 0,A
C156	JR Z,$C16E
C158	LD HL,$7239	Ninja direction address
C15B	XOR A
C15C	CP (HL)	left?
C15D	JR NZ,$C162
C15F	INC (HL)
C160	JR $C16E	=> Update Ninja on tilemap
This entry point is used by the routine at C3D9.
C162	LD HL,$C1B6	Movement handler address
C165	LD ($B8CE),HL
C168	LD HL,$D3DE	Sprite Ninja/Guard walking 1
C16B	LD ($7186),HL	set Ninja sprite address
This entry point is used by the routines at BF7B, C22F, C24B and C50D.
C16E	JP $B8D0	=> Update Ninja on tilemap

C171: Data block at C171


C171	DEFB $3A,$40,$9C,$FE,$00,$CA,$26,$C2
C179	DEFB $3A,$40,$9C,$3D,$32,$40,$9C,$2A
C181	DEFB $42,$9C,$11,$E2,$FF,$19,$22,$42
C189	DEFB $9C,$CD,$DF,$BB,$CB,$5F,$20,$DD
C191	DEFB $C3,$26,$C2,$3A,$40,$9C,$FE,$0A
C199	DEFB $CA,$26,$C2,$3A,$40,$9C,$3C,$32
C1A1	DEFB $40,$9C,$2A,$42,$9C,$11,$1E,$00
C1A9	DEFB $19,$22,$42,$9C,$CD,$DF,$BB,$CB
C1B1	DEFB $57,$20,$BA,$18,$70

C1B6: Movement handler ?? (B8CE handler)


C1B6	LD A,($9C41)	get Ninja X
C1B9	CP $18	24 ?
C1BB	JP Z,$C2FA	=> Going to room at Right
C1BE	LD HL,($9C42)	get Ninja position in tilemap
C1C1	LD DE,$6648
C1C4	ADD HL,DE
C1C5	LD A,$64
C1C7	CP (HL)
C1C8	JR NC,$C1DA
C1CA	LD HL,$9C40	Ninja Y address
C1CD	DEC (HL)	one row up
C1CE	LD HL,($9C42)	get Ninja position in tilemap
C1D1	LD DE,$FFE2	-30
C1D4	ADD HL,DE
C1D5	LD ($9C42),HL	set Ninja position in tilemap
C1D8	JR $C20D
C1DA	LD DE,$FFE3	-29
C1DD	ADD HL,DE
C1DE	LD A,$64
C1E0	CP (HL)
C1E1	JR NC,$C1EE
C1E3	CALL $BBDF	Read Input
C1E6	BIT 0,A	check RIGHT bit
C1E8	JP Z,$C226	=> Ninja standing
C1EB	JP $B8D0	=> Update Ninja on tilemap
C1EE	LD DE,$003B	+59
C1F1	ADD HL,DE
C1F2	CP (HL)
C1F3	JR C,$C20D
C1F5	DEC HL
C1F6	CP (HL)
C1F7	JR C,$C20D
C1F9	LD HL,($9C42)	get Ninja position in tilemap
C1FC	LD DE,$001E	+30
C1FF	ADD HL,DE
C200	LD ($9C42),HL	set Ninja position in tilemap
C203	LD HL,$9C40	Ninja Y address
C206	INC (HL)	one row down
C207	LD A,(HL)
C208	CP $0A	at the room bottom?
C20A	JP Z,$C604	yes => Going to room Down from current
C20D	LD HL,$9C41	Ninja X address
C210	INC (HL)
C211	LD HL,($9C42)	get Ninja position in tilemap
C214	INC HL	move one tile to right
C215	LD ($9C42),HL	set Ninja position in tilemap
C218	CALL $C5A3	Check for falling
C21B	JP Z,$C643	=> Ninja falling
C21E	CALL $BBDF	Read Input
C221	BIT 0,A	check RIGHT bit
C223	JP NZ,$C2BB

C226: Ninja standing

Used by the routines at BBD4, BDAF, C1B6, C22F, C24B, C3D9, C4DE, C4F6, C5A0 and C6E2.
C226	LD HL,$BC55	Movement handler: Ninja standing
C229	LD DE,$D486	Sprite Ninja/Guard standing
C22C	JP $BFB0	Set movement handler = HL, Ninja sprite = DE

C22F: Movement handler (B8CE handler): Ninja sitting


C22F	CALL $BBDF	Read Input
C232	BIT 2,A	check DOWN bit
C234	JR NZ,$C239	still pressed =>
C236	JP $C226	DOWN key released => stand up
C239	LD HL,($9C42)	get Ninja position in tilemap
C23C	LD DE,$703C
C23F	ADD HL,DE
C240	LD A,$0C
C242	CP (HL)
C243	LD B,$02
C245	CALL Z,$9DD9	=> Decrease Energy by B
C248	JP $C16E	=> Object procedure

C24B: Movement handler (B8CE handler): Ninja walking


C24B	LD A,($9C41)	get Ninja X
C24E	CP $00	at very left?
C250	JP Z,$C319	=> Going to room at Left
C253	LD HL,($9C42)	get Ninja position in tilemap
C256	LD DE,$6645	= $6590 (Tile screen 0) + 181
C259	ADD HL,DE
C25A	LD A,$64
C25C	CP (HL)
C25D	JR NC,$C26F
C25F	LD HL,$9C40	Ninja Y address
C262	DEC (HL)	moving one row up
C263	LD HL,($9C42)	get Ninja position in tilemap
C266	LD DE,$FFE2	-30
C269	ADD HL,DE	one row up
C26A	LD ($9C42),HL	set Ninja position in tilemap
C26D	JR $C2A2
C26F	LD DE,$FFE1	-31
C272	ADD HL,DE
C273	LD A,$64
C275	CP (HL)
C276	JR NC,$C283
C278	CALL $BBDF	Read Input
C27B	BIT 1,A	check LEFT bit
C27D	JP Z,$C226	=> Ninja standing
C280	JP $B8D0	=> Update Ninja on tilemap
C283	LD DE,$003D	+61
C286	ADD HL,DE
C287	CP (HL)
C288	JR C,$C2A2
C28A	INC HL
C28B	CP (HL)
C28C	JR C,$C2A2
C28E	LD HL,($9C42)	get Ninja position in tilemap
C291	LD DE,$001E	+30
C294	ADD HL,DE
C295	LD ($9C42),HL	set Ninja position in tilemap
C298	LD HL,$9C40	Ninja Y address
C29B	INC (HL)	moving one row down
C29C	LD A,(HL)
C29D	CP $0A	at room bottom?
C29F	JP Z,$C604	=> Going to room Down from current
C2A2	LD HL,$9C41	Ninja X address
C2A5	DEC (HL)	moving one tile left
C2A6	LD HL,($9C42)	get Ninja position in tilemap
C2A9	DEC HL	moving one tile left
C2AA	LD ($9C42),HL	set Ninja position in tilemap
C2AD	CALL $C5A3	Check for falling
C2B0	JP Z,$C643	=> Ninja falling
C2B3	CALL $BBDF	Read Input
C2B6	BIT 1,A	check LEFT bit
C2B8	JP Z,$C226	=> Ninja standing
LEFT or RIGHT key pressed
C2BB	BIT 3,A	check for UP bit
C2BD	LD A,$07
C2BF	LD ($7343),A	set counter = 7
C2C2	CALL NZ,$C4E8
C2C5	LD A,($733A)
C2C8	INC A	next walking phase
C2C9	AND $03	0..3
C2CB	LD ($733A),A
C2CE	ADD A,A	* 2
C2CF	LD L,A
C2D0	LD A,$00
C2D2	LD ($A39E),A
C2D5	JR NZ,$C2E8
C2D7	INC A
C2D8	LD ($A39E),A
C2DB	LD C,$FE
C2DD	XOR A
C2DE	LD D,$10
C2E0	LD B,$32
C2E2	OUT (C),D
C2E4	OUT (C),A
C2E6	DJNZ $C2E2
C2E8	LD H,$00
C2EA	LD DE,$733B	Table of four Ninja/Guard walking sprites
C2ED	ADD HL,DE
C2EE	LD DE,$7186	address for Ninja sprite address
C2F1	LD A,(HL)
C2F2	LD (DE),A
C2F3	INC HL
C2F4	INC DE
C2F5	LD A,(HL)
C2F6	LD (DE),A
C2F7	JP $C16E	=> Object procedure

C2FA: Going to room at Right

Used by the routines at C1B6 and C50D.
C2FA	XOR A
C2FB	LD ($9C41),A	set Ninja X = 0
C2FE	LD DE,$FFE8	-24
C301	LD HL,($9C42)
C304	ADD HL,DE	update Ninja position in tilemap
C305	LD ($9C42),HL
C308	LD HL,($7184)	get Current Room address
C30B	LD DE,$0006	offset in Room description
C30E	ADD HL,DE
C30F	LD A,(HL)	get Room Right address low byte
C310	INC HL
C311	LD H,(HL)	get Room Right address high byte
C312	LD L,A
C313	LD ($7184),HL	set Current Room address
C316	JP $B66A	=> Current Room changed

C319: Going to room at Left

Used by the routines at C24B and C50D.
C319	LD A,$18
C31B	LD ($9C41),A	set Ninja X = 24
C31E	LD DE,$0018	+24
C321	LD HL,($9C42)
C324	ADD HL,DE	update Ninja position in tilemap
C325	LD ($9C42),HL
C328	LD HL,($7184)	get Current Room address
C32B	LD DE,$0004	offset in Room description
C32E	ADD HL,DE
C32F	LD A,(HL)	get Room Left address low byte
C330	INC HL
C331	LD H,(HL)	get Room Left address high byte
C332	LD L,A
C333	LD ($7184),HL	set Current Room address
C336	JP $B66A	=> Current Room changed

C339: Movement handler (B8CE handler): Ninja jumping


C339	LD HL,$7343	counter address
C33C	DEC (HL)	decrease counter
C33D	JP NZ,$B8D0	=> Update Ninja on tilemap
C340	LD A,($7239)	get Ninja direction
C343	LD HL,($9C42)	get Ninja position in tilemap
C346	LD DE,$6592	$6592 = $6590 (Tile screen 0) + 2
C349	ADD HL,DE
C34A	CP $00	direction = left ?
C34C	JR NZ,$C361	no =>
C34E	LD A,(HL)
C34F	CP $0C
C351	JR Z,$C3BB
C353	CP $0A
C355	JR Z,$C3BB
C357	CP $08
C359	JR Z,$C3BB
C35B	CP $09
C35D	JR Z,$C3BB
C35F	JR $C368
C361	INC HL
C362	CALL $C392
C365	JR Z,$C3CF
C367	DEC HL
C368	CALL $C392
C36B	JR Z,$C3C6	=> Ninja on ladder
C36D	LD DE,$65CC
C370	LD HL,($9C42)	get Ninja position in tilemap
C373	LD A,($7239)	get Ninja direction
C376	CP $00	left ?
C378	JR Z,$C37D
C37A	LD DE,$65D1
C37D	ADD HL,DE
C37E	LD A,$64
C380	CP (HL)
C381	JP C,$C4D0
C384	LD HL,$C4A7	Movement handler
C387	LD DE,$D4DA	Sprite Ninja/Guard jump-kick
C38A	LD A,$03
C38C	LD ($7343),A	set counter = 3
C38F	JP $BFB0	Set movement handler = HL, Ninja sprite = DE

C392: Check if tile is a ladder

Used by the routines at BFBA, C339 and C3D9.
C392	LD A,(HL)
C393	LD B,$01
C395	CP $05
C397	JR Z,$C3B7
C399	CP $06
C39B	JR Z,$C3B7
C39D	CP $07
C39F	JR Z,$C3B7
C3A1	CP $F6
C3A3	JR Z,$C3B7
C3A5	CP $F1
C3A7	JR Z,$C3B7
C3A9	CP $EF
C3AB	JR Z,$C3B7
C3AD	CP $ED
C3AF	JR Z,$C3B7
C3B1	CP $0C
C3B3	JR Z,$C3B7
C3B5	LD B,$00
C3B7	LD A,$01
C3B9	CP B
C3BA	RET

C3BB: Move LEFT one tile

Used by the routine at C339.
C3BB	LD HL,$9C41	Ninja X address
C3BE	DEC (HL)	one tile to left
C3BF	LD HL,($9C42)	get Ninja position in tilemap
C3C2	DEC HL	move one tile left
This entry point is used by the routine at C3CF.
C3C3	LD ($9C42),HL	set Ninja position in tilemap
Ninja on ladder now
C3C6	LD HL,$C3D9	Movement handler for Ninja on ladder
C3C9	LD DE,$D52E	Sprite Ninja on ladder
C3CC	JP $BFB0	Set movement handler = HL, Ninja sprite = DE

C3CF: Move RIGHT one tile

Used by the routine at C339.
C3CF	LD HL,$9C41	Ninja X address
C3D2	INC (HL)	one tile to right
C3D3	LD HL,($9C42)	get Ninja position in tilemap
C3D6	INC HL	move one tile right
C3D7	JR $C3C3	=> Set Ninja position in tilemap; Ninja on ladder

C3D9: Movement handler (B8CE handler): Ninja on ladder


C3D9	LD HL,($9C42)	get Ninja position in tilemap
C3DC	LD DE,$6647	= $6590 (Tile screen 0) + 183
C3DF	ADD HL,DE
C3E0	LD A,$0C
C3E2	CP (HL)	ladder?
C3E3	JR Z,$C3EC	yes => Read and process Input
C3E5	DEC HL
C3E6	CALL $C392
C3E9	JP NZ,$C226	not ladder => Ninja standing
Read and process Input
C3EC	CALL $BBDF	Read Input
C3EF	BIT 0,A	check RIGHT bit
C3F1	JR Z,$C40E
Pressed RIGHT
C3F3	LD HL,($9C42)	get Ninja position in tilemap
C3F6	LD DE,$6648	= $6590 (Tile screen 0) + 184
C3F9	ADD HL,DE
C3FA	LD A,$64
C3FC	CP (HL)
C3FD	JR C,$C42C
C3FF	LD DE,$001E	+30
C402	ADD HL,DE
C403	CP (HL)
C404	JR NC,$C42C
C406	LD A,$01
C408	LD ($7239),A	set Ninja direction = 1 = right
C40B	JP $C162
Check if LEFT pressed
C40E	BIT 1,A	check LEFT bit
C410	JR Z,$C42C
Pressed LEFT
C412	LD HL,($9C42)	get Ninja position in tilemap
C415	LD DE,$6645	= $6590 (Tile screen 0) + 181
C418	ADD HL,DE
C419	LD A,$64
C41B	CP (HL)
C41C	JR C,$C42C
C41E	LD DE,$001E	+30
C421	ADD HL,DE
C422	CP (HL)
C423	JR NC,$C42C
C425	XOR A
C426	LD ($7239),A	set Ninja direction = 0 = left
C429	JP $C14B
Check if UP pressed
C42C	LD A,($7232)	get Input bits
C42F	BIT 3,A	check UP bit
C431	JR Z,$C477
Pressed UP
C433	LD HL,($9C42)	get Ninja position in tilemap
C436	LD DE,$6647
C439	ADD HL,DE
C43A	LD A,$0C
C43C	CP (HL)
C43D	JR Z,$C447
C43F	DEC HL
C440	CALL $C392
C443	JR Z,$C447
C445	JR $C495	=> Update Ninja on tilemap
C447	LD A,($9C40)	get Ninja Y
C44A	CP $00	top row?
C44C	JP Z,$C623	yes => Going to room Up from current
C44F	LD DE,$FF2E	-210 = 7 rows higher
C452	ADD HL,DE
C453	LD A,$EA
C455	CP (HL)
C456	JR Z,$C495	=> Update Ninja on tilemap
C458	LD A,$FF
C45A	CP (HL)
C45B	JR Z,$C495	=> Update Ninja on tilemap
C45D	LD HL,$9C40	Ninja Y address
C460	DEC (HL)	one row up
C461	LD HL,($9C42)	get Ninja position in tilemap
C464	LD DE,$FFE2	-30
This entry point is used by the routine at C498.
C467	ADD HL,DE
C468	LD ($9C42),HL	set Ninja position in tilemap
C46B	LD A,($7239)	get Ninja direction
C46E	INC A	invert direction
C46F	AND $01
C471	LD ($7239),A	set Ninja direction
C474	JP $B8D0	=> Update Ninja on tilemap
Check if DOWN pressed
C477	BIT 2,A	check DOWN bit
C479	JR Z,$C495	=> Update Ninja on tilemap
Pressed DOWN
C47B	LD A,($9C40)	get Ninja Y
C47E	CP $0A
C480	JP Z,$C604	=> Going to room Down from current
C483	LD HL,($9C42)	get Ninja position in tilemap
C486	LD DE,$6665
C489	ADD HL,DE
C48A	LD A,$0C
C48C	CP (HL)
C48D	JR Z,$C498	=> Move down one tile
C48F	DEC HL
C490	CALL $C392
C493	JR Z,$C498	=> Move down one tile
C495	JP $B8D0	=> Update Ninja on tilemap

C498: Move DOWN one tile

Used by the routines at C12E and C3D9.
C498	LD HL,$9C40	Ninja Y address
C49B	INC (HL)	one tile down
C49C	LD HL,($9C42)	get Ninja position in tilemap
C49F	LD DE,$001E	+30
C4A2	JR $C467	=> set Ninja position = HL, invert direction, Object procedure

C4A4: Routine at C4A4


C4A4	LD A,($7239)	get Ninja direction

C4A7: ?? Movement handler


C4A7	LD HL,$7343	counter address
C4AA	DEC (HL)	decrease counter
C4AB	JP NZ,$B8D0	=> Update Ninja on tilemap
C4AE	LD HL,($9C42)	get Ninja position in tilemap
C4B1	LD DE,$6DC9	value for right dir = $6D88 (Tile screen 4) + 65
C4B4	LD A,($7239)	get Ninja direction
C4B7	CP $01	direction = right?
C4B9	JR Z,$C4BE
C4BB	LD DE,$6DC4	value for left dir = $6D88 (Tile screen 4) + 60
C4BE	ADD HL,DE
C4BF	LD A,(HL)
C4C0	INC A	= $FF ?
C4C1	JR Z,$C4D0
C4C3	LD A,$09
C4C5	LD ($7346),A	set Guard state = $09
C4C8	CALL $B596
C4CB	LD B,$05
C4CD	CALL $B4DE	Increase PAY value by 500 - Guard killed by punch/kick
This entry point is used by the routine at C339.
C4D0	LD HL,$C4DE	Movement handler address
C4D3	LD DE,$D4B0	Sprite Ninja/Guard jumping
C4D6	LD A,$01
C4D8	LD ($7343),A	set counter = 1
C4DB	JP $BFB0	Set movement handler = HL, Ninja sprite = DE

C4DE: ?? Movement handler


C4DE	LD HL,$7343	counter address
C4E1	DEC (HL)	decrease counter
C4E2	JP NZ,$B8D0	=> Update Ninja on tilemap
C4E5	JP $C226	=> Ninja standing

C4E8: Routine at C4E8

Used by the routines at BF7B and C24B.
C4E8	CALL $C57B	Check for ??
C4EB	RET NZ
C4EC	POP HL
C4ED	LD HL,$C4F6	Movement handler address
C4F0	LD DE,$D5AC	Sprite Ninja jumping 3
C4F3	JP $BFB0	Set movement handler = HL, Ninja sprite = DE

C4F6: Movement handler (used in initial room)


C4F6	CALL $C57B	Check for ??
C4F9	JP Z,$C504
C4FC	LD B,$03
C4FE	CALL $9DD9	Decrease Energy by B
C501	JP $C226	=> Ninja standing
C504	LD HL,$C50D	Movement handler address
C507	LD DE,$D5D6	Sprite Ninja jumping 4
C50A	JP $BFB0	Set movement handler = HL, Ninja sprite = DE

C50D: Movement handler ??


C50D	LD A,($7239)	get Ninja direction
C510	CP $00	left?
C512	LD HL,$9C41	Ninja X address
C515	LD A,(HL)
C516	JR NZ,$C56C
C518	CP $00
C51A	JP Z,$C319	=> Going to room at Left
C51D	DEC (HL)
C51E	LD HL,($9C42)	get Ninja position in tilemap
C521	DEC HL
C522	LD ($9C42),HL	set Ninja position in tilemap
C525	CALL $C57B	Check for ??
C528	JR NZ,$C533
C52A	LD HL,$7343	counter address
C52D	DEC (HL)	decrease counter
C52E	JP NZ,$C16E
C531	JR $C538
C533	LD B,$04
C535	CALL $9DD9	Decrease Energy by B
C538	LD DE,$660A
C53B	LD B,$03
C53D	LD HL,($9C42)	get Ninja position in tilemap
C540	ADD HL,DE
C541	LD A,$64
C543	CP (HL)
C544	JR NC,$C558
C546	LD HL,$9C40	Ninja Y address
C549	DEC (HL)
C54A	LD HL,($9C42)	get Ninja position in tilemap
C54D	PUSH DE
C54E	LD DE,$FFE2	-30
C551	ADD HL,DE
C552	POP DE
C553	LD ($9C42),HL	set Ninja position in tilemap
C556	JR $C53D
C558	INC HL
C559	CP (HL)
C55A	JR C,$C546
C55C	LD HL,$001E	+30
C55F	ADD HL,DE
C560	EX DE,HL
C561	DJNZ $C53D
C563	LD HL,$C5A0	Movement handler: switch Ninja to standing
C566	LD DE,$D5AC	Sprite Ninja jumping 3
C569	JP $BFB0	Set movement handler = HL, Ninja sprite = DE
C56C	CP $18
C56E	JP Z,$C2FA	=> Going to room at Right
C571	INC (HL)
C572	LD HL,($9C42)	get Ninja position in tilemap
C575	INC HL
C576	LD ($9C42),HL	set Ninja position in tilemap
C579	JR $C525

C57B: Routine at C57B

Used by the routines at C4E8, C4F6 and C50D.
C57B	LD A,($7239)	get Ninja direction
C57E	LD L,A
C57F	ADD A,A
C580	ADD A,A
C581	ADD A,L	* 5
C582	LD L,A
C583	LD H,$00
C585	LD DE,($9C42)	get Ninja position in tilemap
C589	ADD HL,DE
C58A	LD DE,$6590	Tile screen 0 start address
C58D	ADD HL,DE
C58E	LD BC,$0400
C591	LD DE,$001E	+30
C594	LD A,$64
C596	CP (HL)
C597	JR NC,$C59A
C599	INC C
C59A	ADD HL,DE
C59B	DJNZ $C596
C59D	XOR A
C59E	CP C	now Z=0: falling, Z=1: not falling
C59F	RET

C5A0: Switch Ninja to standing (redirect)


C5A0	JP $C226	=> Ninja standing

C5A3: Check for falling

Used by the routines at BC55, C1B6 and C24B.
C5A3	LD HL,($9C42)	get Ninja position in tilemap
C5A6	LD DE,$00D3
C5A9	ADD HL,DE
C5AA	LD DE,$6590	Tile screen 0 start address
C5AD	ADD HL,DE
C5AE	LD A,($7239)	get Ninja direction
C5B1	LD D,$00	left?
C5B3	LD E,A
C5B4	ADD HL,DE
C5B5	LD B,$03
C5B7	LD C,$00
C5B9	LD A,$64
C5BB	CP (HL)
C5BC	JR NC,$C5C0
C5BE	LD C,$01
C5C0	INC HL
C5C1	DJNZ $C5BB
C5C3	XOR A
C5C4	CP C
C5C5	RET

C5C6: Movement handler: Ninja falling down


C5C6	LD HL,($9C42)	get Ninja position in tilemap
C5C9	LD DE,$001E	+30
C5CC	ADD HL,DE	one row lower
C5CD	LD ($9C42),HL	set Ninja position in tilemap
C5D0	LD HL,$755B	falling counter address
C5D3	INC (HL)	increase falling counter
C5D4	LD HL,$9C40	Ninja Y address
C5D7	INC (HL)	increase Ninja Y
C5D8	LD A,(HL)	get Ninja Y
C5D9	CP $0A	at room bottom?
C5DB	JR Z,$C604	=> Going to room Down from current
C5DD	LD HL,($9C42)	get Ninja position in tilemap
C5E0	LD DE,$6664
C5E3	ADD HL,DE
C5E4	LD A,$64
C5E6	CP (HL)
C5E7	JR C,$C5EE
C5E9	INC HL
C5EA	CP (HL)
C5EB	JP NC,$B8D0	=> Update Ninja on tilemap
Ninja hit somehting after falling
C5EE	LD A,$01
C5F0	LD ($A39E),A
C5F3	LD HL,$755B	falling counter address
C5F6	LD B,(HL)	get counter value
C5F7	LD (HL),$00	clear falling counter
C5F9	CALL $9DD9	Decrease Energy by B
C5FC	LD B,$32
C5FE	CALL $B59E
C601	JP $BFCC	=> Ninja sitting now

C604: Going to room Down from current

Used by the routines at C1B6, C24B, C3D9 and C5C6.
C604	XOR A
C605	LD ($9C40),A	set Ninja Y = 0
C608	LD HL,($9C42)	get Ninja position in tilemap
C60B	LD DE,$FED4	-300
C60E	ADD HL,DE	10 rows higher
C60F	LD ($9C42),HL	set Ninja position in tilemap
C612	LD HL,($7184)	get Current Room address
C615	LD DE,$000A	offset in room description
C618	ADD HL,DE	now HL = room address + 10
C619	LD A,(HL)	get Room Down address low byte
C61A	INC HL
C61B	LD H,(HL)	get Room Down address high byte
C61C	LD L,A
C61D	LD ($7184),HL	set Current Room address
C620	JP $B66A	=> Current Room changed

C623: Going to room Up from current

Used by the routine at C3D9.
C623	LD A,$0A
C625	LD ($9C40),A	set Ninja Y = 10
C628	LD HL,($9C42)	get Ninja position in tilemap
C62B	LD DE,$012C	+300
C62E	ADD HL,DE	10 rows lower
C62F	LD ($9C42),HL	set Ninja position in tilemap
C632	LD HL,($7184)	get Current Room address
C635	LD DE,$0008	offset in room description
C638	ADD HL,DE	now HL = room address + 8
C639	LD A,(HL)	get Room Up address low byte
C63A	INC HL
C63B	LD H,(HL)	get Room Up address high byte
C63C	LD L,A
C63D	LD ($7184),HL	set Current Room address
C640	JP $B66A	=> Current Room changed

C643: Ninja falling

Used by the routines at BC55, C1B6 and C24B.
C643	LD HL,$C5C6	Movement handler address: Ninja falling
C646	LD DE,$D582	Sprite Ninja falling
C649	JP $BFB0	Set movement handler = HL, Ninja sprite = DE

C64C: Room 791E (room with pier) initialization


C64C	LD HL,$C65A
C64F	LD DE,$666C	= $6590 (Tile screen 0) + 220
C652	LD BC,$0011	17
C655	LDIR	copy bytes to Background
C657	JP $B724	=> Finish room initialization

C65A: Data for room with pier


C65A	DEFB $E3,$E3,$E3,$F6,$F6,$E3,$E3,$E3
C662	DEFB $F6,$F6,$E3,$E3,$E3,$E3,$E3,$E3
C66A	DEFB $E3

C66B: Guard data for rooms 7C9C/92EF


C66B	DEFB $0E,$00,$0E,$00,$04,$00

C671: Room 93DF/947C (room right from Train) initialization


C671	LD HL,$947C	room 947C at left of Train 1
C674	LD ($7CA0),HL	set "room to left" for room 7C9C
C677	LD HL,$93DF	room 93DF at right of Train 1
C67A	LD ($7CA2),HL	set "room to right" for room 7C9C
C67D	LD A,$6C	tile for "1" sign
C67F	JR $C68F

C681: Room 982B initialization


C681	LD HL,$9A1E	room 9A1E at left of Train 2
C684	LD ($7CA0),HL	set "room to left" for room 7C9C
C687	LD HL,$982B	room 982B at right of Train 2
C68A	LD ($7CA2),HL	set "room to right" for room 7C9C
C68D	LD A,$75	tile for "2" sign
Fill 3x3 block with tile for "1"/"2" sign
C68F	LD HL,$7D20
C692	LD DE,$0003
C695	LD C,$03
C697	LD B,$03
C699	LD (HL),A
C69A	INC HL
C69B	INC A
C69C	DJNZ $C699
C69E	ADD HL,DE
C69F	DEC C
C6A0	JR NZ,$C697
C6A2	JP $B724	=> Finish room initialization

C6A5: Room 7C9C procedure (tunnel Train)


C6A5	LD A,($9C41)	get Ninja X
C6A8	CP $0C
C6AA	JP NZ,$B937	=> Standard room procedure
C6AD	LD A,$4B
C6AF	LD ($7343),A	set counter = 75
C6B2	LD DE,($9C42)	get Ninja position in tilemap
C6B6	LD A,($9C41)	get Ninja X
C6B9	INC A
C6BA	LD B,A
C6BB	INC DE
C6BC	LD HL,$C70C	Movement handler: Train moving right
C6BF	LD A,($7239)	get Ninja direction
C6C2	CP $00	left?
C6C4	JR NZ,$C6CD	right =>
C6C6	LD HL,$C6E2	Movement handler: Train moving left
C6C9	DEC B
C6CA	DEC B
C6CB	DEC DE
C6CC	DEC DE
C6CD	LD A,B
C6CE	LD ($9C41),A	set Ninja X
C6D1	LD ($9C42),DE	set Ninja position in tilemap
C6D5	LD DE,$D486	Sprite Ninja/Guard standing
C6D8	LD ($7186),DE	set Ninja sprite
C6DC	LD ($B8CE),HL	set Movement handler
C6DF	JP $B937	=> Standard room procedure

C6E2: Movement handler (B8CE handler): Train moving left


C6E2	LD B,$02
C6E4	LD DE,$676F
C6E7	LD HL,$676E
C6EA	PUSH BC
C6EB	LD BC,$001D
C6EE	LD A,(DE)
C6EF	LDDR
C6F1	LD (DE),A
C6F2	POP BC
C6F3	DJNZ $C6E4
This entry point is used by the routine at C70C.
C6F5	LD HL,$6950
C6F8	LD DE,$6951
C6FB	LD (HL),$01
C6FD	LD BC,$001D
C700	LDIR
C702	LD HL,$7343	counter address
C705	DEC (HL)	decrease counter
C706	JP Z,$C226	=> Ninja standing
C709	JP $B8D0	=> Update Ninja on tilemap

C70C: Movement handler (B8CE handler): Train moving right


C70C	LD B,$02
C70E	LD DE,$6752
C711	LD HL,$6753
C714	PUSH BC
C715	LD BC,$001D
C718	LD A,(DE)
C719	LDIR
C71B	LD (DE),A
C71C	POP BC
C71D	DJNZ $C70E
C71F	JR $C6F5

C721: Font



C721	DEFB $00,$00,$00,$00,$00,$00,$00,$00	' '
C729	DEFB $00,$10,$10,$10,$10,$00,$10,$00	'!'
C731	DEFB $00,$24,$24,$00,$00,$00,$00,$00	'"'
C739	DEFB $00,$24,$7E,$24,$24,$7E,$24,$00	'#'
C741	DEFB $00,$08,$3E,$28,$3E,$0A,$3E,$08	'$'
C749	DEFB $00,$62,$64,$08,$10,$26,$46,$00	'%'
C751	DEFB $00,$10,$28,$10,$2A,$44,$3A,$00	'&'
C759	DEFB $00,$08,$10,$00,$00,$00,$00,$00	'''
C761	DEFB $00,$04,$08,$08,$08,$08,$04,$00	'('
C769	DEFB $00,$20,$10,$10,$10,$10,$20,$00	')'
C771	DEFB $00,$00,$14,$08,$3E,$08,$14,$00	'*'
C779	DEFB $00,$00,$08,$08,$3E,$08,$08,$00	'+'
C781	DEFB $00,$00,$00,$00,$00,$08,$08,$10	','
C789	DEFB $00,$00,$00,$00,$3E,$00,$00,$00	'-'
C791	DEFB $00,$00,$00,$00,$00,$18,$18,$00	'.'
C799	DEFB $00,$00,$02,$04,$08,$10,$20,$00	'/'
C7A1	DEFB $00,$7E,$42,$42,$46,$46,$7E,$00	'0'
C7A9	DEFB $00,$08,$08,$08,$18,$18,$18,$00	'1'
C7B1	DEFB $00,$7E,$02,$02,$7E,$60,$7E,$00	'2'
C7B9	DEFB $00,$7E,$02,$1E,$06,$06,$7E,$00	'3'
C7C1	DEFB $00,$42,$42,$7E,$06,$06,$06,$00	'4'
C7C9	DEFB $00,$7E,$40,$7E,$06,$06,$7E,$00	'5'
C7D1	DEFB $00,$7E,$40,$7E,$46,$46,$7E,$00	'6'
C7D9	DEFB $00,$7E,$02,$02,$06,$06,$06,$00	'7'
C7E1	DEFB $00,$7E,$42,$7E,$46,$46,$7E,$00	'8'
C7E9	DEFB $00,$7E,$42,$7E,$06,$06,$06,$00	'9'
C7F1	DEFB $00,$00,$00,$10,$00,$00,$10,$00	':'
C7F9	DEFB $00,$00,$10,$00,$00,$10,$10,$20	';'
C801	DEFB $00,$00,$04,$08,$10,$08,$04,$00	'<'
C809	DEFB $00,$00,$00,$3E,$00,$3E,$00,$00	'='
C811	DEFB $00,$00,$10,$08,$04,$08,$10,$00	'>'
C819	DEFB $00,$3C,$42,$04,$08,$00,$08,$00	'?'
C821	DEFB $00,$3C,$4A,$56,$5E,$40,$3C,$00	'@'
C829	DEFB $00,$7E,$42,$42,$7E,$46,$46,$00	'A'
C831	DEFB $00,$7C,$42,$7C,$46,$46,$7C,$00	'B'
C839	DEFB $00,$7E,$40,$40,$60,$60,$7E,$00	'C'
C841	DEFB $00,$7C,$42,$42,$46,$46,$7C,$00	'D'
C849	DEFB $00,$7E,$40,$7E,$60,$60,$7E,$00	'E'
C851	DEFB $00,$7E,$40,$7E,$60,$60,$60,$00	'F'
C859	DEFB $00,$7E,$42,$40,$4E,$46,$7E,$00	'G'
C861	DEFB $00,$42,$42,$7E,$46,$46,$46,$00	'H'
C869	DEFB $00,$08,$08,$08,$18,$18,$18,$00	'I'
C871	DEFB $00,$02,$02,$02,$46,$46,$7E,$00	'J'
C879	DEFB $00,$42,$42,$7E,$4C,$4C,$4C,$00	'K'
C881	DEFB $00,$40,$40,$40,$40,$40,$7E,$00	'L'
C889	DEFB $00,$7E,$52,$52,$56,$56,$56,$00	'M'
C891	DEFB $00,$72,$52,$52,$56,$56,$5E,$00	'N'
C899	DEFB $00,$7E,$42,$42,$46,$46,$7E,$00	'O'
C8A1	DEFB $00,$7E,$42,$42,$7E,$60,$60,$00	'P'
C8A9	DEFB $00,$7E,$42,$42,$4E,$4E,$7F,$07	'Q'
C8B1	DEFB $00,$7E,$42,$42,$7E,$4C,$4C,$00	'R'
C8B9	DEFB $00,$7E,$40,$7E,$06,$06,$7E,$00	'S'
C8C1	DEFB $00,$7E,$08,$08,$18,$18,$18,$00	'T'
C8C9	DEFB $00,$42,$42,$42,$46,$46,$7E,$00	'U'
C8D1	DEFB $00,$42,$42,$42,$2C,$2C,$18,$00	'V'
C8D9	DEFB $00,$52,$52,$52,$56,$56,$7E,$00	'W'
C8E1	DEFB $00,$42,$24,$18,$18,$2C,$46,$00	'X'
C8E9	DEFB $00,$42,$42,$7E,$18,$18,$18,$00	'Y'
C8F1	DEFB $00,$7E,$02,$7E,$60,$60,$7E,$00	'Z'

C8F9: Data block at C8F9


C8F9	DEFM " "
C8FA	DEFB $6D,$C2,$CE
C8FD	DEFM "X2LD "
C90A	DEFB $44,$C2,$CE
C90D	DEFM "DLDC "
C91A	DEFB $38,$C2,$CB
C91D	DEFM "ICKP "
C92A	DEFB $28,$C3,$CE
C92D	DEFM "DEDG "
C93A	DEFB $4E,$C3,$CE
C93D	DEFM "KICR "
C94A	DEFB $FE,$C1,$CC
C94D	DEFM "ADUP "
C95A	DEFB $47,$C2,$CC
C95D	DEFM "AD2R "
C96A	DEFB $50,$C2,$CE
C96D	DEFM "LADR "
C97A	DEFB $E9,$C1,$CC
C97D	DEFM "AD2L "
C98A	DEFB $3C,$C2,$CE
C98D	DEFM "LADL "
C99A	DEFB $E2,$C1,$C6
C99D	DEFM "TFLL "
C9AA	DEFB $63,$C1,$CE
C9AD	DEFM "FTFL "
C9BA	DEFB $69,$C1,$CC
C9BD	DEFM "OIUT "
C9CA	DEFB $04,$C1,$CA
C9CD	DEFM "AK "
C9DA	DEFB $23,$C1,$CA
C9DD	DEFM "AKE2 "
C9EA	DEFB $F0,$C0,$CC
C9ED	DEFM "EFSC "
C9FA	DEFB $9A,$C1,$D3
C9FD	DEFM "TCRH "
CA0A	DEFB $C9,$C0,$CC
CA0D	DEFM "EGP "
CA1A	DEFB $3C,$C1,$C4
CA1D	DEFM "NSCR "
CA2A	DEFB $9D,$C4,$CC
CA2D	DEFM "OIUY "
CA3A	DEFB $7E,$C0,$CA
CA3D	DEFM "AKSN "
CA4A	DEFB $9D,$C0,$CA
CA4D	DEFM "AKS2 "
CA5A	DEFB $6A,$C0,$D2
CA5D	DEFM "ITSC "
CA6A	DEFB $7B,$C1,$C4
CA6D	DEFM "OWNP "
CA7A	DEFB $24,$C0,$D5
CA7D	DEFM "PP "
CA8A	DEFB $01,$C0,$D2
CA8D	DEFM "ITEP "
CA9A	DEFB $46,$C0,$CE
CA9D	DEFM "TRN2 "
CAAA	DEFB $F2,$BF,$CC
CAAD	DEFM "EFTP "
CABA	DEFB $CC,$C0,$CE
CABD	DEFM "TRN1 "
CACA	DEFB $DB,$BF,$CE
CACD	DEFM "LEFT "
CADA	DEFB $E4,$BF,$CC
CADD	DEFM "ADDD "
CAEA	DEFB $19,$C3,$CC
CAED	DEFM "ADDP "
CAFA	DEFB $5A,$C2,$CE
CAFD	DEFM " "
CB0A	DEFB $FF,$FF,$C3
CB0D	DEFM "PLP1 "
CB1A	DEFB $3B,$BF,$C3
CB1D	DEFM "PLP2 "
CB2A	DEFB $37,$BF,$C3
CB2D	DEFM "RUTP "
CB3A	DEFB $BF,$C0,$D3
CB3D	DEFM "QUSH "
CB4A	DEFB $16,$BF,$C4
CB4D	DEFM "NTPL "
CB5A	DEFB $BE,$BF,$C3
CB5D	DEFM "MPLD "
CB6A	DEFB $13,$C2,$CE
CB6D	DEFM "DOWN "
CB7A	DEFB $CD,$BF,$CA
CB7D	DEFM "UMPP "
CB8A	DEFB $BA,$C1,$CE
CB8D	DEFM "DRTY "
CB9A	DEFB $EF,$BE,$CC
CB9D	DEFM "EAPR "
CBAA	DEFB $66,$C3,$CE
CBAD	DEFM "BDEE "
CBBA	DEFB $EA,$BE,$CE
CBBD	DEFM "RITE "
CBCA	DEFB $FE,$BF,$CE
CBCD	DEFM "ONIN "
CBDA	DEFB $76,$BF,$C6
CBDD	DEFM "LYP "
CBEA	DEFB $24,$BF,$C3
CBED	DEFM "OD98 "
CBFA	DEFB $A0,$BE,$C3
CBFD	DEFM "OD99 "
CC0A	DEFB $82,$BE,$C8
CC0D	DEFM "ANGR "
CC1A	DEFB $73,$BE,$CE
CC1D	DEFM "COPT "
CC2A	DEFB $C5,$BE,$CE
CC2D	DEFM "UP "
CC3A	DEFB $04,$BF,$CE
CC3D	DEFM "DDG2 "
CC4A	DEFB $3B,$BE,$CE
CC4D	DEFM "PGRD "
CC5A	DEFB $2C,$BE,$D4
CC5D	DEFM "HROP "
CC6A	DEFB $19,$BE,$C2
CC6D	DEFM "UNGD "
CC7A	DEFB $0C,$BE,$C2
CC7D	DEFM "UNGU "
CC8A	DEFB $05,$BE,$CE
CC8D	DEFM "LFTH "
CC9A	DEFB $F7,$BD,$C3
CC9D	DEFM "OD3 "
CCAA	DEFB $D4,$BD,$D0
CCAD	DEFM "UNCH "
CCBA	DEFB $1C,$BE,$C3
CCBD	DEFM "OD22 "
CCCA	DEFB $8B,$BD,$CE
CCCD	DEFM "NEAR "
CCDA	DEFB $A1,$BD,$D0
CCDD	DEFM "ROGO "
CCEA	DEFB $93,$BD,$CE
CCED	DEFM "FIRE "
CCFA	DEFB $44,$BE,$C6
CCFD	DEFM "ALLN "
CD0A	DEFB $DC,$C4,$C6
CD0D	DEFM "ALLQ "
CD1A	DEFB $22,$C4,$CE
CD1D	DEFM "DGLN "
CD2A	DEFB $60,$BD,$C7
CD2D	DEFM "LANS "
CD3A	DEFB $41,$BD,$CE
CD3D	DEFM "GLAN "
CD4A	DEFB $5B,$BD,$D3
CD4D	DEFM "TANP "
CD5A	DEFB $39,$BD,$D4
CD5D	DEFM "BFST "
CD6A	DEFB $34,$BD,$C3
CD6D	DEFM "HRLP "
CD7A	DEFB $D6,$BC,$CC
CD7D	DEFM "LLP2 "
CD8A	DEFB $BF,$BC,$CE
CD8D	DEFM "BROT "
CD9A	DEFB $CE,$BC,$CC
CD9D	DEFM "OIP2 "
CDAA	DEFB $86,$BC,$C7
CDAD	DEFM "DDIS "
CDBA	DEFB $45,$C4,$D1
CDBD	DEFM "LLP1 "
CDCA	DEFB $53,$BC,$C4
CDCD	DEFM "GDIS "
CDDA	DEFB $56,$C4,$D3
CDDD	DEFM "CRCB "
CDEA	DEFB $6B,$BC,$D2
CDED	DEFM "EVQ "
CDFA	DEFB $23,$BD,$CC
CDFD	DEFM "LLP1 "
CE0A	DEFB $1F,$BC,$C3
CE0D	DEFM "OLOK "
CE1A	DEFB $07,$BC,$CB
CE1D	DEFM "NOB "
CE2A	DEFB $10,$BC,$C2
CE2D	DEFM "CLP1 "
CE3A	DEFB $D4,$BB,$C2
CE3D	DEFM "CHRS "
CE4A	DEFB $00,$F7,$C6
CE4D	DEFM "TJMP "
CE5A	DEFB $DB,$BB,$C8
CE5D	DEFM "IDFT "
CE6A	DEFB $BF,$BB,$C6
CE6D	DEFM "OTS1 "
CE7A	DEFB $DE,$BB,$CE
CE7D	DEFM "DRAW "
CE8A	DEFB $E4,$BC,$C4
CE8D	DEFM "LP2 "
CE9A	DEFB $AA,$BB,$C4
CE9D	DEFM "LP1 "
CEAA	DEFB $A8,$BB,$D3
CEAD	DEFM "ETIN "
CEBA	DEFB $6C,$BB,$CE
CEBD	DEFM "TKEY "
CECA	DEFB $6E,$BB,$CC
CECD	DEFM "OPQ1 "
CEDA	DEFB $5A,$BB,$CF
CEDD	DEFM "K "
CEEA	DEFB $50,$BB,$CB
CEED	DEFM "EYBD "
CEFA	DEFB $55,$BB,$D3
CEFD	DEFM "TN "
CF0A	DEFB $B6,$C0,$CB
CF0D	DEFM "EY "
CF1A	DEFB $46,$BB,$D0
CF1D	DEFM "UNCP "
CF2A	DEFB $3B,$BB,$CC
CF2D	DEFM "OPP2 "
CF3A	DEFB $32,$BB,$CC
CF3D	DEFM "OPP1 "
CF4A	DEFB $30,$BB,$CE
CF4D	DEFM "LEFE "
CF5A	DEFB $E3,$BA,$CE
CF5D	DEFM "RTED "
CF6A	DEFB $D9,$BA,$CE
CF6D	DEFM "TOPE "
CF7A	DEFB $D1,$BA,$CE
CF7D	DEFM "BOTE "
CF8A	DEFB $C0,$BA,$D0
CF8D	DEFM "IXX2 "
CF9A	DEFB $96,$BA,$D0
CF9D	DEFM "IXEX "
CFAA	DEFB $93,$BA,$C3
CFAD	DEFM "OD31 "
CFBA	DEFB $57,$BA,$D0
CFBD	DEFM "IXTB "
CFCA	DEFB $29,$BA,$C3
CFCD	DEFM "ENAT "
CFDA	DEFB $1F,$BA,$C3
CFDD	DEFM "OD37 "
CFEA	DEFB $0F,$BA,$C3
CFED	DEFM "OD36 "
CFFA	DEFB $0C,$BA,$C8
CFFD	DEFM "ITE3 "
D00A	DEFB $07,$BA,$C1
D00D	DEFM "TEXP "
D01A	DEFB $04,$BA,$C3
D01D	DEFM "OD39 "
D02A	DEFB $DD,$B9,$C3
D02D	DEFM "OD33 "
D03A	DEFB $D9,$B9,$C3
D03D	DEFM "OD32 "
D04A	DEFB $D5,$B9,$C8
D04D	DEFM "ITE2 "
D05A	DEFB $D3,$B9,$C4
D05D	DEFM "ATAX "
D06A	DEFB $D0,$B9,$C5
D06D	DEFM "XPLO "
D07A	DEFB $E5,$AB,$D0
D07D	DEFM "XEXP "
D08A	DEFB $CD,$B9,$C3
D08D	DEFM "OD35 "
D09A	DEFB $AE,$B9,$C3
D09D	DEFM "OD34 "
D0AA	DEFB $AB,$B9,$C8
D0AD	DEFM "ITE1 "
D0BA	DEFB $A9,$B9,$C4
D0BD	DEFM "REXP "
D0CA	DEFB $A6,$B9,$C3
D0CD	DEFM "OD10 "
D0DA	DEFB $90,$B9,$CE
D0DD	DEFM "THGD "
D0EA	DEFB $75,$B9,$CE
D0ED	DEFM "THDD "
D0FA	DEFB $5E,$B9,$CF
D0FD	DEFM "BEXP "
D10A	DEFB $4B,$BA,$CF
D10D	DEFM "BOFS "
D11A	DEFB $0E,$BB,$CE
D11D	DEFM "DMV1 "
D12A	DEFB $11,$B9,$CE
D12D	DEFM "DNTH "
D13A	DEFB $ED,$B8,$CE
D13D	DEFM "UPTH "
D14A	DEFB $E3,$B8,$D2
D14D	DEFM "MDOB "
D15A	DEFB $15,$BB,$CE
D15D	DEFM "DMVO "
D16A	DEFB $9C,$B9,$CE
D16D	DEFM "XTHR "
D17A	DEFB $D3,$B8,$CC
D17D	DEFM "OOPO "
D18A	DEFB $C1,$B8,$C4
D18D	DEFM "ELAY "
D19A	DEFB $A1,$B8,$CC
D19D	DEFM "PPP2 "
D1AA	DEFB $8F,$B8,$CC
D1AD	DEFM "PPP1 "
D1BA	DEFB $8D,$B8,$C5
D1BD	DEFM "NDRF P "
D1CE	DEFB $70,$B7,$C9
D1D1	DEFM "NITB "
D1DE	DEFB $7F,$B7,$C3
D1E1	DEFM "LOSP "
D1EE	DEFB $60,$B7,$C5
D1F1	DEFM "NDNR "
D1FE	DEFB $D1,$B7,$C3
D201	DEFM "OD21 "
D20E	DEFB $54,$B7

D210: Table of 35 records, 2 bytes each, see B851


D210	DEFB $04,$CE,$09,$63,$09,$63,$09,$63,$09,$63
D21A	DEFB $09,$63,$09,$63,$09,$D4,$05,$D0,$05,$D0
D224	DEFB $05,$D0,$06,$D2,$08,$D6,$02,$CA,$03,$CC
D22E	DEFB $05,$D0,$05,$D0,$05,$D0,$03,$CC,$02,$CA
D238	DEFB $02,$CA,$03,$CC,$02,$CA,$06,$D2,$02,$CA
D242	DEFB $06,$D2,$02,$CA,$03,$CC,$03,$CC,$03,$CC
D24C	DEFB $04,$CE,$04,$CE,$04,$CE,$04,$CE,$04,$CE

D256: Table ?? objects, 35 records, 7-byte records


+$04: Object tile +$05/$06: Object procedure, or $0000
D256	DEFW $6F02	Object ?? 00
D258	DEFB $58,$04,$CE
D25B	DEFW $0000
D25D	DEFW $6664	Object: Console in room 80F6
D25F	DEFB $7C,$09,$63
D262	DEFW $B320	Object procedure: flip trigger "D": set/remove wall in room 9739
D264	DEFW $6664	Object: Console in room 99A6
D266	DEFB $7D,$09,$63
D269	DEFW $B32A	Object procedure: flip trigger "E": set/remove wall in room 97A6
D26B	DEFW $6664	Object: Console in room 92A7
D26D	DEFB $7E,$09,$63
D270	DEFW $B348	Object procedure: flip trigger "A": set/remove wall in room 7F48
D272	DEFW $6664	Object: Console in room 92EF
D274	DEFB $7F,$09,$63
D277	DEFW $B334	Object procedure: flip trigger "C": set/remove wall in room 8D5C
D279	DEFW $6664	Object: Console in room 9005
D27B	DEFB $80,$09,$63
D27E	DEFW $B33E	Object procedure: flip trigger "B": set/remove wall in room 8F20
D280	DEFW $6FE2	Object ?? 06
D282	DEFB $1F,$09,$63
D285	DEFW $B8D0	Object procedure "Update Ninja on tilemap"
D287	DEFW $6669	Object ?? 07 Diskette
D289	DEFB $9C,$09,$D4
D28C	DEFW $0000
D28E	DEFW $659B	Object ?? 08
D290	DEFB $9A,$05,$D0
D293	DEFW $0000
D295	DEFW $6750	Object ?? 09
D297	DEFB $38,$05,$D0
D29A	DEFW $0000
D29C	DEFW $6664	Object ?? 10
D29E	DEFB $81,$05,$D0
D2A1	DEFW $0000
D2A3	DEFW $6664	Object ?? 11
D2A5	DEFB $65,$06,$D2
D2A8	DEFW $0000
D2AA	DEFW $6664	Object ?? 12 BOMB ??
D2AC	DEFB $66,$08,$D6
D2AF	DEFW $0000
D2B1	DEFW $6664	Object ?? 13
D2B3	DEFB $67,$02,$CA
D2B6	DEFW $0000
D2B8	DEFW $6664	Object ?? 14
D2BA	DEFB $68,$03,$CC
D2BD	DEFW $0000
D2BF	DEFW $6664	Object ?? 15
D2C1	DEFB $69,$05,$D0
D2C4	DEFW $0000
D2C6	DEFW $6664	Object ?? 16
D2C8	DEFB $6A,$05,$D0
D2CB	DEFW $0000
D2CD	DEFW $6664	Object ?? 17
D2CF	DEFB $6B,$05,$D0
D2D2	DEFW $0000
D2D4	DEFW $6664	Object ?? 18
D2D6	DEFB $6C,$03,$CC
D2D9	DEFW $0000
D2DB	DEFW $6664	Object ?? 19
D2DD	DEFB $6D,$02,$CA
D2E0	DEFW $0000
D2E2	DEFW $6664	Object ?? 20
D2E4	DEFB $6D,$02,$CA
D2E7	DEFW $0000
D2E9	DEFW $6664	Object ?? 21
D2EB	DEFB $6E,$03,$CC
D2EE	DEFW $0000
D2F0	DEFW $6664	Object ?? 22
D2F2	DEFB $6F,$02,$CA
D2F5	DEFW $0000
D2F7	DEFW $6664	Object ?? 23
D2F9	DEFB $70,$06,$D2
D2FC	DEFW $0000
D2FE	DEFW $6664	Object ?? 24
D300	DEFB $71,$02,$CA
D303	DEFW $0000
D305	DEFW $6664	Object ?? 25
D307	DEFB $72,$06,$D2
D30A	DEFW $0000
D30C	DEFW $6664	Object ?? 26
D30E	DEFB $73,$02,$CA
D311	DEFW $0000
D313	DEFW $6664	Object ?? 27
D315	DEFB $74,$03,$CC
D318	DEFW $0000
D31A	DEFW $6664	Object ?? 28
D31C	DEFB $75,$03,$CC
D31F	DEFW $0000
D321	DEFW $6664	Object ?? 29
D323	DEFB $76,$03,$CC
D326	DEFW $0000
D328	DEFW $6664	Object ?? 30
D32A	DEFB $77,$04,$CE
D32D	DEFW $0000
D32F	DEFW $6664	Object ?? 31
D331	DEFB $78,$04,$CE
D334	DEFW $0000
D336	DEFW $6664	Object ?? 32
D338	DEFB $79,$04,$CE
D33B	DEFW $0000
D33D	DEFW $6664	Object ?? 33
D33F	DEFB $7A,$04,$CE
D342	DEFW $0000
D344	DEFW $6664	Object ?? 34
D346	DEFB $7B,$04,$CE
D349	DEFB $00,$00

D34B: Data block at D34B


D34B	DEFW $6664

D34D: Table of objects, 35 records, 5 bytes each


+$00/$01: room address +$02/$03: address in Tile screen 0 +$04: tile byte
D34D	DEFW $9ED9,$66DF
D351	DEFB $81
D352	DEFW $9E22,$671C
D356	DEFB $65
D357	DEFW $9E22,$672E	BOMB, placement depends on Level
D35B	DEFB $66
D35C	DEFW $990D,$6787
D360	DEFB $67
D361	DEFW $8D5C,$6767
D365	DEFB $68
D366	DEFW $8EE1,$675E
D36A	DEFB $69
D36B	DEFW $889F,$66DC
D36F	DEFB $6A
D370	DEFW $890E,$6699
D374	DEFB $6B
D375	DEFW $8CC8,$6782
D379	DEFB $6C
D37A	DEFW $8739,$66AA	#10
D37E	DEFB $6D
D37F	DEFW $8799,$6757
D383	DEFB $6E
D384	DEFW $913F,$6782
D388	DEFB $6F
D389	DEFW $8321,$6777
D38D	DEFB $70
D38E	DEFW $8162,$6782
D392	DEFB $71
D393	DEFW $7EF2,$6788
D397	DEFB $72
D398	DEFW $7F48,$6744
D39C	DEFB $73
D39D	DEFW $7C6D,$6747
D3A1	DEFB $74
D3A2	DEFW $7A9E,$675D
D3A6	DEFB $75
D3A7	DEFW $7A9E,$6767
D3AB	DEFB $76
D3AC	DEFW $7A9E,$6769	#20
D3B0	DEFB $77
D3B1	DEFW $7AF8,$6785
D3B5	DEFB $78
D3B6	DEFW $7AF8,$6786
D3BA	DEFB $79
D3BB	DEFW $9376,$673B
D3BF	DEFB $7A
D3C0	DEFW $79C6,$6785
D3C4	DEFB $7B
D3C5	DEFW $80F6,$6773	Console in room 80F6
D3C9	DEFB $7C
D3CA	DEFW $99A6,$6783	Console in room 99A6
D3CE	DEFB $7D
D3CF	DEFW $92A7,$675D	Console in room 92A7, see D26B
D3D3	DEFB $7E
D3D4	DEFW $92EF,$6668	Console in room 92EF
D3D8	DEFB $7F
D3D9	DEFW $9005,$66B5	Console in room 9005
D3DD	DEFB $80

D3DE: Ninja/Guard sprites


Most of Ninja sprites are also Guard sprites, A775 procedure and A787 table used to translate Ninja tiles into Guard tiles. Sprite Ninja/Guard walking 1
D3DE	DEFB $FF,$FF,$FF,$FF,$FF,$FF
D3E4	DEFB $FF,$FF,$FF,$FF,$FF,$FF
D3EA	DEFB $FF,$FF,$4F,$50,$51,$FF
D3F0	DEFB $FF,$FF,$52,$53,$54,$FF
D3F6	DEFB $FF,$FF,$55,$56,$57,$FF
D3FC	DEFB $FF,$FF,$58,$59,$FF,$FF
D402	DEFB $FF,$5A,$5B,$5C,$FF,$FF
Sprite Ninja/Guard walking 2
D408	DEFB $FF,$FF,$FF,$FF,$FF,$FF
D40E	DEFB $FF,$FF,$FF,$FF,$FF,$FF
D414	DEFB $FF,$FF,$4F,$50,$51,$FF
D41A	DEFB $FF,$FF,$52,$53,$54,$FF
D420	DEFB $FF,$FF,$55,$5E,$5F,$FF
D426	DEFB $FF,$FF,$60,$61,$62,$FF
D42C	DEFB $FF,$FF,$63,$64,$FF,$FF
Sprite Ninja/Guard walking 3
D432	DEFB $FF,$FF,$FF,$FF,$FF,$FF
D438	DEFB $FF,$FF,$FF,$FF,$FF,$FF
D43E	DEFB $FF,$FF,$4F,$50,$51,$FF
D444	DEFB $FF,$FF,$52,$53,$54,$FF
D44A	DEFB $FF,$FF,$5D,$65,$66,$FF
D450	DEFB $FF,$FF,$67,$68,$69,$FF
D456	DEFB $FF,$6A,$6B,$6C,$FF,$FF
Sprite Ninja/Guard walking 4
D45C	DEFB $FF,$FF,$FF,$FF,$FF,$FF
D462	DEFB $FF,$FF,$FF,$FF,$FF,$FF
D468	DEFB $FF,$FF,$4F,$50,$51,$FF
D46E	DEFB $FF,$FF,$52,$53,$54,$FF
D474	DEFB $FF,$FF,$5D,$6D,$57,$FF
D47A	DEFB $FF,$6F,$70,$71,$72,$FF
D480	DEFB $FF,$73,$74,$FF,$75,$FF
Sprite Ninja/Guard standing
D486	DEFB $FF,$FF,$FF,$FF,$FF,$FF
D48C	DEFB $FF,$FF,$F4,$F5,$FF,$FF
D492	DEFB $FF,$02,$03,$F6,$FF,$FF
D498	DEFB $FF,$05,$06,$07,$08,$FF
D49E	DEFB $FF,$0A,$0B,$0C,$0D,$FF
D4A4	DEFB $FF,$FF,$0E,$0F,$10,$FF
D4AA	DEFB $FF,$FF,$11,$FF,$12,$FF
Sprite Ninja/Guard jumping
D4B0	DEFB $FF,$FF,$13,$14,$FF,$FF
D4B6	DEFB $FF,$15,$16,$17,$FF,$FF
D4BC	DEFB $FF,$18,$19,$1A,$FF,$FF
D4C2	DEFB $FF,$1B,$1C,$1D,$FF,$FF
D4C8	DEFB $FF,$FF,$1E,$1F,$FF,$FF
D4CE	DEFB $FF,$FF,$FF,$FF,$FF,$FF
D4D4	DEFB $FF,$FF,$FF,$FF,$FF,$FF
Sprite Ninja/Guard jump-kick
D4DA	DEFB $FF,$FF,$20,$21,$FF,$FF
D4E0	DEFB $4D,$22,$23,$FF,$FF,$FF
D4E6	DEFB $4E,$24,$25,$26,$27,$2C
D4EC	DEFB $FF,$28,$29,$2A,$2B,$FF
D4F2	DEFB $FF,$FF,$2D,$2E,$FF,$FF
D4F8	DEFB $FF,$FF,$FF,$FF,$FF,$FF
D4FE	DEFB $FF,$FF,$FF,$FF,$FF,$FF
Sprite Ninja/Guard punching
D504	DEFB $FF,$FF,$FF,$FF,$FF,$FF
D50A	DEFB $FF,$FF,$00,$01,$FF,$FF
D510	DEFB $FF,$FF,$2F,$30,$31,$FF
D516	DEFB $FF,$FF,$32,$33,$34,$FF
D51C	DEFB $FF,$FF,$35,$0C,$0D,$FF
D522	DEFB $FF,$FF,$0E,$0F,$10,$FF
D528	DEFB $FF,$FF,$11,$FF,$12,$FF
Sprite Ninja on ladder
D52E	DEFB $FF,$FF,$40,$FF,$FF,$FF
D534	DEFB $FF,$FF,$41,$42,$FF,$FF
D53A	DEFB $FF,$FF,$43,$44,$FF,$FF
D540	DEFB $FF,$FF,$45,$46,$FF,$FF
D546	DEFB $FF,$FF,$47,$48,$FF,$FF
D54C	DEFB $FF,$FF,$49,$4A,$FF,$FF
D552	DEFB $FF,$FF,$4B,$4C,$FF,$FF
Sprite Ninja sitting
D558	DEFB $FF,$FF,$FF,$FF,$FF,$FF
D55E	DEFB $FF,$FF,$FF,$FF,$FF,$FF
D564	DEFB $FF,$FF,$FF,$FF,$FF,$FF
D56A	DEFB $FF,$FF,$FF,$36,$FF,$FF
D570	DEFB $FF,$FF,$37,$38,$39,$FF
D576	DEFB $FF,$FF,$3A,$3B,$3C,$FF
D57C	DEFB $FF,$FF,$3D,$3E,$3F,$FF
Sprite Ninja falling
D582	DEFB $FF,$FF,$6E,$7C,$FF,$FF
D588	DEFB $FF,$FF,$7D,$7E,$FF,$FF
D58E	DEFB $FF,$FF,$7F,$80,$FF,$FF
D594	DEFB $FF,$FF,$81,$82,$FF,$FF
D59A	DEFB $FF,$FF,$76,$77,$FF,$FF
D5A0	DEFB $FF,$FF,$78,$79,$FF,$FF
D5A6	DEFB $FF,$FF,$7A,$7B,$FF,$FF
Sprite Ninja jumping 3
D5AC	DEFB $FF,$FF,$FF,$FF,$FF,$FF
D5B2	DEFB $FF,$FF,$8D,$8E,$FF,$FF
D5B8	DEFB $FF,$8F,$90,$91,$92,$FF
D5BE	DEFB $FF,$93,$94,$95,$96,$FF
D5C4	DEFB $FF,$97,$98,$99,$9A,$FF
D5CA	DEFB $FF,$9B,$9C,$9D,$FF,$FF
D5D0	DEFB $FF,$9E,$FF,$FF,$FF,$FF
Sprite Ninja jumping 4
D5D6	DEFB $FF,$FF,$84,$88,$FF,$FF
D5DC	DEFB $FF,$8C,$85,$89,$FF,$FF
D5E2	DEFB $FF,$83,$86,$8A,$FF,$FF
D5E8	DEFB $FF,$FF,$87,$8B,$FF,$FF
D5EE	DEFB $FF,$FF,$FF,$FF,$FF,$FF
D5F4	DEFB $FF,$FF,$FF,$FF,$FF,$FF
D5FA	DEFB $FF,$FF,$FF,$FF,$FF,$FF

D600: Front tiles, 124 tiles, 17 bytes each



D600	DEFB $00,$FF,$00,$D8,$00,$A8,$00,$D8,$00,$FF,$00,$8A,$00,$8A,$00,$8A,$30
D611	DEFB $00,$FF,$00,$00,$00,$00,$00,$00,$00,$FF,$00,$AA,$00,$AA,$00,$AA,$30
D622	DEFB $00,$FF,$00,$15,$00,$1B,$00,$15,$00,$FF,$00,$B1,$00,$B1,$00,$B1,$30
D633	DEFB $00,$8A,$00,$8A,$00,$8F,$00,$A8,$00,$A8,$00,$88,$00,$8F,$00,$8A,$30
D644	DEFB $00,$AA,$00,$AA,$00,$FF,$00,$00,$00,$00,$00,$00,$00,$FF,$00,$AA,$30
D655	DEFB $00,$B1,$00,$B1,$00,$F1,$00,$15,$00,$15,$00,$11,$00,$F1,$00,$B1,$30
D666	DEFB $00,$8A,$00,$8A,$00,$8A,$00,$8F,$00,$A8,$00,$A8,$00,$88,$00,$FF,$30
D677	DEFB $00,$AA,$00,$AA,$00,$AA,$00,$FF,$00,$00,$00,$00,$00,$00,$00,$FF,$30
D688	DEFB $00,$B1,$00,$B1,$00,$B1,$00,$F1,$00,$15,$00,$15,$00,$11,$00,$FF,$30
D699	DEFB $00,$FF,$00,$80,$00,$FF,$00,$95,$00,$95,$00,$95,$00,$95,$00,$FF,$30
D6AA	DEFB $00,$FF,$00,$01,$00,$FF,$00,$59,$00,$59,$00,$59,$00,$59,$00,$FF,$30
D6BB	DEFB $9B,$64,$13,$AC,$01,$FE,$00,$FF,$00,$FF,$00,$BF,$00,$FF,$00,$FD,$0D
D6CC	DEFB $00,$5F,$00,$FB,$00,$BF,$00,$DF,$00,$FF,$00,$7D,$00,$EF,$00,$FF,$25
D6DD	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00
D6EE	DEFB $00,$FF,$00,$FF,$00,$FB,$00,$DB,$00,$DF,$00,$FF,$00,$F7,$00,$F6,$50
D6FF	DEFB $00,$DF,$00,$FF,$00,$FF,$00,$FB,$00,$FF,$00,$FF,$00,$EF,$00,$FF,$70
D710	DEFB $00,$F3,$00,$C9,$00,$89,$00,$B6,$00,$C8,$00,$C9,$00,$E7,$00,$FF,$68
D721	DEFB $00,$FE,$00,$F7,$00,$F7,$00,$DF,$00,$DF,$00,$FD,$00,$FD,$00,$FF,$70
D732	DEFB $00,$FF,$00,$00,$00,$FF,$00,$00,$00,$00,$00,$00,$00,$24,$00,$00,$78
D743	DEFB $00,$FF,$00,$AF,$00,$AF,$00,$AF,$00,$AD,$00,$AD,$00,$FF,$00,$FF,$60
D754	DEFB $F0,$07,$E0,$08,$E0,$0F,$C0,$1D,$C0,$1B,$80,$3A,$80,$31,$80,$27,$32
D765	DEFB $00,$FF,$00,$00,$00,$FF,$00,$BB,$00,$7D,$00,$00,$00,$7D,$00,$7D,$32
D776	DEFB $07,$E0,$03,$10,$03,$F0,$01,$B8,$01,$D8,$00,$5C,$00,$8C,$00,$E4,$32
D787	DEFB $80,$36,$80,$36,$80,$2E,$80,$2E,$80,$22,$80,$2C,$80,$36,$80,$36,$32
D798	DEFB $00,$FE,$00,$FE,$00,$FE,$00,$FE,$00,$FE,$00,$00,$00,$FE,$00,$FE,$32
D7A9	DEFB $00,$EC,$00,$EC,$00,$F4,$00,$F4,$00,$84,$00,$74,$00,$EC,$00,$EC,$32
D7BA	DEFB $80,$27,$80,$31,$80,$3A,$C0,$1A,$C0,$1D,$E0,$0F,$E0,$08,$F0,$07,$32
D7CB	DEFB $00,$7D,$00,$7D,$00,$00,$00,$7C,$00,$BB,$00,$FF,$00,$00,$00,$FF,$32
D7DC	DEFB $00,$E4,$00,$8C,$00,$1C,$01,$18,$01,$B8,$03,$F0,$03,$10,$07,$E0,$32
D7ED	DEFB $00,$FF,$00,$00,$00,$FF,$00,$55,$00,$55,$00,$55,$00,$55,$00,$FF,$30
D7FE	DEFB $B3,$4C,$B2,$4D,$22,$DD,$02,$FD,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$0D
D80F	DEFB $FF,$00,$FF,$00,$FF,$00,$FF,$00,$F8,$00,$F0,$07,$F0,$07,$F0,$00,$FF
D820	DEFB $FF,$00,$FF,$00,$FF,$00,$E7,$00,$C3,$18,$03,$18,$03,$58,$01,$00,$FF
D831	DEFB $E0,$0F,$C0,$1F,$80,$3F,$80,$3F,$C0,$00,$FE,$00,$FE,$00,$FE,$00,$FF
D842	DEFB $00,$FE,$00,$FE,$00,$FA,$00,$FE,$01,$B0,$07,$B0,$07,$B0,$07,$B0,$FF
D853	DEFB $FE,$00,$FE,$00,$FE,$00,$FE,$00,$FE,$00,$FE,$00,$FE,$00,$FE,$00,$FF
D864	DEFB $07,$B0,$07,$B0,$07,$B0,$07,$B0,$07,$B0,$07,$B0,$07,$B0,$07,$B0,$FF
D875	DEFB $FE,$00,$FE,$00,$FE,$00,$E6,$00,$C2,$18,$C0,$00,$80,$3F,$00,$7F,$FF
D886	DEFB $07,$B0,$07,$B0,$07,$B0,$07,$B0,$07,$B0,$03,$B0,$01,$FC,$00,$FE,$FF
D897	DEFB $00,$FF,$00,$00,$00,$00,$00,$00,$00,$FF,$00,$00,$00,$FF,$00,$00,$10
D8A8	DEFB $00,$99,$00,$9D,$00,$99,$00,$9B,$00,$DB,$00,$D9,$00,$99,$00,$B9,$28
D8B9	DEFB $00,$FF,$00,$66,$00,$00,$00,$00,$00,$FF,$00,$00,$00,$FF,$00,$99,$10
D8CA	DEFB $00,$FF,$00,$FF,$00,$81,$00,$81,$00,$FF,$00,$81,$00,$81,$00,$81,$30
D8DB	DEFB $00,$FF,$00,$81,$00,$81,$00,$81,$00,$81,$00,$81,$00,$81,$00,$81,$30
D8EC	DEFB $81,$3C,$C3,$08,$E1,$0C,$C0,$0A,$81,$34,$03,$78,$07,$F0,$0F,$60,$FF
D8FD	DEFB $81,$3C,$C1,$08,$81,$3C,$81,$2C,$81,$34,$81,$3C,$81,$24,$81,$3C,$FF
D90E	DEFB $81,$3C,$C3,$10,$87,$30,$03,$50,$81,$2C,$C0,$1E,$E0,$0F,$F0,$06,$FF
D91F	DEFB $FF,$00,$FF,$00,$FF,$00,$F8,$00,$F0,$07,$F0,$04,$F0,$07,$C0,$00,$FF
D930	DEFB $FF,$00,$FF,$00,$F8,$00,$10,$07,$00,$E5,$00,$25,$00,$E7,$00,$1B,$FF
D941	DEFB $FF,$00,$FF,$00,$FF,$00,$7F,$00,$78,$00,$70,$07,$30,$04,$10,$C4,$FF
D952	DEFB $FF,$00,$FF,$00,$FF,$00,$FF,$00,$C7,$00,$03,$38,$03,$E8,$01,$34,$FF
D963	DEFB $FF,$00,$FF,$00,$FC,$00,$F0,$03,$00,$0C,$00,$F9,$00,$9E,$00,$F1,$FF
D974	DEFB $80,$31,$00,$4A,$00,$46,$00,$36,$00,$8A,$00,$FF,$00,$43,$00,$7E,$FF
D985	DEFB $00,$A3,$00,$C2,$00,$DC,$00,$61,$00,$42,$00,$7F,$00,$E1,$00,$BF,$FF
D996	DEFB $00,$23,$00,$FE,$00,$A2,$00,$7F,$00,$14,$00,$08,$00,$D9,$00,$26,$FF
D9A7	DEFB $01,$5C,$00,$BE,$00,$E2,$00,$7F,$00,$42,$00,$FC,$00,$87,$00,$FC,$FF
D9B8	DEFB $FF,$00,$FF,$00,$FF,$00,$7F,$00,$01,$80,$00,$7E,$00,$22,$00,$FE,$FF
D9C9	DEFB $FC,$01,$F8,$02,$F0,$05,$E0,$0A,$40,$14,$02,$A8,$06,$D0,$0E,$E0,$FF
D9DA	DEFB $1E,$C0,$1E,$C0,$1E,$C0,$1E,$C0,$1E,$C0,$1E,$C0,$1E,$C0,$1C,$C0,$FF
D9EB	DEFB $18,$C3,$10,$C6,$01,$CC,$03,$D8,$07,$F0,$0F,$E0,$1F,$C0,$3F,$80,$FF
D9FC	DEFB $3F,$80,$1F,$40,$0F,$A0,$07,$50,$02,$28,$40,$15,$60,$0B,$70,$07,$FF
DA0D	DEFB $78,$03,$78,$03,$78,$03,$78,$03,$78,$03,$78,$03,$78,$03,$38,$03,$FF
DA1E	DEFB $18,$C3,$08,$63,$80,$33,$C0,$1B,$E0,$0F,$F0,$07,$F8,$03,$FC,$01,$FF
DA2F	DEFB $00,$FF,$00,$80,$00,$80,$00,$C0,$C0,$20,$C0,$20,$00,$FF,$00,$80,$FF
DA40	DEFB $00,$FF,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$FF,$00,$00,$FF
DA51	DEFB $00,$FF,$00,$01,$00,$01,$00,$03,$03,$04,$03,$04,$00,$FF,$00,$01,$FF
DA62	DEFB $00,$80,$00,$C0,$C0,$20,$C0,$20,$00,$FF,$00,$80,$00,$80,$00,$C0,$FF
DA73	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$FF,$00,$00,$00,$00,$00,$00,$FF
DA84	DEFB $00,$01,$00,$03,$03,$04,$03,$04,$00,$FF,$00,$01,$00,$01,$00,$03,$FF
DA95	DEFB $C0,$20,$C0,$20,$00,$FF,$00,$80,$00,$80,$00,$C0,$C0,$20,$C0,$20,$FF
DAA6	DEFB $00,$00,$00,$00,$00,$FF,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$FF
DAB7	DEFB $03,$04,$03,$04,$00,$FF,$00,$01,$00,$01,$00,$03,$03,$04,$03,$04,$FF
DAC8	DEFB $00,$FF,$00,$80,$00,$80,$00,$C0,$C0,$20,$C0,$20,$E0,$10,$E0,$10,$FF
DAD9	DEFB $00,$FF,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$FF
DAEA	DEFB $00,$FF,$00,$01,$00,$01,$00,$03,$03,$04,$03,$04,$07,$08,$07,$08,$FF
DAFB	DEFB $FF,$00,$FF,$00,$FF,$00,$FF,$00,$00,$FF,$00,$80,$00,$80,$00,$C0,$FF
DB0C	DEFB $FF,$00,$FF,$00,$FF,$00,$FF,$00,$00,$FF,$00,$00,$00,$00,$00,$00,$FF
DB1D	DEFB $FF,$00,$FF,$00,$FF,$00,$FF,$00,$00,$FF,$00,$01,$00,$01,$00,$03,$FF
DB2E	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$29
DB3F	DEFB $00,$83,$7C,$01,$7C,$01,$7C,$01,$7C,$01,$7C,$01,$00,$83,$00,$FF,$FF
DB50	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$01
DB61	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$05
DB72	DEFB $00,$80,$00,$80,$00,$80,$00,$80,$00,$80,$00,$80,$00,$80,$00,$80,$08
DB83	DEFB $00,$80,$00,$80,$00,$80,$00,$80,$00,$80,$00,$80,$00,$80,$00,$80,$28
DB94	DEFB $00,$01,$00,$01,$00,$01,$00,$01,$00,$01,$00,$01,$00,$01,$00,$01,$08
DBA5	DEFB $00,$01,$00,$01,$00,$01,$00,$01,$00,$01,$00,$01,$00,$01,$00,$01,$28
DBB6	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$7F,$00,$7F,$00,$7F,$00,$7F,$29
DBC7	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$FE,$00,$FE,$00,$FE,$00,$FE,$29
DBD8	DEFB $1F,$C0,$1F,$C0,$1F,$C0,$1F,$C0,$1F,$C0,$1F,$C0,$1F,$C0,$1F,$C0,$FF
DBE9	DEFB $F8,$03,$F8,$03,$F8,$03,$F8,$03,$F8,$03,$F8,$03,$F8,$03,$F8,$03,$FF
DBFA	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$FF
DC0B	DEFB $00,$F0,$0F,$C0,$3F,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF
DC1C	DEFB $00,$3F,$C0,$0F,$F0,$03,$FC,$01,$FE,$00,$FF,$00,$FF,$00,$FF,$00,$FF
DC2D	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$3F,$C0,$03,$FF
DC3E	DEFB $00,$FB,$00,$FB,$00,$F7,$00,$F7,$00,$EF,$00,$EF,$00,$FF,$00,$E0,$FF
DC4F	DEFB $00,$FE,$00,$FE,$00,$FD,$00,$FD,$00,$FD,$00,$FD,$00,$FD,$00,$FB,$FF
DC60	DEFB $00,$3E,$00,$3E,$00,$3E,$00,$7E,$00,$7E,$00,$FE,$00,$FE,$00,$FE,$FF
DC71	DEFB $3F,$00,$0F,$C0,$07,$F0,$03,$F8,$01,$FC,$00,$FE,$00,$FE,$00,$FF,$FF
DC82	DEFB $C0,$1F,$C0,$1F,$C0,$1F,$C0,$1F,$C0,$1F,$C0,$1F,$C0,$1F,$C0,$1F,$FF
DC93	DEFB $00,$01,$0E,$C0,$07,$F0,$03,$F8,$01,$FC,$00,$7E,$80,$3E,$80,$3F,$FF
DCA4	DEFB $FF,$00,$FC,$00,$F0,$03,$C0,$0F,$80,$3F,$00,$7F,$00,$FF,$00,$FF,$FF
DCB5	DEFB $80,$0F,$00,$7F,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$FF
DCC6	DEFB $00,$00,$00,$04,$00,$42,$00,$00,$00,$00,$00,$24,$00,$12,$00,$02,$0D
DCD7	DEFB $00,$08,$00,$00,$00,$01,$00,$11,$00,$80,$00,$02,$00,$01,$00,$65,$0C
DCE8	DEFB $00,$F1,$00,$E4,$00,$E8,$00,$E8,$00,$E0,$00,$F0,$00,$30,$00,$DC,$30
DCF9	DEFB $00,$70,$00,$DF,$00,$BF,$00,$BF,$00,$FF,$00,$7F,$00,$7F,$00,$1F,$0E
DD0A	DEFB $00,$9F,$00,$FF,$00,$DF,$00,$BF,$00,$BF,$00,$DF,$00,$FF,$00,$FD,$06
DD1B	DEFB $00,$6C,$00,$FE,$00,$BF,$00,$BF,$00,$BF,$00,$FE,$00,$FE,$00,$F8,$0E
DD2C	DEFB $00,$FF,$00,$80,$00,$80,$00,$80,$00,$80,$00,$80,$00,$80,$00,$80,$0F
DD3D	DEFB $00,$FF,$00,$00,$00,$00,$00,$00,$00,$0C,$00,$0C,$00,$0C,$00,$0C,$0F
DD4E	DEFB $00,$FF,$00,$01,$00,$01,$00,$01,$00,$01,$00,$01,$00,$01,$00,$01,$0F
DD5F	DEFB $00,$80,$00,$80,$00,$80,$00,$80,$00,$80,$00,$80,$00,$80,$00,$80,$0F
DD70	DEFB $00,$0C,$00,$0C,$00,$0C,$00,$0C,$00,$0C,$00,$3C,$00,$3C,$00,$3C,$0F
DD81	DEFB $00,$01,$00,$01,$00,$01,$00,$01,$00,$01,$00,$01,$00,$01,$00,$01,$0F
DD92	DEFB $00,$80,$00,$80,$00,$80,$00,$80,$00,$80,$00,$80,$00,$80,$00,$FF,$0F
DDA3	DEFB $00,$3C,$00,$3C,$00,$3C,$00,$3C,$00,$3C,$00,$00,$00,$00,$00,$FF,$0F
DDB4	DEFB $00,$01,$00,$01,$00,$01,$00,$01,$00,$01,$00,$01,$00,$01,$00,$FF,$0F
DDC5	DEFB $00,$FF,$00,$80,$00,$80,$00,$80,$00,$83,$00,$83,$00,$83,$00,$80,$0F
DDD6	DEFB $00,$FF,$00,$00,$00,$00,$00,$00,$00,$FF,$00,$FF,$00,$E1,$00,$01,$0F
DDE7	DEFB $00,$FF,$00,$01,$00,$01,$00,$01,$00,$C1,$00,$C1,$00,$C1,$00,$C1,$0F
DDF8	DEFB $00,$80,$00,$80,$00,$80,$00,$83,$00,$83,$00,$83,$00,$83,$00,$83,$0F
DE09	DEFB $00,$01,$00,$01,$00,$01,$00,$FF,$00,$FF,$00,$80,$00,$80,$00,$80,$0F
DE1A	DEFB $00,$C1,$00,$C1,$00,$C1,$00,$C1,$00,$C1,$00,$01,$00,$01,$00,$01,$0F
DE2B	DEFB $00,$83,$00,$83,$00,$83,$00,$83,$00,$83,$00,$80,$00,$80,$00,$FF,$0F
DE3C	DEFB $00,$80,$00,$80,$00,$83,$00,$FF,$00,$FF,$00,$00,$00,$00,$00,$FF,$0F
DE4D	DEFB $00,$01,$00,$01,$00,$C1,$00,$C1,$00,$C1,$00,$01,$00,$01,$00,$FF,$0F
DE5E	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00

DE68: Find record for the current room in DE84 table

Used by the routine at B66A.
DE68	LD B,$14	20 records
DE6A	LD HL,$DE84
DE6D	LD A,($7184)	get Current Room address low byte
DE70	CP (HL)
DE71	INC HL
DE72	JR NZ,$DE7E
DE74	LD A,($7185)	get Current Room address high byte
DE77	CP (HL)
DE78	INC HL
DE79	JR NZ,$DE7F
DE7B	LD A,$01
DE7D	RET
DE7E	INC HL
DE7F	INC HL
DE80	DJNZ $DE6D
DE82	XOR A
DE83	RET

DE84: ?? Dog rooms/flags ?? 20 records, 3 bytes each


DE84	DEFW $79C6
DE86	DEFB $00
DE87	DEFW $7C2E
DE89	DEFB $00
DE8A	DEFW $7F9C
DE8C	DEFB $01
DE8D	DEFW $81E5
DE8F	DEFB $00
DE90	DEFW $8162
DE92	DEFB $01
DE93	DEFW $7EF2
DE95	DEFB $01
DE96	DEFW $7E05
DE98	DEFB $01
DE99	DEFW $80A7
DE9B	DEFB $00
DE9C	DEFW $83ED
DE9E	DEFB $00
DE9F	DEFW $80F6
DEA1	DEFB $00
DEA2	DEFW $924E
DEA4	DEFB $00
DEA5	DEFW $91BA
DEA7	DEFB $01
DEA8	DEFW $90DB
DEAA	DEFB $01
DEAB	DEFW $909F
DEAD	DEFB $00
DEAE	DEFW $8802
DEB0	DEFB $00
DEB1	DEFW $8608
DEB3	DEFB $00
DEB4	DEFW $844E
DEB6	DEFB $00
DEB7	DEFW $9739
DEB9	DEFB $01
DEBA	DEFW $9A5A
DEBC	DEFB $00
DEBD	DEFW $9B9D
DEBF	DEFB $01

DEC0: Data block at DEC0


DEC0	DEFB $00

DEC1: Clear strings on the screen

Used by the routines at DF60, E097 and E2A7.
Clears 10 strings, 18 characters each; used to clear table of scores, menu etc.
DEC1	LD B,$0A
DEC3	LD DE,$402C
DEC6	PUSH DE
DEC7	PUSH BC
DEC8	LD C,$12
DECA	LD HL,$DEE6	String 18 spaces
DECD	CALL $AED1	Print string
DED0	POP BC
DED1	POP DE
DED2	RR D
DED4	RR D
DED6	RR D
DED8	LD HL,$0020
DEDB	ADD HL,DE
DEDC	EX DE,HL
DEDD	RL D
DEDF	RL D
DEE1	RL D
DEE3	DJNZ $DEC6
DEE5	RET

DEE6: String 18 spaces


DEE6	DEFM " "

DEF8: Menu messages


DEF8	DEFM "J KEMPSTON"
DF03	DEFM "K KEYBOARD"
DF0E	DEFM "P PROTEK"
DF17	DEFM "R REDEFINE KEYS"
DF27	DEFM "S START MISSION"

DF37: Routine at DF37

Used by the routine at BC0D.
DF37	LD A,$01	blue
DF39	OUT ($FE),A	set border color, sound off
DF3B	LD ($5C09),A	set REPDEL = 1
DF3E	LD ($5C0A),A	set REPPER = 1
DF41	LD A,$08
DF43	LD ($5C48),A	set BORDCR = $08
DF46	CALL $E04D	Clear key buffer playing melody
DF49	LD DE,$00D4
DF4C	PUSH DE
DF4D	CALL $E440	Play next note in melody
DF50	CALL $DFD4	Clear LASTK and do RST $38 once
DF53	POP DE
DF54	LD A,($5C08)	get LASTK
DF57	CP $00
DF59	JR NZ,$DF60	key pressed => Main menu
DF5B	DEC DE
DF5C	LD A,D
DF5D	OR E
DF5E	JR NZ,$DF4C

DF60: Main menu

Used by the routines at DF37 and E097.
DF60	CALL $DEC1	Clear strings on the screen
DF63	LD HL,$DEF8	Menu messages address
DF66	LD DE,$402D
DF69	LD C,$0B
DF6B	CALL $AED1	Print string "J KEMPSTON"
DF6E	LD C,$0B
DF70	LD DE,$406D
DF73	CALL $AED1	Print string "K KEYBOARD"
DF76	LD C,$09
DF78	LD DE,$40AD
DF7B	CALL $AED1	Print string "P PROTEK"
DF7E	LD C,$10
DF80	LD DE,$40ED
DF83	CALL $AED1	Print string "R REDEFINE KEYS"
DF86	LD C,$10
DF88	LD DE,$484D
DF8B	CALL $AED1	Print string "S START MISSION"
DF8E	CALL $E04D	Clear key buffer playing melody
DF91	CALL $DFDB	Highlight Menu item
DF94	LD DE,$00D4
DF97	PUSH DE
DF98	CALL $E440	Play next note in melody
DF9B	CALL $DFD4	Clear LASTK and do RST $38 once
DF9E	POP DE
DF9F	LD A,($5C08)	get LASTK
DFA2	CP $61
DFA4	JR C,$DFA8
DFA6	SUB $20
DFA8	CP $53	'S' ?
DFAA	JP Z,$E2A7	=> Start Mission
DFAD	CP $4A	'J' ?
DFAF	JR Z,$DFF1	=> Joystick selected
DFB1	CP $4B	'K' ?
DFB3	JR Z,$E004	=> Keyboard selected
DFB5	CP $50	'P' ?
DFB7	JR Z,$E015	=> Protek selected
DFB9	CP $52	'R' ?
DFBB	JP Z,$E097	=> Redefine Keys
DFBE	LD A,($7222)	get Input method
DFC1	CP $01	Joystick?
DFC3	JR NZ,$DFCC
DFC5	IN A,($1F)	read joystick port
DFC7	BIT 4,A
DFC9	JP NZ,$E2A7	=> Start Mission
This entry point is used by the routines at DFF1 and E015.
DFCC	DEC DE
DFCD	LD A,D
DFCE	OR E
DFCF	JR NZ,$DF97
DFD1	JP $BC3B

DFD4: Clear LASTK and do RST $38 once

Used by the routines at DF37, DF60, E04D, E097 and E2A7.
DFD4	XOR A
DFD5	LD ($5C08),A	clear LASTK
DFD8	RST $38
DFD9	NOP
DFDA	RET

DFDB: Highlight Menu item

Used by the routines at DF60, DFF1, E004 and E015.
DFDB	LD HL,$58AC
DFDE	LD B,$0D
DFE0	LD (HL),$B1
DFE2	INC HL
DFE3	DJNZ $DFE0
DFE5	RET

DFE6: Unhighlight Menu item

Used by the routines at DFF1, E004, E015, E097 and E2A7.
DFE6	LD HL,($DFDC)
DFE9	LD B,$0D
DFEB	LD (HL),$0E
DFED	INC HL
DFEE	DJNZ $DFEB
DFF0	RET

DFF1: Joystick selected in Main menu

Used by the routine at DF60.
DFF1	CALL $DFE6	Unhighlight Menu item
DFF4	LD HL,$582C
DFF7	LD ($DFDC),HL
DFFA	CALL $DFDB	Highlight Menu item
DFFD	LD A,$01
DFFF	LD ($7222),A
E002	JR $DFCC

E004: Keyboard selected in Main menu

Used by the routine at DF60.
E004	CALL $DFE6	Unhighlight Menu item
E007	LD HL,$586C
E00A	LD ($DFDC),HL
E00D	CALL $DFDB	Highlight Menu item
E010	LD HL,$E043
E013	JR $E024

E015: Protek selected in Main menu

Used by the routine at DF60.
E015	CALL $DFE6	Unhighlight Menu item
E018	LD HL,$58AC
E01B	LD ($DFDC),HL
E01E	CALL $DFDB	Highlight Menu item
E021	LD HL,$E039
This entry point is used by the routine at E004.
E024	LD DE,$7222
E027	XOR A
E028	LD (DE),A
E029	INC DE
E02A	LD B,$05
E02C	LD A,(HL)
E02D	LD (DE),A
E02E	INC DE
E02F	INC HL
E030	LD A,(HL)
E031	LD (DE),A
E032	INC DE
E033	INC HL
E034	INC DE
E035	DJNZ $E02C
E037	JR $DFCC

E039: Ports/bits for Protek and Keyboard


E039	DEFB $EF,$01,$EF,$08,$EF,$10,$F7,$10,$EF,$04	Protek ports/bits
E043	DEFB $7F,$01,$FD,$01,$FE,$02,$7F,$08,$7F,$04	Keyboard input ports/bits

E04D: Clear key buffer playing melody

Used by the routines at DF37, DF60, E097 and E2A7.
E04D	CALL $E440	Play next note in melody
E050	CALL $DFD4	Clear LASTK and do RST $38 once
E053	LD A,($5C08)	get LASTK
E056	CP $00
E058	RET Z
E059	JR $E04D

E05B: Redefine keys messages


E05B	DEFM "REDEFINE KEYS"
E068	DEFM "PRESS THE KEYS"
E076	DEFM "OF YOUR CHOICE"
E084	DEFM "FIRE"
E088	DEFM "UP"
E08A	DEFM "DOWN"
E08E	DEFM "LEFT"
E092	DEFM "RIGHT"

E097: Redefine Keys

Used by the routine at DF60.
E097	CALL $DFE6	Unhighlight Menu item
E09A	CALL $DEC1	Clear strings on the screen
E09D	LD HL,$E05B	Redefine keys messages
E0A0	LD DE,$402D
E0A3	LD C,$0D
E0A5	CALL $AED1	Print string "REDEFINE KEYS"
E0A8	LD DE,$406D
E0AB	LD C,$0E
E0AD	CALL $AED1	Print string "PRESS THE KEYS"
E0B0	LD DE,$408D
E0B3	LD C,$0E
E0B5	CALL $AED1	Print string "OF YOUR CHOICE"
E0B8	LD DE,$40CF
E0BB	LD C,$04
E0BD	CALL $AED1	Print string "FIRE"
E0C0	LD DE,$40EF
E0C3	LD C,$02
E0C5	CALL $AED1	Print string "UP"
E0C8	LD DE,$480F
E0CB	LD C,$04
E0CD	CALL $AED1	Print string "DOWN"
E0D0	LD DE,$482F
E0D3	LD C,$04
E0D5	CALL $AED1	Print string "LEFT"
E0D8	LD DE,$484F
E0DB	LD C,$05
E0DD	CALL $AED1	Print string "RIGHT"
E0E0	CALL $E04D	Clear key buffer playing melody
E0E3	EXX
E0E4	LD DE,$58CD
E0E7	LD BC,$7223
E0EA	EXX
E0EB	LD DE,$40D5
E0EE	LD B,$05
E0F0	LD IX,$E043
E0F4	PUSH BC
E0F5	LD A,$B1
E0F7	LD B,$0A
E0F9	EXX
E0FA	LD (DE),A
E0FB	INC DE
E0FC	EXX
E0FD	DJNZ $E0F9
E0FF	PUSH DE
E100	PUSH IX
E102	CALL $DFD4	Clear LASTK and do RST $38 once
E105	CALL $E440	Play next note in melody
E108	POP IX
E10A	LD A,($5C08)	get LASTK
E10D	CP $5B	'['
E10F	JR C,$E113
E111	SUB $20
E113	LD B,$25
E115	LD ($E17C),A
E118	LD HL,$E17D
E11B	CP (HL)
E11C	JR Z,$E125
E11E	INC HL
E11F	INC HL
E120	INC HL
E121	DJNZ $E11B
E123	JR $E100
E125	LD B,$02
E127	INC HL
E128	LD A,($DFDC)
E12B	CP $6C
E12D	LD A,(HL)
E12E	LD (IX+$00),A
E131	JR NZ,$E137
E133	EXX
E134	LD (BC),A
E135	INC BC
E136	EXX
E137	INC IX
E139	DJNZ $E127
E13B	EXX
E13C	INC BC
E13D	EXX
E13E	POP DE
E13F	PUSH DE
E140	LD C,$01
E142	LD HL,$E17C
E145	CALL $AED1	Print string
E148	PUSH IX
E14A	CALL $E04D	Clear key buffer playing melody
E14D	POP IX
E14F	POP DE
E150	LD A,$0E
E152	LD B,$0A
E154	EXX
E155	DEC DE
E156	LD (DE),A
E157	EXX
E158	DJNZ $E154
E15A	EXX
E15B	PUSH HL
E15C	LD HL,$0020	32
E15F	ADD HL,DE
E160	EX DE,HL
E161	POP HL
E162	EXX
E163	LD HL,$0020	32
E166	RR D
E168	RR D
E16A	RR D
E16C	ADD HL,DE
E16D	EX DE,HL
E16E	RL D
E170	RL D
E172	RL D
E174	POP BC
E175	DEC B
E176	JP NZ,$E0F4
E179	JP $DF60	=> Main menu

E17C: Data block at E17C


E17C	DEFM "M"

E17D: Data block at E17D


E17D	DEFB $30,$EF,$01
E180	DEFB $31,$F7,$01
E183	DEFB $32,$F7,$02
E186	DEFB $33,$F7,$04
E189	DEFB $34,$F7,$08
E18C	DEFB $35,$F7,$10
E18F	DEFB $36,$EF,$10
E192	DEFB $37,$EF,$08
E195	DEFB $38,$EF,$04
E198	DEFB $39,$EF,$02
E19B	DEFB $41,$FD,$01
E19E	DEFB $42,$7F,$10
E1A1	DEFB $43,$FE,$08
E1A4	DEFB $44,$FD,$04
E1A7	DEFB $45,$FB,$04
E1AA	DEFB $46,$FD,$08
E1AD	DEFB $47,$FD,$10
E1B0	DEFB $48,$BF,$10
E1B3	DEFB $49,$DF,$04
E1B6	DEFB $4A,$BF,$08
E1B9	DEFB $4B,$BF,$04
E1BC	DEFB $4C,$BF,$02
E1BF	DEFB $4D,$7F,$04
E1C2	DEFB $4E,$7F,$08
E1C5	DEFB $4F,$DF,$02
E1C8	DEFB $50,$DF,$01
E1CB	DEFB $51,$FB,$01
E1CE	DEFB $52,$FB,$08
E1D1	DEFB $53,$FD,$02
E1D4	DEFB $54,$FB,$10
E1D7	DEFB $55,$DF,$08
E1DA	DEFB $56,$FE,$10
E1DD	DEFB $57,$FB,$02
E1E0	DEFB $58,$FE,$04
E1E3	DEFB $59,$DF,$10
E1E6	DEFB $5A,$FE,$02
E1E9	DEFB $20,$7F,$01

E1EC: Message at E1EC


E1EC	DEFM "1"	Current Level digit
E1ED	DEFM "ENTER SKILL LEVEL"
E1FE	DEFM "1 TO 9"
E204	DEFM "YOUR MISSION"
E210	DEFM "WILL BE"

E217: Level descriptions and data addresses


E217	DEFM "EXTREMELY EASY"
E225	DEFW $E38C
E227	DEFM " VERY EASY "
E235	DEFW $E3A0
E237	DEFM " EASY "
E245	DEFW $E3B4
E247	DEFM "SLIGHTLY EASY"
E255	DEFW $E3C8
E257	DEFM " MODERATE "
E265	DEFW $E3DC
E267	DEFM "SLIGHTLY HARD"
E275	DEFW $E3F0
E277	DEFM " HARD "
E285	DEFW $E404
E287	DEFM " VERY HARD "
E295	DEFW $E418
E297	DEFM "EXTREMELY HARD"
E2A5	DEFW $E42C

E2A7: Start Mission

Used by the routine at DF60.
E2A7	CALL $DFE6	Unhighlight Menu item
E2AA	CALL $DEC1	Clear strings on the screen
E2AD	LD HL,$E1ED	"ENTER SKILL LEVEL"
E2B0	LD DE,$406D
E2B3	LD C,$11
E2B5	CALL $AED1	Print string "ENTER SKILL LEVEL"
E2B8	LD DE,$4092
E2BB	LD C,$06
E2BD	CALL $AED1	Print string "1 TO 9"
E2C0	CALL $E04D	Clear key buffer playing melody
E2C3	LD HL,$58F3
E2C6	LD A,$B1
E2C8	LD (HL),A
E2C9	INC HL
E2CA	LD (HL),A
E2CB	INC HL
E2CC	LD (HL),A
E2CD	CALL $E440	Play next note in melody
E2D0	CALL $DFD4	Clear LASTK and do RST $38 once
E2D3	LD A,($5C08)	get LASTK
E2D6	CP $31
E2D8	JR C,$E2CD
E2DA	CP $3A
E2DC	JR NC,$E2CD
E2DE	LD HL,$E1EC	Skill level address
E2E1	LD (HL),A
E2E2	LD DE,$40F4
E2E5	LD C,$01
E2E7	CALL $AED1	Print string
E2EA	CALL $E04D	Clear key buffer playing melody
E2ED	LD HL,$58F3
E2F0	LD A,$0E
E2F2	LD (HL),A
E2F3	INC HL
E2F4	LD (HL),A
E2F5	INC HL
E2F6	LD (HL),A
E2F7	CALL $DEC1	Clear strings on the screen
E2FA	LD HL,$E204	"YOUR MISSION"
E2FD	LD DE,$406F
E300	LD C,$0C
E302	CALL $AED1	Print string "YOUR MISSION"
E305	LD DE,$4091
E308	LD C,$07
E30A	CALL $AED1	Print string "WILL BE"
E30D	LD A,($E1EC)	get Skill level
E310	SUB $31
E312	LD L,A
E313	LD H,$00
E315	ADD HL,HL
E316	ADD HL,HL
E317	ADD HL,HL
E318	ADD HL,HL	* 16
E319	LD DE,$E217	Levels data base address
E31C	ADD HL,DE
E31D	LD DE,$40EE
E320	LD C,$0E
E322	CALL $AED1	Print string - level description
E325	LD A,(HL)
E326	INC HL
E327	LD H,(HL)
E328	LD L,A
E329	LD A,(HL)
E32A	LD ($A3BF),A	set Guard counter value
E32D	INC HL
E32E	LD A,(HL)
E32F	LD ($9C57),A	set Dog counter value
E332	INC HL
E333	LD A,(HL)
E334	LD ($B4C4),A	set Turret counter value
E337	INC HL
E338	LD E,(HL)
E339	INC HL
E33A	LD D,(HL)
E33B	LD ($AD57),DE	set Indicator Time value
E33F	INC HL
E340	LD E,(HL)
E341	INC HL
E342	LD D,(HL)
E343	LD ($B7CB),DE	set Time value for BOMB
E347	INC HL
E348	LD A,(HL)
E349	LD ($97D0),A	set flag for wall in room 97A6
E34C	INC HL
E34D	LD A,(HL)
E34E	LD ($9756),A	set count for wall in room 9739
E351	INC HL
E352	LD A,(HL)
E353	LD ($7F7B),A	set count for wall in room 7F48
E356	INC HL
E357	LD A,(HL)
E358	LD ($8DBC),A	set count for wall in room 8D5C
E35B	INC HL
E35C	LD A,(HL)
E35D	LD ($8F32),A	set count for wall in room 8F20
E360	INC HL
E361	LD BC,$0004
E364	LD DE,$E388
E367	LDIR
E369	LD BC,$0004
E36C	LD DE,$D357	address for BOMB in Table of objects D34D
E36F	LDIR	Copy last 4 bytes: BOMB placement
E371	LD DE,$0019
E374	PUSH DE
E375	CALL $DFD4	Clear LASTK and do RST $38 once
E378	CALL $E440	Play next note in melody
E37B	POP DE
E37C	LD A,($5C08)	get LASTK
E37F	CP $00
E381	RET NZ
E382	DEC DE
E383	LD A,D
E384	OR E
E385	JR NZ,$E374
E387	RET

E388: Data block at E388


E388	DEFM " 10",$0A

E38C: Levels data


+$00: Guard counter value +$01: Dog counter value +$02: Turret counter value +$03/$04: two digits for TIME value +$05/$06: two digits for BOMB timer +$07: flag for wall in room 97A6 +$08: count for wall in room 9739: $01 = no wall, $07 = put wall +$09: count for wall in room 7F48 +$0A: count for wall in room 8D5C +$0B: count for wall in room 8F20: $01 = no wall, $09 = put wall +$10/$11: room for BOMB placement +$12/$13: address in Tile screen 0 for BOMB placement Level 1 "EXTREMELY EASY"
E38C	DEFB $14,$19,$32
E38F	DEFM "9999"
E393	DEFB $00,$01,$01,$01,$01
E398	DEFM " 10"
E39B	DEFB $0A
E39C	DEFW $9E22
E39E	DEFW $672E
Level 2 "VERY EASY"
E3A0	DEFB $12,$0F,$2D
E3A3	DEFM "9995"
E3A7	DEFB $00,$01,$01,$01,$01
E3AC	DEFM " 20"
E3AF	DEFB $14
E3B0	DEFW $9E22
E3B2	DEFW $672E
Level 3 "EASY"
E3B4	DEFB $10,$0C,$28
E3B7	DEFM "9590"
E3BB	DEFB $00,$07,$01,$01,$01
E3C0	DEFM " 30"
E3C3	DEFB $1E
E3C4	DEFW $924E
E3C6	DEFW $6788
Level 4 "SLIGHTLY EASY"
E3C8	DEFB $0E,$0A,$23
E3CB	DEFM "9080"
E3CF	DEFB $FF,$01,$01,$01,$09
E3D4	DEFM " 50"
E3D7	DEFB $32
E3D8	DEFW $8608
E3DA	DEFW $6787
Level 5 "MODERATE"
E3DC	DEFB $0C,$09,$1E
E3DF	DEFM "9070"
E3E3	DEFB $FF,$01,$01,$07,$01
E3E8	DEFM " 70"
E3EB	DEFB $46
E3EC	DEFW $8689
E3EE	DEFW $66D2
Level 6 "SLIGHTLY HARD"
E3F0	DEFB $0A,$07,$19
E3F3	DEFM "8560"
E3F7	DEFB $FF,$07,$01,$07,$01
E3FC	DEFM "100"
E3FF	DEFB $64
E400	DEFW $8BAB
E402	DEFW $6780
Level 7 "HARD"
E404	DEFB $08,$06,$14
E407	DEFM "8550"
E40B	DEFB $FF,$07,$08,$07,$01
E410	DEFM "130"
E413	DEFB $82
E414	DEFW $8D5C
E416	DEFW $6757
Level 8 "VERY HARD"
E418	DEFB $05,$05,$0F
E41B	DEFM "8050"
E41F	DEFB $FF,$07,$08,$07,$09
E424	DEFM "170"
E427	DEFB $AA
E428	DEFW $8279
E42A	DEFW $6763
Level 9 "EXTREMELY HARD"
E42C	DEFB $02,$03,$0A
E42F	DEFM "7040"
E433	DEFB $FF,$07,$08,$07,$09
E438	DEFM "250"
E43B	DEFB $FA
E43C	DEFW $8608
E43E	DEFW $6787

E440: Play next note in melody

Used by the routines at DF37, DF60, E04D, E097 and E2A7.
E440	LD IX,$E51C
E444	LD A,(IX+$01)
E447	CP $FF
E449	JR Z,$E487
E44B	CP $FE
E44D	JR Z,$E477
E44F	CP $FD
E451	JR Z,$E46F
E453	LD L,(IX+$00)
E456	LD H,A
E457	LD E,(IX+$02)
E45A	LD D,(IX+$03)
E45D	PUSH IX
E45F	CALL $03B5	BEEPER
E462	NOP
E463	POP IX
E465	LD DE,$0004
E468	ADD IX,DE
E46A	LD ($E442),IX
E46E	RET
E46F	LD DE,$E4AE
E472	LD HL,$E496
E475	JR $E47E
E477	LD HL,$E49A
E47A	LD E,(HL)
E47B	INC HL
E47C	LD D,(HL)
E47D	INC HL
E47E	LD ($E478),HL
E481	LD ($E442),DE
E485	JR $E440
E487	LD BC,$4E20
E48A	DEC BC
E48B	LD A,B
E48C	OR C
E48D	JR NZ,$E48A
E48F	LD DE,$0002
E492	JR $E468

E494: Table for melodies


E494	DEFW $E4AE
E496	DEFW $E4AE
E498	DEFW $E508
E49A	DEFW $E53A
E49C	DEFW $E508
E49E	DEFW $E56C
E4A0	DEFW $E4AE
E4A2	DEFW $E4AE
E4A4	DEFW $E508
E4A6	DEFW $E53A
E4A8	DEFW $E508
E4AA	DEFW $E56C
E4AC	DEFW $E5CA

E4AE: Melodies


E4AE	DEFB $9A,$08,$19,$00	Melody
E4B2	DEFB $9A,$08,$19,$00
E4B6	DEFB $9A,$08,$31,$00
E4BA	DEFB $8C,$03,$75,$00
E4BE	DEFB $9A,$08,$19,$00
E4C2	DEFB $8C,$03,$75,$00
E4C6	DEFB $9A,$08,$19,$00
E4CA	DEFB $8C,$03,$75,$00
E4CE	DEFB $3E,$04,$62,$00
E4D2	DEFB $C6,$04,$57,$00
E4D6	DEFB $9A,$08,$19,$00
E4DA	DEFB $9A,$08,$19,$00
E4DE	DEFB $9A,$08,$31,$00
E4E2	DEFB $8C,$03,$75,$00
E4E6	DEFB $9A,$08,$19,$00
E4EA	DEFB $8C,$03,$75,$00
E4EE	DEFB $9A,$08,$19,$00
E4F2	DEFB $8C,$03,$75,$00
E4F6	DEFB $3E,$04,$31,$00
E4FA	DEFB $C6,$04,$2C,$00
E4FE	DEFB $B3,$05,$25,$00
E502	DEFB $6A,$06,$21,$00
E506	DEFB $00,$FE
E508	DEFB $9A,$08,$19,$00	Melody
E50C	DEFB $9A,$08,$19,$00
E510	DEFB $9A,$08,$31,$00
E514	DEFB $CA,$02,$93,$00
E518	DEFB $9A,$08,$19,$00
E51C	DEFB $CA,$02,$93,$00
E520	DEFB $9A,$08,$19,$00
E524	DEFB $CA,$02,$93,$00
E528	DEFB $9A,$08,$19,$00
E52C	DEFB $CA,$02,$93,$00
E530	DEFB $26,$03,$83,$00
E534	DEFB $8C,$03,$75,$00
E538	DEFB $00,$FE
E53A	DEFB $9A,$08,$19,$00	Melody
E53E	DEFB $9A,$08,$19,$00
E542	DEFB $9A,$08,$31,$00
E546	DEFB $CA,$02,$93,$00
E54A	DEFB $9A,$08,$19,$00
E54E	DEFB $CA,$02,$93,$00
E552	DEFB $9A,$08,$19,$00
E556	DEFB $CA,$02,$93,$00
E55A	DEFB $26,$03,$41,$00
E55E	DEFB $8C,$03,$3A,$00
E562	DEFB $3E,$04,$31,$00
E566	DEFB $C6,$04,$2C,$00
E56A	DEFB $00,$FE
E56C	DEFB $9A,$08,$19,$00	Melody
E570	DEFB $9A,$08,$19,$00
E574	DEFB $9A,$08,$31,$00
E578	DEFB $CA,$02,$93,$00
E57C	DEFB $9A,$08,$19,$00
E580	DEFB $CA,$02,$93,$00
E584	DEFB $9A,$08,$19,$00
E588	DEFB $CA,$02,$93,$00
E58C	DEFB $54,$02,$57,$00
E590	DEFB $79,$02,$52,$00
E594	DEFB $CA,$02,$49,$00
E598	DEFB $26,$03,$41,$00
E59C	DEFB $54,$02,$57,$00
E5A0	DEFB $C4,$03,$37,$00
E5A4	DEFB $3E,$04,$31,$00
E5A8	DEFB $C4,$03,$37,$00
E5AC	DEFB $57,$03,$3E,$00
E5B0	DEFB $C4,$03,$37,$00
E5B4	DEFB $3E,$04,$31,$00
E5B8	DEFB $C6,$04,$2C,$00
E5BC	DEFB $B3,$05,$25,$00
E5C0	DEFB $6A,$06,$21,$00
E5C4	DEFB $A6,$07,$1C,$00
E5C8	DEFB $00,$FE
E5CA	DEFB $9A,$08,$31,$00	Melody
E5CE	DEFB $00,$FF,$00,$FF
E5D2	DEFB $00,$FF,$00,$FF
E5D6	DEFB $00,$FF,$00,$FF
E5DA	DEFB $00,$FF
E5DC	DEFB $00,$FD	Melody end/restart

E5DE: Data block at E5DE


E5DE	DEFB $00,$00,$00,$00,$00,$00,$00,$00
E5E6	DEFB $00,$00,$00,$00,$00,$00,$00,$00
E5EE	DEFB $00,$00,$00,$00,$00,$00,$00,$00
E5F6	DEFB $00,$00,$00,$00,$00,$00,$00,$00
E5FE	DEFB $00,$00,$00,$00,$00,$00,$00,$00
E606	DEFB $00,$00,$00,$00,$00,$00,$00,$00
E60E	DEFB $00,$00,$00,$00,$00,$00,$00,$00
E616	DEFB $00,$00,$00,$00,$00,$00,$00,$00
E61E	DEFB $00,$00,$00,$00,$00,$00,$00,$00
E626	DEFB $00,$00,$00,$00,$00,$00,$00,$00
E62E	DEFB $00,$00,$00,$00,$00,$00,$00,$00
E636	DEFB $00,$00,$00,$00,$00,$00,$00,$00
E63E	DEFB $00,$00,$00,$00,$00,$00,$00,$00
E646	DEFB $FF,$00,$FF,$00,$FF,$00,$FF,$00
E64E	DEFB $FF,$00,$FF,$00,$FF,$00,$FF,$01
E656	DEFB $FC,$01,$FC,$01,$FC,$01,$FC,$01
E65E	DEFB $FC,$01,$00,$03,$00,$FF,$00,$FF
E666	DEFB $20,$FC,$01,$FC,$01,$FC,$01,$FC
E66E	DEFB $01,$FC,$01,$FC,$01,$FC,$01,$FC
E676	DEFB $01,$20,$00,$FF,$00,$FF,$00,$03
E67E	DEFB $FC,$01,$FC,$01,$FC,$01,$FC,$01
E686	DEFB $FC,$01,$20,$FF,$00,$FF,$00,$FF
E68E	DEFB $00,$FF,$00,$FF,$00,$00,$00,$00
E696	DEFB $FF,$00,$FF,$20,$00,$00,$00,$00
E69E	DEFB $00,$00,$00,$00,$00,$00,$00,$00
E6A6	DEFB $00,$00,$00,$00,$00,$00,$FF,$00
E6AE	DEFB $FF,$00,$00,$FF,$00,$FF,$00,$FF
E6B6	DEFB $00,$FF,$00,$FF,$00,$20,$3F,$80
E6BE	DEFB $3F,$80,$3F,$80,$3F,$80,$3F,$80
E6C6	DEFB $00,$C0,$00,$FF,$00,$FF,$20,$3F
E6CE	DEFB $80,$3F,$80,$3F,$80,$3F,$80,$3F
E6D6	DEFB $80,$3F,$80,$3F,$80,$3F,$80,$20
E6DE	DEFB $00,$FF,$00,$FF,$00,$C0,$3F,$80
E6E6	DEFB $3F,$80,$3F,$80,$3F,$80,$3F,$80
E6EE	DEFB $20,$00,$00,$00,$00,$00,$00,$00
E6F6	DEFB $00,$00,$00,$00,$00,$00,$00,$00
E6FE	DEFB $00,$00

E700: Ninja/Guard tiles, tiles with mask, 159 tiles, 16 bytes each


Used to draw Ninja tiles on Tile Screen 2 (see B1A3), and Guard tiles on Tile Screen 4 (see B230).
E700	DEFB $00,$FF,$00,$FE,$01,$FC,$03,$F8,$03,$F8,$07,$F0,$07,$F0,$07,$F0
E710	DEFB $00,$FF,$00,$3F,$C0,$1F,$E0,$0F,$F0,$07,$F0,$07,$50,$07,$20,$07
E720	DEFB $00,$FF,$00,$FE,$01,$FC,$01,$FC,$00,$FC,$01,$FC,$03,$F8,$07,$F0
E730	DEFB $77,$00,$E7,$00,$DF,$00,$3F,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00
E740	DEFB $F0,$07,$F0,$07,$F0,$03,$EC,$01,$9E,$00,$FE,$00,$FF,$00,$FF,$00
E750	DEFB $07,$F0,$0F,$E0,$0F,$E0,$0E,$E0,$0E,$E0,$0E,$E0,$0E,$E0,$07,$F0
E760	DEFB $DF,$00,$9F,$00,$2F,$00,$6F,$00,$6F,$00,$77,$00,$77,$00,$77,$00
E770	DEFB $EF,$00,$FF,$00,$FD,$00,$FD,$00,$FE,$00,$FE,$00,$FE,$00,$FE,$00
E780	DEFB $80,$3F,$C0,$04,$FB,$00,$FF,$00,$7F,$00,$0F,$80,$00,$F0,$00,$FF
E790	DEFB $00,$FF,$00,$FF,$00,$3F,$C0,$1F,$C0,$1F,$C0,$1F,$00,$3F,$00,$FF
E7A0	DEFB $07,$F0,$03,$F8,$03,$F8,$01,$FC,$00,$FE,$00,$FF,$00,$FF,$00,$FF
E7B0	DEFB $B4,$00,$C4,$00,$C7,$10,$07,$30,$0F,$E0,$0F,$E0,$1F,$C0,$1F,$C0
E7C0	DEFB $02,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$CF,$00
E7D0	DEFB $00,$FF,$00,$7F,$80,$3F,$80,$3F,$C0,$1F,$C0,$1F,$E0,$0F,$E0,$0F
E7E0	DEFB $1F,$C0,$3F,$80,$3E,$80,$3E,$80,$7E,$00,$7C,$01,$7C,$01,$7C,$01
E7F0	DEFB $07,$30,$03,$78,$03,$F8,$01,$FC,$01,$FC,$01,$FC,$00,$FE,$00,$FE
E800	DEFB $F0,$07,$F0,$07,$F0,$07,$F0,$07,$F0,$07,$F0,$07,$F0,$07,$E0,$0F
E810	DEFB $7C,$01,$44,$01,$3C,$81,$3C,$81,$38,$83,$38,$83,$7C,$01,$7C,$01
E820	DEFB $A0,$0F,$E0,$0F,$E0,$0F,$E0,$0F,$E0,$0F,$F0,$03,$FC,$01,$FE,$00
E830	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$87,$78,$03,$FC,$01
E840	DEFB $00,$FF,$00,$FF,$00,$C7,$38,$83,$3C,$81,$3C,$81,$1C,$C1,$1C,$C1
E850	DEFB $00,$FE,$00,$FE,$00,$FE,$00,$FE,$00,$FE,$00,$F8,$06,$F0,$0C,$E0
E860	DEFB $FE,$00,$EA,$00,$E4,$00,$FE,$00,$FE,$00,$7E,$00,$FD,$00,$FF,$00
E870	DEFB $18,$C3,$1C,$C1,$1C,$C1,$1C,$C1,$3C,$81,$7C,$01,$FC,$01,$F8,$03
E880	DEFB $0B,$E0,$07,$F0,$07,$F0,$07,$F0,$0F,$E0,$0F,$E0,$0F,$E0,$0F,$E0
E890	DEFB $FF,$00,$FB,$00,$FB,$00,$FF,$00,$DF,$00,$BE,$00,$8E,$00,$76,$00
E8A0	DEFB $F0,$07,$E0,$0F,$E0,$0F,$80,$0F,$70,$07,$F8,$03,$F8,$03,$F8,$03
E8B0	DEFB $0F,$E0,$0F,$E0,$07,$F0,$00,$F8,$01,$FC,$00,$FE,$00,$FF,$00,$FF
E8C0	DEFB $F7,$00,$F1,$00,$EE,$00,$1F,$00,$BF,$00,$DF,$00,$1C,$00,$0B,$E0
E8D0	DEFB $48,$03,$78,$03,$F8,$03,$78,$03,$B4,$01,$AC,$01,$BC,$01,$B8,$03
E8E0	DEFB $0F,$E0,$0F,$E0,$07,$F0,$07,$F0,$07,$F0,$02,$F8,$03,$F8,$03,$F8
E8F0	DEFB $80,$07,$80,$3F,$80,$3F,$80,$3F,$40,$1F,$C0,$1F,$C0,$1F,$80,$3F
E900	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FE,$01,$FC,$03,$F8,$07,$E0,$1F,$C0
E910	DEFB $00,$C7,$38,$83,$7C,$01,$FC,$01,$F8,$03,$C0,$07,$C0,$1F,$80,$3F
E920	DEFB $F0,$07,$F8,$03,$A8,$02,$91,$00,$FB,$00,$FF,$00,$FF,$00,$FF,$00
E930	DEFB $3F,$80,$7E,$00,$FC,$01,$F8,$03,$F0,$07,$E0,$0F,$D0,$07,$E8,$03
E940	DEFB $FE,$00,$FF,$00,$7F,$00,$C7,$00,$BB,$00,$BB,$00,$DD,$00,$5D,$00
E950	DEFB $E8,$03,$74,$01,$F4,$01,$F8,$00,$FB,$00,$FF,$00,$FB,$00,$F7,$00
E960	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00
E970	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$60,$9F,$00,$FE,$00,$FE,$00,$FF,$00
E980	DEFB $6E,$00,$2F,$80,$37,$80,$1F,$C0,$0E,$E0,$00,$F1,$00,$FF,$00,$FF
E990	DEFB $E7,$00,$4F,$00,$5F,$00,$7E,$00,$7F,$00,$3F,$80,$3F,$80,$1F,$C0
E9A0	DEFB $FF,$00,$FC,$00,$C0,$00,$07,$30,$07,$70,$0F,$60,$9F,$00,$AE,$00
E9B0	DEFB $1E,$00,$00,$E1,$00,$0F,$F0,$07,$F0,$07,$E0,$0F,$00,$1F,$00,$FF
E9C0	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$78,$87,$00,$FB,$00,$FB,$00,$FF,$00
E9D0	DEFB $0F,$E0,$07,$F0,$03,$F8,$01,$FC,$00,$FE,$00,$FF,$00,$FF,$00,$FF
E9E0	DEFB $E8,$01,$E8,$03,$F0,$07,$E0,$0F,$C0,$1F,$00,$3F,$00,$FF,$00,$FF
E9F0	DEFB $07,$80,$77,$00,$6F,$00,$DF,$00,$DE,$00,$DF,$00,$DF,$00,$CF,$00
EA00	DEFB $F0,$07,$F0,$07,$F0,$03,$EC,$01,$3E,$00,$C0,$00,$FF,$00,$FF,$00
EA10	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$F8,$07,$C0,$3F,$00,$FF,$00,$FF,$00
EA20	DEFB $D7,$00,$D9,$00,$6E,$00,$6F,$00,$6F,$00,$37,$80,$37,$80,$0F,$C0
EA30	DEFB $FF,$00,$FC,$00,$02,$00,$FE,$00,$FE,$00,$FE,$00,$FE,$00,$FE,$00
EA40	DEFB $F0,$00,$00,$0F,$00,$3F,$C0,$1F,$E0,$0F,$E0,$0F,$C0,$1F,$00,$3F
EA50	DEFB $04,$F0,$04,$F0,$07,$F0,$07,$F0,$0F,$E0,$0F,$E0,$1F,$C0,$1F,$C0
EA60	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$83,$7C,$01
EA70	DEFB $00,$FE,$00,$FE,$00,$FE,$00,$F8,$06,$F0,$0F,$E0,$1F,$C0,$1D,$C0
EA80	DEFB $FE,$00,$FE,$00,$FE,$00,$AB,$00,$92,$00,$FE,$00,$7F,$00,$9F,$00
EA90	DEFB $00,$7F,$00,$7F,$00,$3F,$C0,$1F,$E0,$0F,$E0,$0F,$E0,$0F,$E0,$0F
EAA0	DEFB $3D,$80,$38,$80,$37,$80,$2F,$80,$6F,$00,$6F,$00,$6F,$00,$6B,$00
EAB0	DEFB $FE,$00,$FE,$00,$FE,$00,$C3,$00,$FF,$00,$FF,$00,$FF,$00,$CF,$00
EAC0	DEFB $F0,$07,$F0,$07,$F0,$07,$70,$07,$70,$07,$B0,$07,$B8,$03,$B8,$03
EAD0	DEFB $6D,$00,$37,$80,$37,$80,$37,$80,$37,$80,$37,$80,$6F,$00,$6F,$00
EAE0	DEFB $07,$30,$07,$70,$07,$70,$07,$70,$07,$70,$07,$70,$07,$70,$03,$78
EAF0	DEFB $B8,$03,$B8,$03,$D8,$03,$D8,$03,$D8,$03,$D8,$03,$D8,$03,$B8,$03
EB00	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$E7,$18,$C3,$3C,$81,$3C,$81,$38,$83
EB10	DEFB $70,$04,$73,$00,$E7,$00,$E7,$00,$E7,$00,$E7,$00,$F7,$00,$F7,$00
EB20	DEFB $00,$3F,$C0,$1F,$E0,$0F,$E0,$0F,$E0,$0F,$E0,$09,$E6,$00,$E7,$00
EB30	DEFB $E3,$00,$DC,$00,$BF,$00,$BF,$00,$BF,$00,$BF,$00,$BF,$00,$BF,$00
EB40	DEFB $D7,$00,$33,$00,$FB,$00,$FB,$00,$FB,$00,$FB,$00,$FB,$00,$FE,$00
EB50	DEFB $7F,$00,$3F,$80,$3F,$80,$3F,$80,$1F,$80,$20,$80,$20,$80,$3F,$80
EB60	DEFB $FC,$01,$F8,$03,$F8,$03,$F8,$03,$F0,$07,$10,$07,$30,$07,$F8,$03
EB70	DEFB $7F,$00,$FF,$00,$FF,$00,$DF,$00,$EF,$00,$F0,$00,$FC,$00,$7C,$01
EB80	DEFB $F8,$03,$F8,$03,$F8,$03,$F8,$03,$FC,$01,$FC,$01,$FC,$01,$7E,$00
EB90	DEFB $5C,$01,$64,$01,$3C,$81,$3C,$81,$3C,$81,$1E,$C0,$1E,$C0,$1E,$C0
EBA0	DEFB $7E,$00,$3E,$80,$3E,$80,$1E,$C0,$3E,$80,$3C,$81,$7C,$01,$58,$03
EBB0	DEFB $0E,$E0,$0E,$E0,$0D,$E0,$0D,$E0,$01,$F0,$03,$F8,$03,$F8,$03,$F8
EBC0	DEFB $E8,$03,$F0,$07,$E0,$0F,$E0,$0F,$C0,$1F,$C0,$1F,$E0,$0F,$F0,$07
EBD0	DEFB $01,$FC,$03,$F8,$03,$F8,$03,$F8,$03,$F8,$03,$F8,$01,$FC,$01,$FC
EBE0	DEFB $02,$F8,$02,$F8,$03,$F8,$02,$F8,$02,$F8,$00,$FC,$00,$FE,$00,$FF
EBF0	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FE,$01,$FC,$03,$F8
EC00	DEFB $00,$FE,$01,$FC,$01,$FC,$03,$F8,$03,$18,$E3,$00,$DF,$00,$B1,$00
EC10	DEFB $F0,$07,$F8,$03,$F8,$03,$F8,$03,$C8,$03,$C8,$03,$F0,$07,$F0,$07
EC20	DEFB $03,$F8,$06,$F0,$06,$F0,$0D,$E0,$0D,$E0,$0D,$E0,$0B,$E0,$0B,$E0
EC30	DEFB $6E,$00,$EF,$00,$EF,$00,$F7,$00,$F7,$00,$FB,$00,$FB,$00,$FD,$00
EC40	DEFB $E0,$0C,$83,$10,$4F,$00,$B8,$00,$D7,$00,$CF,$00,$FF,$00,$FE,$00
EC50	DEFB $0A,$E0,$04,$F0,$07,$F0,$07,$F0,$07,$F0,$07,$F0,$03,$F8,$01,$FC
EC60	DEFB $79,$00,$10,$06,$D0,$07,$F0,$07,$E0,$0F,$F0,$07,$F0,$07,$F0,$07
EC70	DEFB $F8,$01,$E0,$07,$00,$1F,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF
EC80	DEFB $01,$FC,$00,$FE,$00,$FE,$00,$FE,$00,$FE,$01,$F8,$07,$80,$7B,$00
EC90	DEFB $F8,$03,$F8,$03,$FC,$01,$FC,$01,$FE,$00,$FE,$00,$FE,$00,$F8,$01
ECA0	DEFB $03,$F8,$03,$F8,$07,$F0,$07,$F0,$06,$F0,$04,$F1,$00,$FB,$00,$FF
ECB0	DEFB $FD,$00,$F8,$00,$80,$07,$00,$7F,$00,$FF,$00,$FF,$00,$FF,$00,$FF
ECC0	DEFB $F0,$07,$70,$07,$50,$07,$70,$07,$70,$07,$30,$83,$3C,$81,$3E,$80
ECD0	DEFB $0A,$E0,$04,$F0,$07,$F0,$07,$F0,$07,$F0,$07,$F0,$03,$F8,$03,$F8
ECE0	DEFB $79,$00,$10,$06,$D0,$07,$E0,$07,$F0,$03,$FC,$00,$FF,$00,$FF,$00
ECF0	DEFB $F8,$01,$E0,$07,$00,$1F,$00,$FF,$00,$FF,$00,$FF,$00,$3F,$C0,$1F
ED00	DEFB $01,$FC,$01,$FC,$01,$FC,$01,$FC,$01,$FC,$03,$F8,$03,$F8,$07,$F0
ED10	DEFB $FF,$00,$FF,$00,$F3,$00,$E3,$08,$E7,$00,$C8,$00,$DF,$00,$BC,$00
ED20	DEFB $E0,$0F,$F0,$07,$F0,$07,$E0,$0F,$C0,$1F,$80,$3F,$00,$7F,$00,$FF
ED30	DEFB $07,$F0,$0A,$E0,$1E,$C0,$3C,$80,$78,$02,$70,$02,$7C,$01,$3E,$80
ED40	DEFB $70,$03,$60,$0F,$E0,$0F,$C0,$1F,$C0,$1F,$80,$3F,$00,$7F,$00,$FF
ED50	DEFB $79,$00,$10,$06,$D0,$07,$F0,$07,$F8,$01,$FE,$00,$FF,$00,$FF,$00
ED60	DEFB $F8,$01,$E0,$07,$00,$1F,$00,$FF,$00,$FF,$00,$FF,$00,$7F,$80,$3F
ED70	DEFB $01,$FC,$01,$FC,$03,$F8,$03,$F8,$07,$F0,$07,$F0,$0F,$C0,$3F,$00
ED80	DEFB $FF,$00,$FF,$00,$E7,$00,$C3,$18,$C5,$10,$86,$30,$8F,$20,$0F,$60
ED90	DEFB $C0,$1F,$C0,$1F,$C0,$1F,$C0,$1F,$80,$3F,$80,$3F,$00,$7F,$00,$7F
EDA0	DEFB $00,$FC,$03,$F0,$0F,$E0,$1F,$C0,$1C,$C0,$1C,$C1,$1C,$C1,$0E,$E0
EDB0	DEFB $DF,$00,$DC,$00,$E0,$03,$00,$1F,$00,$FF,$00,$FF,$00,$FF,$00,$FF
EDC0	DEFB $1E,$C0,$1C,$C1,$18,$C3,$1C,$C1,$0C,$E1,$0E,$E0,$06,$F0,$00,$F9
EDD0	DEFB $79,$00,$10,$06,$D0,$07,$F0,$07,$F0,$07,$F8,$03,$F8,$03,$FC,$01
EDE0	DEFB $1C,$C1,$1C,$C1,$1C,$C1,$18,$C3,$18,$C3,$18,$C2,$39,$80,$3B,$80
EDF0	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FC,$03,$F8
EE00	DEFB $07,$F0,$07,$F0,$0F,$E0,$0F,$E0,$1F,$C0,$3E,$00,$FE,$00,$FC,$01
EE10	DEFB $FE,$00,$FF,$00,$FF,$00,$BF,$00,$0F,$40,$03,$F0,$01,$FC,$00,$FE
EE20	DEFB $00,$FF,$00,$7F,$80,$3F,$C0,$1F,$C0,$1F,$C0,$1F,$E0,$0F,$E0,$0F
EE30	DEFB $0B,$C0,$3B,$80,$3C,$80,$70,$03,$60,$0F,$E0,$0F,$C0,$1F,$C0,$1F
EE40	DEFB $F0,$03,$80,$0F,$00,$7F,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF
EE50	DEFB $A0,$0F,$E0,$0F,$70,$07,$70,$07,$70,$07,$70,$03,$7C,$01,$3E,$80
EE60	DEFB $1F,$C0,$11,$C0,$1E,$C0,$1F,$C0,$1F,$C0,$0F,$E0,$0F,$E0,$0F,$E0
EE70	DEFB $FC,$01,$F8,$01,$64,$01,$9C,$01,$BC,$01,$BC,$01,$DC,$01,$DC,$01
EE80	DEFB $0F,$E0,$07,$F0,$07,$F0,$07,$F0,$07,$F0,$07,$F0,$07,$F0,$03,$F8
EE90	DEFB $DC,$01,$DC,$01,$DC,$01,$DC,$01,$DC,$01,$BC,$01,$DC,$01,$DC,$01
EEA0	DEFB $02,$F8,$03,$F8,$03,$F8,$03,$F8,$03,$F8,$03,$F8,$03,$F8,$01,$FC
EEB0	DEFB $58,$03,$C8,$03,$D8,$03,$D8,$03,$D8,$03,$D8,$03,$D8,$03,$B0,$07
EEC0	DEFB $1C,$C1,$1C,$C1,$1C,$C1,$0C,$E1,$0C,$E1,$0C,$01,$EC,$01,$F4,$01
EED0	DEFB $3A,$80,$3A,$80,$3B,$80,$3D,$80,$3F,$80,$3D,$80,$5F,$00,$5F,$00
EEE0	DEFB $B6,$00,$56,$00,$F6,$00,$F6,$00,$F6,$00,$EE,$00,$9E,$00,$FE,$00
EEF0	DEFB $5F,$00,$5F,$00,$5F,$00,$5F,$00,$5F,$00,$6F,$00,$6F,$00,$77,$00
EF00	DEFB $FE,$00,$FE,$00,$F6,$00,$F6,$00,$FE,$00,$FE,$00,$FC,$01,$FC,$01
EF10	DEFB $77,$00,$77,$00,$37,$80,$08,$C0,$08,$E0,$0F,$E0,$0F,$E0,$1F,$C0
EF20	DEFB $FC,$01,$FC,$01,$F8,$01,$04,$01,$04,$01,$FC,$01,$FC,$01,$FC,$01
EF30	DEFB $02,$F8,$02,$F8,$00,$FC,$01,$FC,$01,$FC,$01,$FC,$01,$FC,$00,$FE
EF40	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FE,$01,$FC,$03,$F8
EF50	DEFB $03,$F8,$06,$F0,$0F,$C0,$37,$80,$7B,$00,$7B,$00,$FB,$00,$F6,$00
EF60	DEFB $ED,$00,$EF,$00,$F7,$00,$7B,$00,$BC,$00,$DF,$00,$C7,$00,$B8,$00
EF70	DEFB $7D,$00,$73,$00,$66,$00,$00,$99,$00,$FF,$00,$FF,$00,$FF,$00,$FF
EF80	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$1F,$E0,$0F,$F0,$07
EF90	DEFB $70,$07,$30,$07,$10,$07,$A0,$0F,$C0,$1F,$00,$3F,$C0,$07,$38,$03
EFA0	DEFB $9C,$01,$DC,$01,$FA,$00,$C6,$00,$36,$00,$F4,$01,$E0,$03,$00,$1F
EFB0	DEFB $80,$1F,$00,$7F,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF
EFC0	DEFB $00,$FF,$00,$FF,$00,$FE,$01,$FC,$01,$FC,$03,$F8,$03,$F8,$02,$F8
EFD0	DEFB $00,$FF,$00,$FF,$00,$FC,$03,$F8,$07,$F0,$07,$F0,$06,$F0,$07,$F0
EFE0	DEFB $00,$FF,$00,$FF,$00,$3F,$C0,$1F,$E0,$0F,$E0,$0F,$00,$0F,$00,$0F
EFF0	DEFB $00,$FF,$00,$FE,$01,$FC,$03,$F8,$02,$F8,$01,$FC,$03,$F8,$07,$F0
F000	DEFB $07,$30,$CF,$00,$BF,$00,$7F,$00,$FF,$00,$FF,$00,$FF,$00,$EF,$00
F010	DEFB $E0,$0F,$C0,$0F,$B0,$07,$F8,$03,$FC,$01,$FE,$00,$DF,$00,$DF,$00
F020	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$7F,$80,$3F
F030	DEFB $07,$F0,$0F,$E0,$0F,$E0,$0E,$E0,$0F,$E0,$07,$E0,$0B,$E0,$0D,$E0
F040	DEFB $9F,$00,$7F,$00,$7F,$00,$FF,$00,$7F,$00,$7F,$00,$9F,$00,$EF,$00
F050	DEFB $B7,$00,$E3,$08,$E1,$0C,$E0,$0E,$C0,$00,$DE,$00,$FF,$00,$FF,$00
F060	DEFB $C0,$1F,$C0,$1F,$E0,$0F,$F0,$07,$70,$07,$78,$03,$38,$03,$78,$03
F070	DEFB $0E,$E0,$0D,$E0,$01,$F0,$01,$FC,$01,$FC,$01,$FC,$03,$F8,$03,$F8
F080	DEFB $F7,$00,$77,$00,$8F,$00,$FF,$00,$FB,$00,$F0,$04,$F0,$07,$E0,$0E
F090	DEFB $FF,$00,$FF,$00,$FE,$00,$DC,$01,$3C,$01,$78,$03,$70,$07,$E0,$0F
F0A0	DEFB $78,$03,$30,$07,$00,$CF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF
F0B0	DEFB $03,$F8,$03,$F8,$07,$F0,$07,$F0,$07,$F0,$07,$F0,$0F,$E0,$0E,$E0
F0C0	DEFB $C1,$1C,$C1,$1C,$C1,$1C,$81,$3C,$81,$3C,$00,$7E,$00,$7F,$00,$FF
F0D0	DEFB $C0,$1F,$80,$3F,$80,$3F,$80,$3F,$00,$7F,$00,$FF,$00,$FF,$00,$FF
F0E0	DEFB $0E,$E0,$1C,$C1,$1C,$C1,$18,$C3,$38,$83,$38,$83,$78,$03,$78,$03

F0F0: Dog tiles, tiles with mask, 61 tiles, 16 bytes each


Used to draw tiles from Tile screen 3, see B1FC.
F0F0	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$F0
F100	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$8F,$70,$03
F110	DEFB $00,$FF,$00,$FF,$00,$FE,$01,$FC,$03,$F8,$04,$70,$88,$03,$70,$07
F120	DEFB $0F,$C0,$3F,$80,$7F,$00,$FF,$00,$7F,$00,$FE,$00,$7F,$00,$0F,$80
F130	DEFB $00,$00,$FF,$00,$EF,$00,$EF,$00,$FF,$00,$FF,$00,$7F,$00,$7F,$00
F140	DEFB $EC,$01,$7E,$00,$BE,$00,$E8,$01,$86,$10,$80,$39,$80,$3F,$00,$7F
F150	DEFB $00,$8F,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF
F160	DEFB $06,$F0,$06,$F0,$0D,$E0,$0C,$E0,$05,$F0,$06,$F0,$03,$F8,$01,$FC
F170	DEFB $BC,$00,$86,$00,$73,$00,$C1,$0C,$80,$1E,$61,$0C,$32,$00,$00,$4D
F180	DEFB $00,$FF,$00,$FF,$00,$7F,$80,$3F,$80,$3F,$00,$7F,$00,$FF,$00,$FF
F190	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FE,$01,$FC,$01,$FC,$03,$00
F1A0	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$7F,$80,$07,$F8,$03,$F4,$01,$3E,$00
F1B0	DEFB $00,$F0,$0F,$E0,$17,$00,$EF,$00,$0F,$00,$1F,$C0,$1F,$C0,$0D,$E0
F1C0	DEFB $00,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$EF,$00,$F7,$00,$F4,$00
F1D0	DEFB $FE,$00,$F7,$00,$EF,$00,$EF,$00,$F7,$00,$FF,$00,$FF,$00,$FD,$00
F1E0	DEFB $FF,$00,$78,$00,$BE,$00,$C0,$01,$80,$3F,$80,$3F,$C0,$1F,$E0,$0F
F1F0	DEFB $0E,$E0,$0E,$E0,$1C,$C1,$30,$82,$60,$0E,$40,$1E,$60,$0E,$20,$8F
F200	DEFB $F0,$03,$E0,$0F,$60,$0F,$C0,$1F,$C0,$1F,$80,$3F,$C0,$0F,$70,$07
F210	DEFB $02,$00,$00,$FC,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF
F220	DEFB $F0,$07,$30,$07,$58,$03,$2C,$80,$37,$80,$03,$C8,$00,$FC,$00,$FF
F230	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$E0
F240	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$1F
F250	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$8F,$70,$03
F260	DEFB $00,$FF,$00,$FE,$01,$FC,$02,$F8,$05,$80,$79,$00,$00,$80,$05,$F0
F270	DEFB $1F,$C0,$3F,$00,$FF,$00,$FF,$00,$FF,$00,$FC,$00,$E0,$03,$C0,$1F
F280	DEFB $E0,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$7F,$00,$1F,$80,$07,$E0
F290	DEFB $FC,$01,$F6,$00,$7F,$00,$BF,$00,$DC,$00,$C0,$03,$C0,$1F,$00,$1F
F2A0	DEFB $1D,$C0,$23,$80,$0E,$80,$78,$01,$C0,$07,$00,$3F,$00,$FF,$00,$FF
F2B0	DEFB $C0,$1F,$80,$3F,$00,$7F,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF
F2C0	DEFB $0E,$E0,$0C,$E1,$08,$E3,$18,$C3,$10,$C7,$30,$87,$30,$87,$18,$C3
F2D0	DEFB $E0,$0F,$60,$0F,$30,$87,$10,$C7,$18,$C0,$0F,$E0,$07,$F0,$00,$F8
F2E0	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$F1,$0E,$80
F2F0	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$91
F300	DEFB $00,$FF,$00,$FF,$00,$FE,$00,$FE,$00,$FE,$00,$FE,$00,$FE,$00,$FE
F310	DEFB $7F,$00,$7F,$00,$FF,$00,$FF,$00,$F7,$00,$F7,$00,$EB,$00,$ED,$00
F320	DEFB $6E,$00,$5F,$00,$6D,$00,$72,$00,$B6,$00,$BE,$00,$D2,$00,$ED,$00
F330	DEFB $00,$7F,$80,$3F,$80,$3F,$80,$3F,$00,$7F,$00,$FF,$00,$FF,$00,$7F
F340	DEFB $00,$FE,$01,$FC,$01,$FC,$01,$FC,$00,$FE,$00,$FE,$00,$FF,$00,$FF
F350	DEFB $C4,$10,$84,$30,$84,$30,$8C,$21,$CC,$01,$C4,$01,$66,$00,$66,$00
F360	DEFB $F2,$00,$C6,$00,$C6,$10,$42,$18,$42,$18,$62,$08,$66,$00,$66,$00
F370	DEFB $00,$FC,$03,$F8,$03,$F8,$01,$FC,$01,$1C,$E3,$00,$DF,$00,$B1,$00
F380	DEFB $02,$00,$C6,$00,$6C,$00,$38,$00,$1C,$00,$36,$00,$63,$00,$40,$00
F390	DEFB $10,$00,$18,$00,$18,$00,$7F,$00,$FE,$00,$18,$00,$18,$00,$08,$00
F3A0	DEFB $00,$00,$00,$00,$20,$00,$FC,$00,$FF,$00,$20,$00,$00,$00,$00,$00
F3B0	DEFB $00,$00,$00,$00,$20,$00,$FC,$00,$FF,$00,$20,$00,$00,$00,$00,$00
F3C0	DEFB $00,$00,$00,$00,$3C,$00,$32,$00,$6E,$00,$6E,$00,$7C,$00,$00,$00
F3D0	DEFB $00,$00,$18,$00,$3C,$00,$62,$00,$6E,$00,$3E,$00,$1C,$00,$00,$00
F3E0	DEFB $1E,$00,$3E,$00,$7A,$00,$86,$00,$F4,$00,$F8,$00,$F0,$00,$00,$00
F3F0	DEFB $1E,$00,$3E,$00,$7A,$00,$86,$00,$F4,$00,$F8,$00,$F0,$00,$00,$00
F400	DEFB $00,$00,$00,$00,$00,$00,$FF,$00,$FF,$00,$00,$00,$00,$00,$00,$00
F410	DEFB $18,$00,$18,$00,$18,$00,$18,$00,$18,$00,$18,$00,$18,$00,$18,$00
F420	DEFB $00,$00,$0E,$00,$30,$00,$78,$00,$48,$00,$78,$00,$70,$00,$00,$00
F430	DEFB $00,$00,$1C,$00,$18,$00,$34,$00,$3C,$00,$3C,$00,$38,$00,$00,$00
F440	DEFB $1E,$C0,$3E,$80,$7A,$00,$86,$00,$F4,$01,$F8,$03,$F0,$07,$00,$0F
F450	DEFB $1E,$C0,$3E,$80,$7A,$00,$86,$00,$F4,$01,$F8,$03,$F0,$07,$00,$0F
F460	DEFB $FA,$00,$9E,$00,$BA,$00,$FA,$00,$FA,$00,$FE,$00,$FA,$00,$00,$00
F470	DEFB $BE,$00,$FE,$00,$BE,$00,$BE,$00,$BE,$00,$FE,$00,$BE,$00,$00,$00
F480	DEFB $08,$00,$18,$00,$38,$00,$7C,$00,$5E,$00,$5A,$00,$7E,$00,$3C,$00
F490	DEFB $08,$00,$08,$00,$1C,$00,$36,$00,$3A,$00,$3A,$00,$3E,$00,$1C,$00
F4A0	DEFB $3C,$00,$7A,$00,$DF,$00,$FF,$00,$FD,$00,$FF,$00,$76,$00,$3C,$00
F4B0	DEFB $3C,$00,$76,$00,$DF,$00,$FF,$00,$FF,$00,$FF,$00,$6E,$00,$3C,$00
F4C0	DEFB $7C,$01,$FC,$01,$FC,$01,$C8,$03,$98,$03,$08,$03,$38,$03,$90,$07
F4D0	DEFB $F0,$04,$83,$00,$0F,$00,$B8,$00,$D7,$00,$CF,$00,$FF,$00,$FE,$00
F4E0	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FE,$01,$FC,$01,$FC
F4F0	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$C1,$3E,$00,$FE,$00,$FE,$00
F500	DEFB $00,$FE,$00,$FE,$00,$FE,$00,$FE,$00,$FE,$00,$FA,$05,$F0,$0B,$E0
F510	DEFB $C4,$01,$AC,$01,$84,$01,$9C,$01,$E8,$01,$FE,$00,$FF,$00,$FF,$00
F520	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FC,$03,$F8,$03,$F8,$01,$FC,$01,$FC
F530	DEFB $00,$FF,$00,$FF,$00,$83,$7C,$01,$FC,$01,$FC,$01,$88,$03,$58,$03
F540	DEFB $01,$FC,$03,$00,$DF,$00,$3F,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00
F550	DEFB $08,$03,$38,$03,$D0,$03,$FC,$01,$FE,$00,$FE,$00,$FF,$00,$FF,$00
F560	DEFB $00,$FE,$01,$F8,$07,$F0,$07,$F0,$07,$F0,$01,$F8,$01,$FC,$01,$FC
F570	DEFB $78,$03,$F8,$03,$E8,$02,$59,$00,$0B,$00,$BF,$00,$DF,$00,$FF,$00
F580	DEFB $01,$FC,$03,$C0,$2F,$80,$5F,$00,$DE,$00,$DF,$00,$DF,$00,$CF,$00
F590	DEFB $08,$03,$38,$03,$D0,$03,$FC,$01,$3E,$00,$C0,$00,$FF,$00,$FF,$00
F5A0	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF
F5B0	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$3F,$C0,$1F,$E0,$07,$38,$00
F5C0	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$C0,$3F,$00,$FF,$00,$FE,$00
F5D0	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FF,$00,$FC,$03,$80,$7F,$00
F5E0	DEFB $00,$1F,$E0,$0F,$F0,$07,$F0,$07,$F0,$01,$F6,$00,$EF,$00,$07,$10
F5F0	DEFB $DF,$00,$FF,$00,$FF,$00,$FF,$00,$3F,$00,$D7,$00,$D1,$00,$A0,$06
F600	DEFB $71,$00,$8F,$00,$BF,$00,$7F,$00,$73,$00,$7C,$00,$BF,$00,$4F,$00
F610	DEFB $F8,$00,$FF,$00,$FF,$00,$07,$00,$FF,$00,$FF,$00,$3F,$00,$CE,$00
F620	DEFB $00,$F0,$07,$C0,$3E,$00,$F9,$00,$E7,$00,$DF,$00,$BF,$00,$38,$00
F630	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$80,$7F,$00,$FF,$00,$FF,$00,$7E,$00
F640	DEFB $00,$FF,$00,$FE,$01,$FC,$03,$F8,$07,$F0,$07,$F0,$06,$F0,$06,$F0
F650	DEFB $00,$FF,$00,$1F,$E0,$0F,$F0,$07,$F0,$07,$F0,$07,$B0,$07,$50,$07
F660	DEFB $F0,$07,$F0,$07,$F0,$01,$EC,$00,$1E,$00,$FE,$00,$FF,$00,$FF,$00
F670	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
F680	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
F690	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
F6A0	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
F6B0	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00,$00
F6C0	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$FE,$00,$FE,$00,$98,$67,$00,$7F,$00
F6D0	DEFB $00,$F0,$0D,$C0,$2B,$00,$ED,$00,$EE,$00,$B6,$00,$5B,$00,$6B,$00
F6E0	DEFB $00,$0F,$B0,$03,$D4,$00,$B7,$00,$77,$00,$ED,$00,$DA,$00,$D6,$00
F6F0	DEFB $00,$FF,$00,$FF,$00,$FF,$00,$7F,$00,$7F,$00,$19,$E6,$00,$FE,$00

F700: Background tiles, 59 tiles, 9 bytes each


Used to draw background level, see B177.
F700	DEFB $FE,$82,$A2,$A2,$BA,$82,$FE,$00,$30
F709	DEFB $7F,$41,$7F,$00,$7F,$41,$7F,$00,$20
F712	DEFB $FF,$80,$80,$80,$FF,$08,$08,$08,$08
F71B	DEFB $FF,$FF,$08,$FF,$80,$FF,$08,$08,$08
F724	DEFB $02,$7A,$42,$52,$52,$5A,$42,$7A,$30
F72D	DEFB $EF,$8C,$AC,$AF,$AF,$8C,$EC,$0F,$30
F736	DEFB $6F,$4C,$6C,$0F,$6F,$4C,$6C,$0F,$20
F73F	DEFB $EF,$8C,$8C,$8F,$EF,$0C,$0C,$0F,$08
F748	DEFB $F6,$32,$32,$F2,$F2,$32,$36,$F0,$30
F751	DEFB $F7,$31,$37,$F0,$F7,$31,$37,$F0,$20
F75A	DEFB $F7,$30,$30,$F0,$F7,$30,$30,$F0,$08
F763	DEFB $40,$5F,$41,$41,$41,$5D,$41,$5F,$30
F76C	DEFB $D5,$95,$A5,$A5,$A9,$A5,$95,$D5,$10
F775	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$08
F77E	DEFB $E0,$E0,$F0,$DC,$C7,$C0,$C0,$C0,$08
F787	DEFB $00,$00,$00,$00,$80,$F8,$0F,$00,$08
F790	DEFB $00,$00,$00,$00,$00,$0F,$F8,$00,$08
F799	DEFB $01,$01,$07,$1C,$F0,$80,$00,$00,$08
F7A2	DEFB $C0,$C0,$C0,$C0,$C0,$C0,$C0,$C0,$08
F7AB	DEFB $FF,$80,$80,$00,$F7,$F0,$F0,$F0,$08
F7B4	DEFB $FF,$80,$80,$80,$EF,$0F,$0F,$0F,$08
F7BD	DEFB $83,$01,$01,$01,$01,$01,$83,$FF,$28
F7C6	DEFB $F0,$FC,$FE,$1F,$07,$FA,$FC,$F0,$22
F7CF	DEFB $FD,$82,$82,$84,$F4,$08,$08,$08,$08
F7D8	DEFB $D0,$90,$90,$90,$A0,$20,$20,$20,$08
F7E1	DEFB $40,$40,$40,$40,$80,$80,$80,$80,$08
F7EA	DEFB $FF,$FF,$FF,$00,$00,$00,$00,$00,$0A
F7F3	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$20
F7FC	DEFB $BF,$40,$40,$20,$2F,$10,$10,$10,$08
F805	DEFB $0B,$08,$08,$08,$05,$04,$04,$04,$08
F80E	DEFB $02,$02,$02,$02,$01,$01,$01,$01,$08
F817	DEFB $7F,$7F,$7F,$3F,$3F,$1F,$0F,$03,$39
F820	DEFB $FE,$FE,$FE,$FC,$FC,$F8,$F0,$C0,$39
F829	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$38
F832	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$28
F83B	DEFB $00,$00,$00,$00,$00,$00,$00,$00,$20
F844	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$F0,$20
F84D	DEFB $F7,$79,$7B,$3C,$BD,$9E,$12,$FF,$20
F856	DEFB $7F,$41,$7F,$00,$7F,$41,$00,$FF,$20
F85F	DEFB $FF,$FE,$F9,$F0,$CF,$A1,$77,$F0,$20
F868	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$FF,$FF,$20
F871	DEFB $FF,$FE,$FE,$FC,$FB,$F1,$CF,$80,$20
F87A	DEFB $EF,$E1,$EF,$E0,$DF,$C1,$BF,$80,$20
F883	DEFB $01,$03,$07,$0F,$1F,$3F,$7F,$FF,$20
F88C	DEFB $F6,$F6,$F6,$F4,$F5,$ED,$EB,$E8,$20
F895	DEFB $07,$07,$03,$03,$03,$01,$01,$01,$20
F89E	DEFB $FF,$7F,$3F,$1F,$1F,$0F,$0F,$07,$20
F8A7	DEFB $F3,$FC,$FF,$FF,$FF,$FF,$FF,$FF,$20
F8B0	DEFB $7F,$41,$7F,$80,$CF,$F1,$FC,$FF,$20
F8B9	DEFB $41,$BF,$BF,$DF,$DF,$DF,$DF,$DF,$20
F8C2	DEFB $FF,$FF,$FF,$FF,$FF,$FF,$C3,$00,$20
F8CB	DEFB $FF,$FF,$FE,$FE,$FE,$FD,$FD,$F8,$20
F8D4	DEFB $79,$47,$6F,$1F,$5F,$3F,$3F,$7F,$20
F8DD	DEFB $FB,$FD,$FE,$E6,$DF,$DB,$E7,$FF,$20
F8E6	DEFB $73,$4D,$6E,$0E,$6E,$46,$77,$02,$20
F8EF	DEFB $47,$39,$FB,$C0,$3F,$41,$7F,$00,$20
F8F8	DEFB $FF,$00,$7F,$45,$51,$7F,$00,$FF,$28
F901	DEFB $82,$AA,$AA,$AA,$AA,$AA,$AA,$82,$28
F90A	DEFB $99,$B9,$B9,$99,$9D,$99,$99,$99,$28

F913: Routine at F913

Used by the routine at F9E7.
F913	LD A,$04
F915	LD ($89B4),A
F918	LD A,$F4
F91A	LD ($89B6),A
F91D	LD HL,$0D1B
F920	LD BC,$0505
F923	LD DE,$0506
F926	LD A,($E1EC)
F929	CP $34
F92B	JR NC,$F94D
F92D	LD E,$0B
F92F	LD A,$17
F931	LD ($89B4),A
F934	LD A,$E1
F936	LD ($89B6),A
F939	LD A,($E1EC)
F93C	CP $33
F93E	JR Z,$F94D
F940	LD C,$0F
F942	LD D,$0B
F944	CP $32
F946	JR Z,$F94D
F948	LD B,$0A
F94A	LD HL,$1216
F94D	LD A,H
F94E	LD ($8D46),A
F951	LD A,B
F952	LD ($8CAF),A
F955	LD A,C
F956	LD ($8A53),A
F959	LD A,D
F95A	LD ($8A01),A
F95D	LD A,E
F95E	LD ($88EC),A
F961	LD A,L
F962	LD ($8D48),A
F965	JP $B3B0
This entry point is used by the routine at AEF0.
F968	JP Z,$B040
F96B	CP $30
F96D	JP Z,$B040
F970	JP $AF9C

F973: Room 84A8 initialization

Used by the routine at B66A.
F973	LD HL,$65DA	tile screen address
F976	LD DE,$F98F	block address
F979	LD C,$06	6 rows
F97B	LD B,$03	3 columns
F97D	LD A,(DE)
F97E	LD (HL),A
F97F	INC HL
F980	INC DE
F981	DJNZ $F97D
F983	PUSH DE
F984	LD DE,$001B
F987	ADD HL,DE
F988	POP DE
F989	DEC C
F98A	JR NZ,$F97B
F98C	JP $B422

F98F: Block 3x6 tiles for room 84A8


F98F	DEFB $82,$83,$84	Back block 3x6 - crane
F992	DEFB $85,$86,$87
F995	DEFB $85,$88,$89
F998	DEFB $8A,$8B,$89
F99B	DEFB $82,$83,$84
F99E	DEFB $00,$8C,$00

F9A1: Sound ??

Used by the routines at B596, FA28 and FA31.
F9A1	RL B
F9A3	RL B
F9A5	RL B
F9A7	RL B
F9A9	LD HL,$0000
F9AC	LD A,(HL)
F9AD	AND $F8
F9AF	OUT ($FE),A
F9B1	LD C,(HL)
F9B2	INC HL
F9B3	DEC C
F9B4	JR NZ,$F9B3
F9B6	DJNZ $F9AC
F9B8	RET

F9B9: Pause, then wait for any key pressed

Used by the routine at BEB3.
F9B9	LD DE,$0000
F9BC	DEC DE
F9BD	LD B,$05
F9BF	DJNZ $F9BF
F9C1	LD A,D
F9C2	OR E
F9C3	JR NZ,$F9BC
F9C5	CALL $BBDF	Read Input
F9C8	LD A,($7222)
F9CB	CP $00
F9CD	LD A,($7232)	get Input bits
F9D0	JR Z,$F9D7
F9D2	BIT 4,A
F9D4	RET NZ
F9D5	JR $F9C5
F9D7	XOR A
F9D8	LD ($5C08),A	clear LASTK
F9DB	RST $38
F9DC	LD A,($5C08)	get LASTK
F9DF	CP $00
F9E1	RET NZ
F9E2	JR $F9C5

F9E4: Routine at F9E4


F9E4	CALL $6590	Prepare screen, show anti-piracy message, and wait for any key

F9E7: Start point after loading


F9E7	LD A,$21
F9E9	LD ($AEDB),A
F9EC	LD A,$C6
F9EE	LD ($AEDC),A
F9F1	CALL $BC13
F9F4	CALL $F913
F9F7	JR $F9F4

F9F9: Routine at F9F9

Used by the routine at BD37.
F9F9	LD HL,$00B4
F9FC	LD B,$01
F9FE	CALL $FA11
FA01	LD HL,$BDAF
FA04	RET
FA05	LD HL,$018F
FA08	LD B,$10
FA0A	CALL $FA11
FA0D	LD A,($71CF)
FA10	RET

FA11: Routine at FA11

Used by the routine at F9F9.
FA11	LD A,$10
FA13	OUT ($FE),A
FA15	LD A,B
FA16	DEC A
FA17	JR NZ,$FA16
FA19	INC B
FA1A	XOR A
FA1B	OUT ($FE),A
FA1D	LD A,L
FA1E	AND $F8
FA20	OUT ($FE),A
FA22	DEC HL
FA23	LD A,H
FA24	OR L
FA25	JR NZ,$FA11
FA27	RET

FA28: Routine at FA28

Used by the routine at BAD5.
FA28	LD B,$01
FA2A	CALL $F9A1
FA2D	LD A,($7184)	get current room address low byte
FA30	RET

FA31: Decrease Energy by B + Sound

Used by the routine at A434.
FA31	CALL $9DD9	Decrease Energy by B
FA34	LD B,$01
FA36	CALL $F9A1	Sound
FA39	RET

FA3A: Data block at FA3A


FA3A	DEFB $00,$00,$00,$00,$00,$00,$00,$00
FA42	DEFB $00,$00,$00,$00,$00,$00,$00,$00
FA4A	DEFB $00,$00,$00,$00,$00,$00,$00,$00
FA52	DEFB $00,$00,$00,$00,$00,$00,$00,$00
FA5A	DEFB $00,$00,$00,$00,$00,$00,$00,$00
FA62	DEFB $00,$00,$00,$00,$00,$00,$00,$00
FA6A	DEFB $00,$00,$00,$00,$00,$00,$00,$00
FA72	DEFB $00,$00,$00,$00,$00,$00,$00,$00
FA7A	DEFB $00,$FF,$60,$04,$FF,$FF,$10,$86
FA82	DEFB $FF,$28,$00,$00,$00,$00,$00,$00
FA8A	DEFB $00,$00,$00,$DF,$FB,$DF,$FF,$F7
FA92	DEFB $FF,$DF,$FF,$08,$DF,$FB,$DF,$FF
FA9A	DEFB $F7,$FF,$DF,$FF,$08,$DF,$FB,$DF
FAA2	DEFB $FF,$F7,$FF,$DF,$FF,$08,$DF,$FB
FAAA	DEFB $DF,$FF,$F7,$FF,$DF,$FF,$08,$00
FAB2	DEFB $00,$00,$00,$FF,$FF,$00,$FF,$10
FABA	DEFB $00,$00,$00,$00,$FF,$FF,$00,$FF
FAC2	DEFB $10,$00,$00,$00,$00,$FF,$FF,$00
FACA	DEFB $FF,$10,$DF,$FB,$DF,$FF,$F7,$FF
FAD2	DEFB $DF,$FF,$08,$DF,$FB,$DF,$FF,$F7
FADA	DEFB $FF,$DF,$FF,$08,$DF,$FB,$DF,$FF
FAE2	DEFB $F7,$FF,$DF,$FF,$08,$DF,$FB,$DF
FAEA	DEFB $FF,$F7,$FF,$DF,$FF,$08,$DF,$FB
FAF2	DEFB $DF,$FF,$F7,$FF,$DF,$FF,$08,$DF
FAFA	DEFB $FB,$DF,$FF,$F7,$FF,$DF,$FF,$08
FB02	DEFB $DF,$FB,$DF,$FF,$F7,$FF,$DF,$FF
FB0A	DEFB $08,$DF,$FB,$DF,$FF,$F7,$FF,$DF
FB12	DEFB $FF,$08,$DF,$FB,$DF,$FF,$F7,$FF
FB1A	DEFB $DF,$FF,$08,$DF,$FB,$DF,$FF,$F7
FB22	DEFB $FF,$DF,$FF,$08,$DF,$FB,$DF,$FF
FB2A	DEFB $F7,$FF,$DF,$FF,$08,$DF,$FB,$DF
FB32	DEFB $FF,$F7,$FF,$DF,$FF,$08,$DF,$FB
FB3A	DEFB $DF,$FF,$F7,$FF,$DF,$FF,$08,$DF
FB42	DEFB $FB,$DF,$FF,$F7,$FF,$DF,$FF,$08
FB4A	DEFB $DF,$FB,$DF,$FF,$F7,$FF,$DF,$FF
FB52	DEFB $08,$DF,$FB,$DF,$FF,$F7,$FF,$DF
FB5A	DEFB $FF,$08,$DF,$FB,$DF,$FF,$F7,$FF
FB62	DEFB $DF,$FF,$08,$DF,$FB,$DF,$FF,$F7
FB6A	DEFB $FF,$DF,$FF,$08,$DF,$FB,$DF,$FF
FB72	DEFB $F7,$FF,$DF,$FF,$08,$DF,$FB,$DF
FB7A	DEFB $FF,$F7,$FF,$DF,$FF,$08,$DF,$FB
FB82	DEFB $DF,$FF,$F7,$FF,$DF,$FF,$08,$00
FB8A	DEFB $00,$00,$00,$FF,$FF,$00,$FF,$10
FB92	DEFB $1F,$FA,$FF,$A0,$A0,$FF,$F5,$1F
FB9A	DEFB $28,$FF,$AA,$FF,$00,$00,$FF,$55
FBA2	DEFB $FF,$28,$F8,$AF,$FF,$05,$05,$FF
FBAA	DEFB $5F,$F8,$28,$6E,$62,$62,$62,$62
FBB2	DEFB $62,$6E,$60,$30,$96,$97,$DB,$19
FBBA	DEFB $DA,$9A,$9A,$9A,$30,$B4,$74,$EC
FBC2	DEFB $CC,$2C,$8C,$EC,$0C,$30,$DA,$9A
FBCA	DEFB $B2,$B2,$B2,$B2,$B6,$30,$30,$EC
FBD2	DEFB $8C,$AC,$AC,$AC,$8C,$EC,$0C,$30
FBDA	DEFB $62,$62,$6E,$60,$67,$6F,$5D,$5A
FBE2	DEFB $30,$B6,$B2,$B2,$B2,$32,$B2,$D6
FBEA	DEFB $D0,$30,$FB,$18,$9C,$2E,$86,$C6
FBF2	DEFB $FE,$7C,$30,$00,$00,$00,$00,$00
FBFA	DEFB $00,$00,$00,$00,$00,$00,$00,$00
FC02	DEFB $00,$00,$00,$00,$00,$00,$00,$00
FC0A	DEFB $00,$00,$00,$00,$00,$00,$00,$00
FC12	DEFB $00,$00,$00,$00,$00,$00,$00,$FE
FC1A	DEFB $FE,$C6,$38,$28,$28,$28,$7C,$21
FC22	DEFB $FE,$82,$A2,$22,$CA,$F2,$FC,$FF
FC2A	DEFB $31,$CE,$F2,$FC,$FF,$FF,$FF,$FF
FC32	DEFB $FF,$31,$BE,$C2,$E2,$F2,$FA,$FC
FC3A	DEFB $FE,$FF,$31,$00,$00,$00,$00,$00
FC42	DEFB $00,$00,$00,$08,$F3,$8F,$3F,$FF
FC4A	DEFB $FF,$FF,$FF,$FF,$31,$FE,$82,$A2
FC52	DEFB $A0,$B3,$8F,$3F,$FF,$31,$FD,$83
FC5A	DEFB $A7,$AF,$9F,$BF,$7F,$FF,$31,$07
FC62	DEFB $1B,$63,$87,$63,$1B,$07,$03,$28
FC6A	DEFB $F0,$CC,$C3,$E1,$C6,$D8,$E0,$C0
FC72	DEFB $28,$FF,$FF,$FF,$FF,$FE,$FC,$F8
FC7A	DEFB $F0,$32,$F0,$F8,$FC,$FE,$FF,$FF
FC82	DEFB $FF,$FF,$32,$FF,$FF,$FF,$FF,$7F
FC8A	DEFB $3F,$1F,$0F,$32,$0F,$1F,$3F,$7F
FC92	DEFB $FF,$FF,$FF,$FF,$32,$07,$07,$07
FC9A	DEFB $07,$FF,$FF,$FF,$FF,$20,$FF,$FF
FCA2	DEFB $FF,$FF,$E0,$E0,$E0,$E0,$20,$E0
FCAA	DEFB $E0,$E0,$E0,$FF,$FF,$FF,$FF,$20
FCB2	DEFB $70,$70,$70,$70,$70,$70,$70,$70
FCBA	DEFB $20,$00,$00,$00,$00,$00,$00,$00
FCC2	DEFB $00,$10,$1C,$1C,$1C,$1C,$1C,$1C
FCCA	DEFB $1C,$1C,$20,$0E,$0E,$0E,$0E,$0E
FCD2	DEFB $0E,$0E,$0E,$20,$FF,$FF,$FF,$FF
FCDA	DEFB $07,$07,$07,$07,$20,$38,$38,$38
FCE2	DEFB $38,$FF,$FF,$FF,$FF,$20,$38,$38
FCEA	DEFB $38,$38,$38,$38,$38,$38,$20,$FF
FCF2	DEFB $FF,$FF,$FF,$38,$38,$38,$38,$20
FCFA	DEFB $00,$FE,$02,$02,$02,$0A,$02,$02
FD02	DEFB $28,$02,$02,$02,$02,$02,$CA,$02
FD0A	DEFB $FE,$28,$A0,$A0,$A0,$A0,$A0,$A0
FD12	DEFB $A0,$A0,$28,$A0,$A0,$A0,$A0,$A0
FD1A	DEFB $BF,$80,$FF,$28,$E0,$E0,$70,$70
FD22	DEFB $B8,$B8,$DC,$1C,$20,$00,$00,$00
FD2A	DEFB $00,$80,$80,$C0,$C0,$20,$EE,$8E
FD32	DEFB $A7,$A7,$BB,$83,$FD,$01,$30,$FF
FD3A	DEFB $FF,$7F,$7F,$B8,$B8,$DC,$1C,$20
FD42	DEFB $0E,$0E,$07,$07,$FF,$FF,$FF,$FF
FD4A	DEFB $20,$00,$00,$00,$00,$FF,$FF,$FF
FD52	DEFB $FF,$20,$00,$FF,$80,$A0,$A0,$A0
FD5A	DEFB $A0,$A0,$28,$C0,$C0,$C0,$E0,$E0
FD62	DEFB $E0,$70,$70,$20,$01,$01,$01,$00
FD6A	DEFB $00,$00,$00,$00,$20,$00,$00,$00
FD72	DEFB $00,$00,$80,$80,$80,$20,$0E,$0E
FD7A	DEFB $07,$07,$07,$03,$03,$03,$20,$70
FD82	DEFB $38,$38,$38,$1C,$1C,$1C,$0E,$20
FD8A	DEFB $FF,$FF,$FF,$FF,$00,$00,$00,$00
FD92	DEFB $20,$FF,$FF,$FF,$FF,$E0,$E0,$70
FD9A	DEFB $70,$20,$D8,$9C,$9D,$9F,$9F,$9D
FDA2	DEFB $DC,$18,$30,$1A,$3A,$BA,$FA,$FA
FDAA	DEFB $BA,$3A,$18,$30,$02,$02,$02,$02
FDB2	DEFB $02,$0A,$02,$02,$28,$00,$00,$00
FDBA	DEFB $00,$00,$00,$00,$00,$20,$07,$07
FDC2	DEFB $0E,$0E,$1C,$1C,$3A,$38,$20,$76
FDCA	DEFB $72,$E2,$E2,$DA,$C2,$BE,$80,$30
FDD2	DEFB $00,$00,$00,$00,$01,$01,$03,$03
FDDA	DEFB $20,$FF,$FF,$FE,$FE,$1C,$1C,$3A
FDE2	DEFB $38,$20,$70,$70,$E0,$E0,$FF,$FF
FDEA	DEFB $FF,$FF,$20,$BC,$BC,$9A,$9A,$9A
FDF2	DEFB $9A,$BC,$3C,$30,$80,$80,$80,$00
FDFA	DEFB $00,$00,$00,$00,$20,$03,$03,$03
FE02	DEFB $07,$07,$07,$0E,$0E,$20,$70,$70
FE0A	DEFB $E0,$E0,$E0,$C0,$C0,$C0,$20,$00
FE12	DEFB $00,$00,$00,$00,$01,$01,$01,$20
FE1A	DEFB $0E,$1C,$1C,$1C,$38,$38,$38,$70
FE22	DEFB $20,$FF,$FF,$FF,$FF,$07,$07,$0E
FE2A	DEFB $0E,$20,$7F,$41,$55,$41,$55,$41
FE32	DEFB $7F,$80,$28,$B6,$7D,$00,$00,$00
FE3A	DEFB $00,$00,$00,$0E,$D8,$BE,$46,$DB
FE42	DEFB $A3,$B6,$CD,$7A,$0E,$03,$01,$02
FE4A	DEFB $03,$01,$02,$01,$02,$0E,$C3,$3D
FE52	DEFB $66,$4E,$5E,$5E,$3C,$C3,$28,$FF
FE5A	DEFB $73,$00,$8C,$FF,$FF,$00,$FF,$28
FE62	DEFB $3C,$7E,$BD,$BD,$BD,$A5,$7E,$C3
FE6A	DEFB $20,$7F,$41,$3C,$DB,$5A,$DB,$3C
FE72	DEFB $3C,$20,$7F,$41,$00,$FF,$FF,$FF
FE7A	DEFB $00,$00,$20,$00,$41,$7F,$00,$7F
FE82	DEFB $41,$7F,$00,$20,$FF,$FF,$FF,$FF
FE8A	DEFB $FF,$FF,$FF,$FF,$20,$0F,$3F,$7F
FE92	DEFB $FF,$FF,$FF,$FF,$FF,$20,$00,$41
FE9A	DEFB $7F,$00,$7F,$41,$00,$FF,$20,$5D
FEA2	DEFB $5D,$5D,$3C,$3D,$3D,$24,$FF,$20
FEAA	DEFB $7B,$47,$6F,$1E,$3C,$78,$F0,$E0
FEB2	DEFB $20,$E0,$C0,$C0,$80,$80,$00,$00
FEBA	DEFB $00,$20,$7D,$41,$7B,$03,$77,$47
FEC2	DEFB $6F,$0F,$20,$6E,$4E,$5C,$1D,$5D
FECA	DEFB $5D,$5D,$1F,$20,$5F,$4F,$6F,$0F
FED2	DEFB $6F,$4F,$77,$07,$20,$77,$47,$7B
FEDA	DEFB $03,$7B,$41,$7D,$00,$20,$7F,$41
FEE2	DEFB $7F,$00,$03,$7C,$7F,$1F,$20,$FF
FEEA	DEFB $7F,$3F,$1F,$63,$40,$7F,$00,$20
FEF2	DEFB $66,$FF,$FF,$99,$66,$FF,$FF,$AA
FEFA	DEFB $0D,$FF,$80,$3E,$C1,$1C,$E3,$08
FF02	DEFB $FF,$10,$42,$7E,$42,$52,$42,$52
FF0A	DEFB $42,$7E,$27,$FF,$00,$80,$60,$1B
FF12	DEFB $04,$02,$01,$08,$01,$FE,$01,$00
FF1A	DEFB $00,$00,$00,$00,$08,$FF,$00,$00
FF22	DEFB $00,$FF,$FF,$FF,$FF,$29,$80,$7F
FF2A	DEFB $80,$00,$00,$00,$00,$00,$08,$FF
FF32	DEFB $80,$81,$86,$D8,$20,$40,$80,$08
FF3A	DEFB $00,$22,$FF,$00,$FF,$22,$00,$00
FF42	DEFB $07,$32,$2E,$7B,$26,$32,$2E,$7B
FF4A	DEFB $26,$07,$F0,$31,$3F,$F1,$F0,$31
FF52	DEFB $3F,$F1,$20,$0F,$8C,$FC,$8F,$0F
FF5A	DEFB $8C,$FC,$8F,$20,$F1,$31,$3F,$F1
FF62	DEFB $F0,$31,$3F,$F1,$30,$0F,$8C,$FC
FF6A	DEFB $8F,$4F,$8C,$FC,$8F,$30,$F6,$31
FF72	DEFB $3F,$F1,$F6,$31,$3F,$F1,$08,$6F
FF7A	DEFB $8C,$FC,$8F,$6F,$8C,$FC,$8F,$08
FF82	DEFB $00,$00,$00,$00,$00,$00,$00,$00
FF8A	DEFB $08,$FF,$80,$80,$80,$EF,$0F,$0F
FF92	DEFB $0F,$08,$FF,$80,$80,$00,$F7,$F0
FF9A	DEFB $F0,$F0,$08,$84,$5B,$88,$F7,$22
FFA2	DEFB $D5,$FF,$FF,$30,$FF,$80,$3E,$C1
FFAA	DEFB $1C,$E3,$08,$FF,$10,$44,$10,$FF
FFB2	DEFB $00,$FF,$FF,$FF,$FF,$30,$66,$00
FFBA	DEFB $00,$00,$FF,$FF,$99,$99,$10,$B9
FFC2	DEFB $B3,$B1,$BB,$B9,$B3,$B3,$B3,$20
FFCA	DEFB $00,$00,$00,$00,$FF,$FF,$00,$FF
FFD2	DEFB $10,$3C,$66,$42,$C3,$81,$81,$00
FFDA	DEFB $00,$07,$D3,$D3,$D3,$D3,$D3,$D3
FFE2	DEFB $FF,$81,$08,$D3,$D3,$D3,$D3,$D3
FFEA	DEFB $D3,$D3,$D3,$08,$81,$FF,$D3,$D3
FFF2	DEFB $D3,$D3,$D3,$D3,$08

FFF7: Background tile $FF


FFF7	DEFB $DF,$FB,$DF,$FF,$F7,$FF,$DF,$FF,$08
